Allen Bradley 1734-OV8E Detailed Technical Overview
1. Product Overview

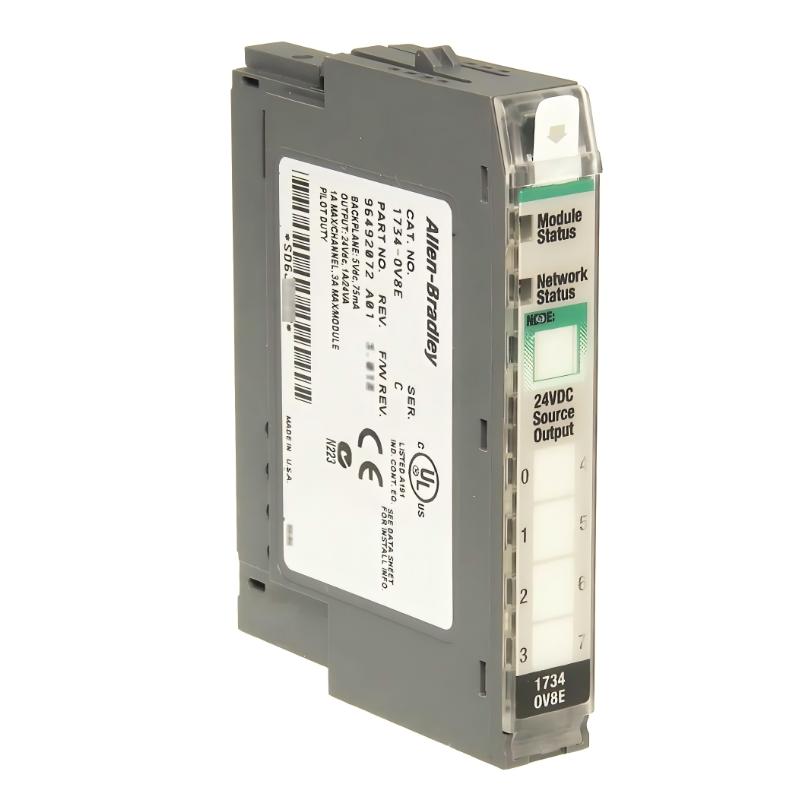

The Allen Bradley 1734-OV8E is an 8-channel digital DC sinking output module with integrated electronic protection, designed for use in distributed industrial automation systems. It acts as an interface between the control system and field devices, converting digital commands into electrical output signals.
This module provides eight independent 24V DC sinking outputs, which are typically used to control loads such as relays, solenoid valves, and indicator lights. The built-in electronic protection ensures that each channel is safeguarded against overloads and short circuits, improving system reliability and reducing downtime.
With its slim design and DIN rail mounting capability, the module is ideal for installation in compact control cabinets and modular automation systems.
2. Brand and Series
- Brand: Allen Bradley
- Series: 1734 Series
- Platform: POINT I/O
- Module Type: Digital DC Sinking Output (Electronically Protected)
The POINT I/O platform supports distributed I/O architecture, allowing modules to be placed closer to field devices, reducing wiring complexity and improving system efficiency.
3. Technical Specifications
Parameter Table
| Parameter | Specification |
|---|---|
| Model | 1734-OV8E |
| Output Type | Digital DC Sinking Output |
| Channels | 8 |
| Rated Voltage | 24V DC |
| Voltage Range | 10–28.8V DC |
| Output Current | Up to 1 A per channel (limited) |
| Total Module Current | Approx. 3 A |
| Protection | Electronic (overload, short circuit, thermal) |
| Output Configuration | Non-isolated |
| Output Response Time | Approx. 0.1 ms |
| Isolation Voltage | 50V continuous |
| Bus Current | Approx. 75 mA @ 5V DC |
| Power Dissipation | Approx. 2–3 W |
| Mounting | DIN Rail |
| Operating Temperature | -20°C to +55°C |
| Storage Temperature | -40°C to +85°C |
| Protection Rating | IP20 |
| Dimensions | Approx. 75 × 12 × 56 mm |
| Weight | ≈ 0.035–0.04 kg ( 0.035–0.04 ) |
4. Product Features
The 1734-OV8E is designed for efficient and reliable output control in industrial environments.
- Eight independent sinking output channels
- Built-in electronic protection for each output
- Fast switching response for real-time control
- LED indicators for channel and module status
- Compact design for high-density installations
- Modular architecture for flexible system expansion
These features support stable and safe operation in a wide range of industrial applications.
5. Product Applications
This module is commonly used in industrial systems where multiple DC sinking outputs are required.
Typical applications include:
- Automated production and assembly lines
- Conveyor and material handling systems
- Packaging and processing equipment
- Industrial control panels
- Solenoid valve and relay control systems
- Alarm and signal indication systems
It is particularly suitable for environments where reliable multi-channel output control with protection is necessary.
6. Product Advantages
Integrated Protection
Electronic protection reduces the risk of damage caused by overload or short circuits.
High Channel Density
Eight outputs in a single module improve system efficiency and reduce hardware requirements.
Space Saving
Slim design allows installation in compact control cabinets.
Reliable Performance
Ensures stable switching and long-term operational reliability.
Flexible Integration
Can be easily integrated into distributed I/O systems for scalable automation design.
7. Recommended Models (Same Series or Related)
POINT I/O Series Models
| Model | Type | Channels | Voltage | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|
| 1734-OV8 | Digital DC Output (Sink) | 8 | 24V DC | 75 × 12 × 56 | 0.035 ( 0.035 ) |
| 1734-OB8E | Protected DC Output (Source) | 8 | 24V DC | 75 × 12 × 56 | 0.05 ( 0.05 ) |
| 1734-OB4E | Protected DC Output | 4 | 24V DC | 75 × 12 × 56 | 0.04 ( 0.04 ) |
| 1734-OW4 | Relay Output | 4 | AC/DC | 75 × 12 × 56 | 0.12 ( 0.12 ) |
| 1734-IB8 | Digital Input | 8 | 24V DC | 75 × 12 × 56 | 0.10 ( 0.10 ) |
These modules can be combined within the same distributed I/O system to create flexible and efficient automation configurations.
