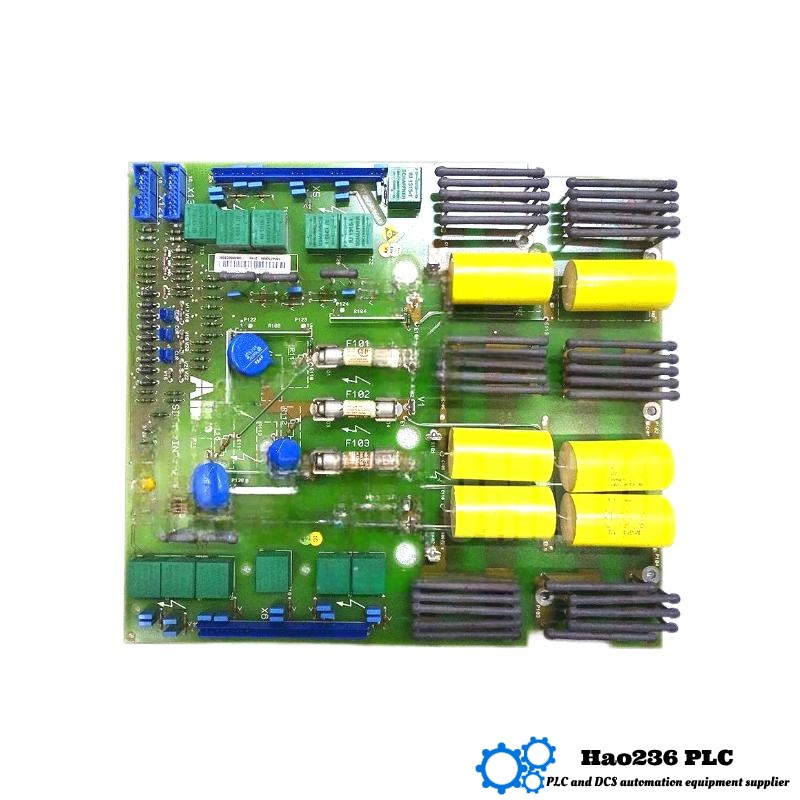

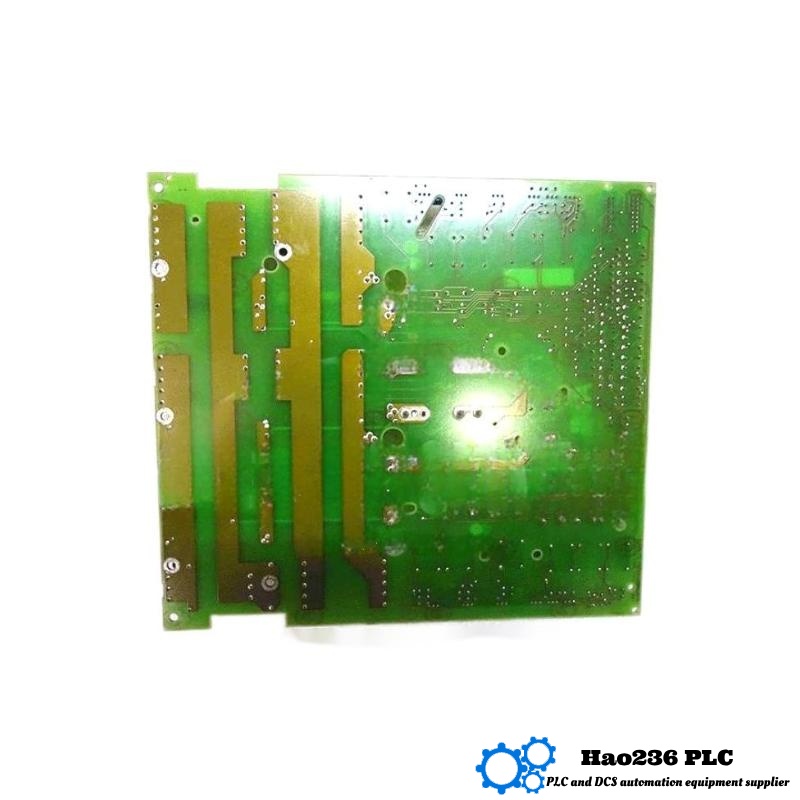

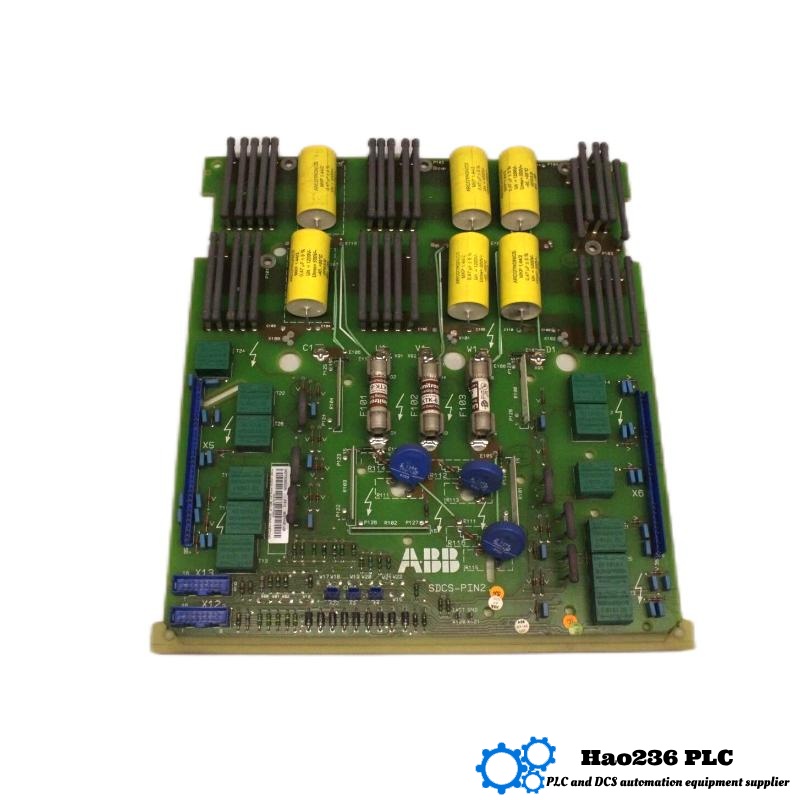

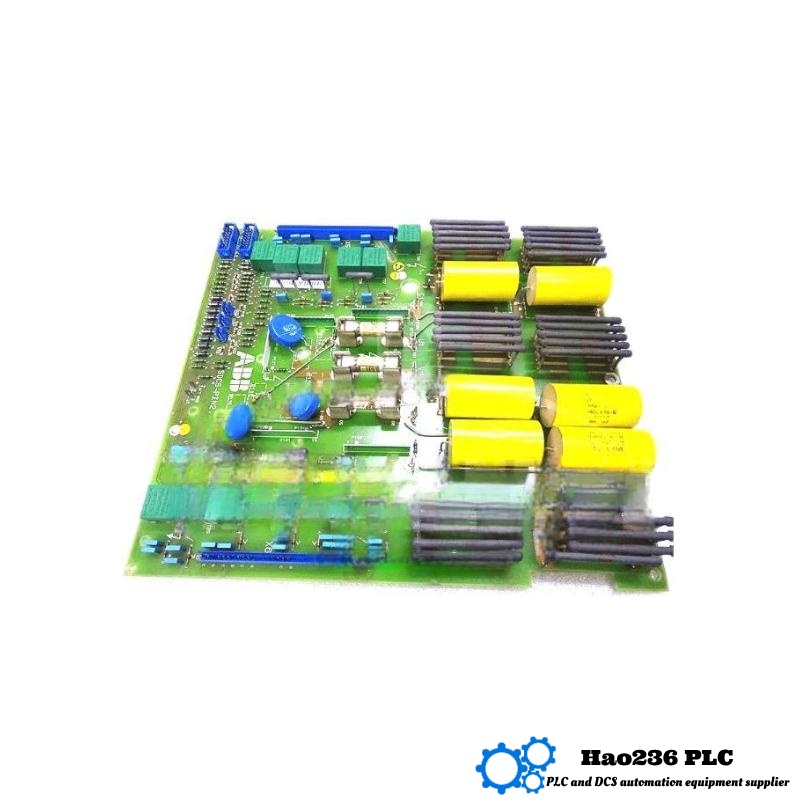

ABB SDCS-PIN-22 VFD Control Interface Circuit Board
Product Introduction
The ABB SDCS-PIN-22 is a sophisticated variable frequency drive (VFD) control interface circuit board designed to enhance the control of motors and power systems within industrial automation. It acts as a key component in the system’s overall functioning by providing efficient communication between the motor control unit and the drive, ensuring that operations run smoothly and efficiently. This circuit board is part of ABB’s SDCS range, which is known for high-quality, durable, and reliable industrial automation solutions.
The SDCS-PIN-22 plays an integral role in providing the necessary control and communication protocols for variable frequency drives, thereby optimizing motor performance and minimizing energy consumption. This board integrates seamlessly with ABB’s SDCS systems and offers exceptional compatibility with other ABB automation components, making it suitable for a wide variety of applications, from manufacturing to power generation.
Product Specifications
| Parameter | Specification |
|---|---|
| Product Name | ABB SDCS-PIN-22 |
| Type | VFD Control Interface Circuit Board |
| Dimensions | 156 x 154 x 20 mm |
| Weight | 0.6 kg |
| Input Voltage | 24 VDC |
| Output Voltage | Varies with system setup |
| Operating Temperature | –10°C to 60°C |
| Communication Protocol | SDCS Communication Interface |
| Mounting | DIN Rail Mountable |
Product Applications
The ABB SDCS-PIN-22 circuit board is designed for use in applications where motor control and variable frequency drives are crucial. These include:
-
Motor Control Systems: It provides the interface for controlling AC motors within various industrial machines.
-
Automated Manufacturing: Used in automated systems that require precise speed and torque control for manufacturing processes.
-
HVAC Systems: In HVAC systems, the SDCS-PIN-22 is used for controlling fan and pump motors, offering energy-efficient variable speed operation.
-
Power Generation: It’s used in power plants to control generator and pump motors, optimizing efficiency in energy production.
-
Conveyor Systems: The board is employed in conveyor belt systems, where precise motor control is essential for smooth operation and reliability.
Product Advantages
-
High Efficiency: The SDCS-PIN-22 ensures efficient motor control by maintaining optimal operating speeds, thereby reducing energy consumption and extending motor lifespan.
-
Seamless Integration: It integrates perfectly with ABB’s SDCS range, making it an ideal choice for users already working with ABB automation systems.
-
Robust and Reliable: Built with durable materials and designed for harsh industrial environments, the SDCS-PIN-22 offers long-term reliability and minimal maintenance needs.
-
Compact Design: The SDCS-PIN-22 has a small footprint (156 x 154 x 20 mm), allowing for easy installation in space-constrained environments without compromising performance.
-
Wide Temperature Range: It operates effectively in a wide range of temperatures, from –10°C to 60°C, ensuring stable performance in various industrial conditions.
Brand: ABB
ABB is a global leader in industrial automation, providing a wide range of products and solutions that help optimize industrial performance, reduce energy consumption, and improve overall system reliability. The SDCS series, which includes the SDCS-PIN-22, is part of ABB’s commitment to providing advanced control solutions for industries such as manufacturing, energy, and utilities. ABB’s focus on innovation and quality makes it a trusted name in industrial automation worldwide.
Recommended Models
Here are five additional models from the SDCS series or related ABB products that are suitable for similar applications:
| Model | Type | Key Features |
|---|---|---|
| SDCS-PIN-21 | VFD Control Interface | Similar functionality with minor design updates. |
| SDCS-PIN-23 | VFD Control Interface | Enhanced communication protocols and inputs. |
| SDCS-IOE-1 | I/O Expansion Board | Expands input/output capabilities for the system. |
| SDCS-IOC-01 | I/O Communication Module | Adds additional communication interfaces. |
| SDCS-PIN-24 | VFD Control Interface | Updated version with advanced protection features. |
Here are five other popular models from ABB that are commonly used in industrial automation systems:
| Model | Type | Dimensions (mm) | Weight (kg) |
|---|---|---|---|
| SDCS-PIN-22 | VFD Control Interface | 156 x 154 x 20 | 0.6 |
| SDCS-PIN-11 | VFD Control Interface | 156 x 154 x 20 | 0.55 |
| SDCS-IOB-23 | I/O Block Module | 200 x 150 x 30 | 0.7 |
| SDCS-IOE-2 | I/O Expansion Module | 220 x 160 x 35 | 0.75 |
| SDCS-FIS-3A | Fiber Interface Module | 180 x 140 x 25 | 0.65 |
FAQ (Frequently Asked Questions)
-
Q: What is the SDCS-PIN-22 used for?
A: The SDCS-PIN-22 is used for controlling variable frequency drives (VFD) by acting as an interface circuit board within ABB’s SDCS automation systems. -
Q: Can the SDCS-PIN-22 be integrated into an existing ABB system?
A: Yes, the SDCS-PIN-22 is designed for easy integration into existing ABB SDCS systems, enhancing compatibility and performance. -
Q: What is the input voltage required for the SDCS-PIN-22?
A: The SDCS-PIN-22 operates with a 24 VDC input voltage. -
Q: What is the temperature range of the SDCS-PIN-22?
A: The SDCS-PIN-22 operates within a temperature range of –10°C to 60°C. -
Q: How is the SDCS-PIN-22 mounted?
A: The SDCS-PIN-22 is designed to be mounted on a DIN rail, making it easy to install in industrial environments. -
Q: What communication protocol does the SDCS-PIN-22 use?
A: The SDCS-PIN-22 utilizes the SDCS communication protocol for seamless communication within ABB automation systems. -
Q: What are the dimensions of the SDCS-PIN-22?
A: The dimensions are 156 x 154 x 20 mm. -
Q: How much does the SDCS-PIN-22 weigh?
A: The SDCS-PIN-22 weighs 0.6 kg. -
Q: Can the SDCS-PIN-22 be used for motor control in various industries?
A: Yes, it is widely used for motor control in industries such as manufacturing, HVAC, and power generation. -
Q: Is the SDCS-PIN-22 durable for industrial environments?
A: Yes, the SDCS-PIN-22 is built with durable materials and is designed for long-term use in industrial settings.
