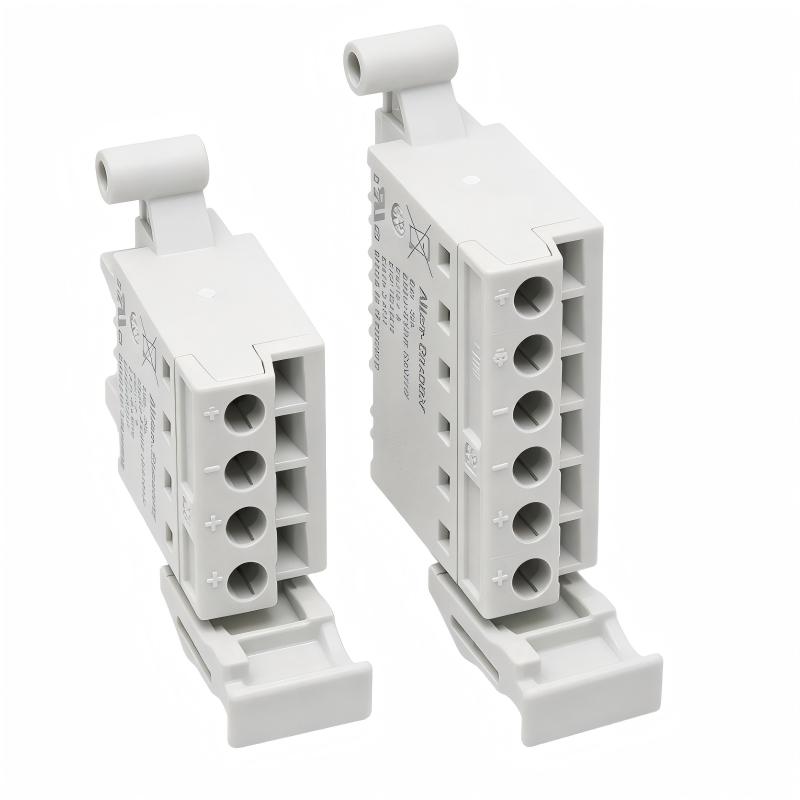

Product Overview
The Allen-Bradley 5069-RTB4-SCREW is a screw-type removable terminal block designed for compatible Allen-Bradley Compact 5000 I/O systems. Manufactured by Rockwell Automation, this component provides a detachable electrical connection point for supported I/O modules and adapters. It helps connect field or power wiring to the appropriate module terminals while allowing the terminal block to be removed when maintenance or component replacement is required.
Unlike a PLC processor or an I/O module, the 5069-RTB4-SCREW is a passive electrical connection accessory. It does not execute control logic, process input signals, or independently provide communication functions. Its purpose is to establish reliable wiring connections within a compatible Compact 5000 I/O installation.
The screw-terminal design secures conductors through screw-operated clamping mechanisms. When installed and tightened according to the manufacturer’s instructions, these connections help maintain electrical continuity in industrial control panels. The removable format also supports maintenance activities by allowing the terminal block to be separated from the compatible module when the equipment has been placed in a safe condition.

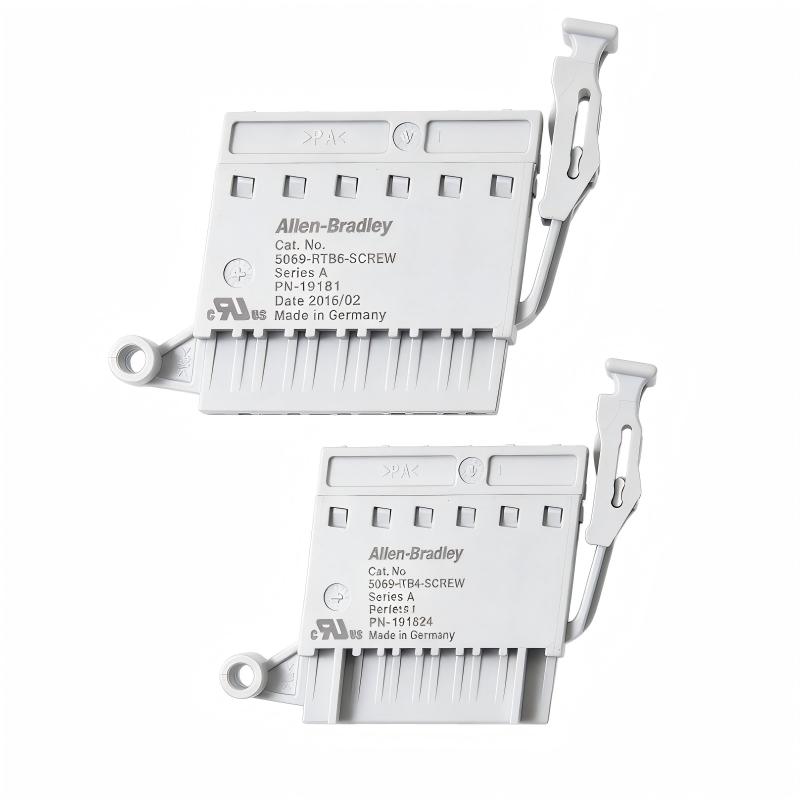

The 5069-RTB4-SCREW is associated with the four-point MOD power connection used in applicable Compact 5000 I/O configurations. The six-point SA power connection uses a different terminal-block model. For applications requiring both the four-point and six-point screw-type terminal blocks, the corresponding kit is catalog number 5069-RTB64-SCREW.
This distinction is important when ordering spare parts. The 5069-RTB4-SCREW is the four-point component, whereas 5069-RTB64-SCREW is the combined kit containing both the 5069-RTB4-SCREW and 5069-RTB6-SCREW.
For industrial maintenance teams, system integrators, and spare-parts buyers, correct identification helps prevent delays during installation and repair. The terminal block should always be selected according to the exact Compact 5000 I/O module or adapter, required terminal count, wiring method, and electrical specifications.
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Allen-Bradley |
| Manufacturer | Rockwell Automation |
| Model Number | 5069-RTB4-SCREW |
| Product Family | Compact 5000 I/O |
| Product Type | Removable Terminal Block (RTB) |
| Terminal Type | Screw-type |
| Terminal Count | 4-point |
| Primary Application | Compatible Compact 5000 I/O MOD power connection |
| Connection Method | Screw-clamped conductor termination |
| Compatible Terminal Kit | 5069-RTB64-SCREW includes 4-point and 6-point screw RTBs |
| Recommended Wire Size | 0.5–1.5 mm² (22–16 AWG), subject to the applicable product specifications |
| Maximum Insulated Wire Diameter | 3.5 mm for the specified screw-type RTB |
| Insulation Stripping Length | Up to 12 mm |
| Terminal Screw Torque | 0.4 N·m (3.5 lb·in) |
| Maximum Voltage | Verify the rating for the exact RTB and application in the current manufacturer documentation |
| Dimensions | Not specified in the supplied product information |
| Weight | 0.02 kg |
| Typical Applications | Compact 5000 I/O power wiring and industrial control panels |
The weight listed above is based on the supplied product information. Confirm the exact electrical ratings and terminal requirements against the current manufacturer documentation before installation.
Function and Working Principle
1. Electrical Connection for Compact 5000 I/O Systems
Industrial automation systems rely on electrical connections between power supplies, controllers, I/O modules, and field devices. A terminal block provides an organized interface between conductors and the designated terminals of a compatible module.
The 5069-RTB4-SCREW serves as a four-point removable terminal block in supported Compact 5000 I/O configurations. Its role is to provide the connection points specified by the module’s wiring diagram.
The terminal block does not generate or regulate power. Instead, it provides the physical electrical interface needed to connect the appropriate conductors to the system.
2. Screw-Type Wire Termination
The screw-type design uses mechanical clamping to secure compatible conductors. During installation, the conductor is prepared to the specified stripping length, inserted into the correct terminal, and tightened to the manufacturer’s recommended torque.
Correct termination is important for maintaining reliable electrical contact. A loose connection may cause intermittent operation, voltage drops, or localized heating. Excessive tightening can damage the terminal or conductor.
For the 5069-RTB4-SCREW and related screw-type terminal blocks, the documented terminal screw torque is 0.4 N·m (3.5 lb·in). The actual installation must follow the current product instructions and applicable wiring requirements.

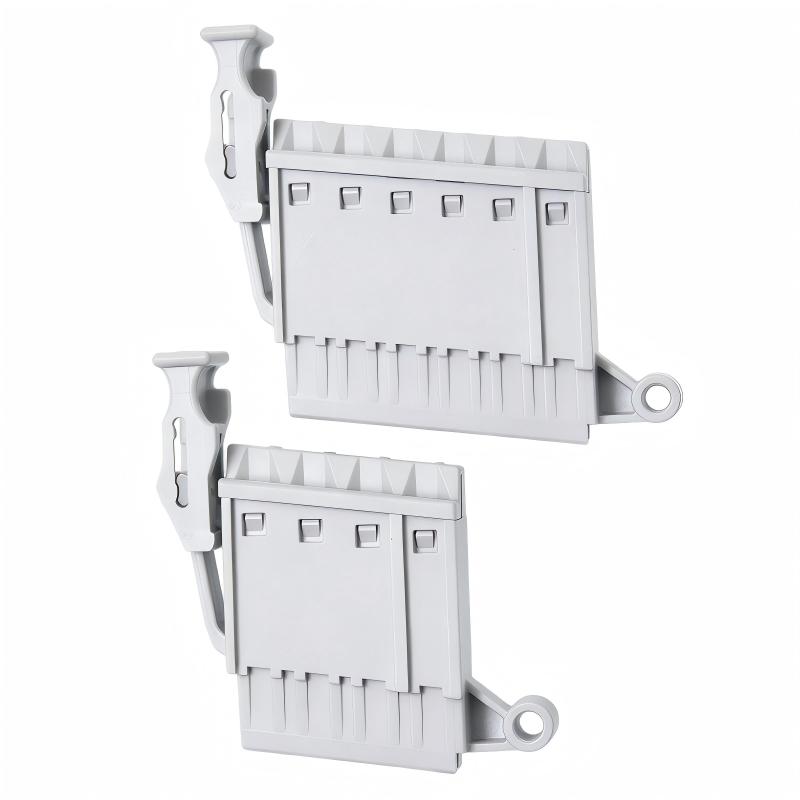

3. Removable Terminal-Block Design
The removable format separates the wiring interface from the module’s main electronics. This can make certain maintenance and replacement procedures more manageable because the terminal block can be detached from a compatible module when permitted by the installation procedure.
Before removing or reinstalling the terminal block, personnel must follow the applicable shutdown and electrical-isolation procedures. Removability does not mean the connector is safe to handle while energized.
The terminal block must be correctly seated and secured before the system is returned to operation.

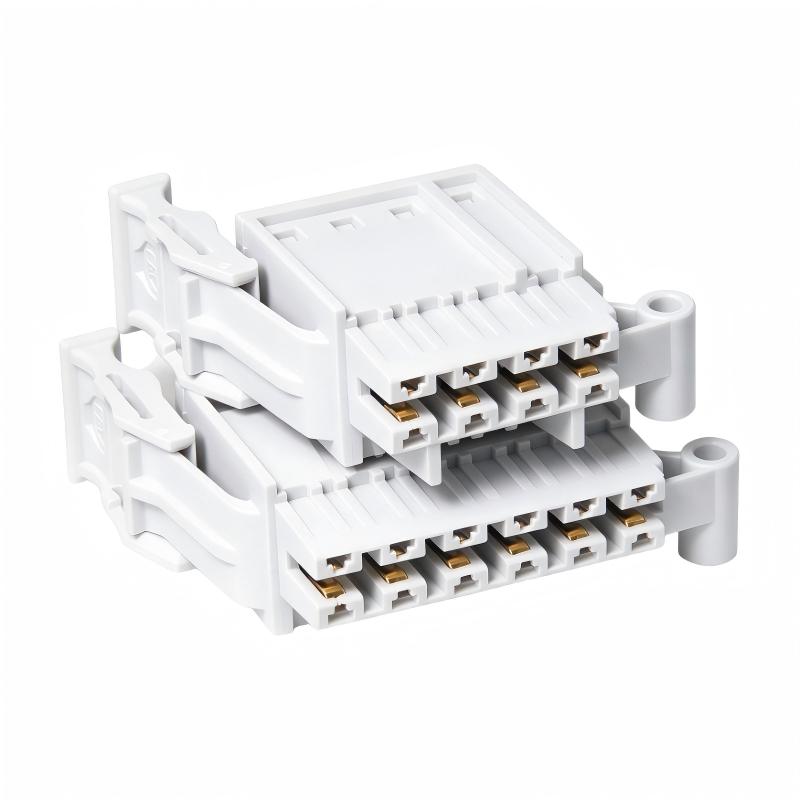

4. Four-Point MOD Power Connection
Compact 5000 I/O systems use different terminal-block configurations for different connection functions. The four-point RTB is used for MOD power connections in applicable configurations, while a six-point RTB is used for SA power connections.
These functions are not interchangeable simply because both components belong to the same product family. The exact terminal arrangement must match the relevant adapter or module and its wiring diagram.
Selecting the correct terminal block helps maintain the intended power distribution and avoids incorrect connections during installation or maintenance.
5. Support for Industrial Maintenance
Terminal blocks are small components, but they are essential to the physical integrity of an industrial control system. A damaged, missing, or incorrectly specified RTB can prevent a module from being wired or returned to service as intended.
Keeping the correct replacement terminal blocks in inventory can reduce repair delays. Maintenance personnel should record the complete catalog number and terminal configuration when identifying a spare part.
Role in Industrial Control Systems
The Allen-Bradley 5069-RTB4-SCREW supports the wiring infrastructure of compatible Compact 5000 I/O systems. These systems are used in industrial automation applications where PLCs communicate with field devices and process signals through local or distributed I/O.
In a typical installation, a compatible Compact 5000 I/O adapter or module is mounted on the designated system hardware. The terminal block provides the specified electrical connection points for the applicable power circuit. Other system components handle control logic, signal processing, and network communication.
For example, a manufacturing line may use a Compact 5000 I/O system to exchange information with sensors, actuators, and other equipment. The correct terminal blocks help establish the power connections required by the selected modules and adapters.
The 5069-RTB4-SCREW does not replace an I/O module, terminal base, controller, or power supply. It is an accessory whose compatibility depends on the exact hardware and electrical connection required.
Correct installation supports orderly wiring, maintenance access, and dependable electrical connections. Engineers should use the manufacturer’s wiring diagrams to determine the terminal function and ensure that the connector is suitable for the intended circuit.
Industrial Applications
1. Manufacturing Automation
Manufacturing facilities use PLC-based control systems to coordinate assembly machines, production equipment, conveyors, and process operations.
The 5069-RTB4-SCREW may be used as part of the wiring arrangement for compatible Compact 5000 I/O equipment. Its removable design supports service work when a terminal block must be inspected or replaced.
2. Packaging and Material Handling
Packaging machinery and material-handling systems often use PLCs and I/O modules to coordinate sensors, actuators, and machine sequences.
Correct terminal-block selection helps technicians maintain the intended electrical connections in the control panel. During maintenance, the exact terminal count and catalog number should be verified before a replacement is installed.
3. Process Control Systems
Industrial process equipment uses control systems to monitor operating conditions and coordinate equipment functions. Compact 5000 I/O components can form part of the wider automation architecture.
The 5069-RTB4-SCREW supports the relevant wiring interface in compatible configurations. Its application must be determined from the module documentation rather than from the terminal block’s appearance alone.
4. Industrial Control Cabinets
Control cabinets contain controllers, power supplies, I/O modules, protection devices, and wiring accessories. Standardized components help keep installations organized and simplify maintenance.
A correctly selected removable terminal block supports the intended connection layout and helps technicians identify and service the wiring associated with compatible equipment.
5. Maintenance and Spare-Parts Replacement
Small connection accessories may need replacement after damage, wear, contamination, or an installation error. Maintaining the correct RTB model in stock can help reduce downtime when a compatible module requires service.
Before ordering, compare the existing component’s catalog number and terminal configuration with the replacement. A four-point terminal block should not be assumed to replace a six-point version or a combined terminal-block kit.
Installation and System Integration
Step 1: Confirm the Catalog Number
Check that the required component is specifically identified as 5069-RTB4-SCREW.
If the application requires both four-point and six-point screw-type RTBs, verify whether the correct order is the combined 5069-RTB64-SCREW kit. This kit contains the 5069-RTB4-SCREW and 5069-RTB6-SCREW.
Step 2: Verify Module Compatibility
Identify the Compact 5000 I/O adapter or module that will use the terminal block. Consult its installation instructions to confirm the correct terminal-block model and connection function.
Do not select a terminal block based solely on the brand or product family. Terminal count, connector design, and intended circuit must all match.
Step 3: Isolate the Equipment
Before wiring, removing, or replacing the terminal block, place the equipment in a safe condition and follow the required electrical isolation procedures.
Verify that the relevant circuits are de-energized before handling conductors or removing the connector. Follow the plant’s lockout/tagout procedures and the manufacturer’s safety instructions.
Step 4: Prepare the Conductors
Use conductors within the wire-size range specified for the terminal block and application. For the screw-type RTB, the referenced wire range is 0.5–1.5 mm² (22–16 AWG), subject to the applicable product documentation.
Prepare the conductor using the specified insulation stripping length. The referenced maximum stripping length is 12 mm.
Inspect the conductor for damaged strands, contamination, or excessive insulation removal before inserting it into the terminal.
Step 5: Tighten the Terminal Screws
Tighten the terminal screws to the specified torque. The documented value for the applicable screw-type RTBs is 0.4 N·m (3.5 lb·in).
Avoid under-tightening, which can result in poor electrical contact, and over-tightening, which may damage the terminal or conductor. Use an appropriate tool and follow the applicable installation instructions.
Step 6: Check Seating and Wiring
Confirm that the terminal block is correctly seated and that each conductor is connected to the intended terminal according to the wiring diagram.
Inspect the assembly for loose conductors, exposed copper beyond the permitted limit, damaged insulation, or mechanical interference.
Step 7: Test the Installation
After completing the wiring checks, restore power according to the approved commissioning procedure. Verify the relevant system power indicators and confirm that the connected module or adapter operates as expected.
If the system reports a fault or fails to power up, isolate the equipment again and inspect the wiring, terminal-block seating, and compatibility before proceeding.
Step 8: Document the Replacement
Record the terminal-block catalog number and the associated module or adapter. This information helps maintenance teams identify the correct spare part in future service activities.
Compatible System Components
The 5069-RTB4-SCREW is an accessory rather than a standalone automation device. It should be selected as part of the relevant Compact 5000 I/O configuration.
| Component | Role in the System | Compatibility Considerations |
|---|---|---|
| Compact 5000 I/O adapter | Provides the interface between the I/O system and the controller network | Verify the required RTB model and connection function |
| Compact 5000 I/O modules | Interface with supported industrial signals | Confirm the module’s terminal-block requirements |
| 5069-RTB6-SCREW | Six-point screw-type removable terminal block | Used for the specified SA power connection in applicable configurations |
| 5069-RTB64-SCREW | Combined screw-type RTB kit | Includes one 4-point RTB and one 6-point RTB |
| Control power supply | Provides power for the relevant control-system circuits | Match supply characteristics to the system design |
| Field wiring | Connects the designated power or field circuits | Use approved conductor sizes and wiring methods |
| Control cabinet | Houses the controller, I/O equipment, and accessories | Provide suitable mechanical protection and service access |
These components serve different functions. Compatibility must be confirmed using the specific module or adapter documentation.
Alternative Models and Replacement Considerations
The most important consideration when replacing the 5069-RTB4-SCREW is the required terminal configuration. Similar catalog numbers may describe individual terminal blocks or complete kits.
| Model | Description | Replacement Considerations |
|---|---|---|
| 5069-RTB4-SCREW | Four-point screw-type removable terminal block | Appropriate when the application specifically requires the four-point screw RTB |
| 5069-RTB6-SCREW | Six-point screw-type removable terminal block | Used where the six-point screw RTB is specified |
| 5069-RTB64-SCREW | Combined four-point and six-point screw RTB kit | Appropriate when both screw-type terminal blocks are required |
| 5069-RTB4-SPRING | Four-point spring-type removable terminal block | Different connection method; verify module compatibility |
| 5069-RTB6-SPRING | Six-point spring-type removable terminal block | Different connection method; verify module compatibility |
| 5069-RTB64-SPRING | Combined four-point and six-point spring-type RTB kit | Spring-type alternative, not a direct substitution without compatibility checks |
The spring-type and screw-type versions use different termination methods. Do not assume that one can replace the other solely because the terminal count is the same.
Before ordering a replacement, confirm the full catalog number, number of terminals, termination style, and compatibility with the intended Compact 5000 I/O hardware.
Key Advantages of the Allen-Bradley 5069-RTB4-SCREW
1. Removable Connection Design
The removable terminal block supports maintenance and replacement procedures when used according to the system’s safety requirements.
2. Screw-Type Conductor Termination
The screw-clamp connection provides a mechanical means of securing compatible conductors. Correct preparation and tightening are necessary for dependable connections.
3. Compact 5000 I/O Integration
The component is designed for use in the relevant Compact 5000 I/O architecture, helping maintain the specified connection arrangement.
4. Clear Terminal Configuration
The four-point format distinguishes this component from the six-point RTB used for other power connections in applicable systems.
5. Support for Spare-Parts Management
The clearly defined catalog number helps maintenance teams identify the correct component and avoid ordering a different terminal configuration.
6. Lightweight Accessory
The supplied weight of 0.02 kg makes the component easy to handle and store as part of an industrial automation spare-parts inventory.
Technical FAQs
Q1: What is the Allen-Bradley 5069-RTB4-SCREW?
It is a four-point screw-type removable terminal block for compatible Allen-Bradley Compact 5000 I/O configurations.
Q2: What does RTB mean?
RTB stands for Removable Terminal Block. It provides detachable electrical connection points for supported modules or adapters.
Q3: Does the 5069-RTB4-SCREW include both 4-pin and 6-pin terminal blocks?
No. The 5069-RTB4-SCREW is the four-point component. The combined kit containing both the four-point and six-point screw-type terminal blocks is catalog number 5069-RTB64-SCREW.
Q4: What is the difference between 5069-RTB4-SCREW and 5069-RTB6-SCREW?
The primary difference is the terminal count and the intended connection function. The four-point RTB is used for specified MOD power connections, while the six-point RTB is used for specified SA power connections in applicable configurations. Always verify the module wiring diagram.
Q5: What type of wire does it support?
The referenced wire-size range for the screw-type RTB is 0.5–1.5 mm² (22–16 AWG), subject to the applicable product documentation and installation requirements.
Q6: What is the terminal screw torque?
The documented torque for the applicable screw-type RTBs is 0.4 N·m (3.5 lb·in). Confirm the current instructions before installation.
Q7: Can the screw-type version be replaced with a spring-type version?
Not automatically. The termination method differs, and compatibility must be confirmed for the exact module and application.
Q8: Does the 5069-RTB4-SCREW process I/O signals?
No. It is a passive connection accessory. Signal processing and control functions are performed by compatible I/O modules, controllers, and other system components.
Q9: What is its weight?
The supplied product weight is 0.02 kg.
Q10: Can the terminal block be removed while the system is operating?
Do not assume that removal is safe under power. Follow the applicable module instructions and plant electrical-safety procedures, and isolate the relevant equipment before handling the terminal block unless the manufacturer explicitly permits another procedure.
Procurement and Maintenance Recommendations
When purchasing the Allen-Bradley 5069-RTB4-SCREW, confirm that the required item is the four-point screw-type terminal block rather than the combined 5069-RTB64-SCREW kit.
For replacement work, compare the catalog number with the existing component and verify the associated Compact 5000 I/O module or adapter. Check the terminal count, termination style, and intended power-connection function before placing an order.
Industrial spare-parts buyers should also confirm product condition, packaging, warranty terms, and availability with the supplier. For critical automation systems, maintaining a small inventory of the correct terminal-block models can help reduce downtime caused by damaged or missing wiring accessories.
During maintenance, inspect the connector and wiring for damage, loose conductors, contamination, and signs of overheating. Replace damaged components with compatible parts and follow the manufacturer’s torque and wiring instructions.
Record the full catalog number in the plant’s spare-parts database. This helps prevent confusion between individual terminal blocks and complete kits during future procurement.
Conclusion
The Allen-Bradley 5069-RTB4-SCREW is a four-point screw-type removable terminal block designed for compatible Compact 5000 I/O installations. It provides a detachable electrical connection interface and supports organized wiring and maintenance within industrial control systems.
Correct model identification is essential because the 5069-RTB4-SCREW is different from the combined 5069-RTB64-SCREW kit, which contains both four-point and six-point screw-type terminal blocks. By confirming the terminal configuration, termination method, and module compatibility before installation or procurement, users can reduce ordering errors and maintain reliable industrial control-system connections.
