Product Overview

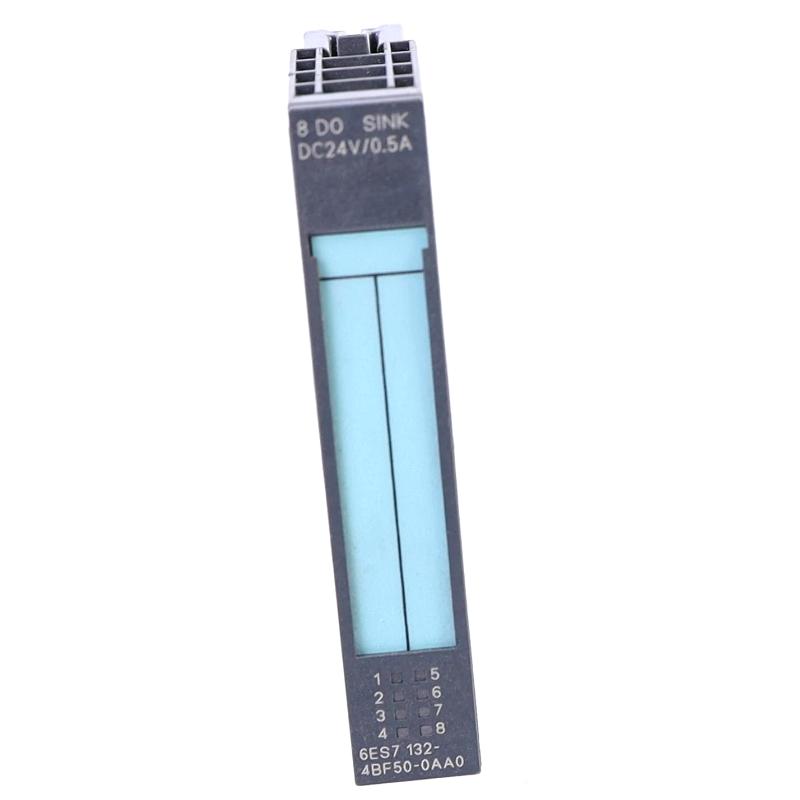

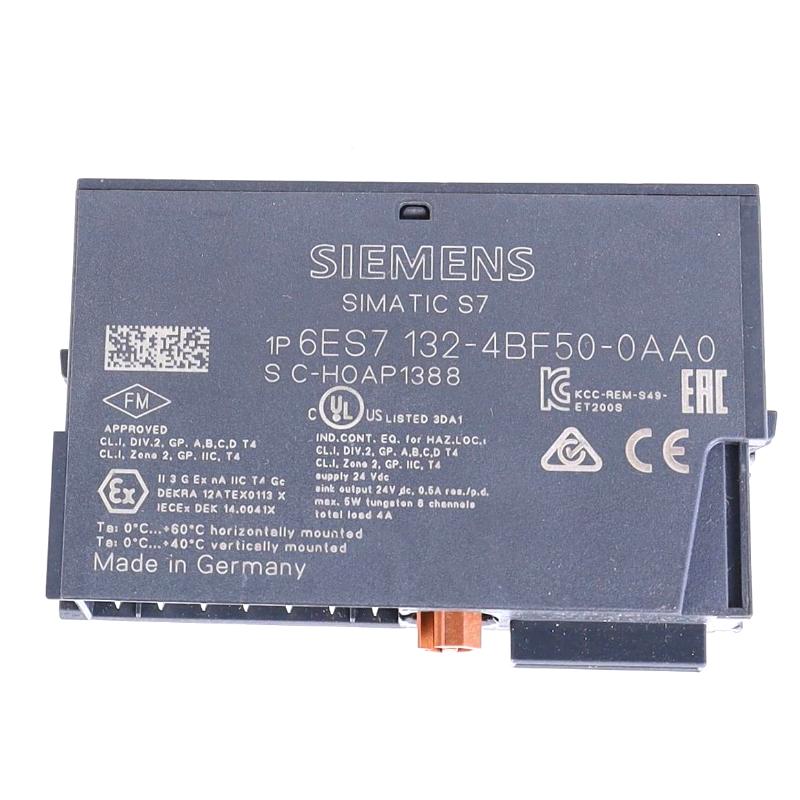

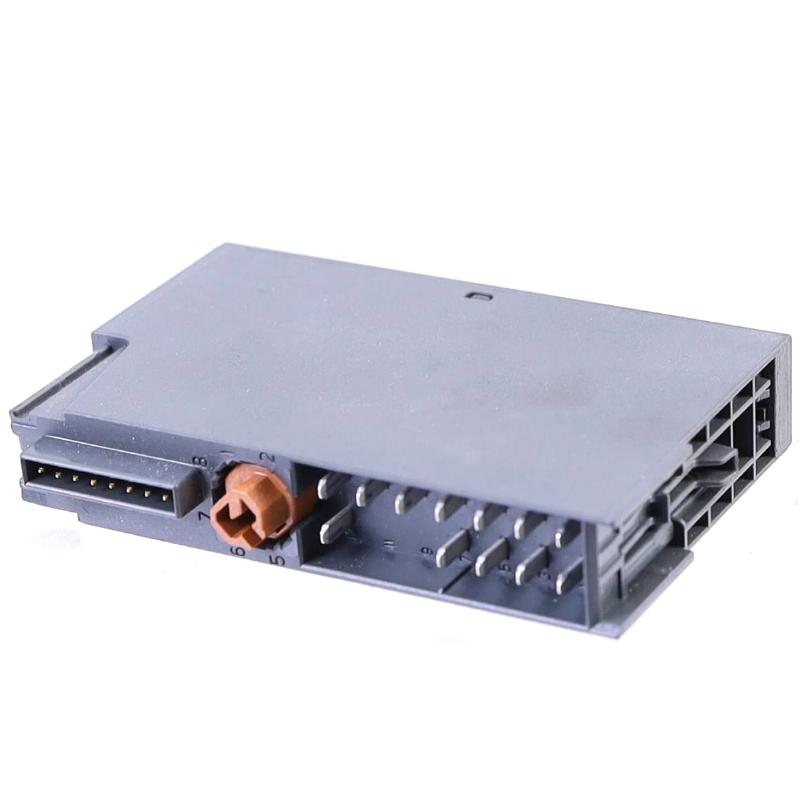

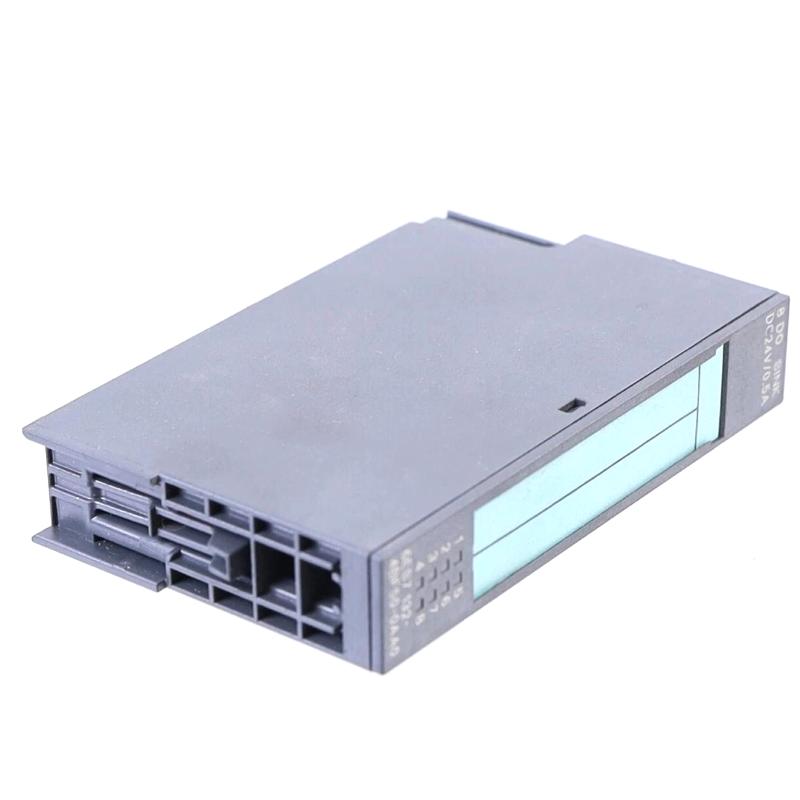

The Siemens 6ES7132-4BF50-0AA0 is an eight-channel digital output electronic module for the SIMATIC ET 200S distributed I/O system. It switches 24 V DC field circuits through sinking transistor outputs, allowing a PLC to control compatible solenoid valves, DC contactors, and indicator lamps. Its eight-channel arrangement is useful in machine control cabinets where multiple discrete devices must be operated from a single distributed I/O station.
Unlike the PNP sourcing modules commonly used for positive-side switching, this model uses an M-switching output arrangement. The output switches the load toward the M potential, so the field wiring must be compatible with sinking-output operation. This distinction matters when replacing an existing module: a device with the same channel count and voltage rating may still require a different wiring arrangement.
The module supports eight outputs rated at 0.5 A each, with a maximum aggregate output current of 4 A per module. Short-circuit protection helps protect the output circuitry under specified fault conditions, while green LEDs provide local output-status indication. The standard version does not include the additional diagnostic functions found on certain High Feature ET 200S modules.
For maintenance engineers, the most important selection checks are output polarity, connected load current, terminal module compatibility, and the configured PLC hardware. The 6ES7132-4BF50-0AA0 is suitable for discrete switching tasks where the field devices and control circuit are specifically arranged for sinking outputs.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Siemens |
| Product Type | Digital Output Electronic Module |
| Model | 6ES7132-4BF50-0AA0 |
| Product Family | SIMATIC ET 200S |
| Module Designation | 8DO SINK OUTPUT DC 24 V/0.5 A |
| Number of Digital Outputs | 8 |
| Output Type | Sinking transistor output (M-switching) |
| Rated Load Voltage | 24 V DC |
| Rated Output Current | 0.5 A per output |
| Maximum Total Output Current | 4 A per module |
| Short-Circuit Protection | Yes |
| Module Diagnostic Functions | No |
| Channel Status Indication | Green LED per output |
| Maximum Cable Length | 600 m unshielded; 1,000 m shielded |
| Maximum Switching Frequency, Resistive Load | 100 Hz |
| Maximum Switching Frequency, Inductive Load | 0.5 Hz |
| Maximum Switching Frequency, Lamp Load | 10 Hz |
| Electrical Isolation | Between outputs and backplane bus; no isolation between individual output channels |
| Dimensions | 15 × 81 × 52 mm |
| Weight | 0.042 kg |
Product Features
- Eight discrete output channels: Operates multiple field devices through one distributed I/O module.
- 24 V DC load voltage: Supports compatible industrial control circuits supplied through the ET 200S power distribution arrangement.
- Sinking transistor outputs: Switches the load toward the M potential, requiring matching field wiring.
- 0.5 A per-channel rating: Suits compatible low-current control devices within the specified electrical limits.
- 4 A aggregate current limit: Requires the combined demand of active outputs to be considered during circuit design.
- Short-circuit protection: Helps protect the output circuitry under specified fault conditions.
- Individual status LEDs: Green indicators allow local checks of output switching status.
- Isochronous operation support: Supports synchronized operation in suitable ET 200S configurations.
- Standard-feature design: Provides discrete switching without the additional diagnostic functions of High Feature variants.
Working Principle
The 6ES7132-4BF50-0AA0 receives digital commands through the ET 200S backplane bus. When a channel is activated, its sinking transistor output establishes the specified switching path toward the M potential. The connected load must be wired with a suitable positive supply connection so that the output can complete the intended circuit.
A typical control path is:
PLC Program → ET 200S Interface Module → Backplane Bus → Digital Output Module → Field Load
For example, a machine may use several channels to operate pneumatic solenoid valves, DC contactors, or indicator lamps. The PLC determines when each device should operate based on sensor feedback and sequence logic. The module carries out the switching action, while the connected field circuit determines the actual electrical response.
The sinking-output arrangement is the key point when planning or troubleshooting this module. A PNP sourcing output and an M-switching output establish different current paths. If the field device is wired for the wrong output type, the PLC may issue a command without producing the expected load response.
The module also provides short-circuit protection, but it does not offer the additional module diagnostic functions found on High Feature variants. Green LEDs show output status, yet they do not independently confirm that the field device has operated correctly. Technicians should check the output command, supply voltage, wiring polarity, load condition, and terminal connections when a channel fails to operate.
Current and switching-frequency limits must also be observed. Each output is rated at 0.5 A, while the combined output current is limited to 4 A per module. The specified maximum switching frequency is 100 Hz for resistive loads, 0.5 Hz for inductive loads, and 10 Hz for lamp loads. Applications involving frequently operated solenoid valves or contactors require particular attention to the inductive-load limit.
Role in the SIMATIC ET 200S Control Architecture
Within an ET 200S distributed I/O station, the 6ES7132-4BF50-0AA0 provides the physical output switching stage between the PLC and connected field devices. The controller executes the machine logic, the interface module exchanges process data, and the output module operates the assigned electrical circuits.
SIMATIC PLC → ET 200S Interface Module → Backplane Bus → 6ES7132-4BF50-0AA0 → Field Devices
| System Component | Function |
|---|---|
| SIMATIC PLC | Executes the automation program and determines output states |
| ET 200S Interface Module | Connects the distributed I/O station to the automation network |
| ET 200S Power Module | Supplies the required load voltage to the associated output group |
| 6ES7132-4BF50-0AA0 | Switches eight digital outputs using a sinking-output arrangement |
| ET 200S Terminal Module | Provides the electrical connections and mounting interface |
| 24 V DC Power Supply | Supplies the control and field-load circuits |
| Solenoid Valves | Convert electrical commands into pneumatic or hydraulic valve movement |
| DC Contactors | Switch compatible electrical loads |
| Indicator Lamps | Display machine states through discrete output signals |
The module’s output type must match the field wiring and connected loads. Correct hardware configuration and current distribution are also necessary for normal operation within the distributed control architecture.
Industrial Applications
| Application | Typical Use |
|---|---|
| Pneumatic Control Panels | Switching compatible solenoid valves through sinking transistor outputs |
| Packaging Machinery | Operating discrete actuators and machine-status indicators |
| Automated Assembly Lines | Controlling auxiliary devices through PLC sequence logic |
| Conveyor Systems | Switching compatible control relays and auxiliary mechanisms |
| Material Handling Equipment | Operating stops, clamps, and other discrete actuators |
| Industrial Test Stations | Controlling indicator circuits and discrete test functions |
| Manufacturing Equipment | Distributing multiple output signals through an ET 200S station |
| Machine Auxiliary Circuits | Switching low-current field devices within the module’s electrical limits |
The module is intended for discrete switching rather than analog control or direct motor-power switching. Applications requiring higher current, a PNP sourcing arrangement, or additional diagnostic reporting should use a suitably specified alternative.
Installation and Maintenance
- Verify the order number: Confirm that the replacement is 6ES7132-4BF50-0AA0 and that the application requires an eight-channel sinking-output module.
- Isolate the power supply: Follow the site’s lockout procedure and disconnect the relevant electrical supplies before removing or installing the module.
- Check station compatibility: Verify the ET 200S interface module, power module, terminal module, and existing hardware configuration.
- Confirm output polarity: Check that the connected field circuits are arranged for sinking outputs rather than PNP sourcing outputs.
- Review the wiring diagram: Identify all eight channels and verify the terminal assignments before disconnecting the existing module.
- Inspect the terminal module: Check terminals and contacts for damage, contamination, or loose connections that could interrupt the output circuit.
- Check individual load current: Ensure that each connected device remains within the 0.5 A output rating.
- Calculate aggregate current: Verify that the combined current of simultaneously active outputs does not exceed 4 A per module.
- Evaluate switching frequency: Check the load type against the specified frequency limits, especially the 0.5 Hz maximum for inductive loads.
- Install the module correctly: Seat the electronic module in its designated ET 200S position and confirm the mechanical connection is secure.
- Test the output circuits: Restore power according to the approved commissioning procedure and check channel indicators, field voltage, wiring, and device response.
- Document maintenance findings: Record the installed model, wiring checks, test results, and any faults identified during commissioning.
If a field device does not respond, check the output polarity and current path before replacing the module. A sourcing-versus-sinking wiring mismatch can produce symptoms similar to a failed output channel.
Compatible System Components
The 6ES7132-4BF50-0AA0 operates within the SIMATIC ET 200S distributed I/O platform. The following component types may be used in the surrounding system when their electrical and configuration requirements are satisfied.
| Component | Function |
|---|---|
| SIMATIC ET 200S Interface Module | Provides communication between the controller and distributed I/O station |
| ET 200S Power Module | Supplies load voltage to the associated output group |
| ET 200S Terminal Module | Provides electrical connections and mechanical mounting |
| SIMATIC PLC | Executes the control program and determines output commands |
| ET 200S Digital Input Module | Acquires discrete signals from field sensors and switches |
| ET 200S Digital Output Module | Switches compatible field loads according to PLC commands |
| 24 V DC Power Supply | Supplies the required control and load voltage |
| Compatible Solenoid Valves | Convert output switching signals into valve operation |
| DC Contactors and Indicator Lamps | Serve as field loads where their electrical characteristics match the module |
Recommended Related Models
| Model | Product Type | Relevance |
|---|---|---|
| Siemens 6ES7132-4BF00-0AA0 | SIMATIC ET 200S Digital Output Electronic Module | Eight-channel sourcing-output version for comparison where PNP wiring is required |
| Siemens 6ES7132-4BF00-0AB0 | SIMATIC ET 200S Digital Output Electronic Module | Eight-channel High Feature sourcing-output module with additional diagnostic functions |
| Siemens 6ES7132-4BD50-0AA0 | SIMATIC ET 200S Digital Output Electronic Module | Related four-channel sinking-output module |
| Siemens 6ES7132-4BD00-0AB0 | SIMATIC ET 200S Digital Output Electronic Module | Four-channel High Feature output module for applications requiring additional diagnostics |
| Siemens 6ES7131-4BF00-0AA0 | SIMATIC ET 200S Digital Input Electronic Module | Related eight-channel digital input module for acquiring discrete signals |
| Siemens 6ES7131-4BF00-0AB0 | SIMATIC ET 200S Digital Input Electronic Module | Related High Feature digital input module for distributed signal acquisition |
Key Advantages
- Eight digital output channels for distributed 24 V DC control.
- Sinking-output configuration for compatible M-switching field circuits.
- 0.5 A rated current per channel, with a 4 A total module limit.
- Short-circuit protection and individual green status LEDs.
- Integration with compatible SIMATIC ET 200S stations.
Technical FAQs
How does the sinking output affect field wiring on the 6ES7132-4BF50-0AA0?
The output switches toward the M potential, so the load circuit must be wired for sinking operation. Verify the positive supply connection, output terminal assignment, and common reference before connecting field devices. A PNP sourcing wiring arrangement should not be assumed compatible.
Can this module replace an eight-channel PNP output module without modifying the field circuit?
Not automatically. The 6ES7132-4BF50-0AA0 uses sinking outputs, while the 6ES7132-4BF00-0AA0 uses sourcing outputs. The field circuit and terminal wiring must be checked and may require changes before a substitution is appropriate.
What is the practical limitation when switching solenoid valves with this module?
The inductive-load switching frequency is limited to 0.5 Hz under the specified conditions. Engineers should check the valve coil current, operating cycle, and switching requirements before assigning frequently operated pneumatic devices to this module.
Does the 6ES7132-4BF50-0AA0 report detailed short-circuit diagnostics to the PLC?
The module provides short-circuit protection but does not have the additional module diagnostic functions available on High Feature variants. The green channel LEDs provide output-status indication, but fault investigation may require electrical checks of the load, wiring, and power supply.
