Product Overview

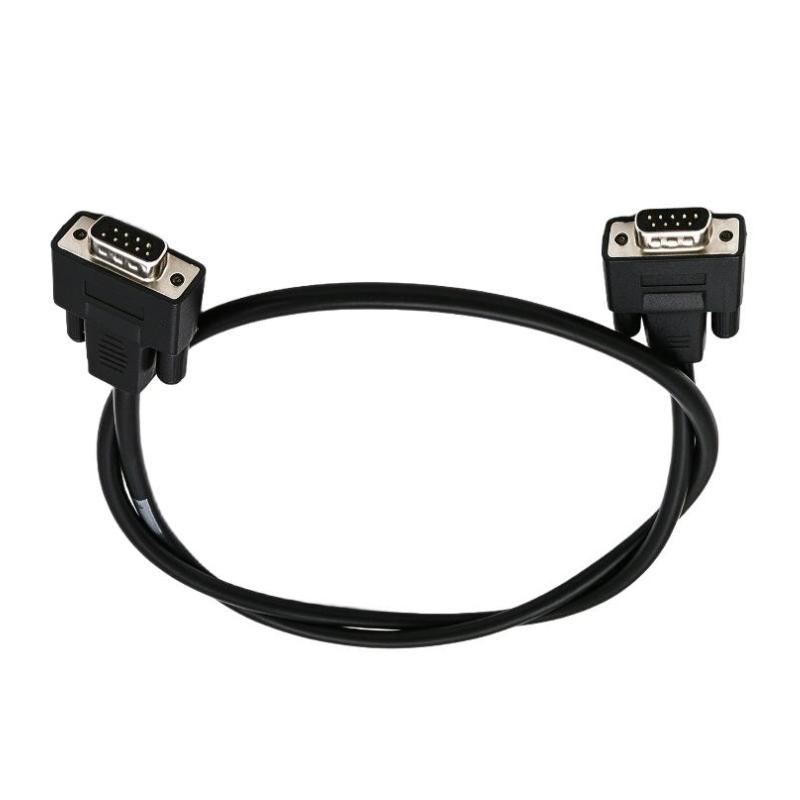

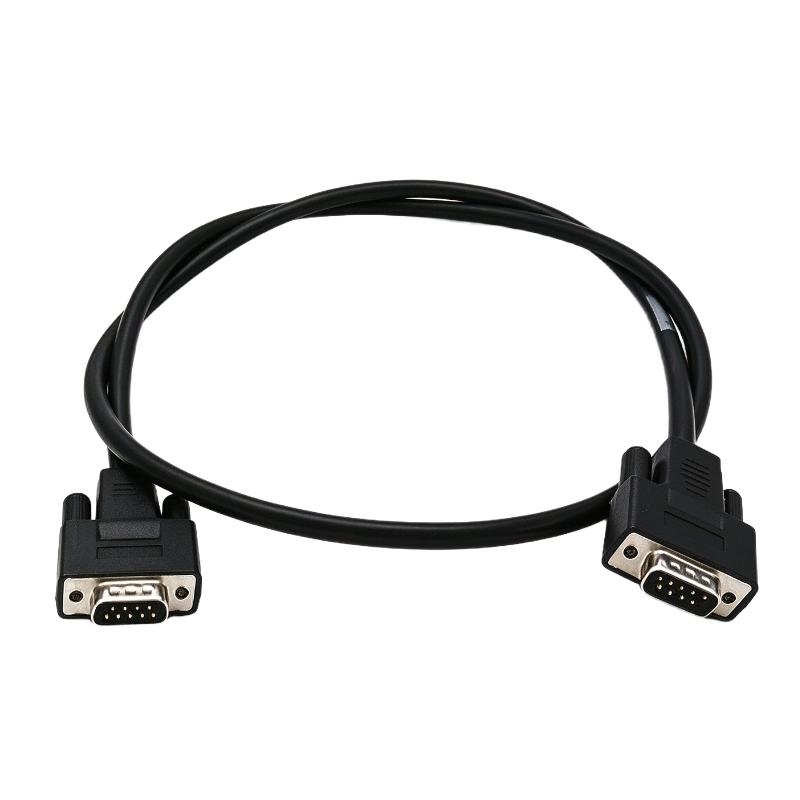

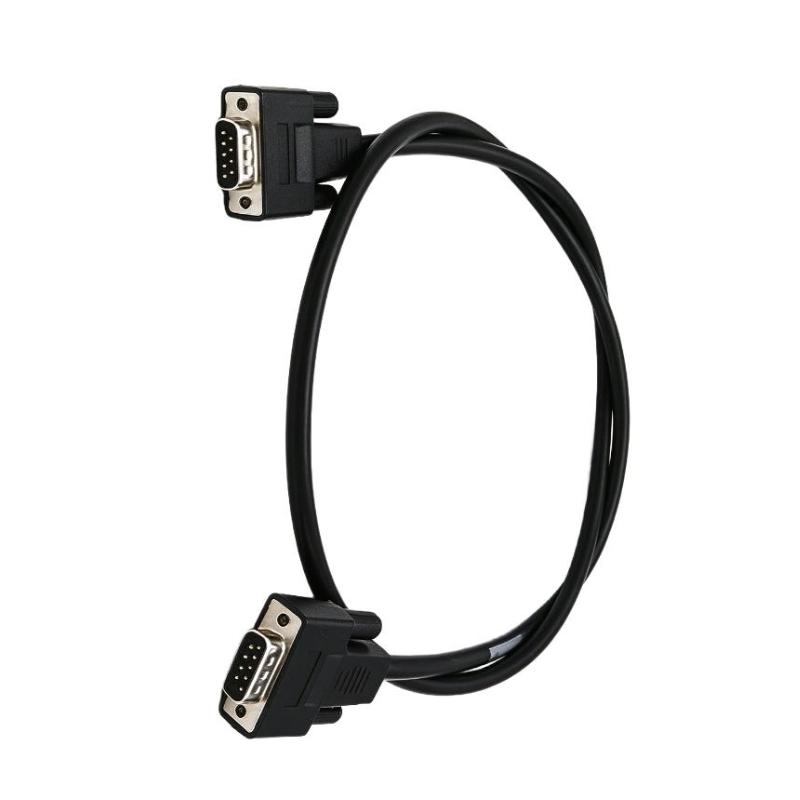

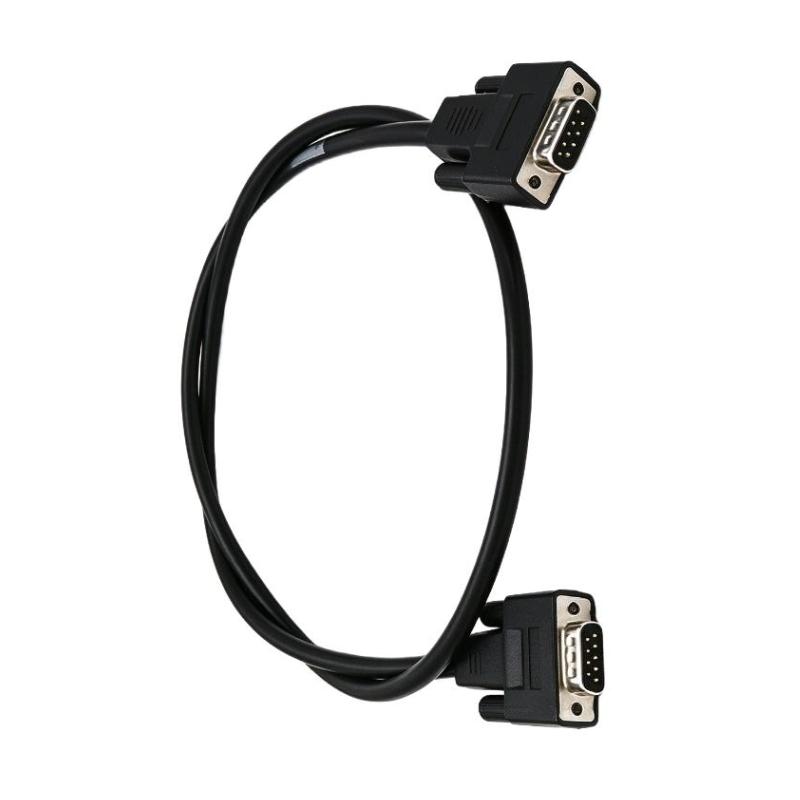

The Foxboro RH916MZ is an I/A Series 2 Mbps base-to-base communication cable used to connect compatible baseplates within a Foxboro distributed control system. It provides the physical communication link required for supported baseplate interconnections, helping control-system hardware exchange data through the configured communication architecture.
In modular process automation systems, baseplates accommodate control and fieldbus hardware that must communicate with other parts of the installation. The RH916MZ is intended for the specific base-to-base connection rather than general-purpose signal transmission. Its correct application depends on the installed baseplate type, communication interface, and system topology.
The RH916MZ is associated with the earlier P0916MZ part number. When maintaining an existing I/A Series installation, engineers may encounter either designation in historical drawings, maintenance records, or spare-parts lists. Confirming the actual interface requirements before replacement helps prevent confusion with cables intended for fieldbus termination assemblies or other system connections.
For maintenance teams, this cable is relevant when establishing a new compatible baseplate connection, replacing a damaged interconnection, or restoring communication after control-system hardware has been serviced. Correct connector seating, cable routing, and verification of the connected hardware are essential to successful commissioning.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Foxboro |
| Product Type | I/A Series Baseplate-to-Baseplate Communication Cable |
| Model | RH916MZ |
| Product Family | Foxboro I/A Series |
| Cable Function | Base-to-Base Communication |
| Communication Rate | 2 Mbps |
| Cable Length | 1 meter |
| Associated Previous Part Number | P0916MZ |
| Typical Application | Interconnection between compatible I/A Series baseplates |
| Shipping Weight | 3 kg |
Product Features
- Dedicated base-to-base connection: Provides a physical communication link between compatible Foxboro I/A Series baseplates.
- 2 Mbps communication rate: Supports the specified communication rate for the intended base-to-base connection.
- Defined cable length: Supports installations where a 1-meter interconnection meets the system layout requirements.
- I/A Series integration: Fits the requirements of compatible baseplate communication arrangements.
- Maintenance replacement: Supports restoration of a baseplate communication connection when an existing cable requires replacement.
- System expansion support: Can be used in compatible configurations requiring communication between separate baseplates.
- Configuration-specific application: Requires verification of the connected interfaces and system architecture rather than selection based on cable length alone.
Working Principle
The RH916MZ establishes the physical communication path between compatible Foxboro I/A Series baseplates. The cable itself does not process control logic or execute automation functions; instead, it carries communication signals between the connected hardware through the intended interfaces.
A typical communication path follows this arrangement:
Control-System Hardware → Baseplate Interface → RH916MZ Cable → Receiving Baseplate Interface → Connected Control Hardware
When installed correctly, the cable connects the relevant baseplate interfaces so that supported system communication can take place. The actual data exchanged and the role of each connected component depend on the control-system architecture, installed modules, and configuration.
The specified 2 Mbps communication rate identifies the intended link. It should not be confused with the speed of every communication network within the wider control system. Different communication layers may operate at different rates and use different physical media.
The cable’s role also differs from that of an I/O termination cable. A base-to-base cable connects compatible baseplate interfaces, while a termination cable connects designated fieldbus modules to their termination assemblies. Using the wrong cable type may prevent communication or result in an incompatible connection.
When communication problems occur, technicians should check connector seating, cable condition, interface compatibility, and the status of the connected baseplates. If the physical connection is correct but communication remains unavailable, the investigation should extend to the connected modules, system configuration, and other parts of the communication path.
Role in the Foxboro I/A Series Control Architecture
The RH916MZ supports the modular architecture of a Foxboro I/A Series distributed control system by connecting compatible baseplates. Its function is to provide the required physical communication connection between the relevant hardware interfaces.
Control-System Hardware → Source Baseplate → RH916MZ → Receiving Baseplate → Connected Modules
| System Component | Function |
|---|---|
| RH916MZ Cable | Establishes the base-to-base communication connection |
| I/A Series Baseplates | Accommodate compatible control and fieldbus hardware |
| Control Processor | Executes control logic and manages supported automation operations |
| Fieldbus Modules | Interface with process signals and connected field devices |
| Compatible Baseplate Interfaces | Provide the connection points for the communication cable |
| System Power Supplies | Supply the connected control hardware according to system requirements |
| System Communication Infrastructure | Supports data exchange within the configured control architecture |
| Engineering and Diagnostic Tools | Assist with configuration verification and communication troubleshooting |
The RH916MZ is one element of the overall communication architecture. Its presence alone does not establish a complete control system; compatible baseplates, correctly configured hardware, and functioning communication interfaces are also required.
Industrial Applications
| Application | Typical Use |
|---|---|
| Distributed Control Systems | Connecting compatible baseplates in modular I/A Series installations |
| Process Automation | Maintaining communication between control-system hardware assemblies |
| Power Generation | Supporting existing process-control infrastructure |
| Chemical Processing | Connecting compatible baseplates within plant control cabinets |
| Oil and Gas Facilities | Maintaining installed I/A Series communication connections |
| Industrial Control Cabinets | Establishing short-distance communication between compatible baseplates |
| Control-System Expansion | Adding baseplate connections where supported by the system topology |
| Plant Maintenance | Replacing a damaged or faulty base-to-base cable |
| System Restoration | Re-establishing a communication connection after hardware servicing |
| Legacy Automation Systems | Maintaining existing installations that use compatible I/A Series hardware |
Application suitability depends on the baseplate interfaces, the required communication path, and the installed system configuration. The RH916MZ should be selected for the specific connection it is intended to serve.
Installation and Maintenance
- Verify the part number: Confirm that RH916MZ is the required base-to-base cable for the intended Foxboro I/A Series installation.
- Check interface compatibility: Verify that both connected baseplates support the cable’s intended connection and communication function.
- Review system drawings: Identify the correct connection points and confirm the required cable arrangement before installation.
- Follow site safety procedures: Apply the appropriate isolation and maintenance procedures before accessing control-system hardware.
- Inspect the cable: Check the cable jacket and connectors for cuts, deformation, contamination, or other visible damage.
- Check connector orientation: Align the connectors with their intended interfaces and avoid forcing connections that do not fit correctly.
- Secure both ends: Ensure that the cable is fully seated at both baseplates and that the connections are mechanically secure.
- Route the cable properly: Avoid sharp bends, crushing, excessive tension, and contact with moving equipment or sharp cabinet edges.
- Follow cabinet wiring practices: Route the cable according to the installation’s requirements for signal wiring and separation from potential interference sources.
- Verify the communication path: After installation, confirm that the connected hardware recognizes the intended communication connection.
- Review diagnostic information: If communication is unavailable, inspect relevant status indicators, system alarms, connector seating, and the condition of the connected hardware.
- Document the maintenance work: Record the replacement part number, connection points, and commissioning results in the site’s maintenance records.
If communication is not restored after replacing the cable, check the baseplate interfaces, connected hardware, configuration, and other elements of the communication path. Do not assume that every communication fault originates in the cable itself.
Compatible System Components
The RH916MZ is intended for compatible Foxboro I/A Series base-to-base communication arrangements. Related components must match the connection requirements and the architecture of the installed control system.
| Component | Function |
|---|---|
| Compatible Foxboro I/A Series Baseplates | Provide the interfaces and mounting arrangement for control hardware |
| Foxboro Control Processors | Execute configured process-control functions |
| Compatible Fieldbus Modules | Interface with supported field devices and process signals |
| Baseplate Communication Interfaces | Provide the connection points for the cable |
| Fieldbus Termination Assemblies | Connect designated fieldbus modules to their associated field wiring |
| Compatible System Power Supplies | Supply the connected control hardware |
| Engineering Workstations | Support system configuration and maintenance |
| Diagnostic Tools | Assist with communication fault investigation |
Recommended Related Models
| Model | Product Type | Relevance |
|---|---|---|
| Foxboro P0916MZ | I/A Series 2 Mbps Base-to-Base Cable | Earlier part number associated with RH916MZ |
| Foxboro P0916RB | I/A Series Fieldbus Baseplate Terminator Connector | Related baseplate termination component |
| Foxboro RH916RB | I/A Series Fieldbus Baseplate Terminator | Related fieldbus baseplate termination hardware |
| Foxboro P0926HC | I/A Series Horizontal Baseplate | Related baseplate hardware for compatible system configurations |
| Foxboro P0926HT | I/A Series Horizontal Baseplate | Related modular baseplate hardware |
| Foxboro P0917YZ | I/A Series FCP270 Control Processor | Related control processor for compatible I/A Series installations |
Key Advantages
- Establishes the specified 2 Mbps communication connection between compatible baseplates.
- Supports modular I/A Series control-system configurations.
- Provides a dedicated cable solution for baseplate interconnection.
- Supports maintenance and restoration of existing control-system communication paths.
- Helps maintain the intended physical connection between compatible system components.
Technical FAQs
What is the difference between RH916MZ and P0916MZ?
RH916MZ is associated with P0916MZ as its updated part-number designation. Both refer to a 1-meter, 2 Mbps base-to-base cable. Before substituting one for the other, verify that the required connector arrangement and application match the installed system.
Does the RH916MZ connect an I/O module directly to a field termination assembly?
No. Its intended function is base-to-base communication. A fieldbus termination cable serves a different purpose by connecting a designated fieldbus module to its termination assembly. These cable types should not be treated as interchangeable.
What should be checked when communication between two baseplates is lost?
Start by checking both cable connections, the cable’s physical condition, and the compatibility of the connected interfaces. Then inspect the baseplate and module status, system alarms, and configuration. If the cable and connectors are functioning correctly, investigate the remaining communication path.
Is the 2 Mbps rate the communication speed of the entire I/A Series system?
Not necessarily. The 2 Mbps specification identifies the intended base-to-base link associated with this cable. Other communication networks and interfaces within a distributed control system may use different communication rates and physical connections.
