Product Overview

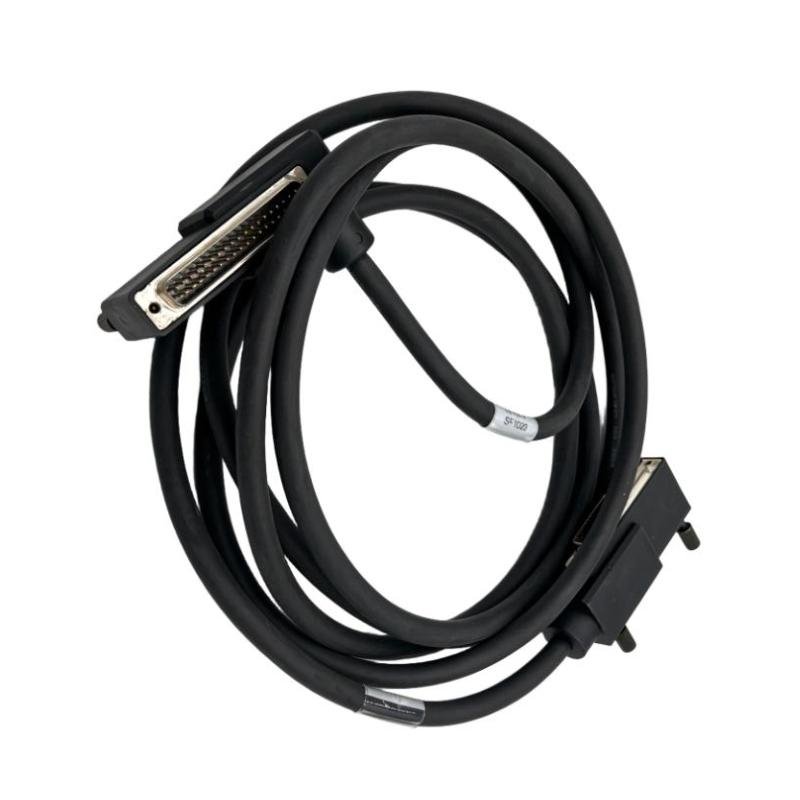

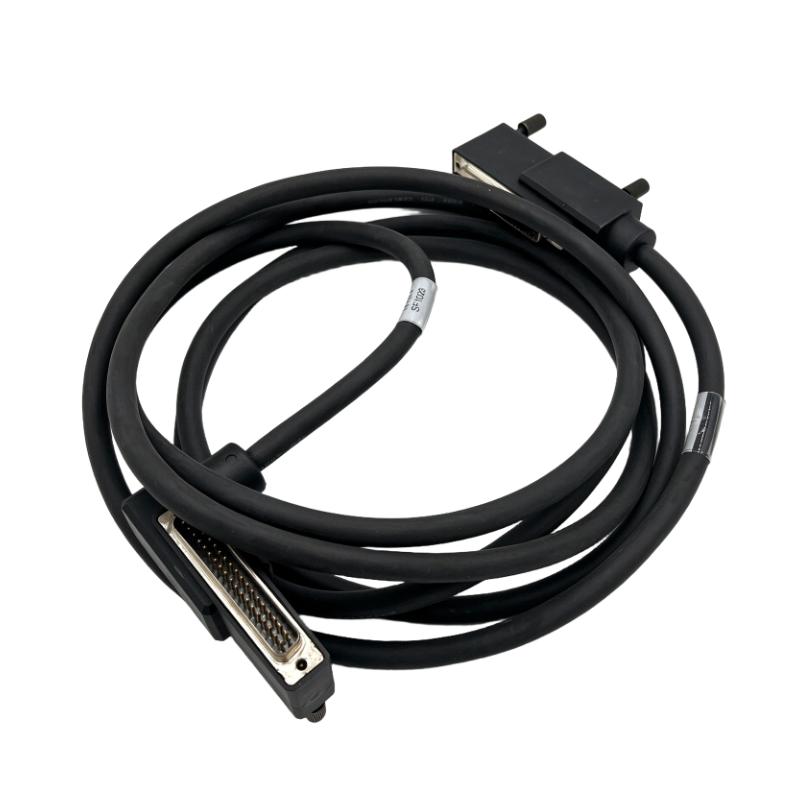

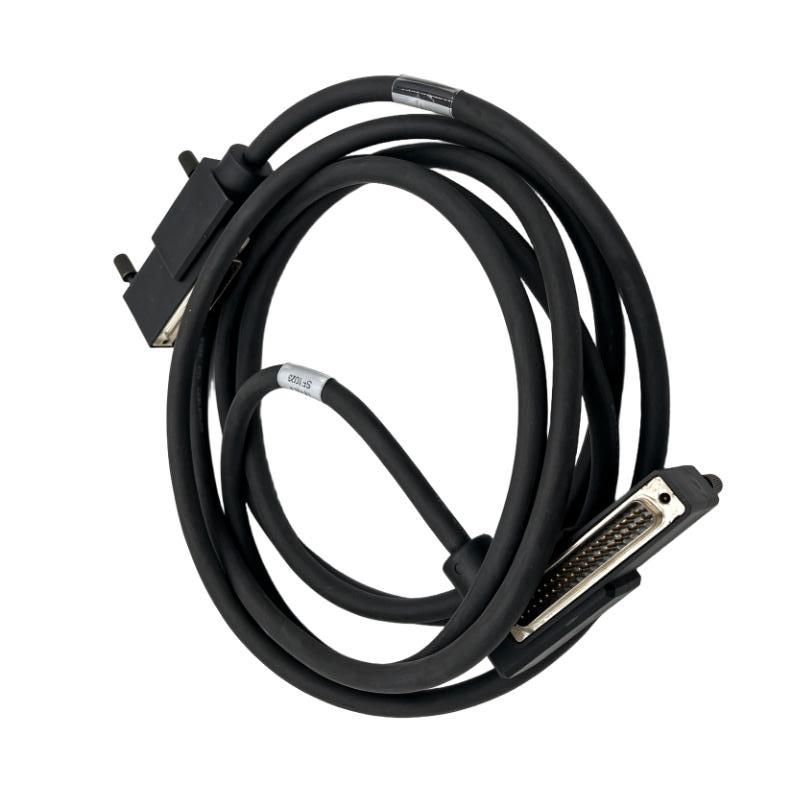

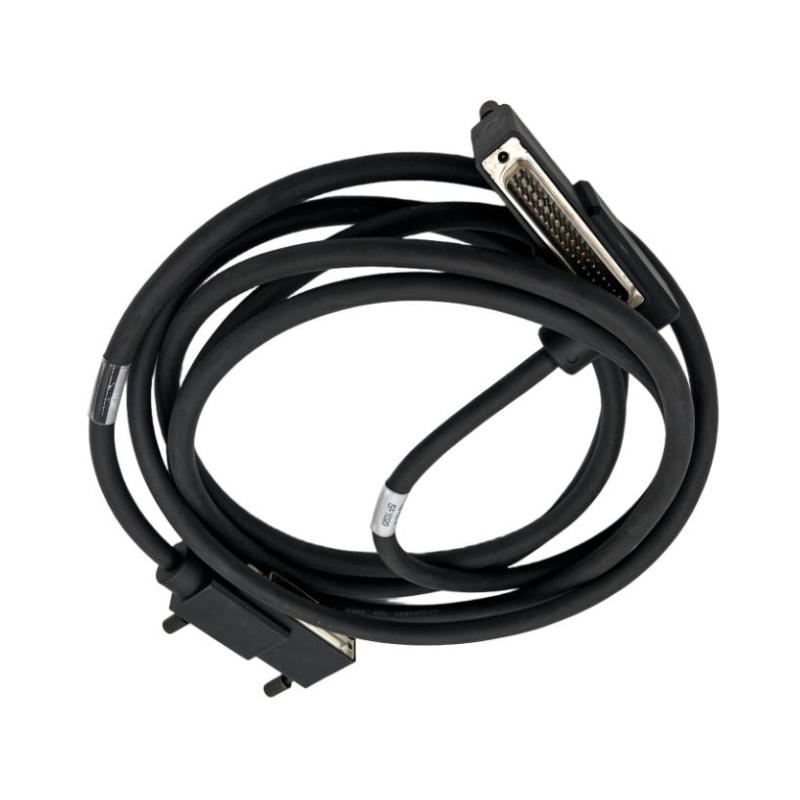

The Foxboro RH916NB I/A Series Module Fieldbus Cable is a 5-meter cable associated with Foxboro I/A Series distributed control system installations. It belongs to the module fieldbus cable category used in modular automation systems, where dedicated cable assemblies establish connections between compatible control hardware and field I/O interfaces.
In a distributed control system, Fieldbus Modules (FBMs) handle process inputs and outputs, while baseplates and termination assemblies provide the hardware interfaces needed to integrate field signals with the control system. Correct cable selection helps maintain the intended connection between these components and prevents confusion between different cable functions.
The RH916NB model designation is associated with the 5-meter module fieldbus cable family. When maintaining an existing installation, engineers should verify the cable’s precise interface, construction, and compatibility against the system documentation. Similar cable lengths do not establish interchangeability between module fieldbus cables, termination cables, and baseplate communication cables.
For maintenance teams, the RH916NB is relevant when replacing an existing cable or restoring a connection within a compatible I/A Series installation. Checking the part number and connection arrangement before installation helps reduce wiring errors and unnecessary troubleshooting.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Foxboro |
| Product Type | I/A Series Module Fieldbus Cable |
| Model | RH916NB |
| Product Family | Foxboro I/A Series |
| Cable Category | Module Fieldbus Cable |
| Cable Length | 5 meters |
| Typical Application | Compatible I/A Series control-system cabling |
| Shipping Weight | 3 kg |
Product Features
- 5-meter cable length: Suits installations requiring the specified cable run.
- Module fieldbus application: Supports the intended cable connection within compatible modular control-system configurations.
- I/A Series integration: Belongs to the Foxboro I/A Series cabling category.
- Dedicated connection function: Helps maintain the designated connection between compatible system interfaces.
- Maintenance replacement: Can be considered when an installed cable requires replacement and the specified interfaces match.
- Modular system support: Fits maintenance and expansion work involving compatible control-system hardware.
- Part-number identification: Allows engineers to distinguish the required cable from other cables used within the same control cabinet.
Working Principle
The RH916NB functions as a physical cable connection within the Foxboro I/A Series control-system architecture. Its role is to carry electrical signals through the designated connection between compatible interfaces. The cable itself does not execute control logic, process analog inputs, or generate output commands.
In a modular control installation, field devices connect through field wiring and appropriate termination hardware to the relevant fieldbus modules. The modules perform their configured input or output functions, while the control system processes the resulting information and executes the programmed control strategy.
A simplified signal path is:
Field Devices → Field Wiring → Termination Hardware → Fieldbus Module → Control-System Communication Infrastructure → Control Processor
The exact position of the RH916NB in this arrangement depends on the installed hardware and documented cable connection. Engineers should verify the actual connection points instead of assuming that every module fieldbus cable serves the same interface.
Cable compatibility is determined by the required connection, connector arrangement, and control-system configuration—not simply by length. A cable intended for one fieldbus interface may not be suitable for a different termination assembly or baseplate communication connection.
When troubleshooting, inspect the cable and connectors for visible damage or poor seating. If the physical connection is correct but the expected function is still unavailable, check the associated module, termination hardware, field wiring, and system diagnostics to identify the actual source of the fault.
Role in the Foxboro I/A Series Control Architecture
The RH916NB belongs to the cabling infrastructure used in compatible Foxboro I/A Series installations. It supports the physical connection required by the designated system interfaces and contributes to the integration of modular control hardware.
Field Devices → Field Wiring → Termination Assembly → Fieldbus Module → Baseplate and Communication Infrastructure → Control Processor
| System Component | Function |
|---|---|
| RH916NB Cable | Provides the designated cable connection |
| Modular Baseplate | Accommodates compatible fieldbus modules |
| Fieldbus Module | Processes field inputs or controls outputs according to its configuration |
| Termination Assembly | Connects field wiring to the associated module interface |
| Field Devices | Measure process variables or receive control commands |
| Field Wiring | Carries signals between field equipment and termination hardware |
| Control Processor | Executes configured control logic |
| Engineering and Diagnostic Tools | Support configuration checks and troubleshooting |
The RH916NB is a passive cabling component. Its function depends on the compatibility of the connected hardware and the intended connection specified by the system design.
Industrial Applications
| Application | Typical Use |
|---|---|
| Distributed Control Systems | Maintaining cabling connections in modular I/A Series installations |
| Process Automation | Supporting connections between compatible control-system components |
| Chemical Processing | Maintaining field I/O infrastructure in process-control cabinets |
| Oil and Gas Facilities | Supporting existing compatible Foxboro automation systems |
| Power Generation | Maintaining control-system cabling within plant automation installations |
| Industrial Manufacturing | Connecting designated interfaces in modular control systems |
| Plant Maintenance | Replacing a damaged cable after verifying the correct part number |
| Control-System Expansion | Supporting additional connections where specified by the system design |
| Legacy DCS Maintenance | Maintaining existing I/A Series installations |
| Control Cabinet Refurbishment | Restoring cable connections during planned maintenance |
Application suitability depends on the installed hardware, connection requirements, and system configuration. The cable designation should be checked against the relevant wiring documentation before installation.
Installation and Maintenance
- Verify the part number: Confirm that RH916NB is the specified cable for the intended connection.
- Check the hardware configuration: Identify the connected modules, baseplates, and termination assemblies before beginning work.
- Review system drawings: Confirm the cable connection points and routing arrangement.
- Follow site safety procedures: Apply the appropriate isolation and maintenance procedures before accessing control-system hardware.
- Inspect the cable jacket: Look for cuts, abrasion, crushing, cracking, or other visible damage.
- Examine the connectors: Check connector housings and contacts for contamination, deformation, or damage.
- Confirm connector orientation: Align the connectors with their intended interfaces and avoid forcing an incompatible connection.
- Secure both ends: Ensure that the cable is fully seated at the designated connection points.
- Route the cable carefully: Avoid sharp bends, excessive tension, crushing, and contact with sharp cabinet edges.
- Follow cabinet wiring practices: Maintain the cable routing and separation required by the installed control-system design.
- Verify system operation: Check the connected hardware, relevant diagnostics, and expected field I/O functions after installation.
- Document the replacement: Record the part number, connection points, and commissioning results in the maintenance records.
If the expected function is not restored, inspect the connected modules, termination hardware, field wiring, and system configuration before replacing additional components.
Compatible System Components
The RH916NB is intended for use within compatible Foxboro I/A Series installations. Related hardware should be selected according to the cable’s documented connection function and the requirements of the installed system.
| Component | Function |
|---|---|
| Foxboro I/A Series Modular Baseplates | Accommodate compatible control and fieldbus modules |
| Foxboro Fieldbus Modules | Interface with process signals and field devices |
| Compatible Termination Assemblies | Connect field wiring to designated module interfaces |
| Foxboro Field Control Processors | Execute configured control strategies |
| Field Wiring Assemblies | Carry signals between field devices and termination hardware |
| Compatible Fieldbus Cables | Establish the required physical connections between system components |
| Control-System Power Supplies | Supply the installed control hardware |
| Engineering and Diagnostic Tools | Support configuration verification and fault investigation |
Recommended Related Models
| Model | Product Type | Relevance |
|---|---|---|
| Foxboro P0916NB | I/A Series Module Fieldbus Cable | Related legacy cable designation |
| Foxboro P0928BR | I/A Series Module Fieldbus Cable, LSZH | Related cable version for comparison |
| Foxboro RH916NC | I/A Series Module Fieldbus Cable | Related cable model with a specified 3-meter length |
| Foxboro RH916NA | I/A Series Module Fieldbus Cable | Related cable model associated with a longer cable run |
| Foxboro RH916ND | I/A Series Module Fieldbus Cable | Related short cable option |
| Foxboro RH916MZ | I/A Series Baseplate-to-Baseplate Cable | Related I/A Series cable serving a different connection function |
Key Advantages
- Provides a dedicated cable option for compatible I/A Series installations.
- Offers a 5-meter cable length for the specified connection arrangement.
- Supports maintenance of existing control-system cabling.
- Helps preserve the intended connection between compatible system interfaces.
- Supports cable identification and replacement planning during maintenance.
Technical FAQs
What should be verified before ordering the RH916NB?
Confirm the complete part number, required cable length, connector arrangement, and intended connection. The installed module and termination hardware should match the cable specification in the system documentation.
Can RH916NB replace P0916NB directly?
Do not assume direct interchangeability from the model numbers alone. Confirm the applicable replacement designation, cable construction, and connector requirements for the installed system before substitution.
Is RH916NB an 8-channel isolated output module?
No. RH916NB is identified as a module fieldbus cable, not an output module. Channel count and output isolation are specifications associated with the actual fieldbus module and must be checked against that module’s model number.
What should be checked if the control system does not operate correctly after cable replacement?
Inspect both cable connections, connector condition, and the designated interfaces. Then check the connected module, termination hardware, field wiring, and available system diagnostics to determine whether the problem originates elsewhere in the control-system connection.
