Product Overview

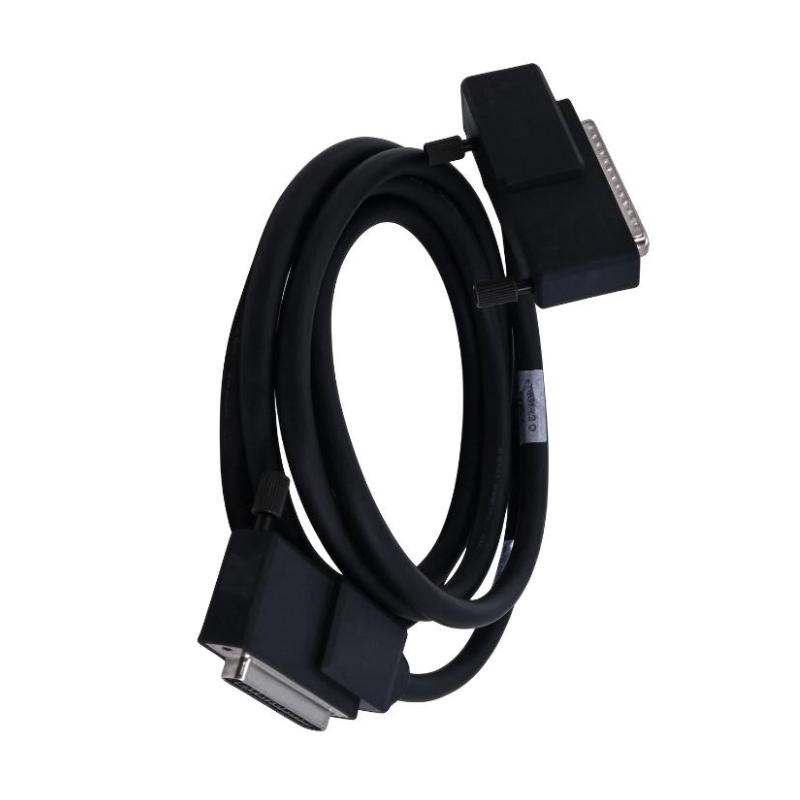

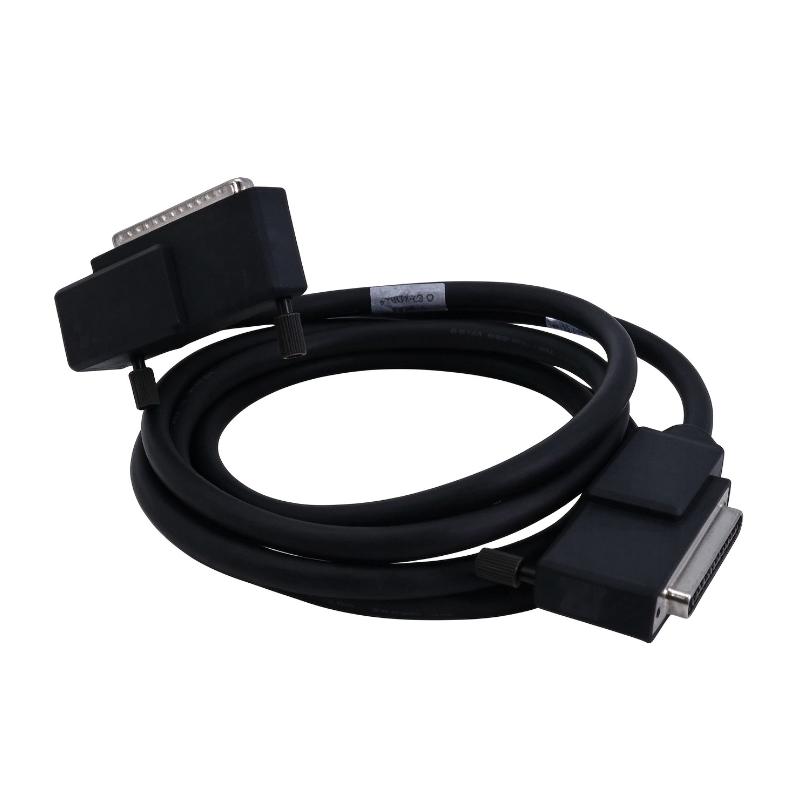

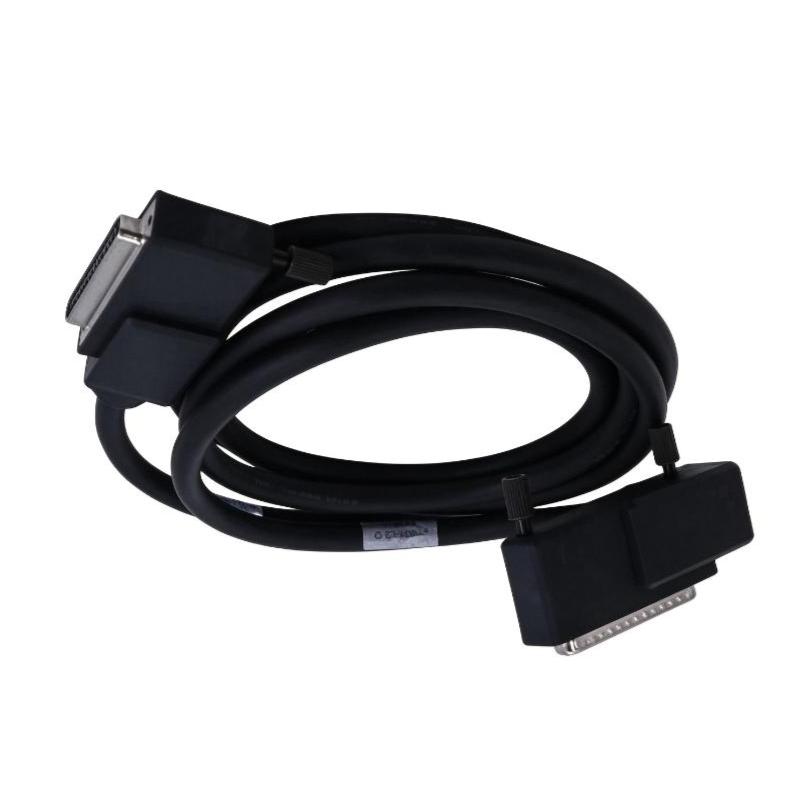

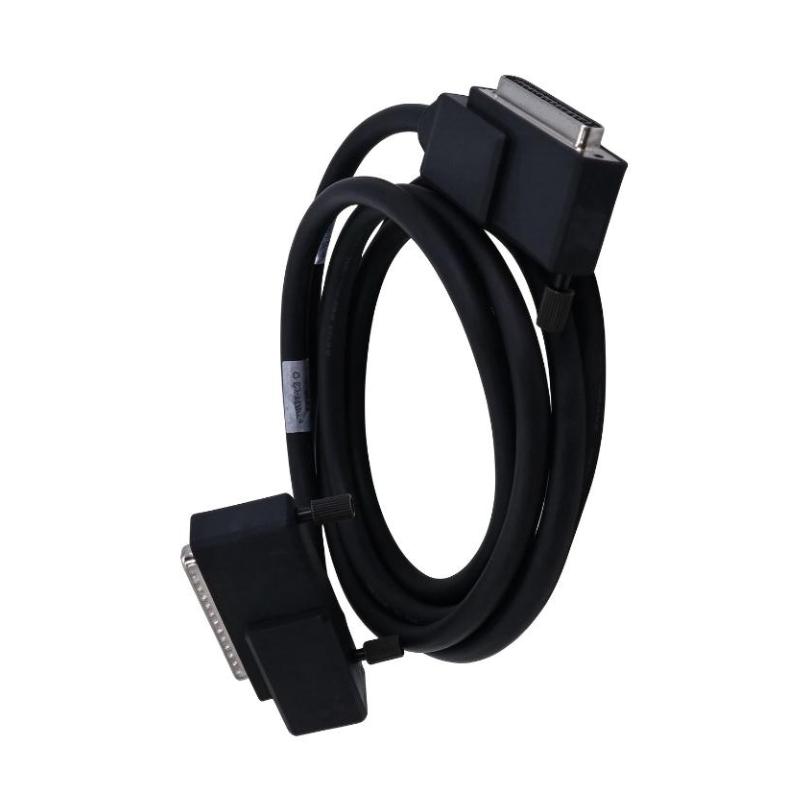

The Foxboro P0916NA I/A Series Base-to-Base Cable is a 10-meter cable used to establish a communication connection between compatible baseplates in Foxboro I/A Series distributed control systems. It is associated with a 2 Mbps base-to-base communication arrangement, where the cable provides the physical link required for data exchange between connected control-system hardware.
In a modular distributed control system, baseplates accommodate control modules and provide the interconnection infrastructure needed for system operation. A dedicated base-to-base cable supports communication between compatible baseplate assemblies, allowing the connected hardware to operate as part of the configured control architecture.
The P0916NA is intended for installations that require the corresponding base-to-base cable connection. It should not be confused with module fieldbus cables or termination cables, which serve different connection functions within the same control-system environment. Although these cable categories may be installed in the same cabinet, their electrical interfaces and intended applications are not necessarily interchangeable.
For maintenance engineers, the P0916NA is relevant when an existing base-to-base connection requires replacement, when a control cabinet is being refurbished, or when compatible hardware is being installed according to an established system design. Before selecting a replacement, verify the cable designation, communication requirements, connector arrangement, and compatibility with the installed baseplates.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Foxboro |
| Product Type | I/A Series Base-to-Base Cable |
| Model | P0916NA |
| Product Family | Foxboro I/A Series |
| Cable Category | Base-to-Base Communication Cable |
| Communication Rate | 2 Mbps |
| Cable Length | 10 meters |
| Typical Application | Communication between compatible baseplates |
| Shipping Weight | 3 kg |
Product Features
- Base-to-base connectivity: Provides the physical cable connection between compatible baseplate assemblies.
- 2 Mbps communication: Corresponds to the specified base-to-base communication arrangement.
- 10-meter cable length: Supports installations requiring the stated connection distance.
- I/A Series integration: Belongs to the cable family used in compatible Foxboro distributed control systems.
- Dedicated connection function: Serves a different purpose from fieldbus-to-termination and field-device wiring cables.
- Maintenance replacement: Supports replacement work when the existing installation specifies the P0916NA cable.
- System configuration compatibility: Requires confirmation of the connected baseplates and their communication interface before installation.
Working Principle
The P0916NA establishes the physical communication path between compatible baseplates in a Foxboro I/A Series control system. The cable carries communication signals between the designated interfaces; it does not independently execute control strategies, process field measurements, or generate output commands.
In a modular control architecture, individual baseplates accommodate modules that perform specific input, output, or control-related functions. Base-to-base communication allows compatible hardware assemblies to exchange information according to the system design. The control modules and processors perform the actual processing, while the cable provides the connection needed for communication between the designated interfaces.
A simplified control-system arrangement is:
Field Devices → Field Wiring → Termination Assemblies → Fieldbus Modules → Baseplate Communication Connections → Control-System Infrastructure
The exact position of the P0916NA depends on the installed architecture. Its base-to-base connection function should be distinguished from the connection between a fieldbus module and a termination assembly. Selecting the correct cable category is essential because two cables with similar appearances or lengths may serve different electrical interfaces.
The stated 2 Mbps communication rate identifies the associated base-to-base communication arrangement. Successful operation nevertheless depends on compatible hardware, correct connector engagement, appropriate cable routing, and the configuration of the connected system.
When communication problems occur, technicians should inspect the cable and its connectors, verify the connected baseplate interfaces, and review available system diagnostics. A damaged or disconnected cable can interrupt communication, but faults in the baseplates, modules, or associated control hardware can produce similar symptoms.
Role in the Foxboro I/A Series Control Architecture
The P0916NA supports communication between compatible baseplates within a Foxboro I/A Series distributed control system. It forms part of the physical interconnection infrastructure that allows designated hardware assemblies to exchange information.
Field Devices → Field Wiring → Termination Assemblies → Fieldbus Modules → Baseplates → Base-to-Base Communication Link → Control-System Infrastructure
| System Component | Function |
|---|---|
| P0916NA Cable | Establishes the designated base-to-base communication connection |
| Modular Baseplates | Accommodate compatible control and fieldbus modules |
| Fieldbus Modules | Interface with process inputs and outputs |
| Termination Assemblies | Connect field wiring to the appropriate module interfaces |
| Field Devices | Measure process variables or receive control commands |
| Control Processors | Execute configured control strategies |
| System Communication Infrastructure | Transfers information between compatible control-system components |
| Engineering and Diagnostic Tools | Support configuration verification and fault investigation |
The P0916NA is a passive connection component. Its function depends on the compatibility of the baseplates, communication interfaces, and overall I/A Series configuration.
Industrial Applications
| Application | Typical Use |
|---|---|
| Distributed Control Systems | Connecting compatible baseplates within an I/A Series installation |
| Process Automation | Maintaining communication connections between modular control assemblies |
| Chemical Processing | Supporting control-system interconnections in process automation cabinets |
| Oil and Gas Facilities | Maintaining compatible Foxboro DCS infrastructure |
| Power Generation | Supporting baseplate communication in installed plant control systems |
| Industrial Manufacturing | Connecting designated control hardware within modular automation systems |
| Plant Maintenance | Replacing a damaged or disconnected base-to-base cable |
| Control Cabinet Refurbishment | Restoring communication connections during planned maintenance |
| Legacy DCS Support | Maintaining existing installations that specify the P0916NA cable |
| Control-System Expansion | Establishing additional connections where supported by the system design |
Application suitability depends on the installed baseplates, communication interfaces, and system configuration. The original cable designation should be checked against the relevant system documentation before replacement or expansion.
Installation and Maintenance
- Verify the part number: Confirm that P0916NA is the specified base-to-base cable for the intended Foxboro I/A Series installation.
- Identify the connected baseplates: Check the baseplate models and confirm that their interfaces support the required communication connection.
- Review the system drawings: Identify the correct connection points and confirm the cable’s intended position in the control architecture.
- Follow site safety procedures: Apply the required isolation and maintenance procedures before working on control-system hardware.
- Inspect the cable jacket: Look for cuts, abrasion, crushing, cracking, or other visible damage that could compromise cable integrity.
- Examine the connectors: Check the connector housings and contacts for contamination, deformation, or damage.
- Confirm connector orientation: Align each connector with its designated interface and avoid forcing an incompatible connection.
- Secure both ends: Ensure that the cable is fully seated and secured at the specified baseplate connection points.
- Route the cable carefully: Avoid sharp bends, excessive tension, crushing, and contact with sharp cabinet edges.
- Maintain proper cable routing: Follow the cabinet wiring arrangement and keep the cable clear of mechanical interference and unsuitable routing paths.
- Verify communication: After installation, check the connected hardware status and available system diagnostics to confirm that the expected communication function has been restored.
- Document the maintenance work: Record the installed part number, connected baseplates, and verification results in the maintenance records.
If communication is not restored, check the cable connections, connector condition, baseplate interfaces, and relevant system diagnostics. Investigate the connected hardware before replacing additional components.
Compatible System Components
The P0916NA is intended for base-to-base communication within compatible Foxboro I/A Series configurations. The connected components must support the designated communication arrangement.
| Component | Function |
|---|---|
| Foxboro I/A Series Baseplates | Provide the hardware interfaces for compatible modular control assemblies |
| Foxboro Fieldbus Modules | Handle configured field input and output functions |
| Foxboro Control Processors | Execute configured control logic |
| Compatible Baseplate Communication Interfaces | Provide the connection points for base-to-base communication |
| Termination Assemblies | Interface field wiring with compatible fieldbus modules |
| Fieldbus Modules and Associated Cabling | Support field I/O connections within the control architecture |
| Control-System Power Supplies | Supply compatible control hardware |
| Engineering and Diagnostic Tools | Support system configuration checks and troubleshooting |
Recommended Related Models
| Model or Product | Product Type | Relevance |
|---|---|---|
| Foxboro P0916NB | I/A Series Cable | Related cable designation; verify its exact connection function before substitution |
| Foxboro P0916NC | I/A Series Cable | Related cable designation for comparison during part identification |
| Foxboro I/A Series Modular Baseplate | Control-System Baseplate | Provides the hardware interface for compatible modular control assemblies |
| Foxboro I/A Series Fieldbus Module | Fieldbus Module | Handles configured process input or output functions |
| Foxboro I/A Series Control Processor | Control-System Processor | Executes configured control strategies |
| Foxboro I/A Series Communication Cabling | Control-System Cable Assembly | Related cabling category for system interconnections |
Key Advantages
- Provides a dedicated base-to-base cable connection for compatible I/A Series hardware.
- Supports the specified 2 Mbps communication arrangement.
- Offers a 10-meter cable length for installations requiring the corresponding connection distance.
- Supports maintenance of existing Foxboro control-system interconnections.
- Helps restore the intended communication path when installed with compatible hardware.
Technical FAQs
What is the primary function of the Foxboro P0916NA?
The P0916NA is a base-to-base cable used to connect compatible Foxboro I/A Series baseplates. Its function is to provide the physical communication link between the designated interfaces rather than to connect field devices directly to termination hardware.
What does the 2 Mbps communication specification indicate?
The 2 Mbps designation identifies the associated base-to-base communication arrangement. It should not be interpreted as a guarantee of overall control-system throughput, which depends on the connected hardware and communication architecture.
Can the P0916NA replace a module fieldbus cable of the same length?
Not automatically. A base-to-base cable and a module fieldbus cable serve different connection functions. The connector arrangement, electrical interface, and intended system connection must match before a replacement can be considered suitable.
What should be checked if base-to-base communication fails after installation?
Inspect both cable connections, verify that the cable is installed between the correct baseplate interfaces, and review the available hardware diagnostics. If the connections are intact, investigate the baseplates and associated control-system hardware to identify the source of the communication fault.
