Product Overview

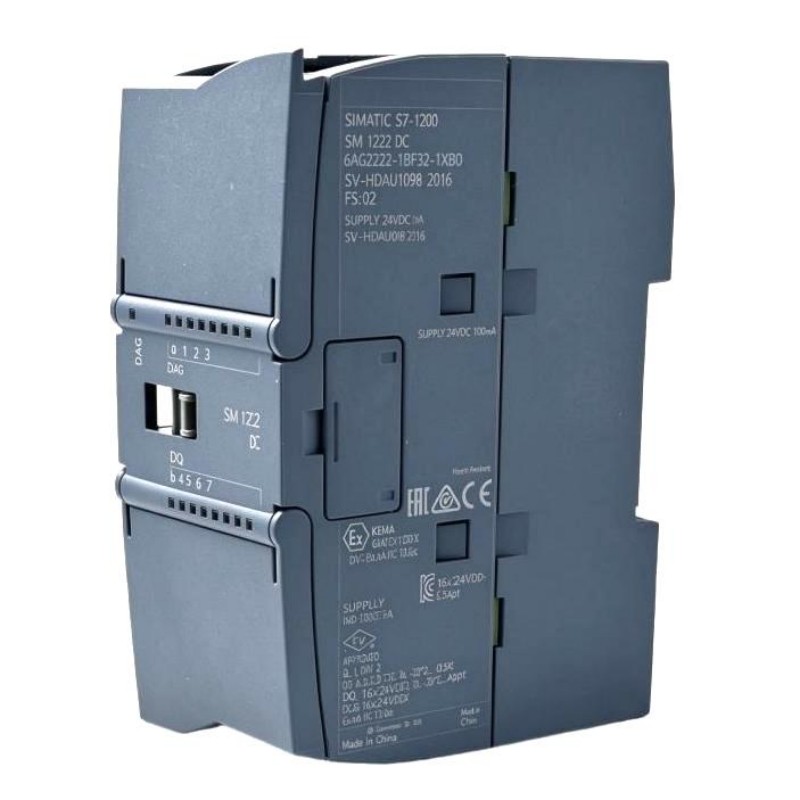

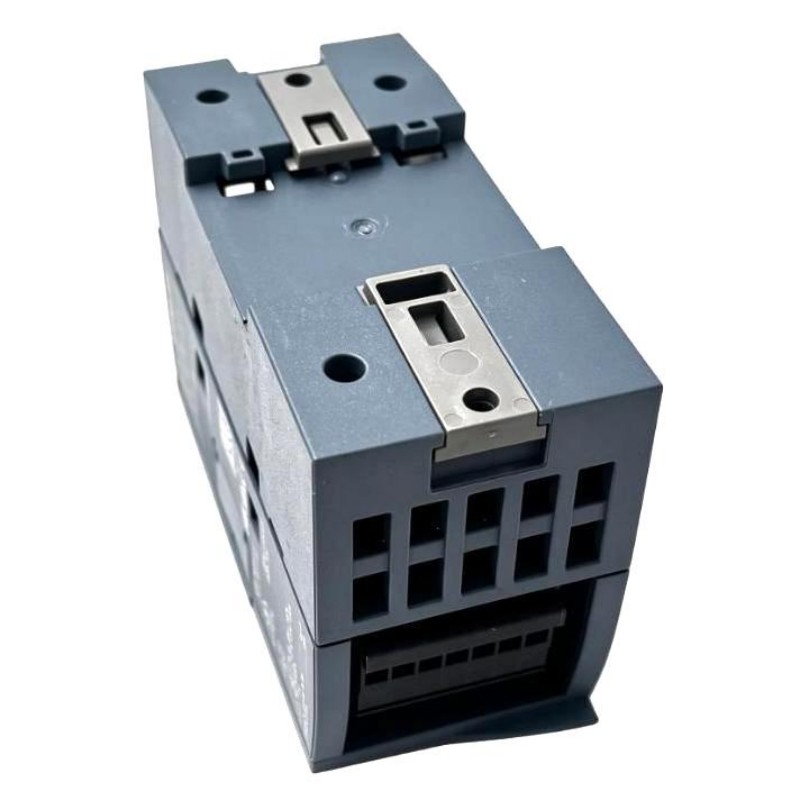

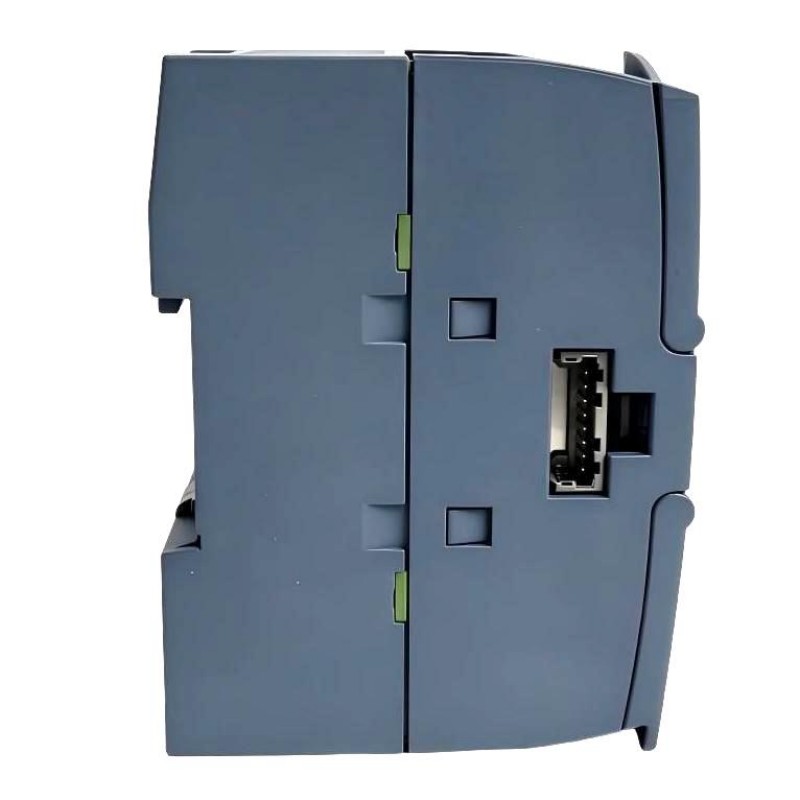

The Siemens 6AG2222-1BF32-1XB0 is a SIPLUS S7-1200 SM 1222 8DQ RAIL digital output module. Based on the standard 6ES7222-1BF32-0XB0, it provides eight 24 V DC transistor outputs for transferring control commands from a SIMATIC S7-1200 CPU to compatible field devices. The SIPLUS RAIL version incorporates conformal coating and is intended for applications requiring specified environmental capabilities for railway-related installations.

The module is suitable for switching compatible DC control circuits, including interface relays, indicator devices, and other loads within its electrical ratings. By adding eight output channels, it allows a controller to operate more equipment without replacing the CPU with a larger model solely to obtain additional digital outputs.

Unlike a digital input module, the SM 1222 receives commands from the controller and converts the internal logic states into electrical output signals. Each channel can be assigned to a specific control function, such as enabling a contactor interface, operating a signal lamp, or activating an auxiliary control circuit. The actual load must remain within the module’s output-current and switching-capacity limits.

The 6AG2222-1BF32-1XB0 uses transistor outputs rather than mechanical relay contacts. This makes it suitable for applications requiring frequent DC switching and fast output transitions. However, it does not provide built-in short-circuit protection, so external circuit protection must be incorporated into the electrical design.

Technical Specifications

Product Features

• Eight transistor outputs: Adds eight digital output channels to a compatible SIMATIC S7-1200 controller.
• 24 V DC switching: Supports compatible DC control circuits and field devices.
• 0.5 A rated output current: Allows individual channels to operate loads within their specified electrical limits.
• Fast switching response: Supports applications requiring rapid digital output transitions.
• Single output group: Organizes all eight outputs within one output group, requiring attention to the aggregate current limit.
• Output status LEDs: Help technicians identify commanded channel states during commissioning and troubleshooting.
• Diagnostic support: Provides diagnostic information for system monitoring and fault investigation.
• External short-circuit protection: Requires suitable external protective devices to safeguard the output circuits.
• Conformal coating: Protects coated electronic assemblies under specified environmental conditions.
• Railway-oriented design: Supports applications meeting the product’s applicable railway and environmental requirements.

Working Principle

The 6AG2222-1BF32-1XB0 converts digital commands from a SIMATIC S7-1200 CPU into electrical switching signals for compatible external loads. The CPU executes the control program and determines the required state of each output, while the SM 1222 module supplies the corresponding 24 V DC transistor output signal.

A typical control sequence follows this path:

PLC Program → CPU Output Data → SM 1222 Output Channel → External Load → Equipment Response

For example, when a control program determines that a conveyor motor should run, the CPU updates the assigned output state. The corresponding transistor channel switches the connected DC control circuit, which may operate an interface relay or another compatible control device. Feedback from the equipment can return to the CPU through a separate digital input module.

The module provides eight outputs in one group. Although each output is rated for up to 0.5 A, the total current drawn by the group must also remain within its specified limit. For horizontal installation at temperatures up to 50 °C, the maximum total current per group is 4 A. Engineers must therefore calculate both individual load currents and aggregate group current when assigning output channels.

The transistor design supports fast switching without the mechanical contact movement associated with relay outputs. This is useful for frequent DC switching and applications that require rapid changes in output state. The module’s maximum specified switching delays with resistive loads are 50 µs from OFF to ON and 200 µs from ON to OFF.

Inductive loads, such as relay coils and solenoids, can generate voltage transients when switched off. The module specifies typical limitation of the inductive shutdown voltage to approximately L+ minus 48 V, but the external circuit must still be designed according to the load characteristics and applicable protection requirements. Built-in short-circuit protection is not provided, so external protection is necessary.

The output status LEDs help technicians compare the module’s indicated channel states with the expected control sequence. Diagnostic information can also assist in identifying problems within the configured system. However, an illuminated output indicator does not by itself prove that the external load, wiring, or power supply is functioning correctly.

The SIPLUS RAIL version incorporates conformal coating for specified demanding environmental conditions. Proper operation still depends on correct installation, electrical protection, environmental compliance, and compatibility with the rest of the automation system.

Role in the SIMATIC S7-1200 Control Architecture

The 6AG2222-1BF32-1XB0 expands the digital output capacity of a compatible SIMATIC S7-1200 controller. It receives output commands through the system backplane and switches the corresponding field circuits, allowing the CPU to coordinate additional actuators and auxiliary equipment.

Field Inputs → SIMATIC S7-1200 CPU → SM 1222 Digital Output Module → Interface Devices → Field Loads

The module handles output switching only. It does not independently execute the control program, acquire field feedback, or provide a complete motor-control or safety function. Those responsibilities depend on the CPU, connected devices, and overall system design.

Industrial Applications

Application suitability depends on the output current, total group loading, switching frequency, load characteristics, protection arrangement, and environmental requirements. Loads requiring current beyond the module’s ratings need a suitable external switching device.

Installation and Maintenance

1. Verify the order number: Confirm that the module is 6AG2222-1BF32-1XB0 and that the application requires the SM 1222 8DQ RAIL transistor-output configuration.
2. Check CPU compatibility: Verify that the intended SIMATIC S7-1200 CPU and hardware configuration support the module.
3. Isolate the power supply: Disconnect relevant power sources and follow the site’s lockout procedure before installing or removing the module.
4. Verify output voltage: Ensure that connected loads and their control circuits are compatible with the specified 24 V DC output arrangement.
5. Calculate channel current: Keep the current of each output within the 0.5 A rating and account for the aggregate current drawn by all channels.
6. Check output-group loading: Confirm that the total current does not exceed the applicable group limit, including temperature and mounting-orientation restrictions.
7. Provide external protection: Install suitable short-circuit and overcurrent protection because the module does not provide integrated short-circuit protection.
8. Review inductive-load protection: Check relay coils, solenoids, and other inductive loads for appropriate suppression and switching-circuit protection.
9. Inspect the front connector: Ensure that the required connector is correctly installed and that all conductors are securely retained.
10. Verify output assignments: Match each physical channel to the correct address in the engineering project and electrical drawings.
11. Check environmental conditions: Confirm operating temperature, cabinet protection, vibration exposure, and applicable railway requirements.
12. Perform commissioning tests: Test each output channel with its connected load, verify status indications and diagnostic information, and confirm the expected equipment response before returning the system to service.

When troubleshooting a non-operating output, check the output command, channel assignment, supply voltage, external protection, wiring, and connected load before replacing the module. A correctly commanded transistor output cannot operate a load if the external circuit is open or its power supply is unavailable.

Compatible System Components

The 6AG2222-1BF32-1XB0 belongs to the SIMATIC S7-1200 platform. Associated components should match the controller’s expansion arrangement, the module’s transistor-output characteristics, and the electrical requirements of the connected loads.

Recommended Related Models

Key Advantages

• Provides eight 24 V DC transistor output channels.
• Supports fast switching for compatible DC control circuits.
• Offers output status indication and diagnostic support.
• Expands the digital output capacity of a compatible S7-1200 controller.
• Incorporates conformal coating for specified railway-related environmental conditions.

Technical FAQs

Can all eight outputs continuously operate loads at 0.5 A simultaneously?

Not without checking the aggregate current limit. Each channel is rated for up to 0.5 A, but the maximum total current per output group is 4 A under the specified horizontal-installation conditions up to 50 °C. The complete load distribution must also comply with the applicable temperature and mounting restrictions.

Does the 6AG2222-1BF32-1XB0 have built-in short-circuit protection?

No. The output circuits require suitable external short-circuit and overcurrent protection. The protective arrangement should be selected according to the connected loads, conductor ratings, supply capacity, and applicable electrical installation requirements.

When should the transistor-output model be chosen instead of the relay-output version?

The transistor-output version is suitable for compatible DC switching applications requiring fast output transitions and frequent switching. The relay-output version uses mechanical contacts and has different electrical characteristics. Selection should be based on the load type, switching frequency, required isolation, and output ratings.

What should be checked if the output LED indicates an active channel but the connected device does not operate?

Verify the external 24 V DC supply, wiring continuity, load polarity, protective devices, and the current requirements of the connected device. Also inspect the output connector and confirm that the load is compatible with the transistor output. An active channel indication alone does not confirm that current is reaching the field device.
