Product Overview

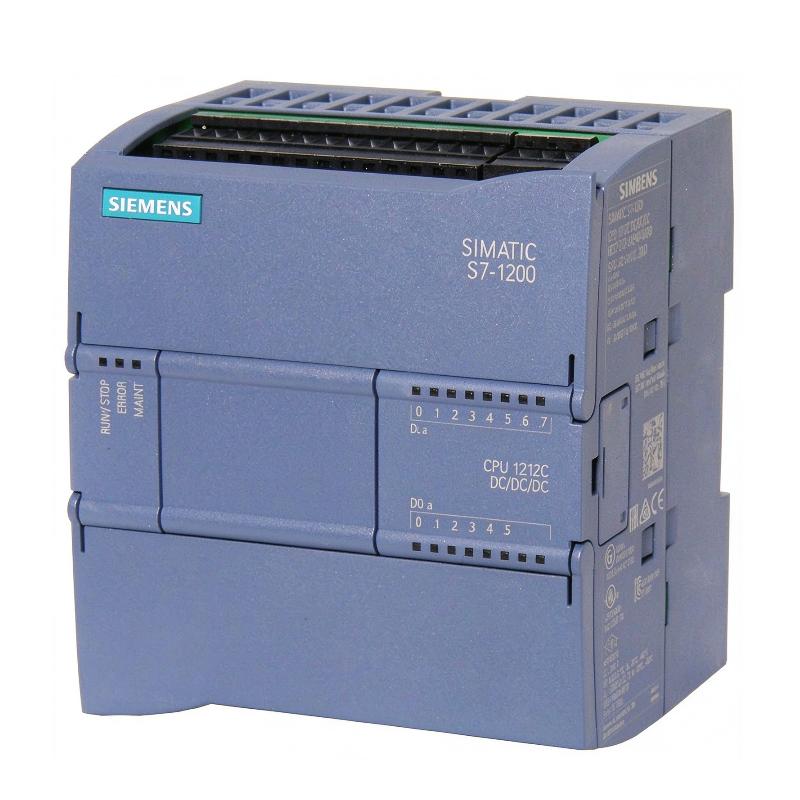

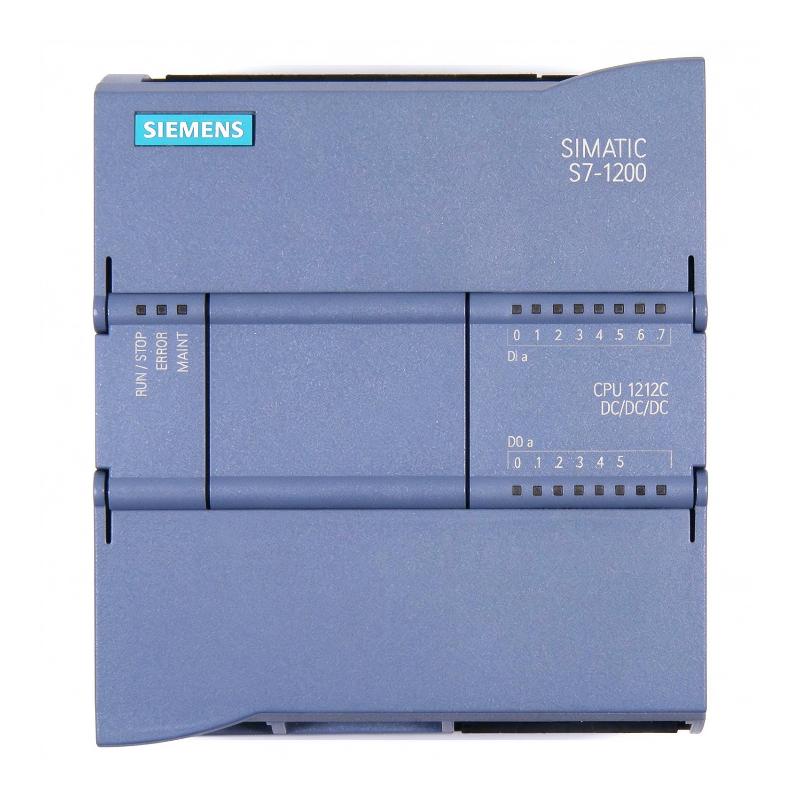

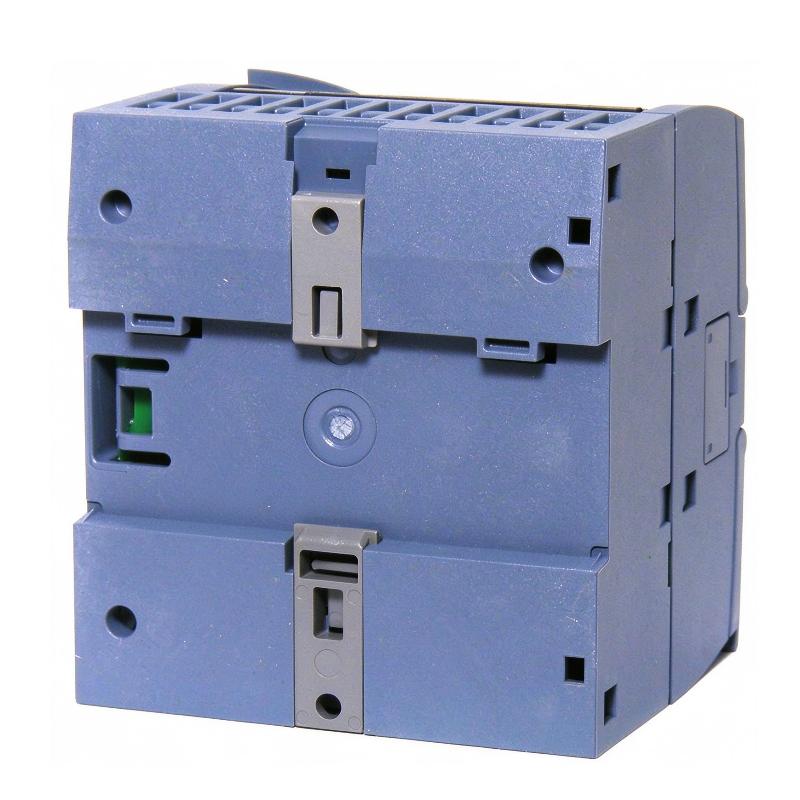

The Siemens 6AG2212-1AE40-1XB0 is a SIPLUS S7-1200 CPU 1212C DC/DC/DC RAIL compact programmable logic controller (PLC). Based on the SIMATIC S7-1200 CPU 1212C platform, it combines onboard digital inputs, digital outputs, analog inputs, and PROFINET communication in a single controller. Its SIPLUS RAIL configuration is intended for automation applications requiring environmental protection and compliance with specified railway operating conditions.

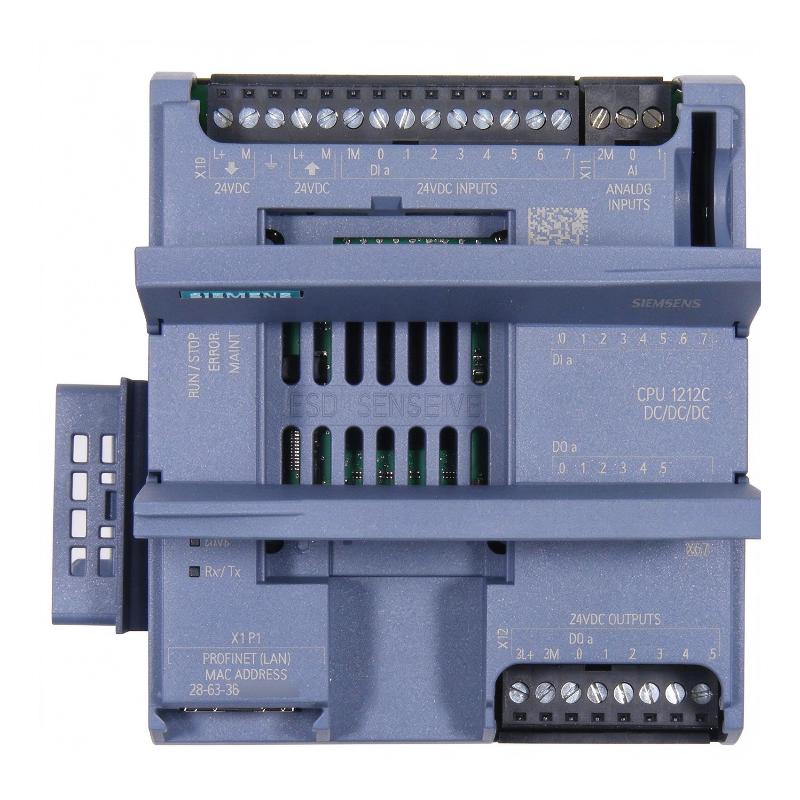

The CPU integrates eight 24 V DC digital inputs, six 24 V DC digital outputs, and two 0–10 V DC analog inputs. This onboard I/O arrangement allows a machine or equipment subsystem to handle discrete status signals, switching commands, and basic analog measurements without immediately requiring additional signal modules. Typical signals include limit switches, equipment interlocks, contactor commands, and voltage-output sensors.

The DC/DC/DC designation identifies the controller’s DC power supply, DC digital inputs, and DC digital outputs. The transistor outputs are suitable for compatible DC switching applications, making this version different from CPU variants equipped with relay outputs. Engineers should check the electrical characteristics of connected loads before assigning output channels.

As a railway-oriented SIPLUS controller, the 6AG2212-1AE40-1XB0 incorporates conformal coating and specified environmental capabilities. It can serve as the main controller for a compact machine, a local automation unit, or a subsystem within a larger railway control architecture. The final configuration depends on the required I/O capacity, communication arrangement, expansion modules, and application-specific safety requirements.

Technical Specifications

Product Features

• Integrated CPU and I/O: Combines controller processing with eight digital inputs, six digital outputs, and two analog inputs.
• DC/DC/DC configuration: Uses DC power, DC digital inputs, and DC transistor outputs.
• PROFINET connectivity: Supports integration with compatible industrial communication networks and distributed devices.
• Analog signal acquisition: Accepts two voltage inputs in the 0–10 V DC range for compatible measurement devices.
• High-speed input functions: Supports configured high-speed counting applications for suitable digital input channels.
• PTO and PWM functions: Supports pulse-train and pulse-width-modulated output applications within the controller’s specified limits.
• Expandable architecture: Accommodates compatible communication and signal expansion components.
• Conformal coating: Provides protection for the coated assemblies under specified environmental conditions.
• Railway-oriented design: Supports applications meeting the product’s specified environmental and railway requirements.

Working Principle

The 6AG2212-1AE40-1XB0 executes a user-defined automation program to monitor field signals, evaluate operating conditions, and control connected equipment. Its onboard I/O allows the controller to perform basic machine-control tasks without relying on a separate module for every signal type.

During normal operation, the CPU reads the configured digital and analog inputs, processes the program logic, and updates its digital outputs. A digital input might represent a door interlock, pressure-switch status, or equipment-running signal. An analog input can acquire a compatible 0–10 V measurement, such as a sensor output representing a process variable.

The six onboard digital outputs use DC transistor switching. These outputs can operate compatible control circuits, interface relays, or other DC loads within their electrical ratings. They should not be connected directly to loads that exceed the output specifications. Inductive loads and external devices may require suitable protective and interface components.

The two analog inputs accept voltage signals within the specified 0–10 V range. Correct signal acquisition depends on the connected sensor’s output type, reference potential, wiring, and configured input settings. A current-output sensor should not be connected directly as though it were a voltage-output device; the appropriate signal-conversion arrangement must be used.

PROFINET provides the communication interface for exchanging data with compatible engineering systems, HMIs, other controllers, and networked field devices. Depending on the configured role, the CPU can act as a PROFINET IO Controller or an IO Device. Network configuration, device names, IP settings, and communication parameters must match the surrounding system.

The controller also supports high-speed input and pulse-output functions for suitable applications. Digital inputs can be configured for high-speed counting, while compatible outputs can provide PTO or PWM signals. These functions require appropriate channel assignment and configuration in the engineering software.

The SIPLUS RAIL version adds conformal coating and specified environmental capabilities. These features do not replace correct cabinet design, electrical protection, grounding, or compliance with the controller’s operating limits. The application must also be assessed separately if functional safety or other specialized approvals are required.

Role in the SIMATIC S7-1200 Control Architecture

The 6AG2212-1AE40-1XB0 can serve as the main control unit for a compact automation system or as a local controller within a larger installation. It executes the control program, processes its onboard I/O, and exchanges data through PROFINET with compatible devices.

Field Sensors → Onboard Inputs → CPU 1212C → Onboard Outputs → Actuators

Engineering System / HMI / Networked Devices ↔ PROFINET ↔ CPU 1212C

The controller’s onboard I/O is suitable for applications whose signal count and electrical requirements fit the integrated channels. Larger systems can use supported expansion modules, provided the complete configuration remains within the platform’s limits.

Industrial Applications

The actual application should be evaluated against the onboard I/O ratings, communication requirements, environmental conditions, and any additional safety or railway certification requirements.

Installation and Maintenance

1. Verify the model: Confirm that the controller is 6AG2212-1AE40-1XB0 and that the application requires the CPU 1212C DC/DC/DC RAIL configuration.
2. Check the supply voltage: Use a compatible DC supply within the specified 20.4–28.8 V DC range.
3. Inspect the mounting location: Ensure that the control cabinet provides appropriate mechanical support, clearance, ventilation, and environmental protection.
4. Confirm the grounding arrangement: Follow the system wiring design and applicable electrical installation requirements for protective grounding and reference potentials.
5. Check digital input compatibility: Verify that connected sensors and switches provide signals compatible with the 24 V DC digital inputs.
6. Verify transistor output loads: Check the voltage, current, switching frequency, and load characteristics of every device connected to the six digital outputs.
7. Review analog signal wiring: Ensure that each analog sensor supplies a compatible 0–10 V DC signal and that the wiring and reference connections are correct.
8. Configure PROFINET: Assign the appropriate network parameters and verify that the CPU and connected devices use compatible communication settings.
9. Check expansion requirements: Confirm that any additional communication modules, signal modules, or signal boards are supported by the intended CPU configuration.
10. Review environmental limits: Verify the operating temperature, mounting conditions, vibration exposure, and applicable railway requirements for the installation.
11. Back up the control program: Preserve the project, hardware configuration, and relevant parameters before replacing the CPU or changing the control program.
12. Perform commissioning tests: Verify input states, output switching, analog readings, network communication, diagnostic information, and the expected machine sequence before returning the equipment to service.

For troubleshooting, separate power-supply faults, field-wiring problems, configuration errors, and communication failures. Check diagnostic indications and the engineering project’s hardware configuration before replacing the CPU.

Compatible System Components

The 6AG2212-1AE40-1XB0 belongs to the SIMATIC S7-1200 platform. Associated components should be selected according to the controller’s electrical interface, communication requirements, expansion limits, and environmental conditions.

Recommended Related Models

Key Advantages

• Combines CPU processing with 8 digital inputs, 6 digital outputs, and 2 analog inputs.
• Uses DC transistor outputs for compatible switching and pulse-control applications.
• Provides PROFINET connectivity for compatible industrial devices.
• Supports high-speed counting and configured PTO/PWM functions.
• Incorporates conformal coating for specified railway-related environmental conditions.

Technical FAQs

What does the DC/DC/DC designation mean for this CPU?

The first DC indicates the controller’s DC power supply, the second DC identifies its DC digital inputs, and the third DC indicates its DC transistor outputs. This configuration is appropriate for compatible DC control circuits and differs from versions that use relay outputs.

Can the two analog inputs directly accept a 4–20 mA sensor signal?

The onboard analog inputs are specified for 0–10 V DC signals. A 4–20 mA sensor should therefore be connected through an appropriate signal-conversion device or compatible expansion module rather than directly treated as a voltage input.

When are the high-speed input and pulse-output functions useful?

High-speed inputs can support applications such as pulse counting and encoder-related measurement when configured appropriately. PTO and PWM outputs can be used for compatible pulse-based control tasks. Channel assignments, electrical limits, and application requirements must be checked before commissioning these functions.

What should be checked before replacing this RAIL CPU with a standard S7-1200 CPU?

Confirm the required environmental operating range, conformal-coating requirement, railway-related approvals, onboard I/O configuration, memory requirements, and communication setup. A standard CPU with a similar base model is not automatically equivalent for installations that depend on the SIPLUS RAIL environmental specifications.
