Product Overview

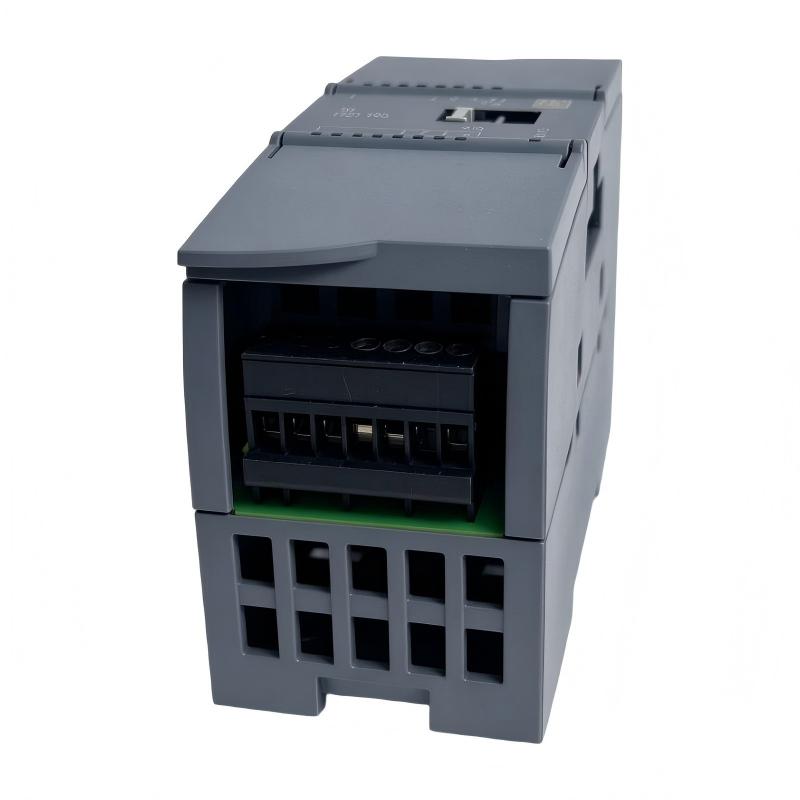

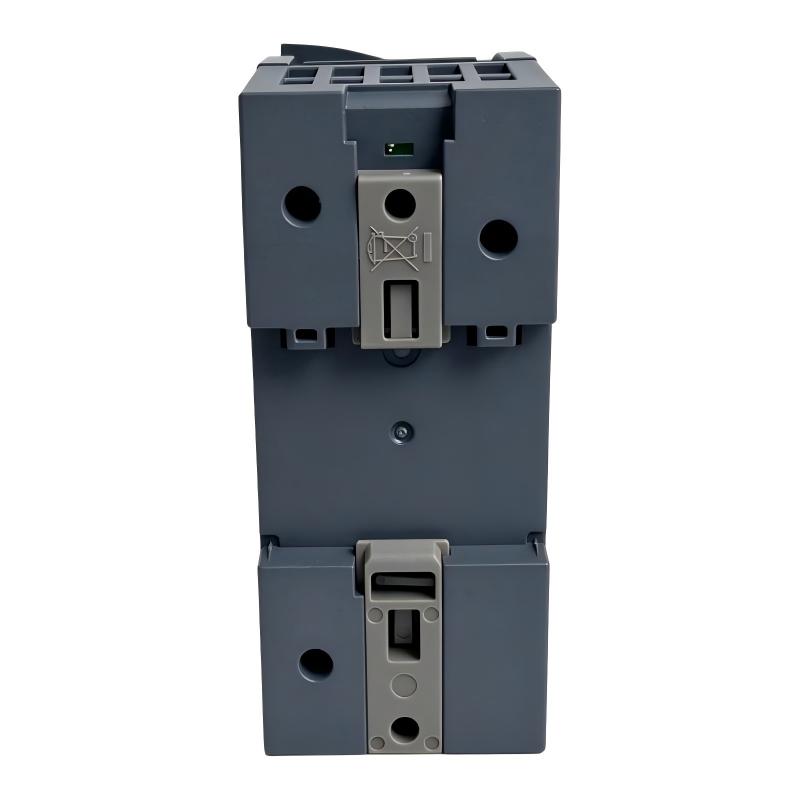

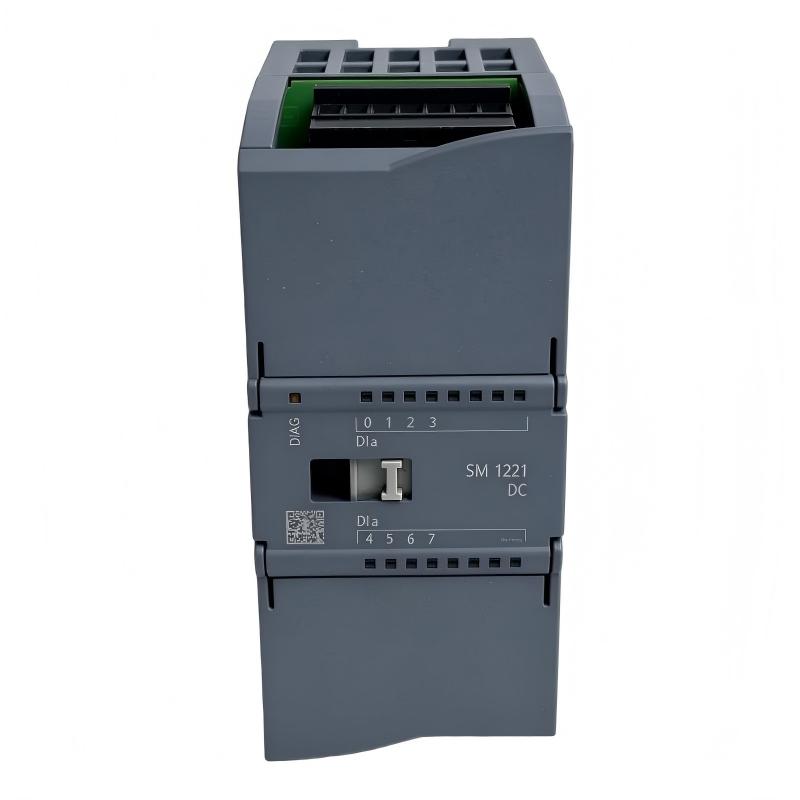

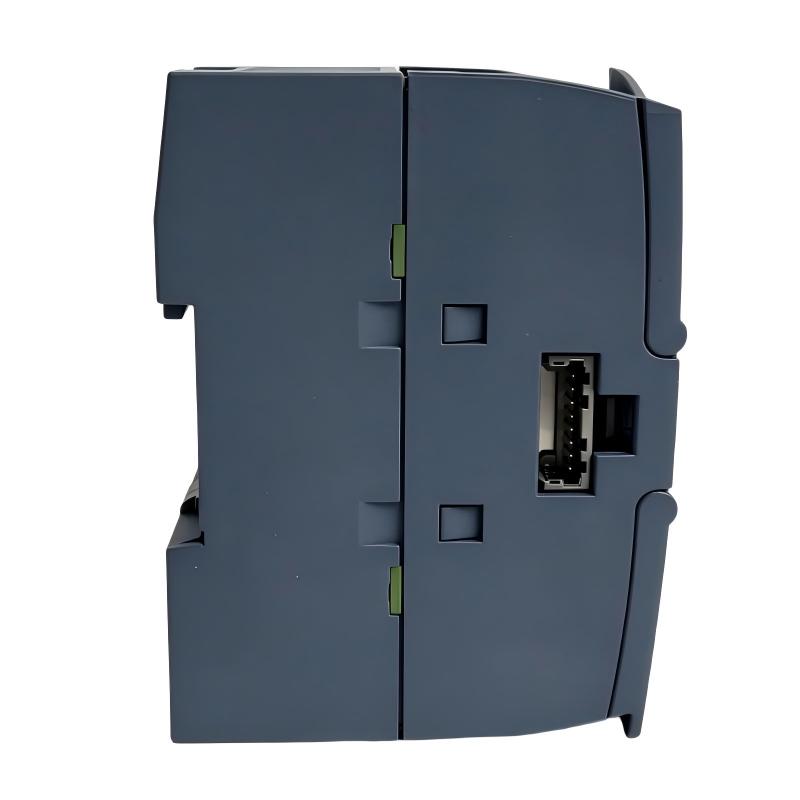

The Siemens 6AG2221-1BF32-1XB0 is a SIPLUS S7-1200 SM 1221 RAIL digital input module designed to acquire discrete 24 V DC signals from field devices and transfer their status to a SIMATIC S7-1200 CPU. It is based on the standard 6ES7221-1BF32-0XB0 module and incorporates conformal coating for specified demanding environmental conditions, including railway-related applications.

The module provides eight digital inputs with isolated input circuits and supports both current-sourcing and current-sinking sensor arrangements. This makes it suitable for monitoring equipment status, limit switches, proximity sensors, push buttons, and other compatible devices that produce discrete DC signals. The input channels allow the controller to distinguish between field conditions such as equipment running, a guard switch being activated, or a position sensor detecting a target.

The 6AG2221-1BF32-1XB0 belongs to the SM 1221 family, which handles input acquisition rather than output switching. It does not directly operate motors, valves, or contactors. Instead, it reports field conditions to the CPU, where the control program evaluates the signals and determines the required response.

Its RAIL configuration is particularly relevant to railway control cabinets and transportation equipment that must meet specified environmental and electrical requirements. When selecting this module, engineers should verify the input voltage, sensor wiring method, signal response time, CPU compatibility, and operating conditions of the complete installation.

Technical Specifications

Product Features

• Eight digital input channels: Monitors eight discrete field signals through a single expansion module.
• 24 V DC signal compatibility: Interfaces with compatible industrial switches, sensors, and control contacts.
• Electrical isolation: Helps separate input circuits from other parts of the automation system according to the module’s specified isolation arrangement.
• SINK/SOURCE compatibility: Supports different field-sensor wiring arrangements when connected according to the relevant circuit diagrams.
• Input status indication: Helps technicians identify channel states during commissioning and troubleshooting.
• Diagnostic capability: Supports fault identification through the configured system diagnostics.
• SM 1221 architecture: Acquires digital signals without adding output-switching functions.
• Conformal coating: Protects coated electronic assemblies under specified environmental conditions.
• Railway-oriented design: Supports installations that meet the module’s applicable railway and environmental requirements.
• Modular expansion: Adds digital input capacity to a compatible SIMATIC S7-1200 controller.

Working Principle

The 6AG2221-1BF32-1XB0 receives discrete electrical signals from field devices and converts them into digital states that the connected S7-1200 CPU can process. Each channel represents a binary condition, such as an activated switch, a detected object, or a piece of equipment reaching a particular position.

When a compatible sensor applies a valid input signal, the module detects the electrical state and updates the corresponding input data. The CPU reads this information and evaluates it within the user program. For example, a conveyor-control program may use one channel to confirm that a guard is closed and another to detect that a workpiece has reached a transfer point.

The module has eight isolated 24 V DC input channels. The isolation arrangement helps manage electrical separation between field circuits and the internal automation electronics, subject to the module’s specified isolation limits. Correct wiring remains essential because isolation does not eliminate the need for suitable grounding, circuit protection, or proper signal references.

The SINK/SOURCE capability accommodates different sensor output arrangements. Before connecting a sensor, engineers must identify whether it switches the positive supply or the return path and follow the appropriate wiring diagram. An incompatible connection can prevent reliable signal detection or create an electrical fault.

Input response also depends on the configured signal delay. The specified delay range is 0.2–12.8 ms, so the selected configuration should suit the switching speed of the application. Applications involving rapid pulses require particular attention to the input characteristics and supported counting functions of the overall controller system.

The module communicates with the CPU through the S7-1200 system backplane. Once the hardware configuration and input addresses have been assigned in the engineering project, the CPU can use the acquired states in interlocks, sequencing, alarms, and operating-status logic.

The RAIL version incorporates conformal coating for specified demanding conditions. Its environmental suitability must be assessed alongside the controller, cabinet, wiring, connectors, and installation requirements rather than treated as a substitute for system-level protection.

Role in the SIMATIC S7-1200 Control Architecture

The 6AG2221-1BF32-1XB0 expands the digital input capacity of a compatible SIMATIC S7-1200 control system. It collects discrete field signals and makes their states available to the CPU, where the control program uses them to make decisions.

Field Sensors and Switches → SM 1221 Digital Input Module → S7-1200 CPU → Control Logic → Output Module or Actuator Interface

The module supplies input information only. Output switching and control decisions remain the responsibility of the CPU and the relevant output devices.

Industrial Applications

The module is appropriate when the required signals are compatible 24 V DC digital inputs. Analog measurements, direct actuator switching, and specialized high-speed functions require suitable hardware elsewhere in the system.

Installation and Maintenance

1. Verify the order number: Confirm that the installed module is 6AG2221-1BF32-1XB0 and that the application requires the SM 1221 8DI RAIL configuration.
2. Check CPU compatibility: Verify that the S7-1200 CPU and the intended hardware configuration support the module.
3. Isolate the power supply: Disconnect the relevant supply circuits and follow the site’s lockout procedure before installing or removing the module.
4. Confirm sensor voltage: Ensure that each field device provides a compatible 24 V DC signal within the permitted input range.
5. Verify SINK/SOURCE wiring: Identify the sensor output arrangement and connect the supply, return, and signal conductors according to the correct circuit diagram.
6. Check channel assignments: Match each field conductor to the intended input address in the electrical drawings and engineering project.
7. Inspect the front connector: Confirm that the required connector is correctly fitted and that the terminals securely retain the conductors.
8. Review signal response requirements: Select appropriate input delay settings for the switching speed and response requirements of the application.
9. Inspect the mounting and enclosure: Verify secure installation, suitable cabinet protection, and the absence of contamination or mechanical damage.
10. Check environmental conditions: Confirm that operating temperature, vibration, and railway-related environmental requirements are within the module’s specified limits.
11. Verify input diagnostics: During commissioning, compare the physical sensor states with the module’s channel indicators and the input data observed in the engineering software.
12. Test the complete signal path: Confirm that each field signal reaches the correct CPU input address and produces the expected program response before returning the equipment to service.

If an input remains inactive, check the sensor supply, common reference, SINK/SOURCE wiring, connector seating, and configured input address before replacing the module. A field-device fault or incorrect wiring can produce the same symptoms as a defective input channel.

Compatible System Components

The 6AG2221-1BF32-1XB0 is an expansion module for the SIMATIC S7-1200 platform. Associated components must match the controller’s supported expansion arrangement, the field-signal voltage, and the required environmental conditions.

Recommended Related Models

Key Advantages

• Eight isolated digital inputs for compatible 24 V DC field signals.
• Supports SINK/SOURCE sensor wiring arrangements.
• Provides channel-status indication and diagnostic capability.
• Expands the digital input capacity of a compatible S7-1200 controller.
• Incorporates conformal coating for specified railway-related environmental conditions.

Technical FAQs

Can the 6AG2221-1BF32-1XB0 directly switch a contactor or solenoid valve?

No. This is an input-only module and has no digital output channels. It can monitor a contactor’s auxiliary contact or a valve-position switch, while a compatible output module and suitable interface circuit handle the switching command.

What should be checked when a PNP or NPN sensor does not activate an input?

Verify the sensor’s output type, the selected SINK/SOURCE wiring arrangement, supply polarity, common reference, and input voltage under load. Also check the channel assignment and signal threshold before concluding that the module is defective.

How should the input delay be selected for a machine-control application?

The selected delay should balance noise rejection against the required response time. A longer delay can help suppress brief signal changes but may delay detection of legitimate transitions. Confirm the configured value against the sensor characteristics and the machine’s timing requirements.

What distinguishes the SIPLUS RAIL version from the standard SM 1221 module?

The 6AG2221-1BF32-1XB0 is based on the standard 6ES7221-1BF32-0XB0 but adds conformal coating and specified railway-related environmental capabilities. Applications that depend on railway qualification or environmental performance should verify the complete operating conditions rather than treating the two versions as interchangeable in every installation.
