Product Overview

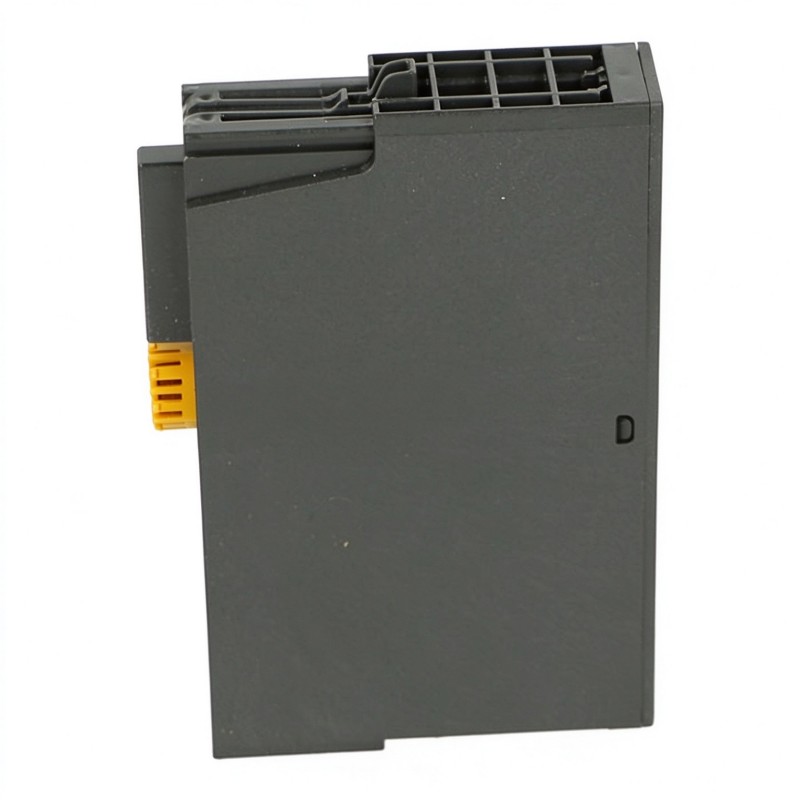

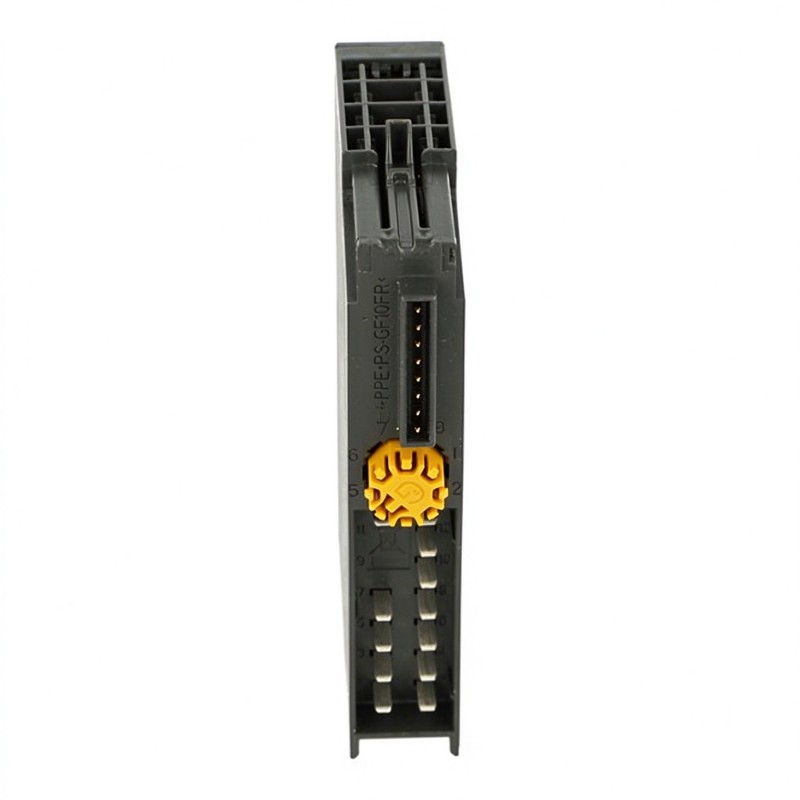

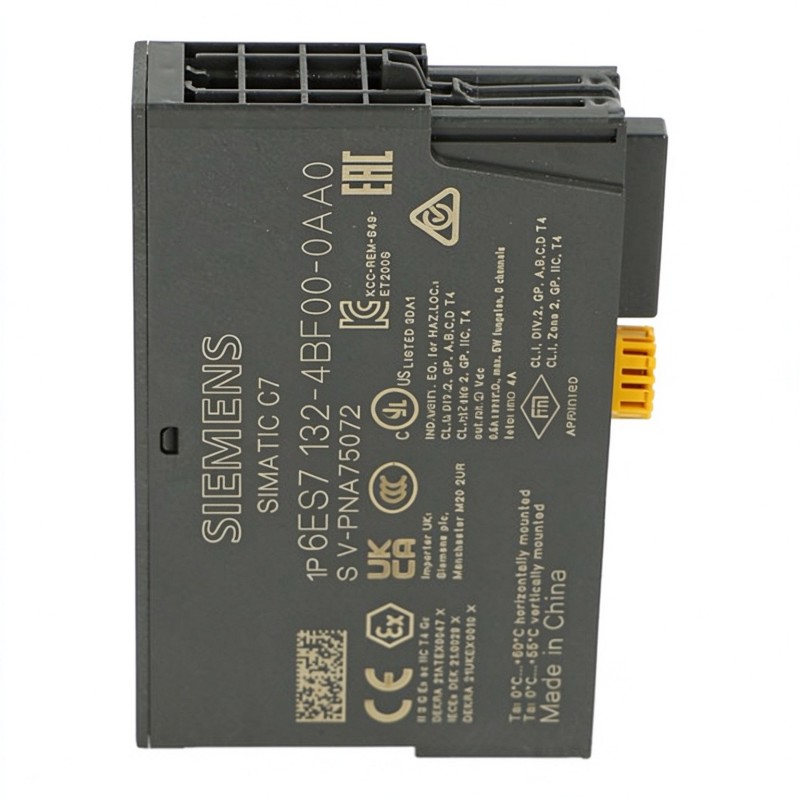

The Siemens 6ES7132-4BF00-0AB0 is an eight-channel digital output electronic module for the SIMATIC ET 200S distributed I/O system. It switches 24 V DC signals to connected field devices, allowing a PLC to control multiple discrete loads through a remote I/O station. Typical applications include pneumatic solenoid valves, pilot relays, contactor control circuits, and other low-current devices used in automated machinery.

The main distinction of this model is its High Feature configuration. In addition to switching eight output channels, it supports short-circuit diagnostics and provides a red SF group-fault indicator. These functions are useful when an output fault can interrupt a machine sequence or require maintenance personnel to identify the affected circuit quickly. Individual green LEDs indicate the switching status of the output channels, while the diagnostic information helps distinguish an electrical fault from a normal OFF command.

With a rated output current of 0.5 A per channel and a maximum total output current of 4 A per module, the 6ES7132-4BF00-0AB0 is suited to distributed control applications involving several low-current loads. For example, an automated assembly station may use its outputs to operate pneumatic valves, auxiliary relays, and machine indicators according to PLC sequence logic.

When replacing an existing ET 200S module, engineers should verify the complete order number rather than relying on the eight-channel arrangement alone. The standard version, 6ES7132-4BF00-0AA0, has similar basic switching characteristics but does not provide the same diagnostic functionality. The terminal module, field wiring, load characteristics, and PLC hardware configuration must also be checked before installation.

Technical Specifications

Product Features

• Eight independent output channels: Controls multiple field devices through a single ET 200S electronic module.
• 24 V DC PNP outputs: Switches the positive supply voltage to compatible field loads.
• 0.5 A rated current per channel: Supports low-current actuators and control devices within the specified electrical limits.
• High Feature diagnostics: Supports short-circuit fault reporting to assist electrical troubleshooting.

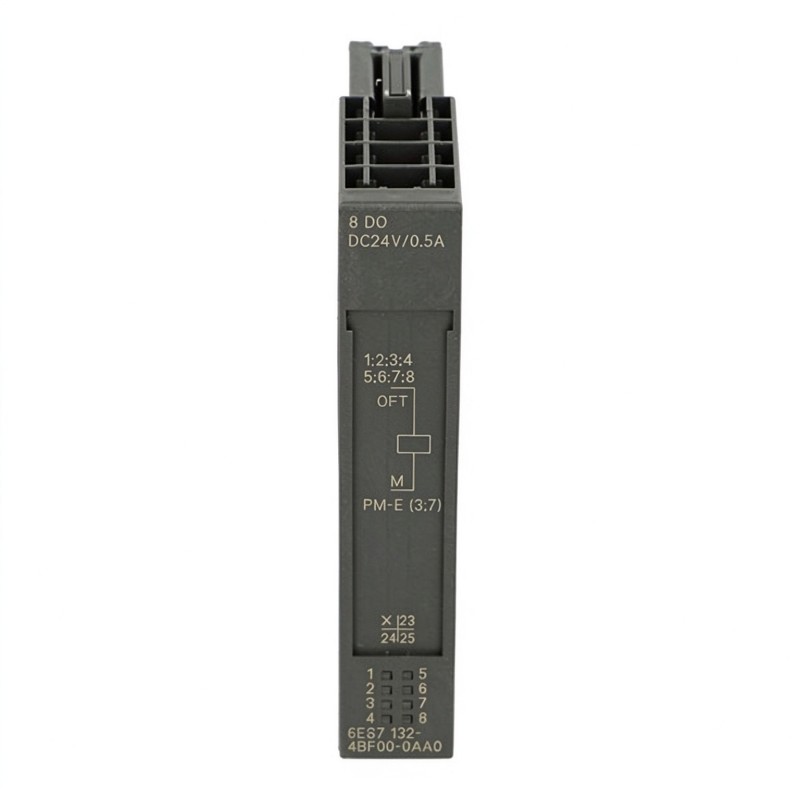

• Individual channel indicators: Green LEDs show the switching status of the eight outputs.
• Group fault indication: The red SF LED provides a local indication of a reported group fault.
• Short-circuit protection: Helps protect the output circuitry under specified fault conditions.
• Distributed I/O integration: Exchanges output data with a compatible SIMATIC automation controller through the ET 200S station.
• Defined current limits: Supports load planning around the 0.5 A channel rating and 4 A total module limit.

Working Principle

The 6ES7132-4BF00-0AB0 receives output commands through the ET 200S backplane bus. When the PLC activates a channel, the module switches its PNP transistor output to supply the connected load with 24 V DC. When the command is removed, the output switches off according to its electrical characteristics.

A typical control sequence follows this path:

PLC Program → ET 200S Interface Module → Backplane Bus → 6ES7132-4BF00-0AB0 → Field Device

Consider a pneumatic handling station with several cylinders and grippers. The PLC may activate one output to energize a directional valve, use another to operate a pilot relay, and reserve other channels for auxiliary mechanisms. The controller manages the sequence and interlocks, while the output module carries out the electrical switching.

The High Feature configuration adds diagnostic capability to this process. If the module detects a supported short-circuit condition, it can report the fault through the diagnostic system. The red SF LED provides a local group-fault indication, and the green LEDs help technicians check the switching state of individual channels.

These indicators do not replace electrical testing. A green output LED does not necessarily prove that the connected actuator is functioning mechanically, and a field device may fail because of a broken wire, loose terminal, or damaged coil. Maintenance personnel should compare the PLC command, diagnostic information, output status, and actual load response.

Current distribution must also be considered during operation. Although each output is rated at 0.5 A, the combined output current must not exceed 4 A per module. The specified switching frequency depends on the load type: up to 100 Hz for resistive loads, 2 Hz for inductive loads, and 10 Hz for lamp loads. Solenoid valves and relay coils therefore require particular attention to switching frequency and inductive-load characteristics.

Role in the SIMATIC ET 200S Control Architecture

Within a distributed automation station, the 6ES7132-4BF00-0AB0 acts as the electrical switching interface between PLC logic and field-level devices. The controller processes machine conditions and determines output states. The ET 200S interface transfers the process data, and the electronic module switches the assigned 24 V DC circuits.

SIMATIC PLC → ET 200S Interface Module → Backplane Bus → Digital Output Module → Field Actuators

The module’s diagnostic capability is particularly useful when an electrical fault affects a sequence-controlled machine. However, it does not replace the PLC program’s interlocks or the machine’s safety functions. Those functions must be implemented through the appropriate control and safety architecture.

Industrial Applications

For installations where short-circuit fault identification is useful during troubleshooting, the High Feature version offers diagnostic functionality beyond basic output switching. The actual load current, switching frequency, and field wiring must still comply with the module specifications.

Installation and Maintenance

1. Verify the complete order number: Confirm that the replacement is 6ES7132-4BF00-0AB0 and that the application requires the High Feature version with short-circuit diagnostics.
2. Isolate electrical power: Follow the site’s lockout procedure and disconnect the relevant power sources before removing or installing the electronic module.
3. Check station compatibility: Verify the installed ET 200S interface module, power module, terminal module, and hardware configuration.
4. Review the wiring assignment: Identify all eight output channels and compare their connections with the electrical drawings before disconnecting the existing module.
5. Inspect the terminal module: Check the contacts, terminals, and mounting arrangement for damage, contamination, or loose connections.
6. Verify output polarity: Confirm that the field circuits are suitable for PNP sourcing outputs and that the supply and common connections follow the intended wiring arrangement.
7. Calculate the load current: Check that each output remains within its 0.5 A rating and that the combined current does not exceed 4 A per module.
8. Check the switching duty: Compare the operating frequency and load type with the specified limits, especially for solenoid valves and relay coils.
9. Install the module correctly: Seat the electronic module in the designated ET 200S position and confirm that the mechanical connection is secure.
10. Verify diagnostic configuration: Check the PLC hardware configuration and confirm that the module’s supported diagnostic information can be accessed as required by the application.
11. Test output operation: Restore power using the approved commissioning procedure and verify channel status, diagnostic indications, output switching, and connected device response.
12. Record maintenance findings: Document the installed order number, diagnostic messages, wiring corrections, load tests, and any faults identified during commissioning.

If the SF indicator reports a fault, review the available diagnostic information before replacing the module. Check field wiring and connected loads for short circuits or other electrical problems so that the same fault does not affect the replacement unit.

Compatible System Components

The 6ES7132-4BF00-0AB0 belongs to the SIMATIC ET 200S distributed I/O platform. The following component types are relevant to a typical installation, depending on the station configuration and field circuit requirements.

Recommended Related Models

Key Advantages

• Eight PNP transistor outputs for 24 V DC discrete control.
• Rated output current of 0.5 A per channel, subject to the 4 A total module limit.
• Short-circuit diagnostics with a red SF group-fault indicator.
• Individual green LEDs for checking output channel status.
• Integration with compatible SIMATIC ET 200S distributed I/O stations.

Technical FAQs

What diagnostic information does the 6ES7132-4BF00-0AB0 provide?

This High Feature module supports diagnostic reporting, including short-circuit detection at the module level. The red SF LED indicates a group fault, while individual green LEDs show output status. Use the available PLC diagnostic information to investigate the reported condition rather than relying on the LEDs alone.

Can all eight channels operate at their rated 0.5 A simultaneously?

The module’s total output current is limited to 4 A. The combined load demand must therefore be checked when several channels are active at once. Each channel must also remain within its own specified current range.

Is this module suitable for frequently switching inductive loads?

It can operate compatible inductive loads within its specified switching limits. The maximum switching frequency for inductive loads is 2 Hz, so applications involving rapidly cycling solenoid valves or relay coils need careful evaluation. The load’s electrical characteristics and the machine’s duty cycle should be checked before commissioning.

What should be checked before replacing the standard 6ES7132-4BF00-0AA0 with this High Feature version?

Confirm that the terminal arrangement, field wiring, PLC hardware configuration, and load requirements are compatible. The High Feature version adds diagnostic functionality, but the replacement must still match the station’s electrical arrangement. After installation, verify output addressing and confirm that diagnostic messages are handled appropriately by the control program.
