Product Overview

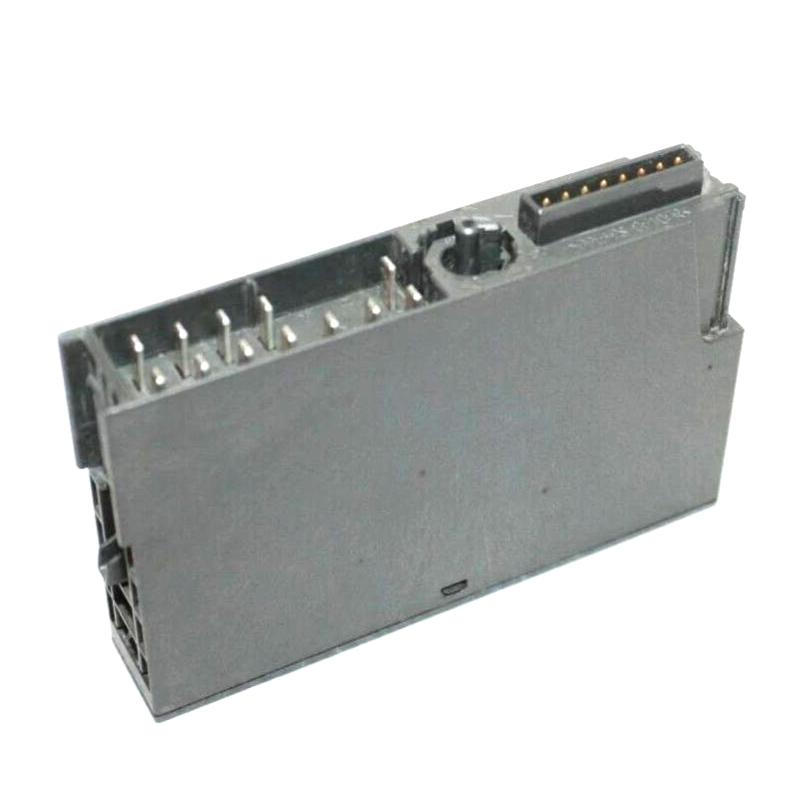

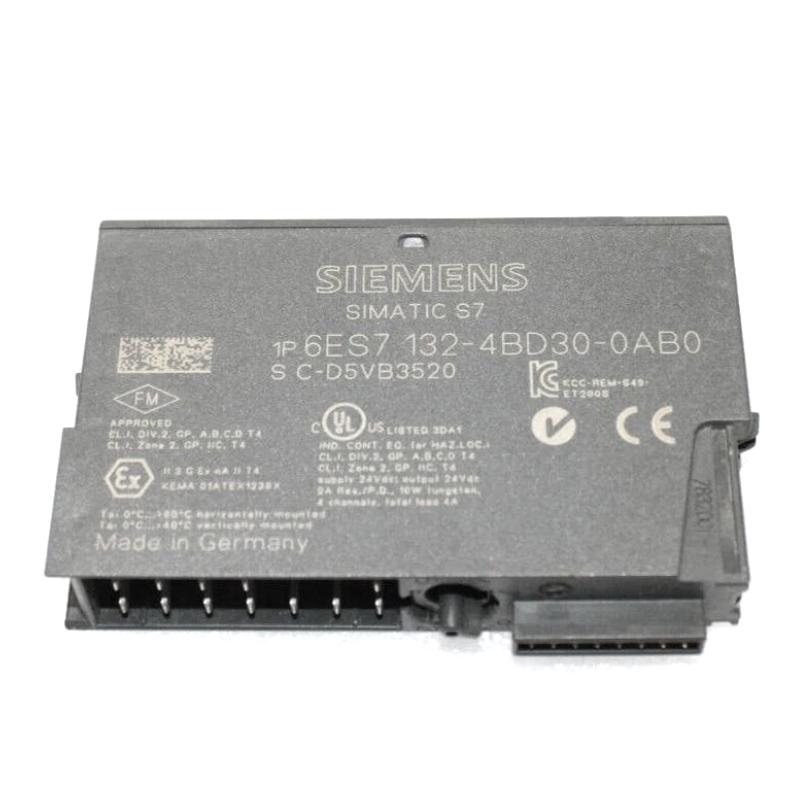

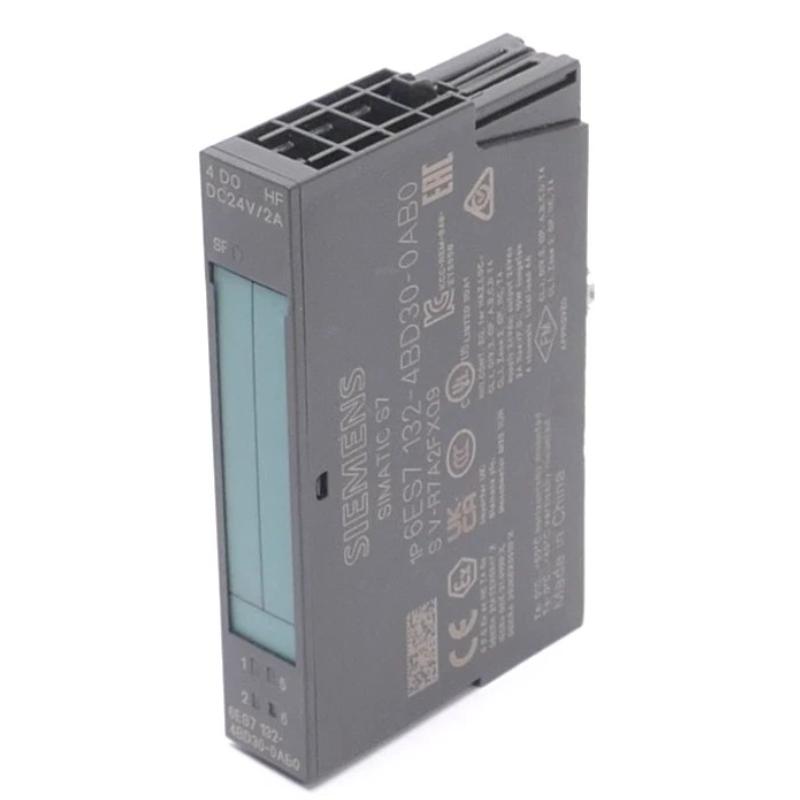

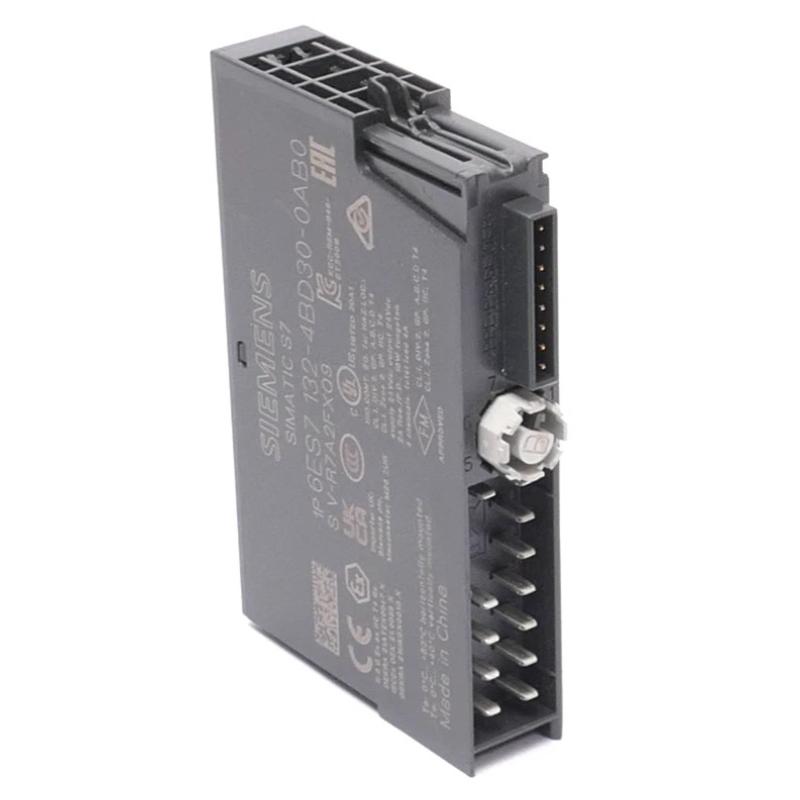

The Siemens 6ES7132-4BD30-0AB0 is a four-channel digital output electronic module for the SIMATIC ET 200S distributed I/O system. It switches 24 V DC signals to connected field devices, allowing a PLC to control actuators and other discrete loads through a distributed control station rather than wiring every output directly to the central controller.

This module is particularly relevant to machine control applications where several solenoid valves, DC contactors, or indicator circuits must be operated independently. Each output can receive its own control command from the PLC, while the module’s high-feature functionality adds short-circuit diagnostics and channel-level status indication. These features help maintenance personnel identify output-related faults without relying solely on the behavior of the connected machine.

The 6ES7132-4BD30-0AB0 belongs to the ET 200S electronic module family and provides four transistor outputs, each rated at 2 A, with a maximum total output current of 4 A per module. The rated load voltage is 24 V DC, supplied through the associated power module. Because the module does not provide electrical isolation between individual output channels, the field wiring and load arrangement must follow the system’s electrical design requirements.

When replacing an existing output module, engineers should verify the exact order number, output current requirements, load characteristics, terminal module arrangement, and PLC hardware configuration. A standard-feature output module with a similar appearance may have different electrical characteristics or diagnostic capabilities, so selection should be based on the full specification rather than channel count alone.

Technical Specifications

Product Features

• Four independent digital outputs: Controls separate 24 V DC loads through four transistor switching channels.
• 2 A rated output current: Supports field devices within the module’s specified electrical limits.
• High-feature output design: Combines digital switching with diagnostic capabilities for industrial automation applications.
• Short-circuit diagnostics: Helps identify output-related faults at the module level.
• Channel status LEDs: Green indicators show the switching status of individual outputs.
• Group fault indication: The red SF LED provides a visible indication of a reported group fault.
• Distributed I/O integration: Operates as part of an ET 200S station connected to a compatible automation controller.
• Defined electrical boundaries: Requires suitable load voltage, common wiring arrangements, and current distribution through the associated power module.

Working Principle

The 6ES7132-4BD30-0AB0 converts digital control commands from the automation system into switched 24 V DC outputs for connected field devices. When the controller commands an output ON, the module’s transistor switching circuit supplies the corresponding signal to the connected load. When the command changes to OFF, the output switches off according to its specified electrical behavior.

A typical control sequence is:

PLC Program → ET 200S Interface → Digital Output Module → Field Load

For example, a PLC controlling a pneumatic machine may energize a solenoid valve through one output channel to initiate cylinder movement. Another channel may operate a DC contactor, while the remaining channels control other discrete devices. The PLC program determines when each output changes state according to sensor feedback, interlocks, timers, or sequence logic.

The high-feature version adds diagnostic functionality to the switching process. If a short-circuit condition is detected, the module can report the fault through its diagnostic system. The green channel LEDs provide a local indication of output status, while the red SF LED indicates a group fault. These indications help distinguish an output-related problem from an incorrect PLC command or a fault in the connected device.

The module’s four outputs share the specified electrical arrangement, and individual channels are not galvanically isolated from one another. The total output current must remain within the 4 A module limit, even when each connected load is individually within the 2 A channel rating. Inductive loads such as contactor coils and solenoid valves must also be evaluated against the module’s switching-frequency and voltage-limiting specifications.

Role in the SIMATIC ET 200S Control Architecture

Within an ET 200S distributed I/O station, the 6ES7132-4BD30-0AB0 serves as the output stage between the PLC control program and field-level devices. The controller processes machine logic, the distributed station exchanges control and status data, and the output module performs the physical switching required by the application.

PLC → ET 200S Interface Module → Backplane Bus → 6ES7132-4BD30-0AB0 → Field Actuators

The electronic module must be installed with the compatible ET 200S station components and configured correctly in the automation project. Output addresses, wiring assignments, and load current distribution should be verified during commissioning or replacement.

Industrial Applications

The module is intended for discrete switching rather than analog control. Applications requiring continuously variable voltage or current signals need an appropriate analog output device instead.

Installation and Maintenance

1. Verify the order number: Confirm that the replacement is 6ES7132-4BD30-0AB0 and not a visually similar ET 200S output module with different electrical or diagnostic characteristics.
2. Isolate electrical power: Follow the site’s lockout procedure and disconnect the relevant power supplies before removing or installing the module.
3. Check the station configuration: Confirm compatibility with the installed ET 200S interface module, power module, and terminal module.
4. Review the wiring assignment: Identify the four output channels and verify the field wiring against the electrical drawings before disconnecting the existing module.
5. Inspect the terminal module: Check terminals, contacts, and the mounting arrangement for damage, loose connections, or contamination.
6. Verify load requirements: Confirm that each connected device is suitable for 24 V DC switching and does not exceed the channel’s electrical limits.
7. Check aggregate current: Ensure that the combined load current remains within the module’s 4 A total limit.
8. Evaluate inductive loads: Check solenoid valves and contactor coils against the specified switching frequency and inductive-load requirements.
9. Install the module correctly: Seat the electronic module in its designated ET 200S position and secure the mechanical connection according to the system procedure.
10. Verify PLC configuration: Confirm that the hardware configuration, output addresses, and diagnostic settings correspond to the installed module.
11. Test each output channel: After restoring power under the approved commissioning procedure, verify output switching, channel LEDs, and connected device response.
12. Document diagnostic results: Record any SF indication, short-circuit fault, wiring correction, or abnormal load behavior for future troubleshooting.

Never insert or remove the module under power unless the exact station configuration and operating procedure explicitly support that operation. Before replacing a module that reports a short circuit, inspect the field wiring and connected load to avoid exposing the replacement to the same fault.

Compatible System Components

The 6ES7132-4BD30-0AB0 operates within the SIMATIC ET 200S distributed I/O platform. Compatibility depends on the station design, the electrical arrangement, and the controller’s hardware configuration.

Recommended Related Models

Key Advantages

• Four transistor output channels for discrete 24 V DC control.
• Rated output current of 2 A per channel, subject to the module’s total current limit.
• Short-circuit diagnostics for troubleshooting output-related faults.
• Local LED indication for individual channel status and group faults.
• Integration with compatible SIMATIC ET 200S distributed I/O stations.

Technical FAQs

Can all four outputs operate at 2 A simultaneously?

No. Each output has a rated current of 2 A, but the maximum total output current for the module is 4 A. The combined current of simultaneously energized loads must remain within that limit, and the associated power distribution must also meet the system requirements.

What is the difference between the 6ES7132-4BD30-0AB0 and a standard-feature ET 200S output module?

The 6ES7132-4BD30-0AB0 is a high-feature version with short-circuit diagnostics and a red SF group-fault indicator, alongside green status LEDs for individual channels. A standard-feature variant may differ in diagnostic functions and should not be treated as an automatic replacement without checking the application requirements.

Why does the red SF LED illuminate even when the PLC program appears correct?

The SF indicator reports a group fault rather than simply showing whether an output command is active. A short circuit or another reported module-related fault may be responsible. Check the PLC diagnostic information, field wiring, connected loads, and the station’s power arrangement to identify the actual cause.

Can this module directly control a variable-speed drive or an analog actuator?

It is intended for discrete transistor switching, not for generating a continuously variable analog signal or supplying the power required by a motor drive. It may be used for compatible discrete control signals where the receiving device supports 24 V DC digital inputs, but the drive’s power and speed-control requirements must be handled by the appropriate equipment.
