Product Overview

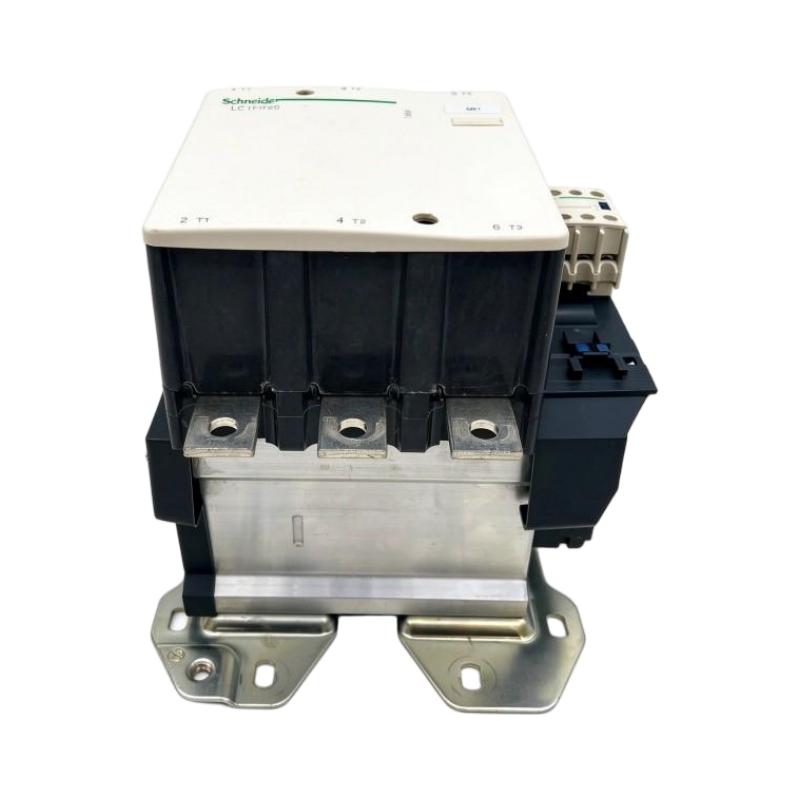

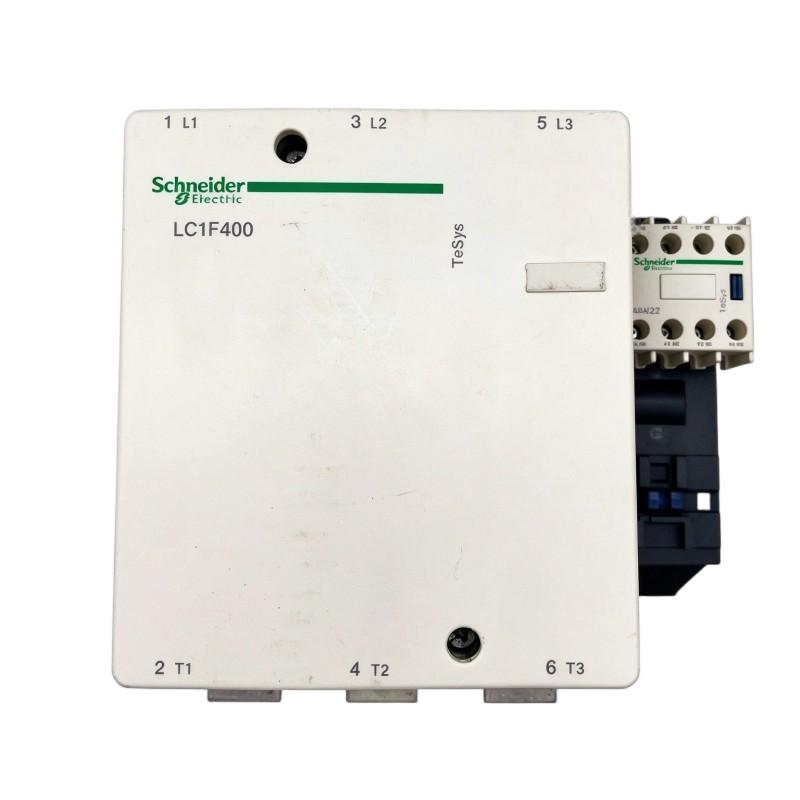

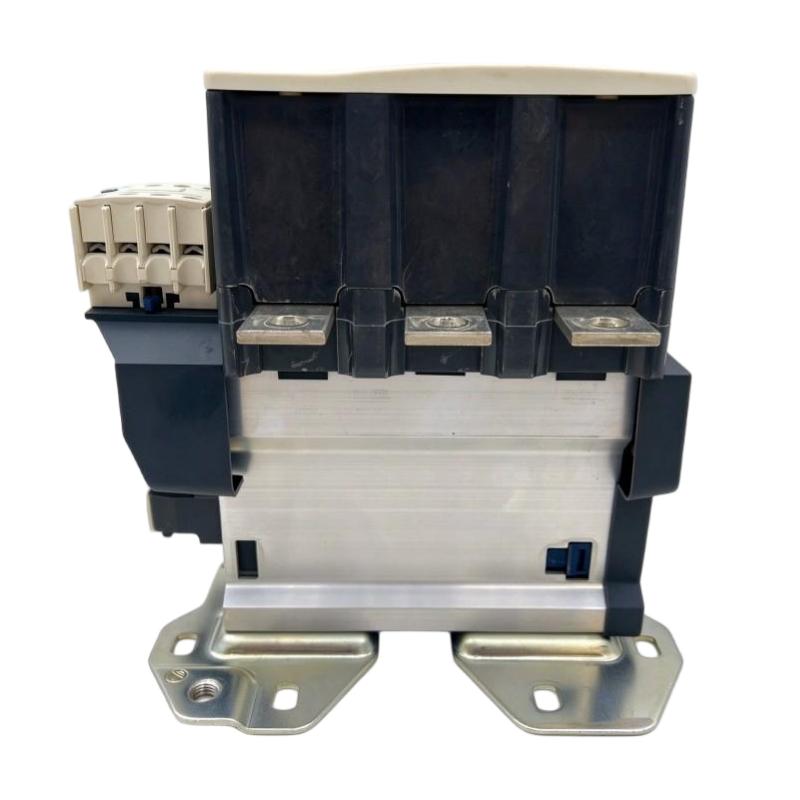

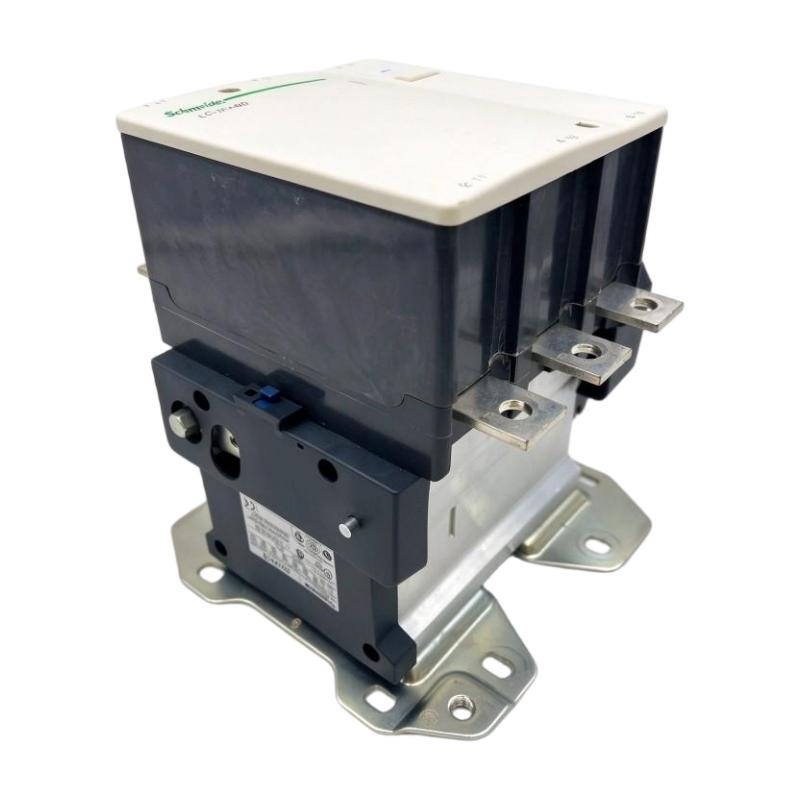

The Schneider Electric LC1F400U7 TeSys F Contactor is a high-current, three-pole electromagnetic contactor designed for industrial motor control and power switching applications. Part of Schneider Electric’s TeSys F product range, it is intended for installations that require reliable switching of large three-phase motors and other substantial electrical loads.

Contactors are essential components in industrial electrical control systems. They allow a relatively low-power control circuit to operate a high-current power circuit through an electromagnetic mechanism. When the coil is energized, the contactor closes its main contacts and allows electrical power to reach the connected load. When the coil is de-energized, the contacts open and interrupt the controlled circuit.

The LC1F400U7 features three main power poles with three normally open contacts. It has an AC-3 rated operational current of 400 A at operational voltages up to 440 V AC and an AC-1 rated current of 500 A under the specified operating conditions. Its control coil operates at 240 V AC, making it suitable for control circuits designed around that coil voltage.

This contactor is designed for demanding applications such as large motor starters, industrial production equipment, and power distribution control panels. Its high-current switching capability makes it relevant to facilities where motors and electrical loads require dedicated switching equipment.

The LC1F400U7 has been discontinued by Schneider Electric. It remains relevant to maintenance teams and industrial spare-parts suppliers supporting existing TeSys F installations. When sourcing a replacement, the complete model number, coil voltage, contact configuration, and operating category must be checked to avoid compatibility problems.

Technical Specifications

Electrical ratings depend on the utilization category, operating voltage, ambient temperature, and installation conditions. Always consult the applicable product documentation when selecting protective devices and designing the power circuit.

Function and Working Principle

The LC1F400U7 operates through an electromagnetic switching mechanism. Its main function is to connect or disconnect a high-current electrical circuit in response to a control signal.

1. Electromagnetic Coil Operation

The contactor contains a 240 V AC control coil. When the appropriate control voltage is applied, the coil generates a magnetic field that attracts the movable armature.

This mechanical movement closes the main power contacts, allowing current to flow through the connected circuit. When the coil voltage is removed, the magnetic force disappears and the contact mechanism returns to its normal open position.

This arrangement allows a control system to operate a high-current load without directly switching the load current through a small control device.

2. Three-Pole Power Switching

The LC1F400U7 uses three main poles, each with a normally open contact. These poles are typically used to switch the three phases of a three-phase AC supply.

When energized, the three main contacts close to connect the electrical supply to the motor or other load. When the contactor releases, the contacts open and interrupt the controlled circuit.

Correct phase wiring and terminal connections are essential for safe operation.

3. AC-3 Motor Switching

The AC-3 utilization category is particularly relevant to squirrel-cage motor applications. It covers motor starting and switching off while the motor is running.

The LC1F400U7 has an AC-3 rated operational current of 400 A under the specified voltage and temperature conditions. This rating should be used when evaluating its suitability for motor-control applications.

The AC-3 rating is not interchangeable with the AC-1 rating. AC-1 applies to different load characteristics, such as non-inductive or slightly inductive loads. Engineers must select the appropriate rating according to the actual application.

4. Electrical Isolation Through Contact Operation

The contactor provides controlled switching of the power circuit, but it should not automatically be treated as a maintenance isolator or a substitute for a properly rated disconnecting device.

For maintenance work, the installation must include appropriate isolation and lockout procedures. The electrical system should be designed so that personnel can safely disconnect and verify the absence of hazardous voltage.

5. Auxiliary Control and Interlocking

In a motor starter or industrial control panel, the contactor may work alongside auxiliary contacts, overload relays, circuit breakers, and PLC control signals.

These components can provide status feedback, electrical interlocking, and motor protection. Their selection and wiring must be coordinated with the contactor’s main switching function.

Role in Industrial Control Systems

The LC1F400U7 can serve as a major switching component in industrial motor-control and power distribution systems.

PLC-Based Motor Control

A programmable logic controller can control the contactor through an appropriate intermediate control circuit. The PLC processes operating conditions and sends a command to energize or de-energize the contactor coil.

For example, a PLC may start a motor when a production sequence reaches a specific step and stop it when a sensor detects a process condition.

The PLC output must not be assumed to drive the 240 V AC coil directly. A suitably rated relay, interface, or control device may be required depending on the PLC output type and electrical design.

Motor Starter Systems

The LC1F400U7 can be integrated into a motor starter assembly with appropriate short-circuit protection and overload protection.

The contactor performs the switching function, while the associated protective devices help protect the motor and electrical installation from abnormal operating conditions.

The contactor itself does not replace an overload relay or a circuit breaker.

HMI and Operator Control

A human-machine interface can provide operators with motor start and stop commands, status information, and alarm displays through the PLC or another control system.

The HMI does not normally switch the high-current motor circuit directly. Instead, it sends commands to the control system, which operates the contactor through the designed control circuit.

Electrical Distribution Panels

In industrial power panels, the contactor can be used to switch high-current loads as part of a larger electrical control arrangement.

Its three-pole configuration supports three-phase switching, while its 240 V AC coil allows integration into compatible control circuits.

Industrial Applications

The LC1F400U7 is intended for industrial applications involving substantial electrical loads and high-current motor switching.

1. Large Industrial Motor Starters

Large motors used in manufacturing and processing facilities require appropriately rated switching equipment. The LC1F400U7’s 400 A AC-3 rating makes it relevant to motor starter designs where the motor’s operating current and starting characteristics fall within the contactor’s limits.

The final selection must account for motor power, supply voltage, starting method, operating frequency, and protection coordination.

2. Pumps and Water Treatment Systems

Industrial pumping stations often use large motors to move water, wastewater, and process fluids. Contactors can form part of the motor starter assemblies that control pump operation.

In these applications, the contactor may be controlled by pressure switches, level sensors, PLC logic, or a centralized process-control system.

3. Industrial Compressors

Large compressors are used in manufacturing facilities, processing plants, and utility systems. A suitably rated contactor can provide the main switching function for compressor motors.

The contactor must be selected according to the motor’s starting current, duty cycle, and the compressor manufacturer’s electrical requirements.

4. Material Handling Equipment

Industrial material-handling systems may contain large motors for conveyors, lifting equipment, and heavy-duty machinery.

The LC1F400U7 can be considered for compatible motor-control circuits where its electrical ratings and switching characteristics meet the application requirements.

For equipment involving lifting or personnel safety, the contactor must be integrated into a properly engineered safety and control system.

5. Manufacturing and Process Plants

Large production lines may contain multiple high-power motors and auxiliary electrical loads. Contactors provide a practical method for controlling these loads through centralized electrical panels.

The LC1F400U7 can be used in suitable three-phase switching arrangements, subject to correct protection, wiring, and thermal design.

Installation and System Integration

Proper installation is essential for electrical safety, contact reliability, and long-term performance.

1. Verify Coil Voltage

The LC1F400U7 uses a 240 V AC control coil. Before installation, verify that the control circuit provides the correct voltage and frequency.

A contactor with a different coil voltage may have the same main current rating but cannot be assumed to be a direct replacement.

2. Confirm Main Circuit Ratings

Check the electrical supply voltage, motor rated current, utilization category, and expected operating conditions.

For motor control, use the AC-3 rating rather than relying solely on the higher AC-1 thermal current figure.

The contactor should also be coordinated with the appropriate upstream short-circuit protective device and motor overload protection.

3. Mechanical Mounting

The supplied dimensions are 206 × 213 × 219 mm, and the product weight is 9.1 kg.

Install the contactor on a suitable mounting plate or panel structure capable of supporting its weight and mechanical operating forces.

Provide the clearances required for electrical insulation, terminal protection, wiring, and heat dissipation. Verify the manufacturer’s dimensional drawings before preparing the panel.

4. Power Wiring

The main power terminals must be connected using conductors or busbars appropriate for the operating current and installation conditions.

Follow the manufacturer’s requirements for conductor size, terminal preparation, tightening torque, and electrical clearances.

Loose or incorrectly sized connections can cause excessive heating, contact damage, and electrical faults.

5. Control Circuit Wiring

Connect the 240 V AC coil to the appropriate control circuit. The control design may include PLC outputs, interface relays, emergency stop circuits, and auxiliary interlocks.

Ensure that the coil circuit is protected and that control wiring is separated from high-current power wiring where required.

6. Commissioning and Inspection

Before energizing the installation, inspect the contactor mounting, terminal connections, wiring arrangement, and protective devices.

During commissioning, verify coil operation, contactor pickup and release, motor rotation, and the operation of associated protection and interlocking circuits.

Maintenance personnel should inspect the contactor for signs of overheating, abnormal noise, mechanical wear, and contact deterioration according to the equipment maintenance schedule.

Compatible System Components

The LC1F400U7 is normally used as part of a complete motor-control or power-switching assembly.

The components listed above are examples of equipment used in a complete installation. They are not necessarily included with the LC1F400U7.

Alternative Models and Replacement Considerations

Schneider Electric has discontinued the LC1F400U7. For existing installations, replacement selection should be based on electrical ratings, coil voltage, contact configuration, mounting requirements, and control-system compatibility.

The LC1G400KUEN and LC1G400LSEA are the manufacturer’s recommended replacement options. However, neither should be treated as an automatic mechanical or electrical drop-in replacement without reviewing the installation.

Before selecting an alternative, compare:

• AC-3 rated current and operating voltage.
• AC-1 thermal current where relevant.
• Coil voltage and control frequency.
• Number of poles and main contact configuration.
• Motor power and starting characteristics.
• Short-circuit protection coordination.
• Auxiliary contact requirements.
• Mounting dimensions and terminal arrangements.
• Control cabinet clearance and heat dissipation.
• PLC and control circuit modifications.

A replacement contactor may require changes to wiring, mounting arrangements, or control logic. Engineering verification should be completed before returning the equipment to operation.

Key Advantages

High-Current Switching Capability

The 400 A AC-3 rating makes the LC1F400U7 suitable for appropriately designed high-current motor-control applications.

Three-Pole Configuration

Its three normally open power contacts support switching of three-phase electrical circuits.

240 V AC Control Coil

The 240 V AC coil allows operation from compatible industrial control circuits.

Industrial Motor Control

The TeSys F design supports applications involving large motors, industrial machinery, and high-current switching requirements.

Established Installation Base

The LC1F400U7 is part of an established Schneider Electric product family and may be required for maintenance of existing industrial equipment.

Standardized Electrical Ratings

Its AC-1 and AC-3 ratings provide engineers with defined reference values for evaluating load suitability and designing the associated electrical system.

Technical FAQs

1. What is the Schneider Electric LC1F400U7?

It is a three-pole TeSys F industrial contactor designed for high-current motor control and power switching applications.

2. What is the rated current of the LC1F400U7?

Its AC-3 rated operational current is 400 A at operating voltages up to 440 V AC under the specified conditions. Its AC-1 rated operational current is 500 A.

3. What coil voltage does this contactor use?

The LC1F400U7 uses a 240 V AC coil. Verify the control circuit voltage before installing or replacing the unit.

4. How many main contacts does it have?

It has three main poles with three normally open contacts, commonly described as 3P (3NO).

5. Can the LC1F400U7 control a large industrial motor?

Yes, it is designed for high-current motor-control applications. The motor’s current, voltage, starting method, and duty cycle must remain within the contactor’s ratings.

6. Does the contactor provide motor overload protection?

No. A separate, appropriately selected overload protection device is required for motor protection.

7. Can it be controlled by a PLC?

Yes. A PLC can control the contactor through a suitable interface circuit. The PLC output and interface must be rated for the 240 V AC coil requirements.

8. Is the LC1F400U7 still available as a current product?

Schneider Electric lists the LC1F400U7 as discontinued. Availability may depend on remaining stock and industrial spare-parts suppliers.

9. What are the recommended replacement models?

Schneider Electric identifies LC1G400KUEN and LC1G400LSEA from the TeSys Giga range as recommended replacement options. Their coil-voltage ranges and installation details should be checked before substitution.

10. What should be checked before purchasing this contactor?

Verify the full model number, coil voltage, main contact configuration, physical condition, terminal condition, and product authenticity. For used equipment, request clear photographs and available functional-test information.

Procurement and Maintenance Recommendations

When sourcing the Schneider Electric LC1F400U7, begin by checking the complete catalog number and comparing it with the contactor installed in the original control panel.

The coil voltage is particularly important. Although related contactors may share the same 400 A current rating, different catalog numbers can have different control voltages and electrical characteristics.

For new-old-stock or used equipment, request photographs of the nameplate, power terminals, coil terminals, and main contact assembly. Confirm the product’s condition, storage history, and whether the required accessories are included.

During routine maintenance, inspect the contactor for signs of overheating, damaged insulation, loose terminals, abnormal mechanical noise, and excessive contact wear. The inspection interval should reflect the switching frequency, load characteristics, and operating environment.

If the contactor is being replaced with a TeSys Giga model, review the mounting dimensions, terminal connections, coil supply, auxiliary contacts, and control circuit before installation. Update electrical drawings and maintenance documentation after the replacement is completed.

Conclusion

The Schneider Electric LC1F400U7 TeSys F Contactor is a three-pole industrial contactor with a 400 A AC-3 rated operational current, 500 A AC-1 rated current, and a 240 V AC control coil. It is designed for high-current motor switching and industrial power-control applications.

With its established role in industrial electrical installations, the LC1F400U7 remains relevant to maintenance and spare-parts procurement for existing TeSys F systems. Since the model has been discontinued, buyers should verify the exact catalog number and operating condition. For replacement projects, the manufacturer’s recommended TeSys Giga alternatives should be evaluated against the original electrical and mechanical requirements.
