Product Overview

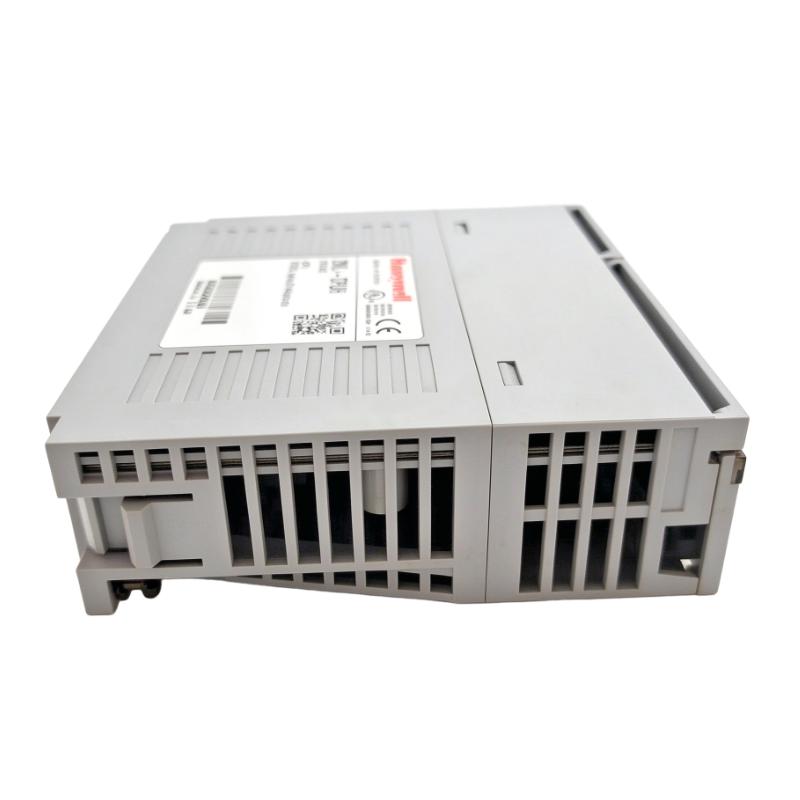

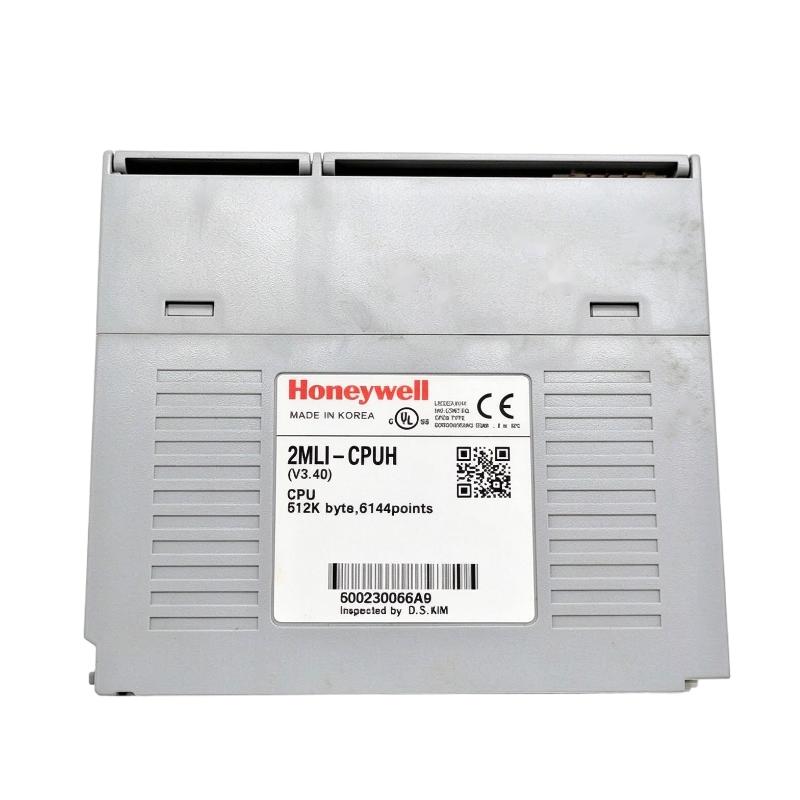

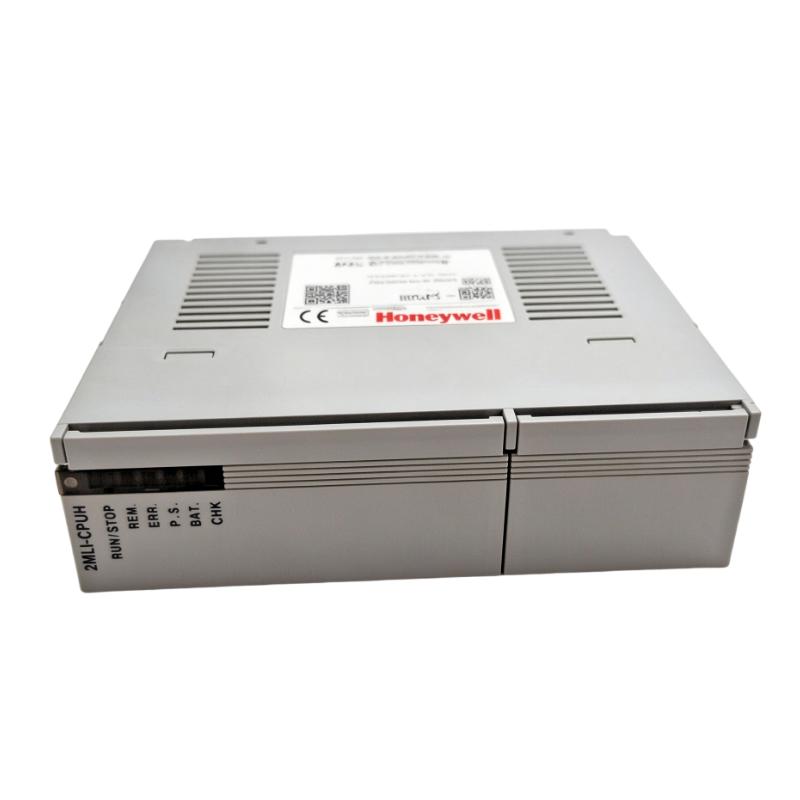

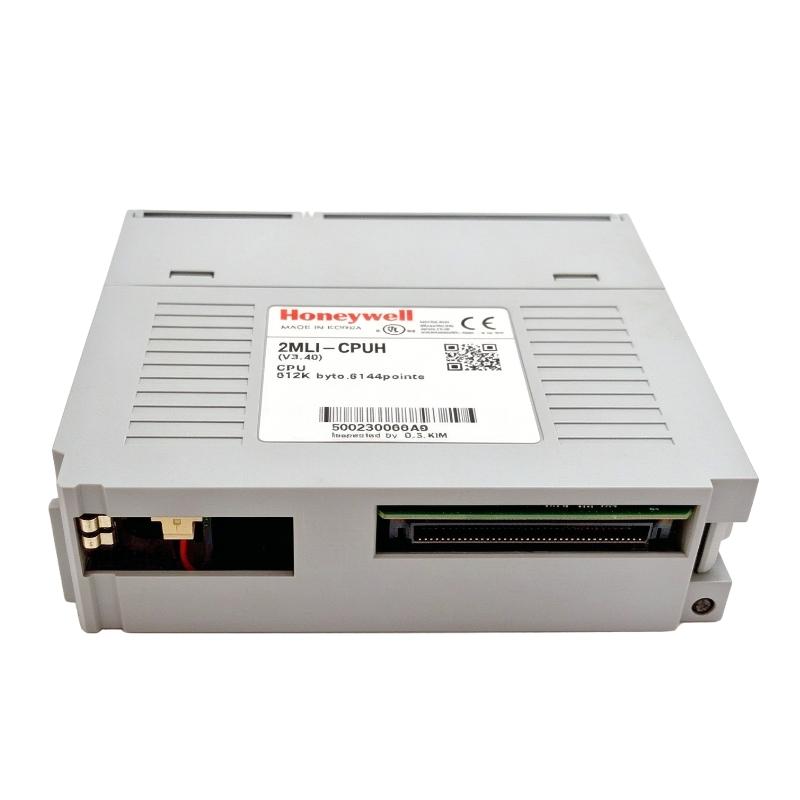

The Honeywell 2MLI-CPUH is a High Performance CPU Module for the MasterLogic-200 PLC system. It belongs to the non-redundant ML200-IEC controller family and serves as the central processing unit responsible for executing the user program, coordinating I/O operations, and managing the control logic of connected automation equipment.

Unlike the standard 2MLI-CPUS, the 2MLI-CPUH offers a larger program memory capacity and supports a greater number of I/O points. It supports up to 6,144 I/O points and provides 3.5 MB of program memory, making it suitable for applications involving more extensive control sequences, multiple equipment sections, and larger numbers of field signals.

In an industrial production line, the CPU receives process information through the configured input modules, evaluates the programmed conditions, and updates the corresponding output operations. For example, in a material handling system, it can coordinate conveyor sequences, monitor equipment interlocks, process sensor information, and control the operating sequence of connected machinery.

The 2MLI-CPUH operates as part of a modular PLC architecture. It works with the MasterLogic-200 main base, power supply, digital and analog I/O modules, and supported communication modules. This modular arrangement allows the control system to be configured according to the number of field devices and the communication requirements of the installation.

The CPU also supports IEC programming within the MasterLogic-200 platform. Engineers can develop and maintain control applications using the associated programming environment, making the module suitable for machine automation, process equipment, utility systems, and industrial sequence control.

For replacement projects, it is important to distinguish the 2MLI-CPUH from the 2MLI-CPUU. Both support up to 6,144 I/O points, but the CPUU is the Enhanced configuration, while the CPUH is the High Performance version.

Technical Specifications

Product Features

• High Performance CPU Processing

  The 2MLI-CPUH belongs to the High Performance configuration of the MasterLogic-200 CPU family. It handles PLC program execution, evaluates control conditions, and coordinates operations across the connected I/O system. Its processing capacity makes it suitable for control applications with more extensive logic requirements than basic machine controllers.

• 3.5 MB Program Memory

  The CPU provides 3.5 MB of program memory for user application development. This capacity supports more extensive control programs involving equipment sequences, interlocks, process conditions, and multiple machine operating modes.

• Support for 6,144 I/O Points

  The module supports a maximum of 6,144 I/O points within the MasterLogic-200 system architecture. This allows engineers to configure larger control systems with multiple digital and analog input/output modules.

• IEC Programming Support

  The 2MLI-CPUH belongs to the IEC-based MasterLogic-200 CPU family. This programming architecture supports structured development and maintenance of industrial control applications.

• Modular I/O Configuration

  The CPU works with compatible MasterLogic-200 I/O bases and expansion modules. Digital inputs, digital outputs, analog inputs, and analog outputs can be arranged according to the field signal requirements of the installation.

• Industrial Communication Integration

  The MasterLogic-200 platform supports communication options including Fast Ethernet, RS-232C, RS-422/RS-485, Modbus, Profibus-DP, and DeviceNet through the corresponding system interfaces and modules. This allows the CPU-based control system to participate in different industrial communication architectures.

• Non-Redundant Control Architecture

  The 2MLI-CPUH is intended for a fully non-redundant system configuration. Its CPU, power supply, and I/O communication path follow the non-redundant architecture, making it suitable for applications where a single-controller arrangement meets the system requirements.

• Integration with Experion Systems

  The MasterLogic-200 platform supports integration with Honeywell Experion systems. This allows PLC control information to be incorporated into broader process monitoring and supervisory environments when the required interfaces and configuration are available.

• System Diagnostics

  The MasterLogic-200 platform includes diagnostic capabilities for system and error logs, system monitoring, network monitoring, ping testing, and frame monitoring. These functions assist engineers in identifying communication and controller-related problems during commissioning and maintenance.

Working Principle

The 2MLI-CPUH acts as the processing center of the MasterLogic-200 PLC system. Its operation is based on executing the stored control program and coordinating the exchange of information between field devices and the controller’s I/O modules.

During normal operation, input modules collect signals from connected sensors, switches, transmitters, and other field equipment. These signals are made available to the CPU through the system backplane and configured I/O architecture.

The CPU evaluates the input information against the programmed conditions. It processes interlocks, operating sequences, timing conditions, and other control instructions before updating the corresponding output data.

For example, in an industrial conveyor system, the CPU can evaluate photoelectric sensor signals, motor running feedback, emergency-stop conditions, and equipment interlocks. Based on the programmed sequence, it determines when individual conveyor sections should start or stop.

The output modules then translate the CPU’s output data into the appropriate electrical signals for connected actuators, contactors, valves, and other field equipment.

This process continues as the controller repeatedly executes its application program and processes updated field information. The CPU therefore coordinates the machine’s operating sequence rather than directly handling every electrical input and output signal.

The 2MLI-CPUH also operates alongside the MasterLogic-200 communication architecture. Supported communication interfaces and modules allow the control system to exchange information with supervisory systems, engineering computers, and other industrial devices.

Typical PLC Control Process:

Field Sensors → Digital / Analog Input Modules → 2MLI-CPUH → Control Logic Execution → Output Modules → Motors / Valves / Actuators

Engineering and Configuration Process:

Engineering Computer → SoftMaster → PLC Program Development → CPU Configuration → Program Transfer → System Commissioning

System Communication Structure:

2MLI-CPUH → MasterLogic-200 Backplane → I/O Modules / Communication Modules → Field Equipment and Supervisory Systems

Role in MasterLogic-200 Control Architecture

Within the MasterLogic-200 platform, the 2MLI-CPUH serves as the central processing module of a non-redundant PLC configuration. It coordinates the operation of the connected I/O modules and executes the control program responsible for machine or process operation.

The CPU is installed as part of the MasterLogic-200 modular system, working with a compatible main base and power supply. Additional I/O bases and expansion modules can be incorporated according to the required system configuration.

Its High Performance classification distinguishes it from the standard 2MLI-CPUS. The CPUH supports up to 6,144 I/O points with 3.5 MB of program memory, while the CPUU provides the Enhanced configuration with 4 MB of program memory.

This distinction matters when selecting a replacement or expanding an existing PLC system. Engineers should consider the existing application, program capacity, controller configuration, and compatibility with the installed MasterLogic-200 hardware.

Industrial Applications

Installation and Maintenance

1. Verify the CPU Model: Confirm that the installed controller is 2MLI-CPUH. Do not confuse it with the standard 2MLI-CPUS or enhanced 2MLI-CPUU.
2. Check Main Base Compatibility: Verify that the CPU is installed on a compatible MasterLogic-200 main base and that the rack configuration matches the intended system arrangement.
3. Inspect Power Supply Configuration: Check the installed power module and verify that its output capacity is appropriate for the CPU and connected modules.
4. Inspect the Backplane Connection: Ensure that the CPU is correctly seated in its assigned slot and that the backplane contacts are free from contamination or damage.
5. Verify the I/O Configuration: Check that the installed digital and analog modules correspond to the hardware configuration defined in the PLC project.
6. Review the Control Program: Confirm that the loaded application matches the intended machine operation and the actual I/O arrangement.
7. Check Communication Modules: Verify the configuration of installed Ethernet, serial, or fieldbus communication modules and inspect the associated network connections.
8. Inspect CPU Status Indicators: Monitor the available status LEDs and diagnostic information during startup to identify abnormal operating conditions.
9. Verify Field Signal Mapping: Check that sensor inputs, actuator outputs, and PLC program addresses correspond to the correct physical I/O channels.
10. Test Interlocks and Sequences: Before returning the equipment to normal operation, verify machine interlocks, operating sequences, and emergency-related control conditions.
11. Maintain Program Backups: Keep a current copy of the PLC application, hardware configuration, communication settings, and related engineering records.
12. Inspect the Control Cabinet: Periodically check ventilation, grounding, wiring connections, and cabinet conditions to reduce the risk of controller faults caused by environmental or electrical problems.

Compatible System Components

Recommended Related Models

Key Advantages

• High Performance CPU configuration for MasterLogic-200.
• 3.5 MB program memory.
• Maximum support for 6,144 I/O points.
• IEC-based PLC programming architecture.
• Modular digital and analog I/O expansion.
• Integration with supported MasterLogic-200 communication modules.
• Industrial sequence and interlock control.
• Compatibility with the MasterLogic-200 non-redundant architecture.
• Diagnostic and system monitoring capabilities.
• Integration options for Honeywell Experion systems.

Technical FAQs

What is the difference between the 2MLI-CPUH and 2MLI-CPUU?

Both modules support up to 6,144 I/O points within the MasterLogic-200 system. The 2MLI-CPUH is classified as High Performance and has 3.5 MB of program memory, while the 2MLI-CPUU is the Enhanced version with 4 MB of program memory. They represent different CPU configurations and should be selected according to the existing application and system requirements.

Is the 2MLI-CPUH suitable for a fully redundant PLC architecture?

No. The 2MLI-CPUH belongs to the non-redundant 2MLI CPU family. A fully redundant MasterLogic-200 architecture uses the 2MLR-CPUH/T or 2MLR-CPUH/F CPU configurations, together with the corresponding redundant power and I/O communication arrangements.

Can the 2MLI-CPUH work with both digital and analog I/O modules?

Yes. The MasterLogic-200 platform supports digital input, digital output, analog input, and analog output modules. The CPU coordinates their operation through the system backplane. The actual I/O arrangement depends on the selected base, installed modules, and project configuration.

What should be checked when replacing a 2MLI-CPUH in an existing MasterLogic-200 system?

Engineers should verify the exact CPU model, PLC program, hardware configuration, I/O assignments, communication settings, and installed power supply. The replacement CPU should match the existing system requirements, and the application should be checked before returning the equipment to normal operation.
