Product Overview

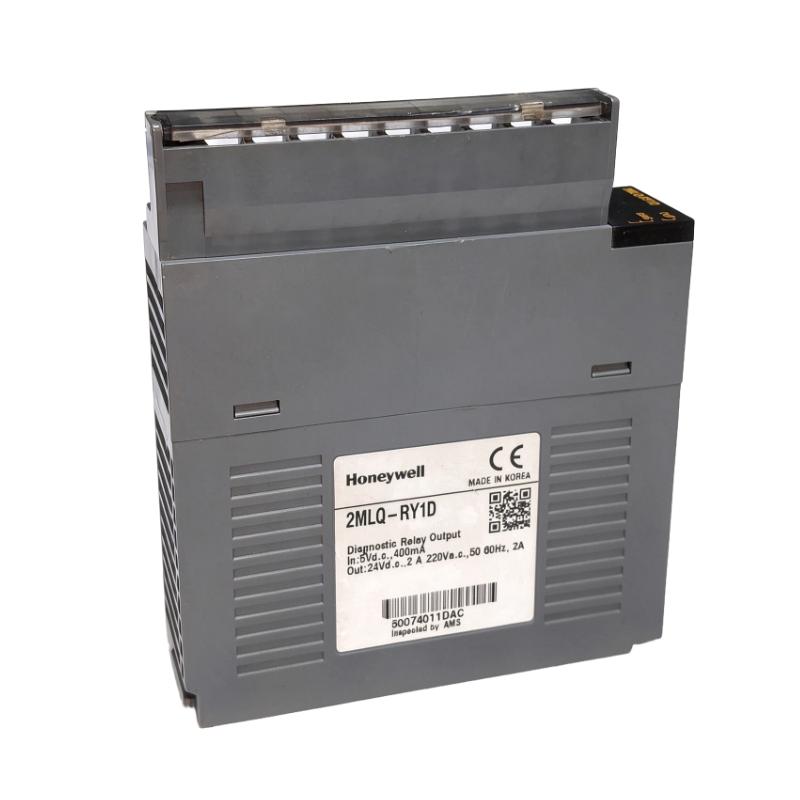

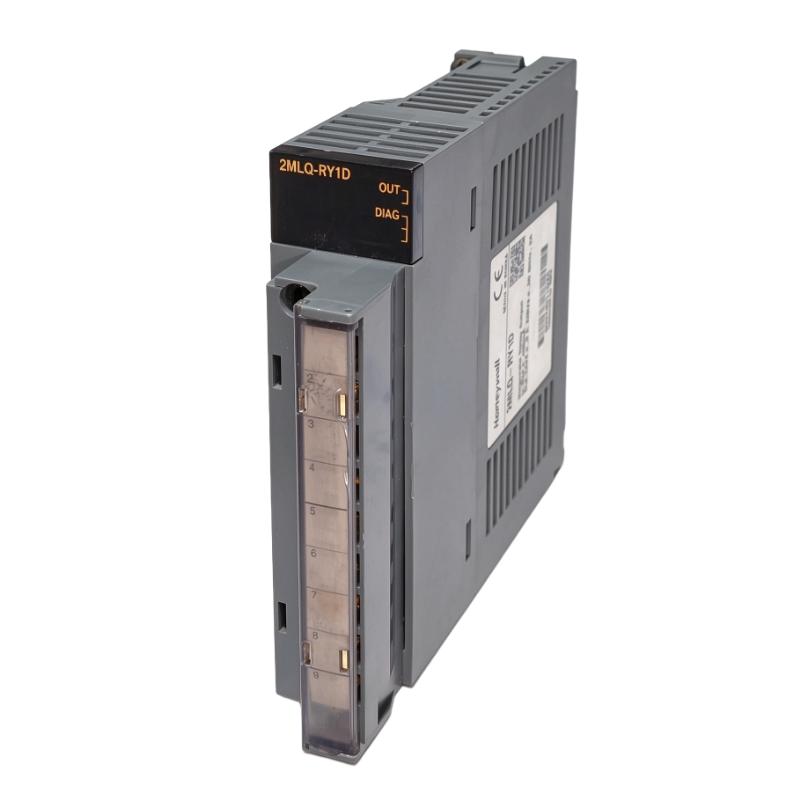

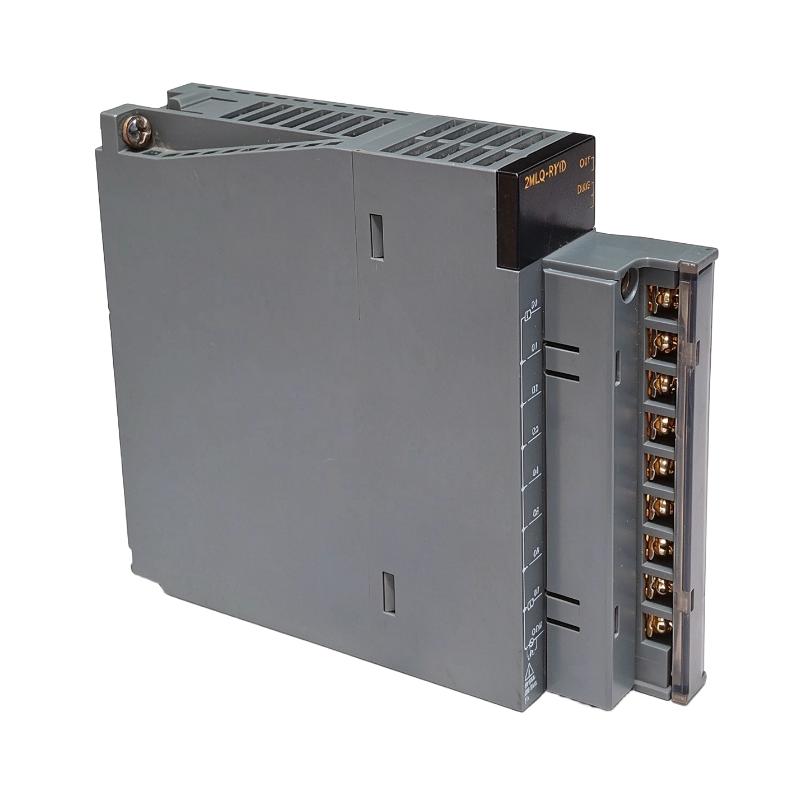

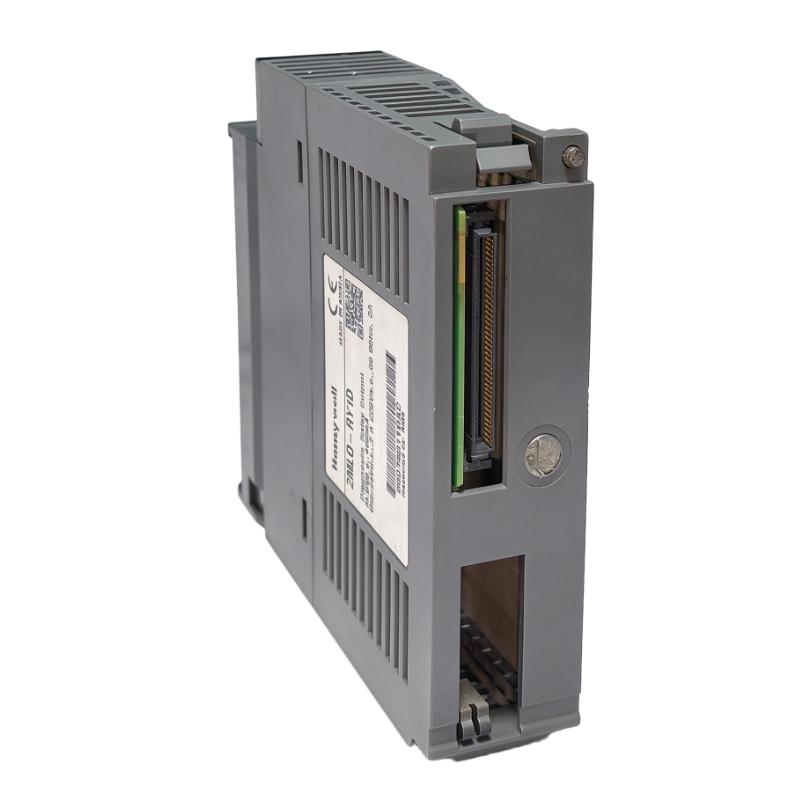

The Honeywell 2MLQ-RY1D is a diagnostic relay output module for the MasterLogic-200 PLC platform. It combines relay-based digital output switching with diagnostic functionality, making it suitable for control applications where monitoring output operation is part of the equipment maintenance strategy.

The module provides eight relay output points, allowing the PLC to control several independent external circuits through mechanical relay contacts. With a maximum output current of 2 A, it can be applied to compatible control loads such as auxiliary contactors, alarm circuits, indicator devices, and industrial switching equipment.

Unlike transistor output modules, relay outputs use mechanical contacts to establish or interrupt the external circuit. This makes relay output technology useful when the controlled equipment requires contact-based switching rather than a dedicated sinking or sourcing transistor interface.

The diagnostic capability is an important consideration when selecting the RY1D. In automated production equipment, an output command and the actual operating condition of a field device are not necessarily the same. Diagnostic information can help maintenance personnel investigate abnormal output conditions and narrow down potential faults.

The RY1D is particularly relevant to PLC installations where relay switching and additional output monitoring are required within the MasterLogic-200 architecture. Its eight-channel configuration also makes it suitable for applications that do not require a large number of relay output points.

Technical Specifications

Product Features

1. Eight Relay Output Points

The RY1D provides eight relay output channels for controlling external field circuits. This configuration is suitable for machinery and process equipment that require several independently switched devices without occupying a large number of PLC output positions.

2. Diagnostic Output Capability

The diagnostic designation distinguishes this model from conventional relay output modules. Diagnostic functionality is relevant to applications where output-related operating information is used during equipment monitoring and maintenance.

3. Relay-Based Switching

Mechanical relay contacts establish and interrupt the connected external circuits. This makes the module suitable for control applications where relay switching is preferred over transistor-based output arrangements.

4. Maximum Output Current of 2 A

The module is specified with a maximum output current of 2 A. Actual load selection must account for the connected circuit’s voltage, current, load type, and switching conditions.

5. Independent Field Device Control

The eight output points allow different external devices to be controlled through separate PLC output commands. Typical examples include auxiliary switching circuits, alarms, and machine operating devices.

6. MasterLogic-200 Integration

The RY1D belongs to the MasterLogic-200 digital output family. It can be considered as part of a modular PLC configuration containing CPU, digital input, digital output, and communication modules.

7. Industrial Control Applications

Relay switching is useful in equipment that requires contact-based output control. The module can be incorporated into suitable automation panels where the external load requirements match its electrical specifications.

8. Maintenance-Oriented Output Design

The diagnostic capability is relevant when troubleshooting output-related issues. It can support a more structured maintenance approach than relying exclusively on external device observation.

Working Principle

The 2MLQ-RY1D receives digital output commands from the MasterLogic-200 CPU. When the PLC program determines that an external device should operate, the corresponding relay output channel responds to the command by changing its contact state.

The relay contacts provide the switching interface between the control system and the external load. Depending on the connected circuit and contact arrangement, the output can establish or interrupt the electrical path required to operate the field device.

For example, in an automated packaging machine, the PLC may need to control several auxiliary devices during different stages of a production cycle. These can include alarm circuits, contactor control circuits, and other compatible switching devices.

When a programmed condition is satisfied, the CPU activates the corresponding output. The relay contact changes state, allowing the connected circuit to operate. When the required condition is no longer present, the PLC removes the command and the relay returns to its normal state.

The diagnostic aspect is relevant to monitoring and troubleshooting. In an industrial installation, maintenance personnel need to distinguish between a missing PLC command, an output-side problem, and a fault in the external field circuit. Diagnostic information can assist this process, although the exact diagnostic channels and reporting details should be confirmed against the applicable RY1D hardware and firmware documentation.

Typical Control Sequence:

1. Field sensors transmit machine status information to the MasterLogic-200 CPU.
2. The CPU evaluates the input conditions and programmed interlocks.
3. The PLC program generates the required output command.
4. The assigned RY1D relay output channel responds to the command.
5. The relay contact changes state and switches the external circuit.
6. The connected field device performs its assigned operation.
7. Output-related diagnostic information can be considered during system monitoring and fault investigation.

Role in MasterLogic-200 Control Architecture

Within a MasterLogic-200 PLC installation, the 2MLQ-RY1D functions as a digital output interface for relay-controlled field equipment.

The CPU handles application logic, sequence execution, and interlock processing. Digital input modules collect field signals, while the output section executes the commands generated by the control program.

The RY1D adds relay output functionality with a diagnostic designation to this modular arrangement. Its eight output points are relevant to installations where a limited number of contact-based switching circuits are required.

When planning the I/O configuration, engineers should distinguish the RY1D from the standard RY1A relay output module and the higher-density RY2A and RY2B models. These modules belong to the same general relay output family but have different configurations.

Industrial Applications

Installation and Maintenance

1. Verify Module Identification: Confirm that the installed unit is 2MLQ-RY1D rather than the standard 2MLQ-RY1A or another MasterLogic-200 output module.
2. Check Module Compatibility: Verify that the RY1D is supported by the intended MasterLogic-200 CPU, base, and system configuration.
3. Review Output Wiring: Confirm the external circuit connections and relay contact assignments against the applicable module wiring documentation.
4. Check Load Ratings: Ensure that the connected loads remain within the module’s specified output current and electrical limits.
5. Inspect Terminal Connections: Check the terminal block and associated wiring for loose connections, damaged contacts, and incorrect terminal assignments.
6. Verify External Circuit Protection: Select appropriate fuses and protective devices according to the connected load and circuit requirements.
7. Check Load Characteristics: Evaluate whether the connected equipment is resistive, inductive, or another load type before selecting the switching arrangement.
8. Inspect Relay Switching Behavior: During commissioning, confirm that each output channel operates according to the corresponding PLC command.
9. Monitor Diagnostic Information: Where diagnostic information is available, review the reported conditions when investigating abnormal output behavior.
10. Check External Devices: If a field device does not operate, inspect its power supply, wiring, protective devices, and operating condition before replacing the PLC module.
11. Review Switching Frequency: Consider the mechanical nature of relay contacts when evaluating repetitive switching applications and expected service life.
12. Maintain Configuration Records: Document output addresses, field device assignments, wiring details, and relevant diagnostic information for future maintenance.

Compatible System Components

Recommended Related Models

Key Advantages

• Eight relay output points for independent field circuit control.
• Diagnostic relay output functionality.
• Maximum output current of 2 A.
• Mechanical relay contact switching.
• Suitable for compatible industrial control circuits.
• Integration with the Honeywell MasterLogic-200 PLC platform.
• Applicable to machinery and process automation systems.
• Supports relay-based control of external field devices.
• Useful for output monitoring and maintenance activities.
• Suitable for modular PLC I/O configurations.

Technical FAQs

1. What is the main difference between the 2MLQ-RY1D and the standard 2MLQ-RY1A?

The RY1D is identified as a Diagnostic Relay Output Module, while the RY1A is the standard 8-point relay output module. The diagnostic designation is the main distinction when evaluating these two models. Their exact diagnostic reporting capabilities and hardware differences should be checked against the applicable product revision.

2. How many external devices can the 2MLQ-RY1D control?

The module provides eight relay output points. Each point can be assigned to a compatible external control circuit, subject to the electrical ratings and wiring requirements of the connected equipment.

3. Can the 2MLQ-RY1D replace a transistor output module?

Not as a direct electrical replacement. Relay and transistor outputs use different switching technologies and have different electrical characteristics. Before changing modules, engineers must check the load requirements, wiring arrangement, switching frequency, and PLC configuration.

4. What should be checked when the diagnostic relay output does not operate as expected?

Start by checking the PLC output command, module installation, external supply, terminal wiring, and connected load. Diagnostic information available from the module should also be reviewed to help narrow down the problem. The exact diagnostic indications depend on the applicable RY1D configuration.
