Product Overview

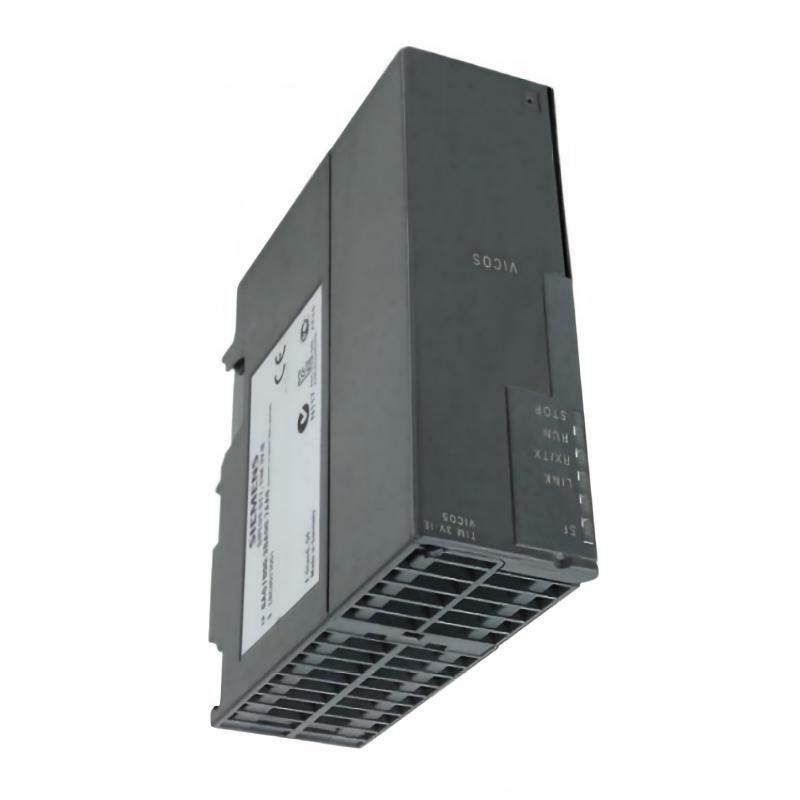

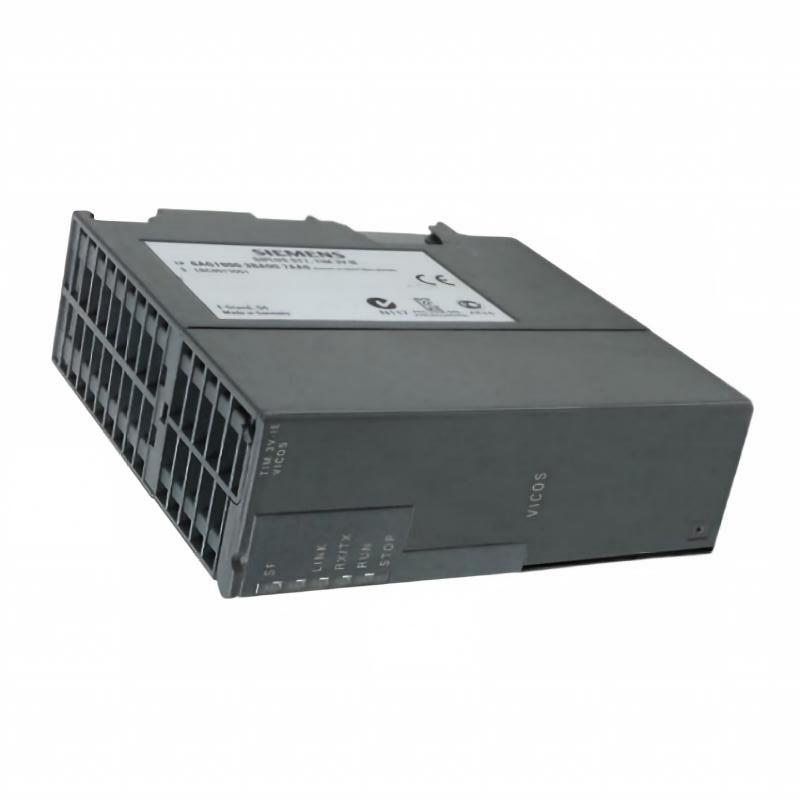

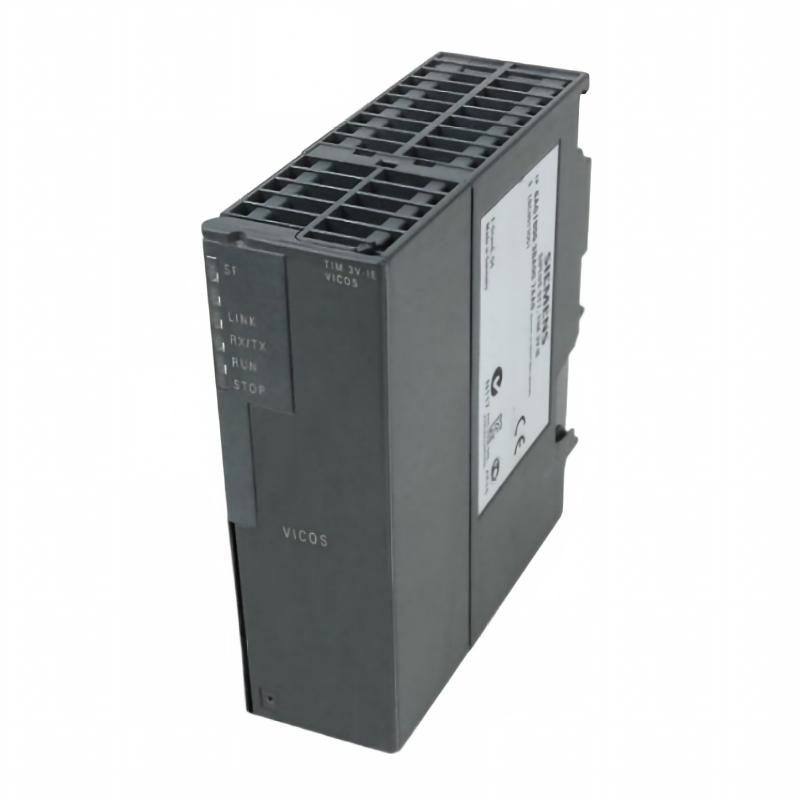

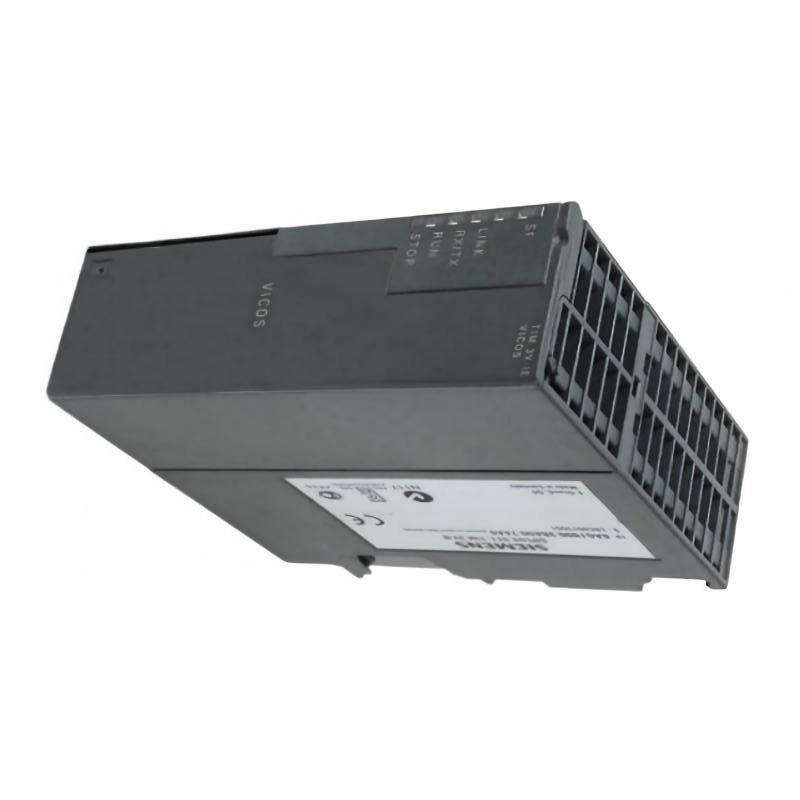

The Siemens 6AG1800-3BA00-7AA0 SIPLUS SINAUT ST7 TIM 3V-IE Communication Module is an industrial communication device designed to connect SIMATIC S7-300 and C7 automation systems with remote communication networks. It supports SINAUT communication through traditional wide area network (WAN) connections and IP-based networks, including Ethernet-based WAN and LAN infrastructures.

This module belongs to the Siemens SIPLUS product range, which is designed for applications requiring enhanced environmental resistance. Based on the standard Siemens 6NH7800-3BA00, the 6AG1800-3BA00-7AA0 features conformal coating and an extended operating temperature range of -25°C to +70°C.

The module provides one RS-232 interface for serial communication and one RJ45 Industrial Ethernet interface for IP-based communication. This combination allows automation equipment to exchange information through different communication infrastructures, supporting remote monitoring, data transmission, and distributed control applications.

In industrial facilities, communication between geographically separated stations is important for monitoring equipment, collecting process information, and coordinating remote operations. The TIM 3V-IE provides a dedicated communication interface for SINAUT ST7 systems, helping connect local SIMATIC controllers with remote stations and supervisory systems.

The Siemens 6AG1800-3BA00-7AA0 is particularly relevant to industrial water management, energy infrastructure, transportation, and other installations where remote automation communication is required.

Technical Specifications

Note: Dimensions and weight are the supplied listing values. Confirm the physical unit and manufacturer’s mechanical drawing before using these figures for cabinet design or shipping calculations.

Function and Working Principle

The primary function of the Siemens 6AG1800-3BA00-7AA0 is to provide communication between compatible SIMATIC automation controllers and remote SINAUT network stations.

It supports two different communication paths: serial communication through RS-232 and IP-based communication through Industrial Ethernet. This flexibility allows the module to be used in installations with different network infrastructures.

1. SINAUT ST7 Communication

SINAUT ST7 is a Siemens telecontrol system designed for communication between geographically distributed automation stations.

In a typical installation, a local controller collects information from sensors, instruments, and field equipment. The TIM 3V-IE provides the communication interface through which relevant data can be transmitted to a remote station or supervisory system.

This arrangement is useful when equipment is distributed across a large geographical area and direct local connections between all stations are impractical.

2. Industrial Ethernet Communication

The module includes one RJ45 Industrial Ethernet interface. It supports Ethernet transmission rates from 10 to 100 Mbit/s.

Through an appropriate IP-based network, the TIM 3V-IE can exchange SINAUT communication data with remote stations. Depending on the network architecture, the connection may use Ethernet switches, routers, or other compatible communication equipment.

Ethernet-based communication can support flexible network layouts and integration with existing industrial IP infrastructure.

3. RS-232 Serial Communication

The module also provides one RS-232 interface through a 9-pin Sub-D connector.

RS-232 supports serial communication with compatible modems and communication equipment. The documented transfer-rate range is 50 to 38,400 bit/s.

This interface is particularly relevant to installations that use traditional WAN communication methods or need to connect with existing serial communication infrastructure.

4. Dual Communication Infrastructure

The combination of Ethernet and RS-232 allows the module to support different communication arrangements.

For example, an existing remote monitoring installation may use serial communication at some locations while other stations communicate through IP-based networks. The TIM 3V-IE provides the interfaces required for the supported SINAUT communication architecture.

The actual network topology and communication configuration must follow the SINAUT system design and the applicable Siemens engineering documentation.

Role in Industrial Control Systems

The 6AG1800-3BA00-7AA0 is a communication component within a distributed automation system. It does not replace the PLC or perform the primary control logic of the connected machine. Instead, it provides the communication functions needed to exchange information between local controllers and remote stations.

SIMATIC S7-300 Integration

The module is designed for use with SIMATIC S7-300 and C7 systems. It provides a communication connection for compatible controller installations using SINAUT ST7.

The controller performs local automation tasks, such as reading process inputs, executing control logic, and operating outputs. The TIM 3V-IE supports communication between the local automation station and remote systems.

Remote Monitoring

Industrial operators often need to monitor equipment that is located far from the main control room. The TIM 3V-IE can support the transmission of relevant process information through a suitable SINAUT network.

Depending on the system configuration, remote operators may receive information about equipment status, process conditions, and communication events.

Distributed Automation

In distributed control installations, several local stations may operate independently while exchanging information with a central supervisory system.

The module can form part of this communication structure by connecting compatible S7-300 or C7 controllers to the remote communication network.

This approach is useful in water treatment facilities, energy distribution infrastructure, and other applications with geographically separated equipment.

Industrial Applications

1. Water and Wastewater Treatment

Water treatment facilities often contain pumping stations, reservoirs, treatment equipment, and monitoring points distributed across a wide area.

A SINAUT communication system can connect local automation stations with a central monitoring location. The TIM 3V-IE provides the communication interface for compatible SIMATIC controllers within this architecture.

Typical information exchanged may include pump status, water-level measurements, equipment alarms, and process conditions.

2. Power and Energy Infrastructure

Power infrastructure may contain remote monitoring and control stations that need to exchange information with a central operating facility.

The module can support SINAUT communication between compatible automation controllers and remote systems. Its use depends on the communication architecture, network equipment, and application-specific engineering requirements.

3. Transportation Infrastructure

Transportation systems often include distributed equipment such as pumping stations, ventilation installations, monitoring points, and auxiliary control cabinets.

A remote communication network can help operators collect information from these locations. The TIM 3V-IE may be used as part of a compatible S7-300-based communication arrangement.

4. Industrial Production Facilities

Large manufacturing facilities may have automation equipment distributed across multiple buildings or production areas.

The module can help connect compatible local controllers to a centralized communication system. This supports information exchange between remote stations and supervisory equipment.

5. Environmental Monitoring

Environmental monitoring systems may collect data from geographically separated measurement stations.

When used in a suitable SINAUT ST7 architecture, the TIM 3V-IE can provide a communication link for transmitting information from local automation equipment to a remote monitoring center.

Installation and System Integration

Correct installation is essential for reliable communication and long-term operation.

1. Verify Controller Compatibility

Before installation, confirm that the connected controller is a compatible SIMATIC S7-300 or C7 system and that the application supports the required SINAUT ST7 communication functions.

The module should not be treated as a universal communication adapter for every Siemens PLC family.

2. Confirm the Power Supply

The module requires a 24 V DC supply. Verify the supply voltage, current capacity, polarity, and terminal arrangement before energizing the device.

An appropriate industrial DC power supply should be selected according to the system design and the electrical requirements of the connected equipment.

3. Connect the Ethernet Interface

The RJ45 port is used for Industrial Ethernet communication.

Use suitable Ethernet cables and compatible network equipment. Confirm the IP configuration, network addressing, routing, and communication settings required by the SINAUT application.

For installations exposed to electrical interference, cable routing, shielding, and grounding should follow the applicable Siemens recommendations.

4. Connect the RS-232 Interface

The RS-232 connection uses a 9-pin Sub-D connector. Confirm the pin assignment, cable type, and communication parameters before connecting external serial equipment.

The transfer rate must be configured consistently across the connected devices. Incorrect serial settings can prevent communication even when the physical connection is correct.

5. Configure SINAUT Communication

The module must be integrated into the appropriate SINAUT ST7 engineering environment.

Configuration typically involves defining the communication partners, network arrangement, addressing, and data exchange requirements. The exact procedure depends on the existing automation project and the software version in use.

6. Check Environmental Conditions

The SIPLUS version has an operating temperature range of -25°C to +70°C and conformal coating.

These features support use in more demanding environments than standard indoor control installations. However, the module must still be installed within its specified environmental limits.

Unused interfaces should retain their supplied protective covers where required by the manufacturer’s instructions.

7. Test Communication

After installation, verify the 24 V DC supply, Ethernet link status, serial interface settings, and communication with the configured remote stations.

Test data exchange in both directions where required. Confirm that communication faults are reported correctly and that the controller application responds appropriately to loss of communication.

Compatible System Components

The Siemens 6AG1800-3BA00-7AA0 is designed to operate within a compatible SINAUT and SIMATIC communication architecture.

The listed components are examples of equipment that may be used in a complete system. They are not necessarily supplied with the communication module.

Alternative Models and Replacement Considerations

The 6AG1800-3BA00-7AA0 belongs to the SIPLUS SINAUT ST7 TIM 3V-IE product family. When replacing an existing unit, the complete model number and communication requirements should be checked.

Before selecting a replacement, compare:

• Complete order number and product version.
• SIMATIC controller compatibility.
• SINAUT ST7 communication requirements.
• RS-232 interface availability.
• Ethernet interface type and transmission rate.
• Power supply requirements.
• Operating temperature range.
• Conformal coating and environmental requirements.
• Network topology and communication configuration.
• Mounting dimensions and wiring arrangements.

A replacement should be approved only after the communication architecture and engineering requirements have been checked.

Key Advantages

Dual Communication Interfaces

The module provides both RJ45 Industrial Ethernet and RS-232 interfaces, supporting different communication infrastructures within compatible SINAUT ST7 systems.

Remote Automation Connectivity

It allows compatible SIMATIC S7-300 and C7 controllers to participate in remote communication networks.

IP-Based Network Support

The Ethernet interface supports communication through IP-based WAN and LAN infrastructures, allowing integration with suitable industrial network equipment.

Serial Communication Capability

The RS-232 interface supports communication through compatible serial devices and traditional WAN arrangements.

Extended Temperature Range

The SIPLUS version supports operation from -25°C to +70°C, making it suitable for installations with wider temperature requirements than conventional indoor environments.

Conformal Coating

Conformal coating provides additional protection for electronic assemblies under specified environmental conditions. It does not eliminate the need for proper enclosure design and installation.

Integration with Existing SIMATIC Systems

The module is based on the standard 6NH7800-3BA00 and is intended for compatible SIMATIC S7-300 and C7 installations using SINAUT ST7.

Technical FAQs

1. What is the Siemens 6AG1800-3BA00-7AA0?

It is a SIPLUS SINAUT ST7 TIM 3V-IE communication module designed for remote communication with compatible SIMATIC S7-300 and C7 automation systems.

2. What is the base model of this module?

The 6AG1800-3BA00-7AA0 is based on the standard Siemens 6NH7800-3BA00 TIM 3V-IE.

3. What communication interfaces are available?

The module provides one RJ45 Industrial Ethernet interface and one RS-232 serial interface.

4. What is the Ethernet transmission rate?

The documented Industrial Ethernet transmission rate is 10 to 100 Mbit/s.

5. What is the RS-232 transmission rate?

The documented RS-232 transfer-rate range is 50 to 38,400 bit/s.

6. What power supply does it require?

The module operates from a 24 V DC power supply.

7. What is its operating temperature range?

The SIPLUS version supports an operating temperature range of -25°C to +70°C.

8. What is the difference between 6AG1800-3BA00-7AA0 and 6NH7800-3BA00?

The 6AG1800-3BA00-7AA0 is the SIPLUS version based on the 6NH7800-3BA00. It includes conformal coating and an extended operating temperature range for more demanding environmental conditions.

9. Can it communicate with a modern Ethernet network?

It provides an Industrial Ethernet interface and supports IP-based communication. However, integration depends on the SINAUT ST7 architecture, network configuration, and compatibility of the connected equipment.

10. Can it replace another Siemens communication module?

Not automatically. The replacement must support the required SINAUT communication functions, interfaces, controller platform, and environmental conditions.

Procurement and Maintenance Recommendations

When purchasing the Siemens 6AG1800-3BA00-7AA0, verify the complete order number and confirm that the product is the SIPLUS TIM 3V-IE version rather than a different SINAUT communication module.

For replacement projects, compare the installed module’s communication interfaces, power supply, operating temperature range, and SINAUT configuration. Confirm that the RS-232 and Ethernet connections match the existing network design.

For used or surplus equipment, inspect the housing, connectors, terminal block, and interface ports. Request clear photographs of the nameplate and confirm the product’s operating condition. Where possible, request a functional communication test before installation.

During maintenance, inspect Ethernet cables, serial connections, power wiring, and protective covers. Check network status and communication diagnostics as part of the automation system’s maintenance schedule.

Keep a backup of the SINAUT engineering configuration and document network addressing and communication settings. This information can reduce commissioning time when a module needs to be replaced.

Conclusion

The Siemens 6AG1800-3BA00-7AA0 SIPLUS SINAUT ST7 TIM 3V-IE is a specialized communication module for connecting compatible SIMATIC S7-300 and C7 controllers to remote SINAUT communication networks.

With one RJ45 Industrial Ethernet interface, one RS-232 interface, 24 V DC operation, conformal coating, and an operating temperature range of -25°C to +70°C, it supports both IP-based and traditional serial communication arrangements.

For industrial maintenance and replacement applications, the complete order number and communication configuration should be verified before procurement. Correct integration with the existing SINAUT ST7 system is essential for reliable data exchange between local automation stations and remote monitoring equipment.
