Product Overview

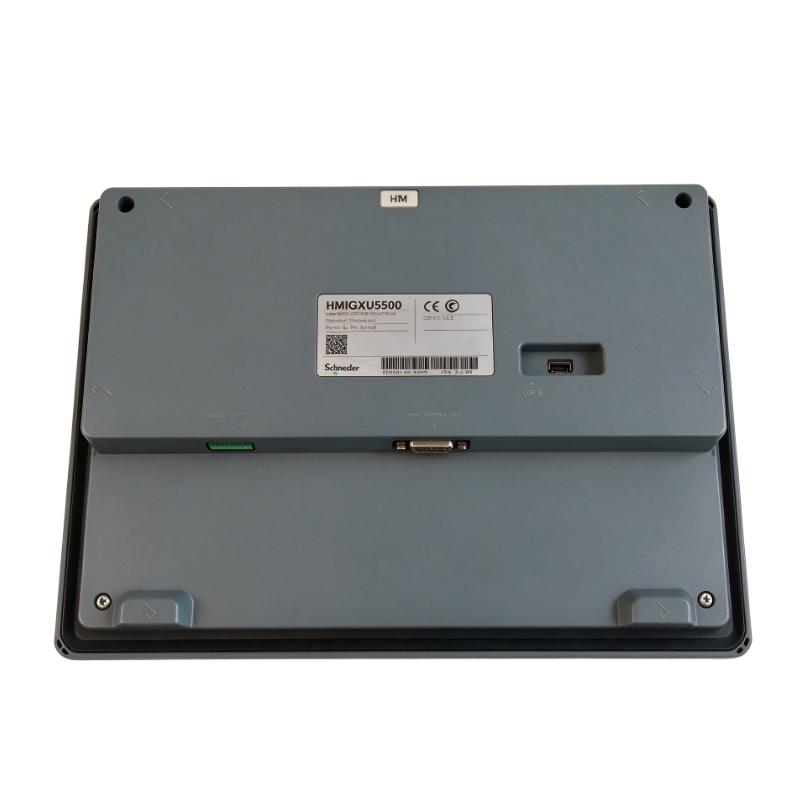

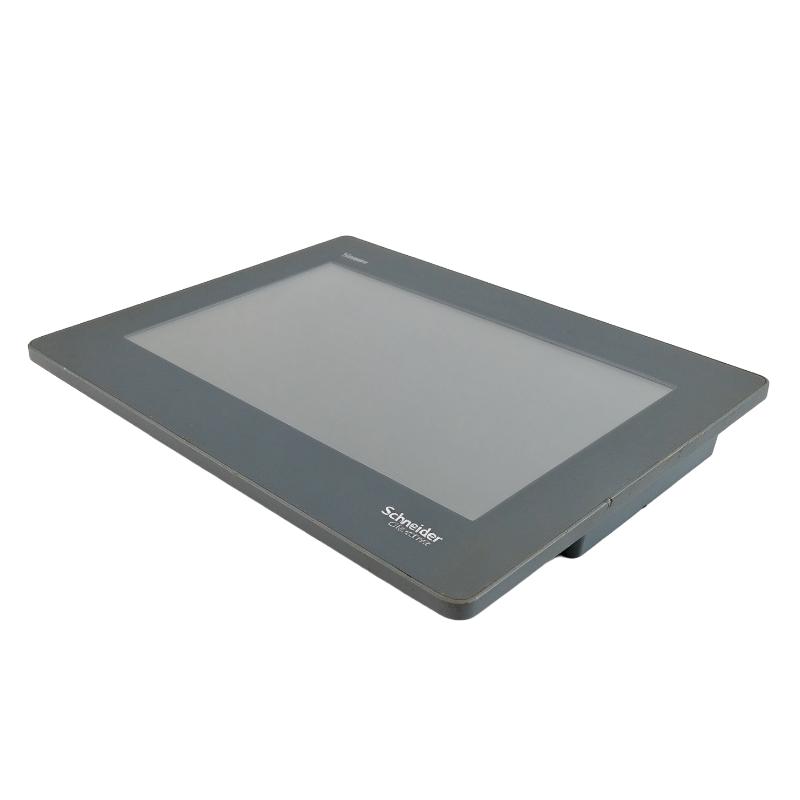

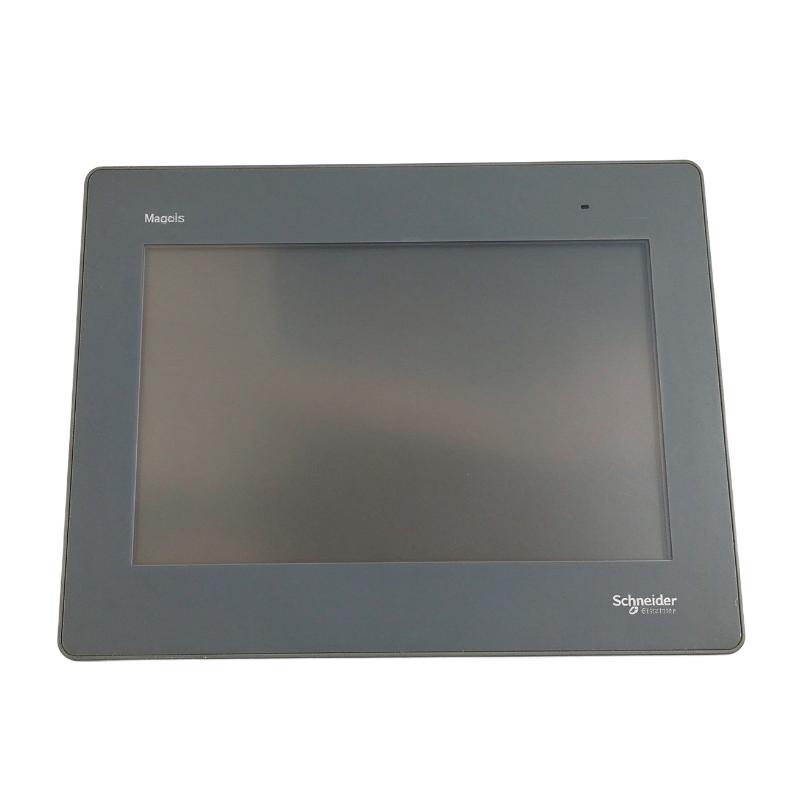

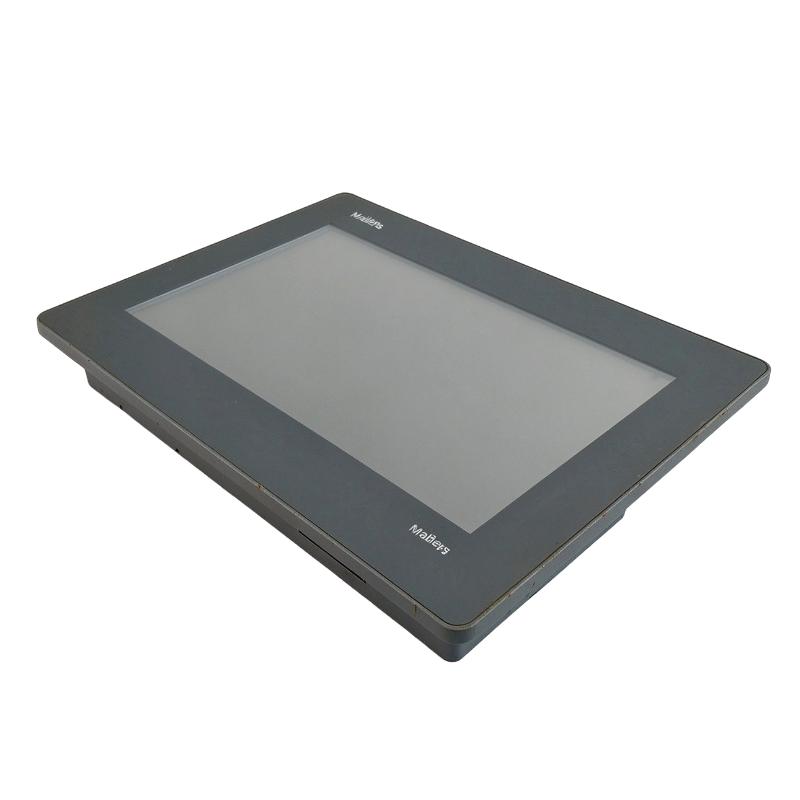

The Schneider Electric HMIGXU5500 is a 10.1-inch advanced touchscreen panel belonging to the Harmony Easy GXU series. It is the Basic configuration of the GXU 10-inch range, intended for machine-level visualization and operator interaction through a straightforward serial communication arrangement.
Compared with the universal HMIGXU5512, the HMIGXU5500 has one COM1 serial interface supporting RS-422/RS-485 communication and one USB Mini-B connection. It does not include an integrated Ethernet port or USB Type-A host interface. This distinction is particularly important when selecting an HMI replacement for an existing machine, as the controller communication arrangement must match the available interfaces.
The 10.1-inch widescreen display uses an 800 × 480-pixel WVGA resolution and supports 65,536 colors. The larger screen provides additional room for machine diagrams, operating values, alarm messages, and status indicators. Operators can view several related machine conditions within one interface rather than navigating repeatedly between separate screens.
The terminal contains 32 MB of application memory, 128 MB of internal DDR memory, and 128 KB of backup memory. An integrated real-time clock supports applications involving time-related information. Vijeo Designer Basic is used to develop the HMI application and configure communication with compatible controllers.
In a typical installation, the HMIGXU5500 is mounted on the machine enclosure and connected to a PLC through its serial interface. The PLC handles control logic and field signal processing, while the touchscreen provides access to operating parameters, equipment status, and configured machine commands.
This configuration is suitable for packaging equipment, textile machinery, pumping systems, HVAC equipment, and other industrial machines that require a larger operator display without Ethernet-based HMI communication.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Schneider Electric |
| Model | HMIGXU5500 |
| Product Type | Advanced Touchscreen Panel |
| Product Series | Harmony Easy GXU |
| Model Configuration | Basic |
| Display Size | 10.1 inch |
| Display Type | LCD Touchscreen |
| Display Resolution | 800 × 480 pixels (WVGA) |
| Display Colors | 65,536 |
| Backlight Lifespan | 20,000 hours |
| Internal Application Memory | 32 MB |
| Internal DDR Memory | 128 MB |
| Backup Memory | 128 KB |
| Real-Time Clock | Integrated |
| Configuration Software | Vijeo Designer Basic |
| Rated Supply Voltage | 24 V DC |
| Serial Interface | 1 × COM1 |
| Serial Connector | 9-way Male SUB-D |
| Serial Communication | RS-422 / RS-485 |
| Ethernet Interface | Not Available |
| USB Interface | 1 × USB Mini-B |
| USB Type-A Host | Not Available |
| Front Protection | IP65 |
| Operating Temperature | 0–50°C |
| Storage Temperature | -20–60°C |
| Mounting Method | Panel Mounting |
| Panel Cutout | 255 × 185 mm |
| Dimensions | 274.9 × 38.2 × 205.9 mm |
| Weight | 1.04 kg |
Product Features
- 10.1-Inch Widescreen Display
The HMIGXU5500 features a 10.1-inch color LCD touchscreen with an 800 × 480-pixel WVGA resolution. Its display area accommodates machine diagrams, numerical indicators, operating controls, and alarm information, making it suitable for machines with several related operating parameters.
- 65,536-Color Display Capability
The TFT display supports 65,536 colors, allowing application developers to distinguish equipment states, alarm conditions, operating modes, and process information through graphical elements.
- Single RS-422/RS-485 Serial Interface
The terminal provides one COM1 communication port through a 9-way male SUB-D connector. Its RS-422/RS-485 capability supports communication with compatible PLCs and serial automation equipment.
- 32 MB Application Memory
The internal application memory stores the configured HMI project, including operator screens, graphical objects, and application data required for normal operation.
- 128 MB Internal DDR Memory
The integrated DDR memory supports application execution and screen operation. It works alongside the application memory to handle the terminal’s normal operating functions.
- USB Mini-B Connection
The USB Mini-B interface supports compatible engineering and application-transfer operations. Unlike the universal HMIGXU5512, this basic model does not include a USB Type-A host interface.
- Integrated Real-Time Clock
The embedded RTC supports applications that use time-related information, such as clock displays and event records. The clock function is particularly useful when machine operation requires time-based information.
- IP65 Front Protection
The front panel provides IP65 protection when correctly installed in a suitable enclosure. This helps protect the operator interface against dust and water jets encountered in industrial environments.
- Vijeo Designer Basic Configuration
Vijeo Designer Basic provides the engineering environment for developing screen layouts, configuring PLC communication, creating alarm displays, and defining operator functions.
- Simplified Basic Communication Architecture
The HMIGXU5500 concentrates on essential HMI functions and serial communication. Its configuration is appropriate for machines where Ethernet networking and additional peripheral interfaces are not required.
Working Principle
The HMIGXU5500 operates as the local visualization and operator-input terminal in a PLC-based automation system. Its main task is to exchange configured data with the controller and present that information through the 10.1-inch touchscreen.
During normal operation, the PLC collects signals from connected sensors and processes the machine control program. Operating variables such as motor status, production counts, temperature, pressure, and equipment alarms are made available to the HMI through the configured RS-422/RS-485 communication connection.
The HMIGXU5500 reads the corresponding variables and updates its graphical screens. Operators can monitor machine conditions, review alarms, and enter authorized operating parameters through the touchscreen.
When an operator changes a setpoint or selects a configured command, the HMI transfers the corresponding data to the PLC. The controller evaluates the input according to its programmed logic and determines whether the requested operation can be executed.
For example, in an industrial pumping installation, the HMI can display pump operating status, pressure values, running time, and alarm conditions. An operator can select an operating mode or modify an authorized setting. The PLC processes the command and controls the pump according to its application logic.
The HMIGXU5500 uses a serial communication arrangement rather than an integrated Ethernet connection. This makes the selection of the correct PLC driver, communication protocol, and serial parameters particularly important during commissioning.
Vijeo Designer Basic is used to develop the application and configure the communication settings. The USB Mini-B connection supports compatible engineering operations and application transfer.
Typical Communication Path:
PLC / Controller → RS-422 or RS-485 → HMIGXU5500 → Graphical Display → Operator Input → PLC
Application Development Path:
Engineering Computer → Vijeo Designer Basic → USB Mini-B Connection → HMIGXU5500
Role in Harmony Easy GXU Control Architecture
Within the Harmony Easy GXU range, the HMIGXU5500 serves as the 10.1-inch Basic operator interface. Its larger screen differentiates it from the 7-inch HMIGXU3500, while its communication arrangement follows the same basic-model approach.
The HMI handles visualization, operator input, and alarm presentation. The connected PLC remains responsible for executing control logic, processing field signals, and operating motors, pumps, valves, and other machine equipment.
The single COM1 interface provides the communication path between the terminal and compatible controllers. This arrangement is suitable for machine systems where a direct serial connection meets the communication requirements.
When replacing an existing terminal, engineers should distinguish the HMIGXU5500 from the universal HMIGXU5512. The latter offers additional communication interfaces, including Ethernet, USB Type-A, and a second serial port. These differences affect wiring, PLC communication configuration, and application integration.
| Control System Component | Function |
|---|---|
| HMIGXU5500 | Provides local machine visualization and operator input |
| Easy Modicon M100 PLC | Handles compact machine control |
| Easy Modicon M200 PLC | Executes machine logic and processes field signals |
| Modicon M221 | Provides PLC-based machine control through supported communication arrangements |
| Modicon M241 | Supports machine automation and serial communication |
| RS-422/RS-485 Network | Exchanges data between the HMI and compatible controllers |
| Vijeo Designer Basic | Develops and configures HMI applications |
| Engineering Computer | Supports application programming and maintenance |
| USB Mini-B Cable | Provides a connection for supported engineering operations |
| Field I/O Modules | Acquire sensor signals and control connected equipment |
Industrial Applications
| Application | HMI Function |
|---|---|
| Packaging Machinery | Displays production counts, machine status, operating modes, and alarms |
| Textile Machinery | Provides access to machine settings and production information |
| HVAC Equipment | Displays temperature values, equipment status, and operating conditions |
| Pumping Systems | Monitors pump operation, pressure values, and alarm conditions |
| Printing Machinery | Provides local monitoring of machine parameters and operating states |
| Plastic Processing | Displays processing values and equipment operating information |
| Material Handling | Provides operator access to conveyor status and machine functions |
| Industrial Assembly Equipment | Displays production information and configured machine commands |
| General OEM Machinery | Provides a 10.1-inch operator interface for PLC-controlled equipment |
Installation and Maintenance
- Verify the Model Configuration: Confirm that the terminal is HMIGXU5500. Do not confuse it with HMIGXU5512, which has additional Ethernet and USB interfaces.
- Prepare the Panel Opening: Check the enclosure cutout against the specified 255 × 185 mm mounting requirement before installing the terminal.
- Inspect Mounting Hardware: Check the mounting screws and fixing components. Ensure that the terminal is properly secured against the enclosure surface.
- Verify the Power Supply: Use a regulated 24 V DC supply and inspect the power connector for loose terminals or damaged wiring.
- Check Grounding Arrangements: Connect the functional ground according to the electrical installation requirements to reduce electrical interference.
- Inspect the Serial Connection: Check the COM1 connector, cable condition, and pin assignments before connecting the terminal to the PLC.
- Configure Serial Communication: Verify the RS-422/RS-485 mode, communication protocol, baud rate, and other serial parameters against the connected controller.
- Check the HMI Application: Confirm that the Vijeo Designer Basic project matches the HMIGXU5500 hardware configuration and the connected PLC.
- Test Touchscreen Operation: Check screen navigation, numerical input, operating commands, and alarm displays before returning the machine to production.
- Inspect the RTC Function: Check clock operation and verify that time-related information is maintained as expected during power interruptions.
- Maintain Front-Panel Sealing: Inspect the front gasket and enclosure contact area periodically. Damaged seals or incorrect mounting can affect the IP65 protection rating.
- Back Up Application Data: Keep a copy of the Vijeo Designer Basic project, serial communication settings, and machine configuration records for future maintenance and replacement.
Compatible System Components
| Component | Product Type | Application |
|---|---|---|
| Easy Modicon M100 | Logic Controller | Compact machine control |
| Easy Modicon M200 | Logic Controller | Machine automation and sequence control |
| Modicon M221 | Logic Controller | PLC-based machine control |
| Modicon M241 | Logic Controller | Machine automation with supported serial communication |
| Modicon M251 | Logic Controller | Distributed machine control |
| Vijeo Designer Basic | HMI Configuration Software | Creates and transfers HMIGXU applications |
| RS-422 Cable | Serial Communication Cable | Connects compatible serial controllers |
| RS-485 Cable | Serial Communication Cable | Supports serial data exchange |
| USB Mini-B Cable | Programming Cable | Connects the terminal to an engineering computer |
| HMIZGFIX3 | Fixing Screw Set | Secures compatible Harmony Easy GXU panels |
| HMIZGPWS2 | Power Supply Connector | Provides the power connection for compatible GXU terminals |
Recommended Related Models
| Model | Product Description |
|---|---|
| HMIGXU3500 | Harmony Easy GXU 7-Inch Basic Touchscreen Panel |
| HMIGXU3512 | Harmony Easy GXU 7-Inch Universal Touchscreen Panel |
| HMIGXU5512 | Harmony Easy GXU 10.1-Inch Universal Touchscreen Panel |
| HMIGTO3510 | Harmony GTO 7-Inch Advanced Touchscreen Panel |
| HMIGTO5310 | Harmony GTO 10.4-Inch Advanced Touchscreen Panel |
| HMIGTO6310 | Harmony GTO 12.1-Inch Advanced Touchscreen Panel |
Key Advantages
- 10.1-inch widescreen color touchscreen.
- 800 × 480-pixel WVGA resolution.
- 65,536 display colors.
- Single RS-422/RS-485 serial communication interface.
- 32 MB application memory.
- 128 MB internal DDR memory.
- 128 KB backup memory.
- Integrated real-time clock.
- USB Mini-B engineering connection.
- IP65 front-panel protection.
- Vijeo Designer Basic configuration software.
Technical FAQs
What is the main difference between HMIGXU5500 and HMIGXU5512?
Both models use a 10.1-inch widescreen display with an 800 × 480-pixel resolution. The HMIGXU5500 is the Basic version with one RS-422/RS-485 serial port and one USB Mini-B connection. The HMIGXU5512 is the Universal version, adding Ethernet, USB Type-A, and additional serial communication capabilities. The two models should not be treated as having identical communication configurations.
Can the HMIGXU5500 connect directly to an Ethernet network?
No. The HMIGXU5500 does not have an integrated Ethernet interface. Its PLC communication is handled through the COM1 RS-422/RS-485 serial connection. Applications requiring direct Ethernet communication should use a suitable alternative HMI configuration.
Which software is required to configure the HMIGXU5500?
The terminal uses Vijeo Designer Basic. This software allows engineers to create operator screens, configure communication drivers, define alarm functions, and develop machine interfaces. The project must be configured for the HMIGXU5500 hardware and the actual controller communication protocol.
Is the HMIGXU5500 suitable for replacing a 7-inch HMIGXU3500?
Both models belong to the Basic configuration of the Harmony Easy GXU range and share a similar serial communication arrangement. However, the HMIGXU5500 uses a 10.1-inch display and a different mounting cutout. A replacement requires checking the enclosure opening, application screen layout, and installation requirements rather than assuming direct mechanical interchangeability.
