Product Overview

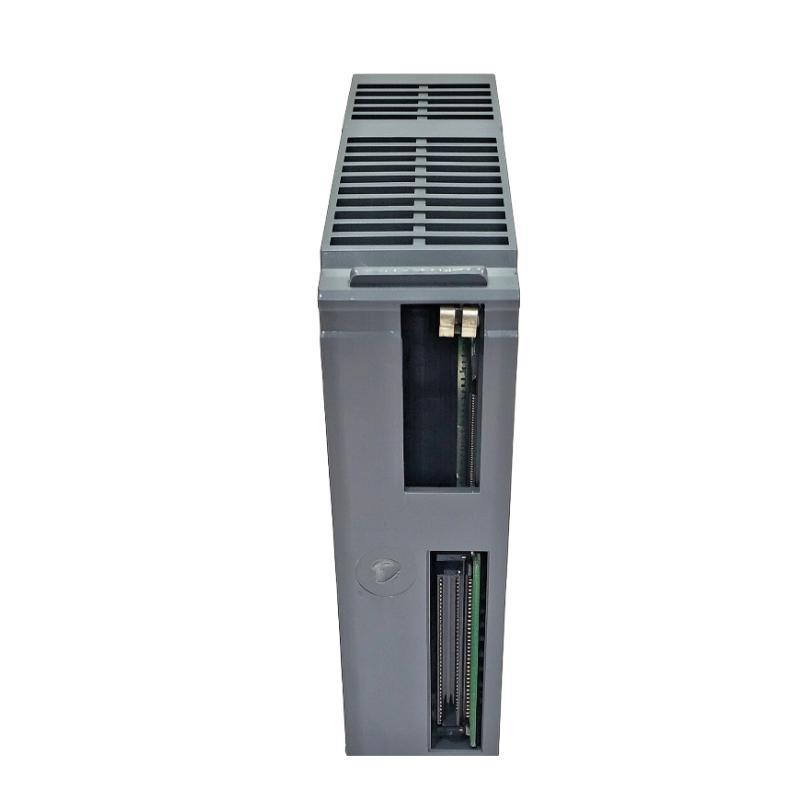

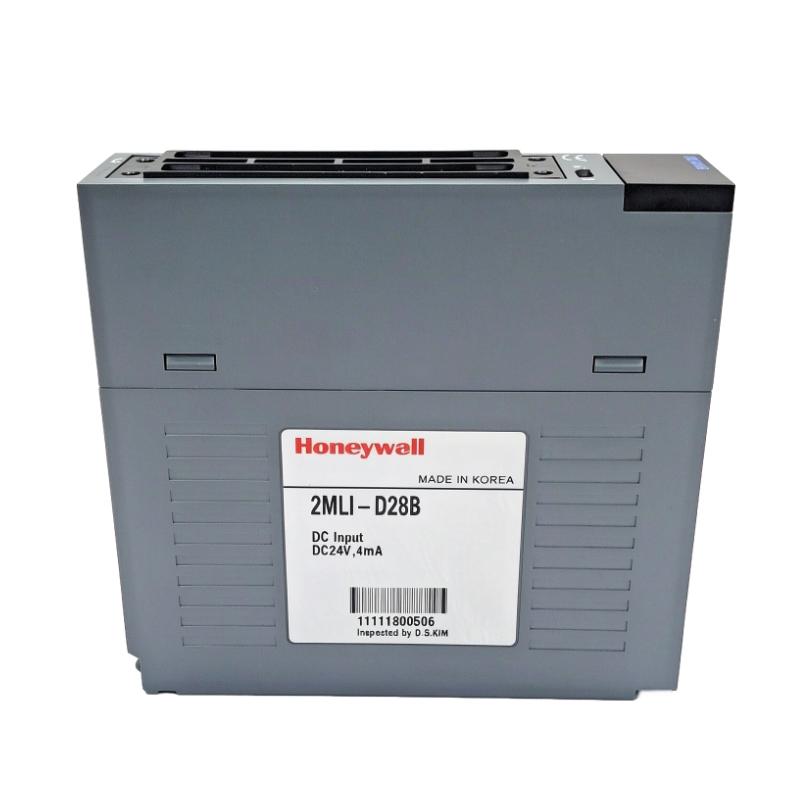

The Honeywell 2MLI-D28B is a 64-point DC 24V Digital Input Module for the MasterLogic-200 PLC system. It collects discrete signals from field devices and transfers their status to the CPU for use in machine sequencing, equipment monitoring, and industrial interlock control.

With 64 input channels, the module is suitable for control cabinets handling large numbers of discrete signals. It can collect feedback from proximity sensors, limit switches, push buttons, machine guards, and other compatible DC 24V devices. In an automated production line, for example, one module can monitor signals from several workstations, including component detection, actuator position, conveyor status, and equipment operating conditions.

The 2MLI-D28B uses a current source input configuration. This is an important distinction when selecting a replacement or planning a new I/O arrangement. Its electrical connection requirements differ from those of the 2MLI-D28A, which supports current source and sink input configurations.

The module uses photocoupler isolation to separate external field signals from the internal PLC circuitry. Input status is indicated through LEDs, allowing technicians to identify active channels during commissioning and fault diagnosis.

Both OFF-to-ON and ON-to-OFF response times can be configured through CPU parameters. Available settings range from 1 ms to 100 ms, with a default setting of 3 ms. This allows the input response to be adjusted according to the switching characteristics of connected devices.

The external connection uses two 40-point connectors. The module’s 64 input channels are arranged in two groups, each with a 32-point common configuration. This arrangement should be considered when preparing the terminal assignments and field wiring.

Technical Specifications

Product Features

1. Sixty-Four DC 24V Input Channels

The 2MLI-D28B provides 64 digital input points for acquiring field signals. This channel capacity is useful in larger automation systems where multiple sensors, switches, and equipment feedback signals need to be collected within one PLC module.

2. Current Source Input Configuration

The module uses a current source input arrangement. Connected field devices must have compatible electrical outputs and wiring polarity. This should be checked carefully when replacing a 2MLI-D28A or another MasterLogic-200 input module.

3. Photocoupler Isolation

Photocoupler isolation separates the external input circuits from the internal PLC electronics. This electrical separation helps reduce the transfer of disturbances from field signal wiring into the controller circuitry.

4. Configurable Input Response Time

Both OFF-to-ON and ON-to-OFF transitions support seven selectable response-time settings: 1, 3, 5, 10, 20, 70, and 100 ms. The default setting is 3 ms, and the selected values are configured through CPU parameters.

5. Input Status LED Indication

The module uses input ON LEDs to display the switching status of individual channels. These indicators are useful when checking field wiring, identifying active sensors, and tracing signal problems during maintenance.

6. Dual 32-Point Common Arrangement

The 64 input channels are organized into two 32-point common groups. This arrangement helps organize the external wiring and should be considered when assigning field devices to each input group.

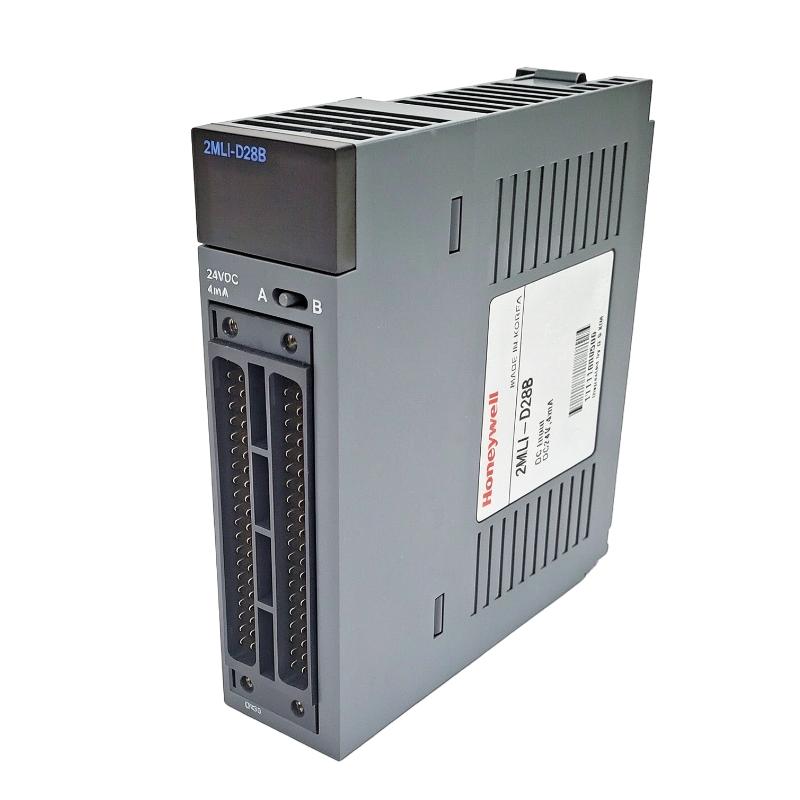

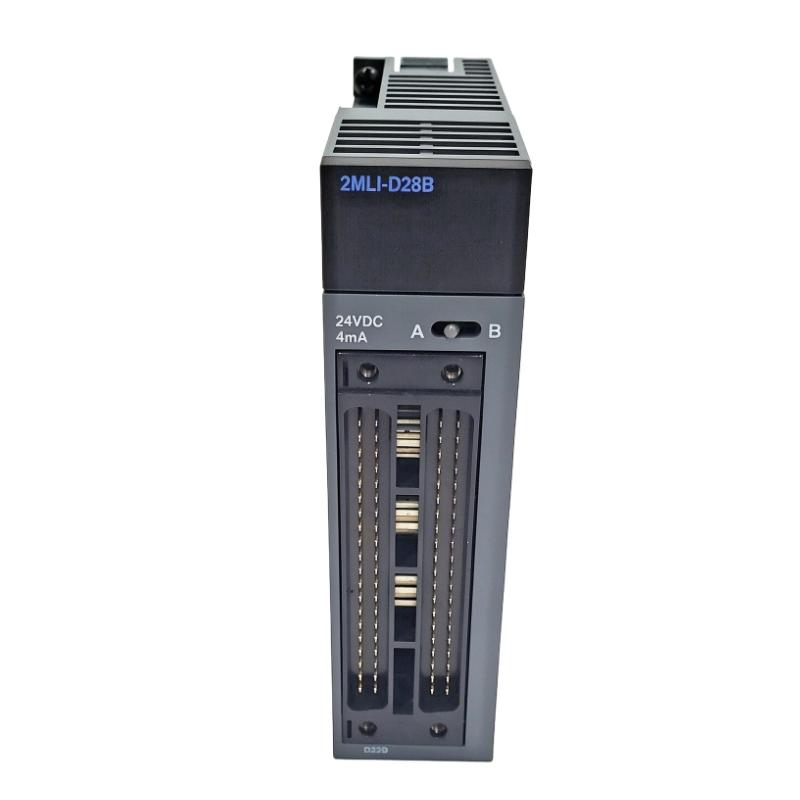

7. Dual 40-Point Connector Interface

Two 40-point connectors provide the external electrical connection. This interface accommodates the 64 input points and their associated common and NC connections.

8. Standard 24V DC Signal Compatibility

The module operates with a rated input voltage of 24V DC and a specified operating range of 20.4–28.8V DC, making it suitable for compatible industrial discrete signal circuits.

Working Principle

The 2MLI-D28B converts electrical switching signals from external DC 24V field devices into digital input information for the MasterLogic-200 CPU.

When a connected sensor or switch changes state, the corresponding input circuit detects the incoming voltage and current. The module evaluates the signal against its ON and OFF thresholds before processing the input transition.

For an ON condition, the input voltage must reach at least 19V DC, with a current of 3 mA or higher. For an OFF condition, the voltage must be 11V DC or lower, with a current of 1.7 mA or lower.

The incoming signal passes through the photocoupler isolation stage, separating the field circuit from the internal PLC electronics. The processed input status is then transferred to the CPU through the MasterLogic-200 system backplane.

The CPU evaluates the collected information against the programmed operating conditions. For example, several sensors monitoring a conveyor system may report workpiece positions, equipment limits, and machine guard conditions. The CPU uses these signals to determine whether the next operation can proceed.

Input response time determines how quickly a transition is recognized. Engineers can select a shorter setting when faster signal recognition is required or a longer setting when the application requires additional input filtering.

Typical Signal Processing Path:

DC 24V Field Device → Input Circuit → Photocoupler Isolation → Digital Signal Processing → MasterLogic-200 CPU → Programmed Control Action

Example Machine Operation:

1. A sensor detects a component at an assembly station.
2. The sensor changes its DC 24V output state.
3. The corresponding 2MLI-D28B input channel detects the signal.
4. The module processes the transition and updates its input status.
5. The MasterLogic-200 CPU evaluates the signal together with other machine conditions.
6. The CPU executes the next programmed sequence through the output modules.

Role in MasterLogic-200 Control Architecture

Within the MasterLogic-200 architecture, the 2MLI-D28B serves as a high-density discrete signal acquisition module. Its 64 input points allow a large group of field signals to be collected and transferred to the PLC CPU for centralized processing.

The module is particularly useful in production equipment with multiple operating stations or interconnected machine sections. Instead of distributing every group of sensors across several lower-density modules, engineers can consolidate a larger number of compatible DC 24V input signals through the D28B.

Its current source input configuration must be considered during system design. Although the 2MLI-D28B and 2MLI-D28A have the same 64-point capacity, their input wiring arrangements are different.

The module works alongside the MasterLogic-200 CPU, power supply, base units, and output modules. The CPU processes the acquired input information, while the output modules execute the corresponding commands to connected actuators and equipment.

Industrial Applications

Installation and Maintenance

1. Verify the Module Model: Confirm that the installed unit is 2MLI-D28B, a 64-point DC 24V current source input module.
2. Check Base Compatibility: Verify that the selected MasterLogic-200 base supports the intended module configuration and that the PLC rack arrangement matches the application.
3. Confirm Field Device Compatibility: Check the output type and electrical characteristics of all connected sensors and switches before making connections.
4. Verify Input Voltage: Ensure that field signals remain within the specified operating range of 20.4–28.8V DC.
5. Check Input Thresholds: Confirm that ON signals meet the minimum voltage and current requirements and that OFF signals remain within the specified limits.
6. Inspect Both Connectors: Check the two 40-point connectors for alignment, damaged contacts, contamination, and secure installation.
7. Use Appropriate Wiring: Follow the specified 0.3 mm² cable requirement and maintain clear separation between signal wiring and potential sources of electrical interference.
8. Check Common Connections: Verify both 32-point common groups and ensure that the COM connections match the module’s current source input configuration.
9. Configure Response Time: Set the OFF-to-ON and ON-to-OFF response times through CPU parameters according to the requirements of the connected field devices.
10. Monitor Input LEDs: Activate individual sensors and switches and confirm that the corresponding input ON indicators respond correctly.
11. Verify PLC Address Mapping: Check that all 64 physical input channels correspond to the correct addresses and variables in the application program.
12. Maintain Wiring Documentation: Record connector assignments, field device descriptions, input addresses, and response-time settings to simplify future maintenance and troubleshooting.

Compatible System Components

Recommended Related Models

Key Advantages

• 64 DC 24V digital input channels.
• Current source input configuration.
• Photocoupler isolation between field and internal circuits.
• Seven selectable input response-time settings.
• Default input response time of 3 ms.
• Individual input ON LED indication.
• Two independent 32-point common groups.
• Dual 40-point connector interface.
• Integration with the modular MasterLogic-200 PLC architecture.
• Suitable for high-density discrete signal acquisition in industrial automation systems.

Technical FAQs

What is the main difference between the 2MLI-D28B and 2MLI-D28A?

Both modules provide 64 DC 24V digital input channels, but their electrical input configurations differ. The 2MLI-D28A supports current source and sink input arrangements, whereas the 2MLI-D28B uses a current source input configuration. Field device compatibility and wiring polarity should be checked before replacing one with the other.

How are the 64 input channels divided on the 2MLI-D28B?

The module uses two 32-point common groups. Each group has its own external 40-point connector. This arrangement allows the 64 input channels to be organized into two wiring sections, which can simplify signal assignment in larger control cabinets.

Can the input response time be adjusted for different sensor applications?

Yes. Both OFF-to-ON and ON-to-OFF response times can be configured through CPU parameters. Available settings are 1, 3, 5, 10, 20, 70, and 100 ms. The default is 3 ms, and the appropriate value depends on the switching characteristics of the field devices and the control sequence.

What should be checked when several input channels stop responding?

Check the field power supply, input common connections, and both 40-point connectors. Since the module has two separate 32-point common groups, inspect each group independently. Also verify the source-type wiring arrangement, input voltage thresholds, LED status, and PLC address assignments to determine whether the problem originates in the field circuit or the module configuration.
