Product Overview

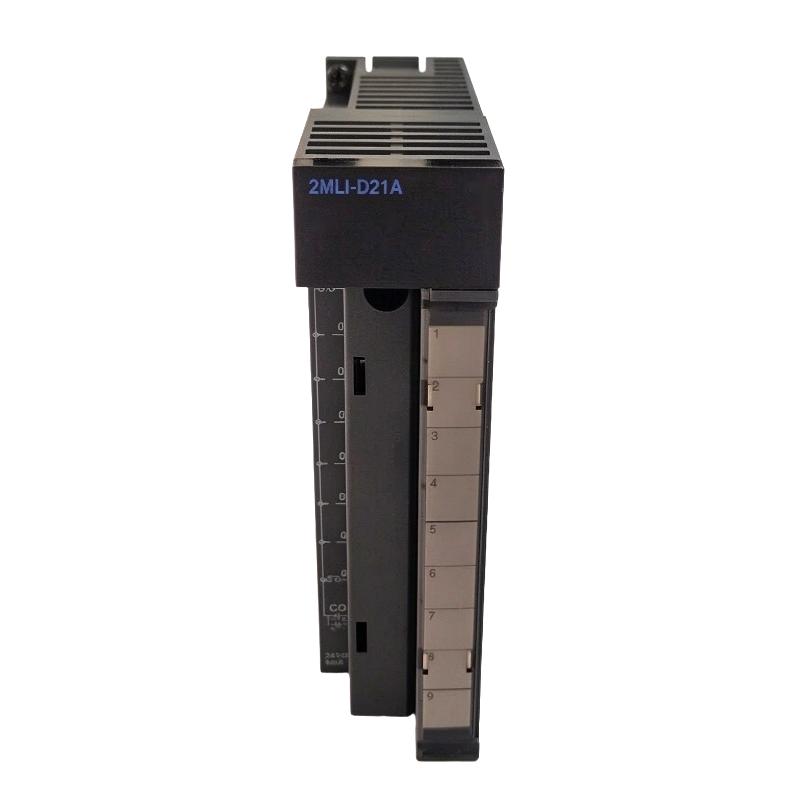

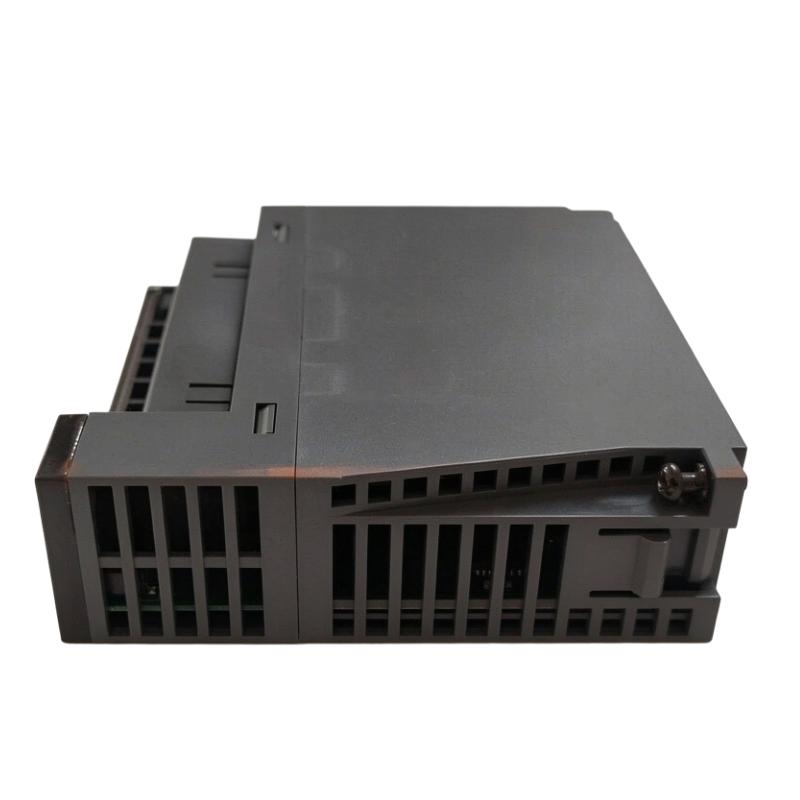

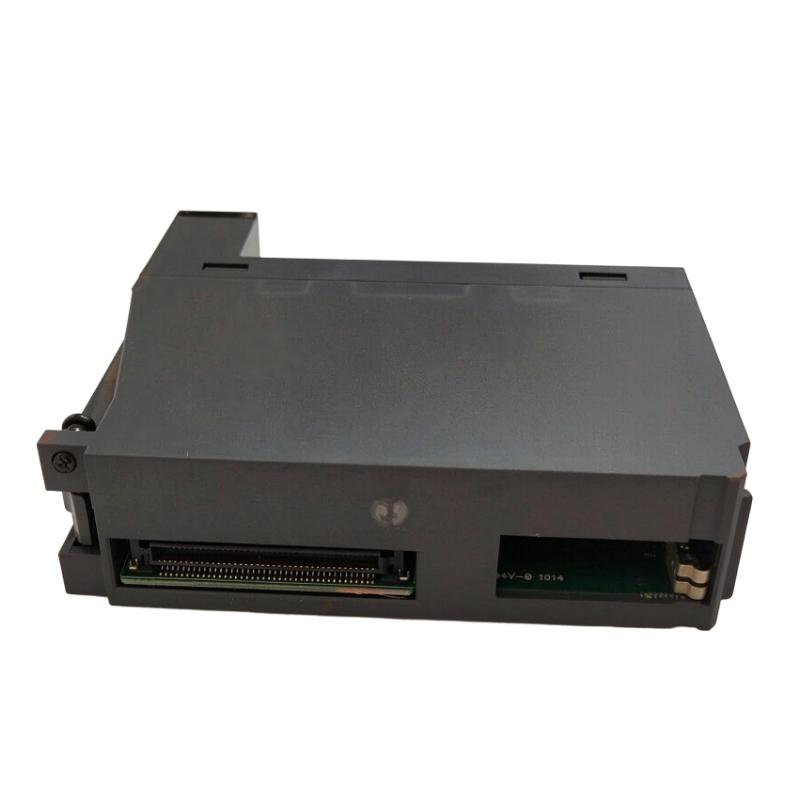

The Honeywell 2MLI-D21A is an 8-point DC 24V Digital Input Module for the MasterLogic-200 PLC system. It acquires discrete signals from field devices and transfers their status to the CPU for processing within the programmed control sequence.

This module supports source and sink input configurations, making it suitable for different field wiring arrangements. Its eight input channels can monitor equipment conditions such as proximity switches, limit switches, push buttons, relay contacts, and other compatible 24V DC signals.

One practical characteristic of the 2MLI-D21A is its configurable input response time. Both OFF-to-ON and ON-to-OFF transitions can be adjusted through CPU parameters, with selectable settings from 1 ms to 100 ms. The default setting is 3 ms. This allows engineers to configure signal response according to the switching characteristics of connected field devices.

The module uses photocoupler isolation to separate field input circuits from the internal PLC circuitry. This is useful in industrial installations where electrical noise and switching activity can affect signal quality.

In a typical machine control application, the 2MLI-D21A may collect signals from sensors monitoring conveyor positions, machine guards, pneumatic cylinder positions, or equipment operating states. The MasterLogic-200 CPU evaluates these signals and determines the next control action.

The module connects to the MasterLogic-200 system through its modular base and uses a 9-point terminal block for external field wiring. Its eight-channel configuration is suitable for distributed machine monitoring and general-purpose discrete signal acquisition.

Technical Specifications

Product Features

1. Eight DC 24V Input Channels

The 2MLI-D21A provides eight discrete input points for collecting field signals. Each channel can monitor a compatible DC 24V switching device, allowing multiple machine conditions to be handled through one PLC module.

2. Source and Sink Input Configuration

The module supports both source and sink input arrangements. This gives engineers flexibility when matching the input wiring to the electrical characteristics of connected sensors and switching devices.

3. Photocoupler Isolation

Photocoupler isolation separates the field input circuits from the internal electronic circuitry. This provides electrical isolation between external signal wiring and the PLC electronics.

4. Configurable Response Time

The input response time can be selected through CPU parameters. Available settings include 1, 3, 5, 10, 20, 70, and 100 ms for both OFF-to-ON and ON-to-OFF transitions. The default setting is 3 ms.

5. Individual Input Status Indication

An LED indicator shows the ON status of the corresponding input signal. This provides a convenient way to check field signal conditions during installation, commissioning, and troubleshooting.

6. 24V DC Signal Compatibility

The operating voltage range is 20.4–28.8 V DC, making the module suitable for standard 24V DC industrial control circuits.

7. Eight-Point Common Configuration

The module uses an eight-point common arrangement. This allows the input channels to be organized around a shared common connection when preparing external wiring.

8. Terminal Block Field Connection

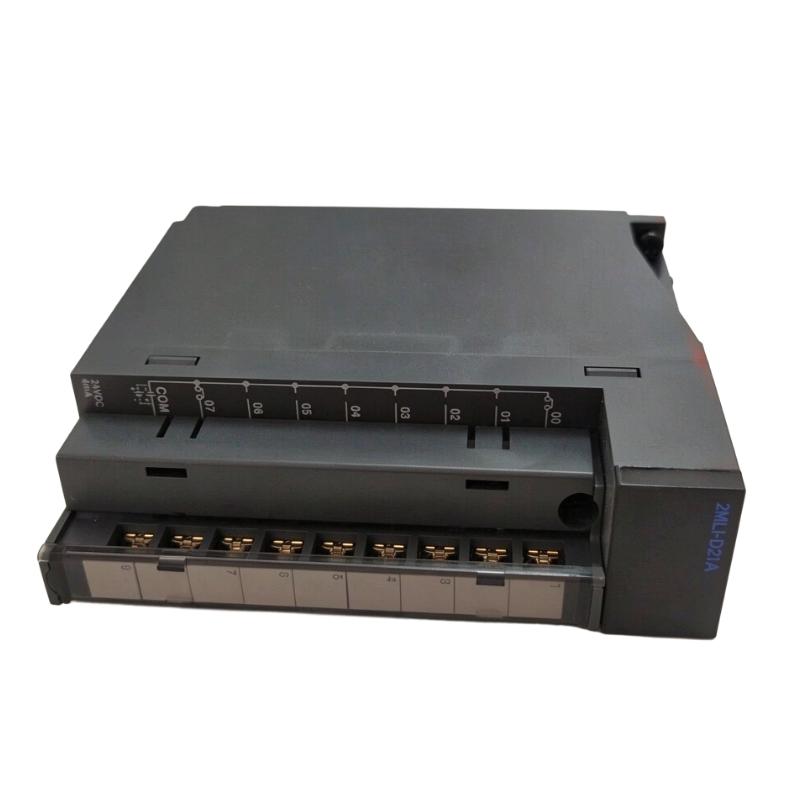

A 9-point terminal block with M3 × 6 screws provides the external electrical connection. Twisted-pair wiring and the specified R1.25-3 crimp terminal should be used according to the installation requirements.

Working Principle

The 2MLI-D21A receives electrical signals from external DC 24V field devices and converts their switching conditions into digital input information for the MasterLogic-200 CPU.

When a connected sensor or switch changes state, the corresponding input circuit detects the voltage and current condition. The module evaluates whether the signal meets the specified ON or OFF threshold and processes the transition through its input circuitry.

The photocoupler isolation stage separates the incoming field signal from the internal PLC electronics. After the input state has been processed, the module makes the corresponding digital status available to the CPU through the MasterLogic-200 backplane.

The CPU then uses the input information in its programmed logic. For example, when a limit switch detects that a pneumatic cylinder has reached its extended position, the 2MLI-D21A reports the input condition. The CPU can then evaluate the signal alongside other interlocks before activating the next output.

The response time is an important configuration parameter. A shorter setting allows the module to recognize switching transitions more quickly, while longer settings can be selected according to the requirements of connected field devices and signal conditions.

Both OFF-to-ON and ON-to-OFF response times are configurable. The default is 3 ms, but engineers can select other supported values through CPU parameters.

Typical Signal Processing Path:

Field Sensor / Switch → DC 24V Input Circuit → Photocoupler Isolation → Digital Input Processing → MasterLogic-200 CPU → Program Logic

Example Machine Sequence:

1. A proximity sensor detects the arrival of a workpiece.
2. The sensor changes its DC 24V output state.
3. The corresponding 2MLI-D21A input channel detects the signal.
4. The module updates the digital input status.
5. The MasterLogic-200 CPU evaluates the programmed conditions.
6. The CPU activates the next configured machine operation through the output system.

Role in MasterLogic-200 Control Architecture

Within the MasterLogic-200 PLC architecture, the 2MLI-D21A functions as a discrete field signal acquisition module. It provides the interface between external 24V DC switching devices and the central processing unit.

The module does not execute the main PLC program or directly control output equipment. Instead, it collects the electrical status of connected field devices and makes the information available to the CPU for logic processing.

In a machine automation system, several 2MLI-D21A modules can be incorporated into the I/O arrangement to monitor different groups of sensors and switches. This is useful when a machine contains multiple operating stations, conveyor sections, or equipment interlocks.

The eight-point input configuration is particularly suitable for applications where a moderate number of discrete signals need to be collected without using a larger input module.

Industrial Applications

Installation and Maintenance

1. Verify the Module Model: Confirm that the installed module is 2MLI-D21A, an eight-point DC 24V source/sink input module.
2. Check Base Compatibility: Install the module in a compatible MasterLogic-200 base and verify that the rack configuration supports the intended module arrangement.
3. Inspect the Terminal Block: Check the 9-point terminal block, M3 × 6 screws, and contact surfaces before connecting field wiring.
4. Verify Input Voltage: Confirm that the connected field devices operate within the specified 20.4–28.8 V DC range.
5. Check Source/Sink Wiring: Match the input wiring arrangement to the source or sink configuration of the connected sensors and switching devices.
6. Use Appropriate Cable: Follow the specified twisted-pair cable requirement of 0.3–0.75 mm² and ensure that the external cable diameter does not exceed the applicable terminal requirements.
7. Select the Correct Crimp Terminal: Use the specified R1.25-3 terminal type. Avoid sleeve-attached compressed terminals as indicated in the module wiring requirements.
8. Configure Input Response Time: Set the OFF-to-ON and ON-to-OFF response times through CPU parameters according to the switching characteristics of the field devices.
9. Check Input LED Indicators: Activate each connected sensor or switch and confirm that the corresponding input ON indicator responds correctly.
10. Verify PLC Input Mapping: Confirm that the physical input channels correspond to the correct addresses and variables in the PLC program.
11. Inspect Electrical Isolation: Check the field wiring for insulation damage, incorrect common connections, and possible sources of electrical interference.
12. Maintain Wiring Records: Keep updated terminal assignments, sensor descriptions, input addresses, and response-time settings to simplify future troubleshooting and module replacement.

Compatible System Components

Recommended Related Models

Key Advantages

1. Eight DC 24V digital input channels.
2. Source and sink input configuration.
3. Photocoupler isolation.
4. Configurable input response time.
5. Default response time of 3 ms.
6. Individual input ON status indication.
7. 20.4–28.8 V DC operating range.
8. 9-point terminal block connection.
9. Integration with MasterLogic-200 PLC systems.
10. Suitable for machine sensors and discrete equipment monitoring.

Technical FAQs

What types of field devices can be connected to the 2MLI-D21A?

The module accepts compatible DC 24V discrete signals. Typical devices include proximity sensors, limit switches, push buttons, relay contacts, and other industrial switching devices. The source/sink wiring arrangement must match the electrical characteristics of the connected device.

Can the input response time be changed from the default 3 ms?

Yes. Both OFF-to-ON and ON-to-OFF response times can be configured through CPU parameters. Available settings are 1, 3, 5, 10, 20, 70, and 100 ms. The appropriate setting depends on the field device and the required signal response.

What is the purpose of photocoupler isolation in this module?

Photocoupler isolation separates the external field input circuit from the internal PLC electronics. This provides electrical isolation between the field wiring and the controller circuitry, helping protect the internal system from disturbances associated with external signal circuits.

What should be checked if an input channel does not turn ON?

First, verify the field device’s output voltage and wiring polarity. Confirm that the input voltage reaches the required ON threshold of 19 V DC or higher and that the input current meets the minimum requirement of 3 mA. Then inspect the common connection, terminal block, input LED, and PLC input mapping. The configured response time should also be checked if the signal changes faster than the selected setting can recognize.
