Product Overview

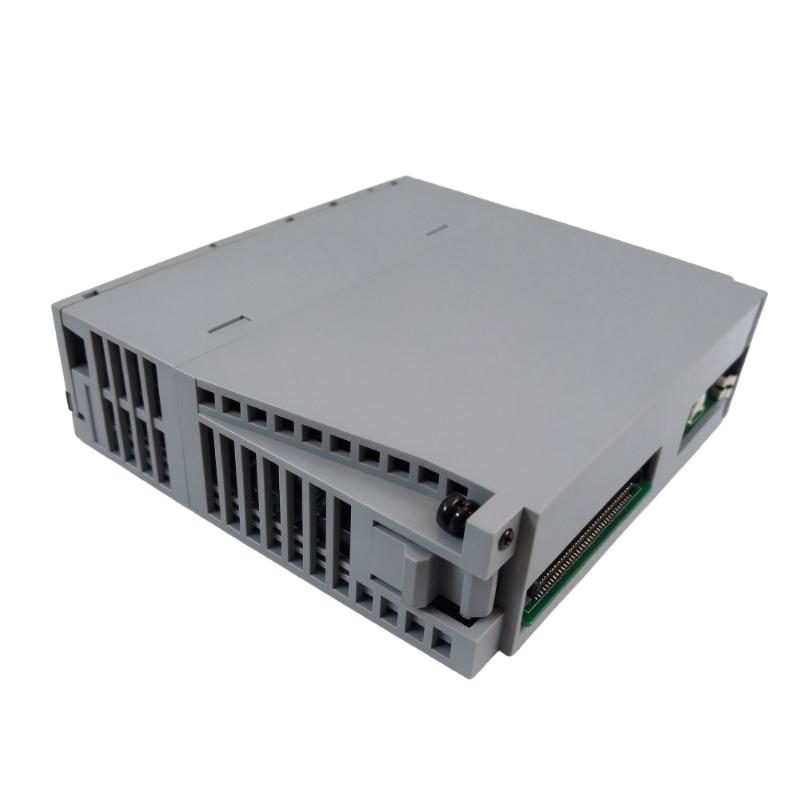

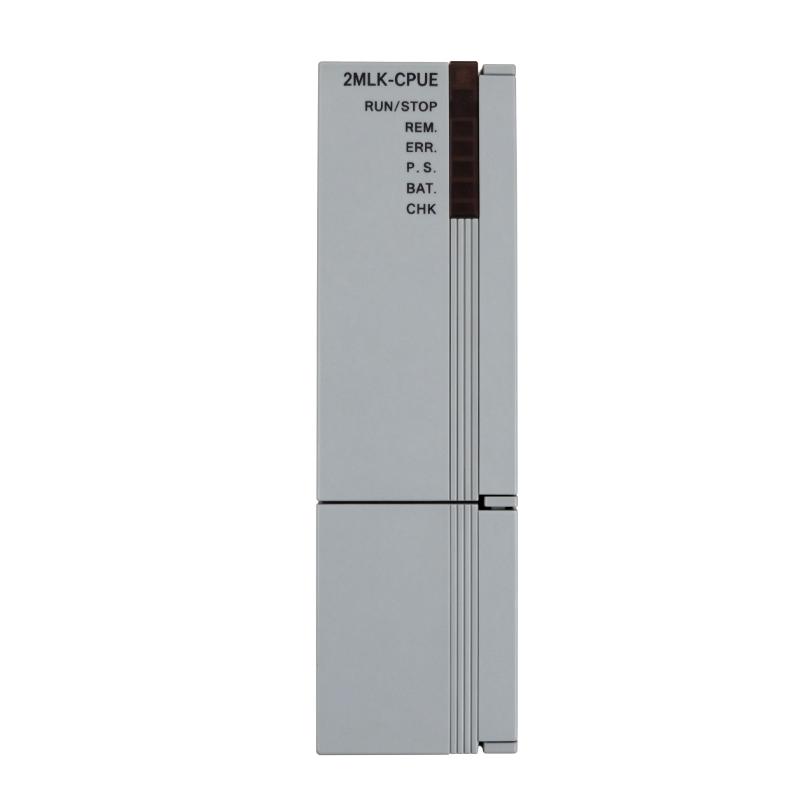

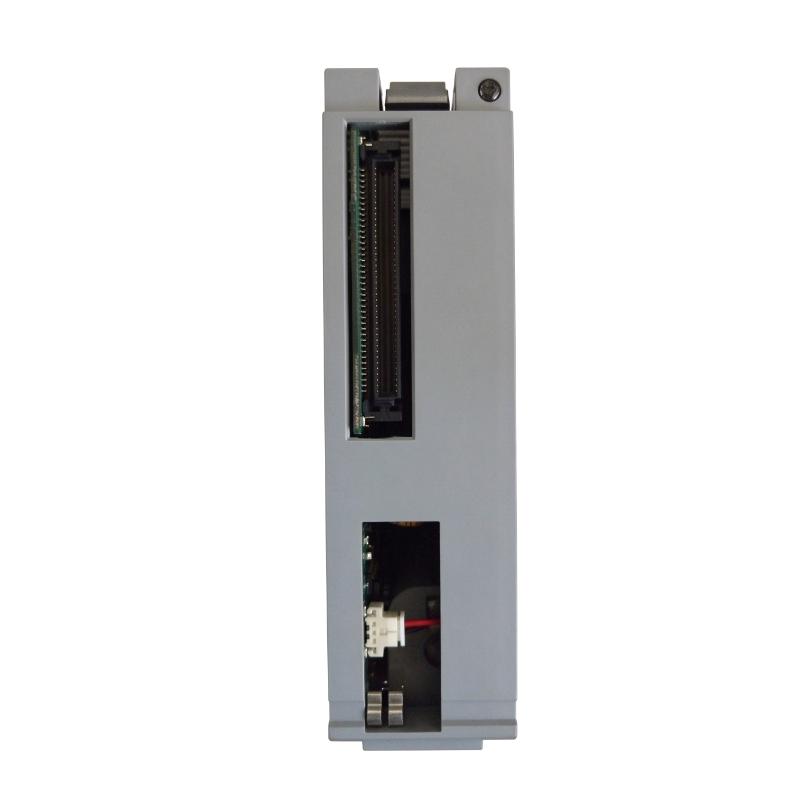

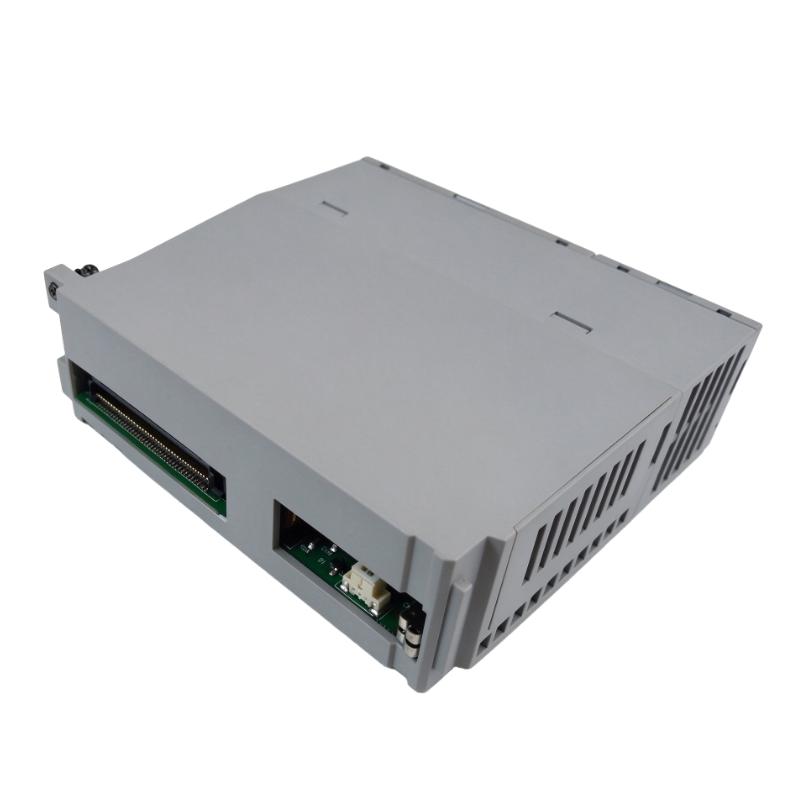

The Honeywell 2MLK-CPUE is identified as a MasterLogic-200 CPU Module. In a PLC control system, the CPU handles application logic, processes incoming field information, and coordinates the operation of connected I/O and communication modules.
In practical automation installations, CPU processing is responsible for evaluating equipment status, executing programmed sequences, and coordinating machine responses. For example, in a production line, the controller receives signals from product detection sensors, position switches, and equipment interlocks before executing the next programmed operation.
The MasterLogic-200 platform uses a modular PLC architecture, with CPU, power supply, base units, and I/O modules forming the main system components. CPU selection affects the supported programming environment, processing configuration, and maximum I/O capacity.
One important consideration with the 2MLK-CPUE is its exact hardware identity. The documented non-redundant ML200 CPU selection includes 2MLK-CPUS and 2MLK-CPUH, while the IEC CPU family includes 2MLI-CPUS, 2MLI-CPUH, and 2MLI-CPUU. The 2MLK-CPUE designation should therefore be verified before assigning detailed processor specifications or replacement compatibility.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Honeywell |
| Model | 2MLK-CPUE |
| Product Type | CPU Module |
| Product Series | MasterLogic-200 |
| Dimensions | 120 × 25 × 110 mm |
| Weight | 0.15 kg |
Product Features
1. Centralized PLC Processing
The CPU serves as the processing center of a PLC system. It evaluates input information and executes programmed instructions to coordinate connected automation equipment.
2. Industrial Sequence Processing
CPU-based control supports programmed machine sequences, equipment interlocks, and operating-condition evaluation.
3. Modular System Integration
The MasterLogic-200 architecture combines processing, power supply, I/O, and communication components within a modular control system.
4. I/O Coordination
The CPU coordinates the exchange of information with compatible input and output modules, allowing field signals to participate in centralized control logic.
5. Equipment Status Evaluation
Discrete and analog information collected from field devices can be used by the PLC program to monitor equipment conditions and determine subsequent control actions.
Working Principle
A PLC CPU processes field information through a continuous control cycle. The input modules collect electrical signals from connected devices, and the CPU evaluates these signals against the application program.
For example, when a proximity sensor detects a workpiece, its signal is collected by a digital input module. The CPU checks the signal together with other operating conditions before executing the next machine instruction.
The general control sequence consists of:
- Receiving input information from connected I/O modules.
- Evaluating the collected information.
- Executing programmed control instructions.
- Updating the corresponding output states.
- Repeating the processing cycle to monitor changing operating conditions.
The exact execution speed, memory capacity, and communication specifications of the 2MLK-CPUE have not been established and are therefore not assigned here.
Role in MasterLogic-200 Control Architecture
Within the MasterLogic-200 architecture, the CPU is responsible for coordinating the PLC application and the connected automation hardware.
The system can include digital input modules, digital output modules, analog I/O modules, power supply units, and communication components. These modules exchange information through the configured PLC architecture.
The following components belong to the broader MasterLogic-200 product family. Their individual compatibility with the 2MLK-CPUE should be confirmed against the exact hardware configuration.
| Control System Component | Function |
|---|---|
| 2MLK-CPUS | Standard non-IEC CPU |
| 2MLK-CPUH | High Performance non-IEC CPU |
| 2MLI-CPUS | Standard IEC CPU |
| 2MLI-CPUH | High Performance IEC CPU |
| 2MLI-CPUU | Enhanced IEC CPU |
| 2MLP-ACF1 | Power Supply Module |
| 2MLP-ACF2 | Power Supply Module |
| 2MLB-M04A | Four-Slot Main Base |
| 2MLB-M06A | Six-Slot Main Base |
| 2MLB-E04A | Four-Slot Expansion Base |
| 2MLB-E08A | Eight-Slot Expansion Base |
| Digital Input Modules | Acquire discrete field signals |
| Digital Output Modules | Control discrete field equipment |
| Analog I/O Modules | Handle continuous process signals |
Industrial Applications
| Application | CPU Control Function |
|---|---|
| Automated Production Lines | Coordinates machine sequences and equipment status |
| Packaging Machinery | Processes product detection and machine interlock signals |
| Material Handling | Coordinates conveyor and transfer operations |
| Industrial Machine Tools | Evaluates operating conditions and machine status |
| Process Automation | Executes configured process control logic |
| Assembly Equipment | Processes component detection and station-position information |
| Pumping Systems | Coordinates equipment feedback and operating sequences |
| Utility Systems | Supports centralized equipment monitoring and control |
Installation and Maintenance
- Verify the Model Number: Confirm the complete 2MLK-CPUE identification before installation or replacement.
- Confirm CPU Architecture: Establish whether the installed controller uses the non-IEC or IEC programming environment.
- Check Base Compatibility: Verify the applicable main base and module installation arrangement.
- Inspect Power Connections: Check the power supply configuration and associated electrical connections before energizing the system.
- Review System Configuration: Confirm the installed I/O modules and communication components against the PLC project.
- Check Program Compatibility: Verify that the application program is suitable for the identified CPU hardware.
- Inspect Module Contacts: Check the CPU-to-base connection for contamination, damaged contacts, or improper seating.
- Verify I/O Mapping: Confirm that physical input and output assignments match the application program.
- Check Communication Settings: Review the configured communication interfaces and network parameters.
- Monitor CPU Indicators: Observe available operating and diagnostic indicators during startup and normal operation.
- Maintain Program Backups: Keep updated copies of the application program and system configuration.
- Document Replacement Work: Record the installed CPU model, program version, system configuration, and commissioning results.
Compatible System Components
| Component | Product Type | Application |
|---|---|---|
| 2MLK-CPUS | Standard CPU Module | Non-IEC PLC processing |
| 2MLK-CPUH | High Performance CPU Module | Non-IEC PLC processing |
| 2MLI-CPUS | Standard CPU Module | IEC PLC processing |
| 2MLI-CPUH | High Performance CPU Module | IEC PLC processing |
| 2MLI-CPUU | Enhanced CPU Module | IEC PLC processing |
| 2MLP-ACF1 | Power Supply Module | Supplies PLC operating power |
| 2MLP-ACF2 | Power Supply Module | Supplies PLC operating power |
| 2MLB-M04A | Main CPU Base | Four-slot module installation |
| 2MLB-M06A | Main CPU Base | Six-slot module installation |
| 2MLB-E04A | Expansion I/O Base | Four-slot I/O expansion |
| 2MLB-E08A | Expansion I/O Base | Eight-slot I/O expansion |
Recommended Related Models
| Model | Product Description |
|---|---|
| 2MLK-CPUS | MasterLogic-200 Standard Non-IEC CPU Module |
| 2MLK-CPUH | MasterLogic-200 High Performance Non-IEC CPU Module |
| 2MLI-CPUS | MasterLogic-200 Standard IEC CPU Module |
| 2MLI-CPUH | MasterLogic-200 High Performance IEC CPU Module |
| 2MLI-CPUU | MasterLogic-200 Enhanced IEC CPU Module |
| 2MLI-CPUS/P | MasterLogic-200 Standard IEC CPU Module with Redundant Power |
Key Advantages
- Centralized PLC processing architecture.
- Supports programmed industrial control sequences.
- Coordinates information exchange with connected I/O modules.
- Supports modular automation system configurations.
- Processes equipment status and interlock information.
- Suitable for industrial machine control applications.
- Part of the Honeywell MasterLogic-200 product family.
Technical FAQs
What is the difference between the 2MLK and 2MLI CPU families?
The documented 2MLK CPU models use non-IEC programming, while the 2MLI CPU models support IEC programming. Their programming environments and CPU configurations should be considered when selecting a replacement.
Is the 2MLK-CPUE equivalent to the 2MLK-CPUH?
This equivalence has not been established. The 2MLK-CPUH is identified as a High Performance non-IEC CPU with a maximum of 6,144 I/O points and 64k-step programming. The 2MLK-CPUE should not be assigned these specifications without confirmation.
Can the 2MLK-CPUE be used with MasterLogic-200 expansion bases?
The broader MasterLogic-200 platform supports modular base and expansion configurations. However, the exact compatibility of the 2MLK-CPUE with individual bases requires confirmation.
What information should be checked before replacing this CPU?
Verify the complete model number, programming architecture, application compatibility, base configuration, power supply arrangement, and connected I/O modules before carrying out a replacement.
