- Honeywell
- MU-GAOX12 51304638-325
- Analog Output Field Termination Assembly
- USA
- 185 × 30 × 116 mm
- 0.28 kg
- Xiamen, China
- New & In Stock
- T/T, PayPal, Western Union
- 1 Year
- 1-3 Working Days
- DHL, UPS, TNT, FedEx and EMS.
- 24-Hour Service
- COO
- 6
Our advantage
Global Logistics
We have a 10-year logistics and express cooperation agreement, so our products can be shipped to any place in the world.
Brand new and original
Our products are imported in bulk from the place of origin. Because of the cooperative relationship, our products are all original and 100% new.
24-hour service
We provide 7*24 hours service to our customers. We will be there whenever you need us.
Price advantage
All our products are priced very favorably because we have our own warehouse and supply.
| Company Information | |||
| [email protected] | |||
| Mobile | +8615980777398 | ||
| +8615980777398 | |||
| 15980777398 |
Product Overview

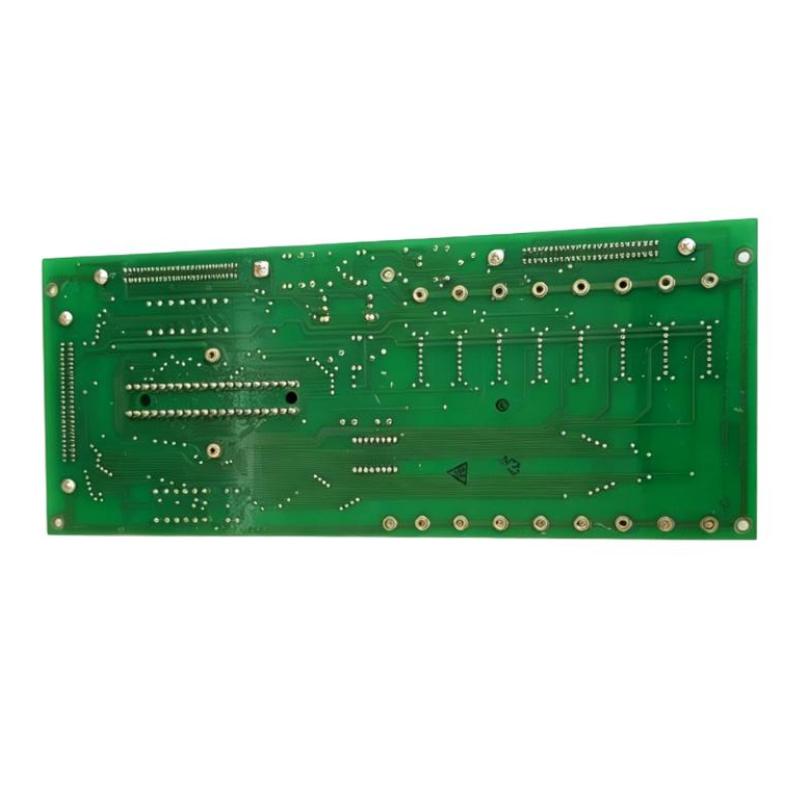

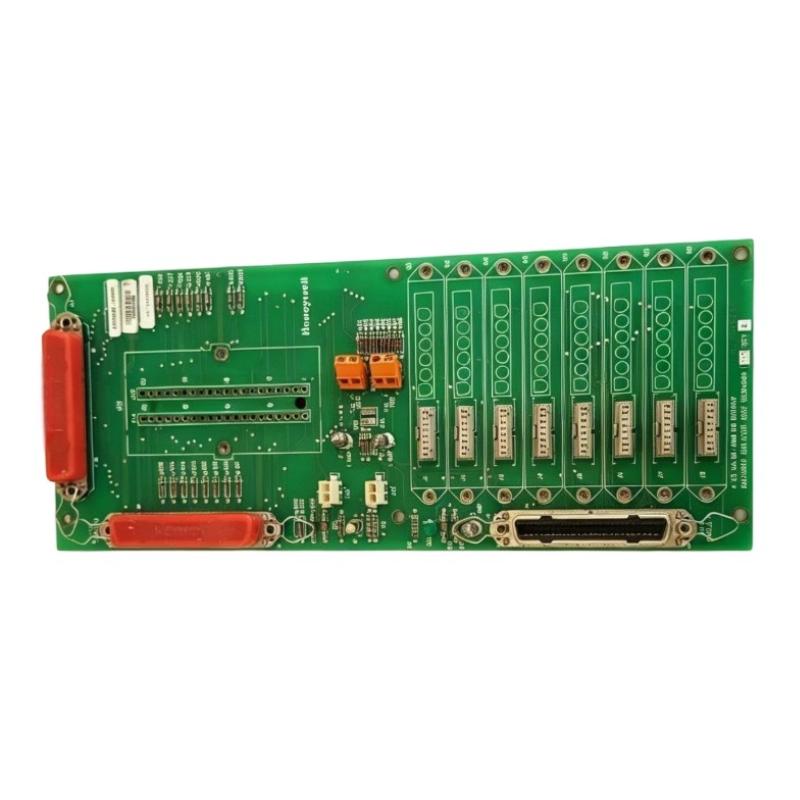

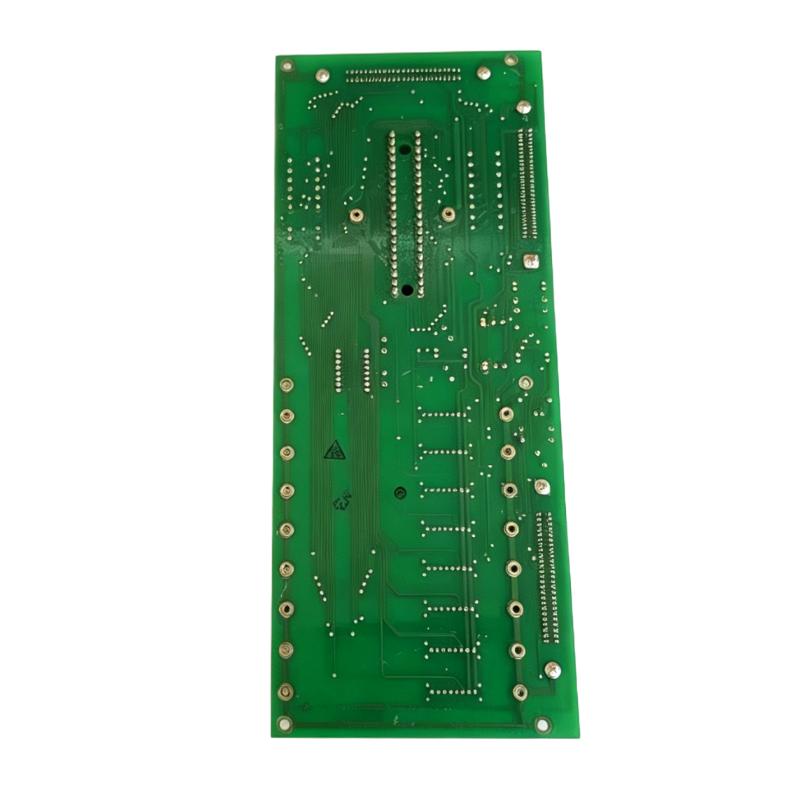

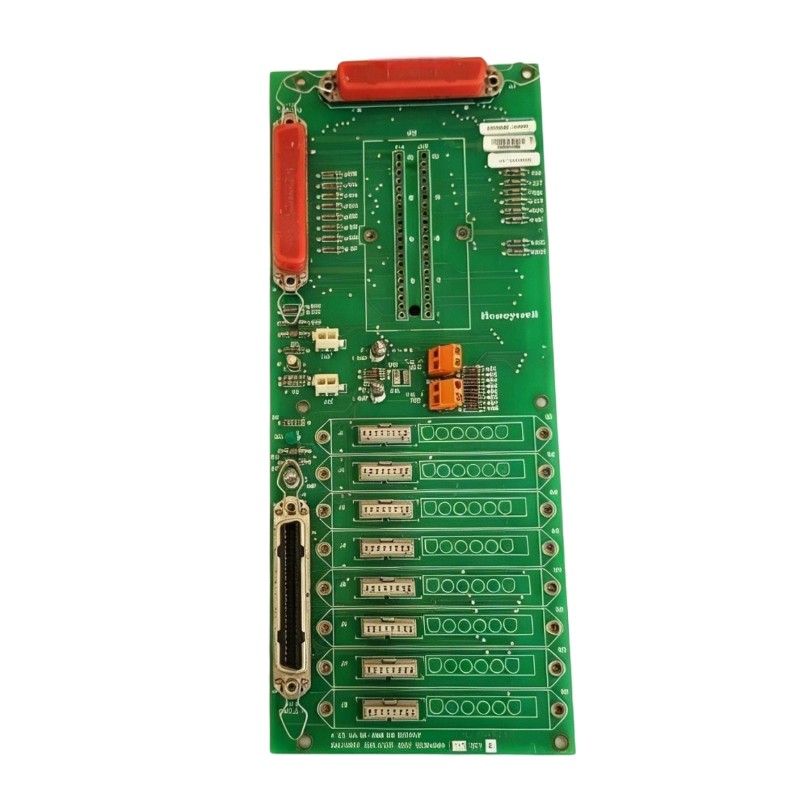

The Honeywell MU-GAOX12 51304638-325 Analog Output Field Termination Assembly is a field-side interface used to organize analog output connections within a Honeywell control system.
In a process-control cabinet, analog output channels from the DCS are routed toward field devices such as control valve positioners, variable-speed drives, and other modulating equipment. The FTA provides the physical termination point for these signals and helps keep field wiring organized between the control-system I/O hardware and the process equipment.
The MU-GAOX12 is associated with the 51304638-325 part number and is intended for analog output signal termination. In a typical installation, the FTA works together with the appropriate Honeywell I/O interface and associated system cable, forming a structured connection between the control system and field wiring.
For replacement or cabinet modification, the FTA should be matched with the existing I/O architecture, signal type, cable assembly, and connected field devices. Terminal assignments should also be checked against the system documentation before wiring.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Honeywell |
| Model | MU-GAOX12 |
| Part Number | 51304638-325 |
| Product Type | Analog Output Field Termination Assembly |
| Signal Type | Analog Output |
| Application | Honeywell DCS field signal termination |
| Dimensions | 185 × 30 × 116 mm |
| Weight | 0.28 kg |
Product Features
- Honeywell MU-GAOX12 analog output FTA
- Part number 51304638-325
- Designed for analog output signal termination
- Provides an organized interface between I/O hardware and field wiring
- Suitable for control valves, valve positioners, drives, and other analog-controlled equipment
- Supports structured Honeywell DCS cabinet wiring
- Works with compatible Honeywell I/O interface cables
- Simplifies field-side connection and maintenance
- Suitable for control-system installation, expansion, and replacement work
Working Principle
The MU-GAOX12 provides the physical termination point for analog output signals generated by the Honeywell control system.
Honeywell Controller → Analog Output I/O → System Cable → MU-GAOX12 FTA → Field Wiring → Final Control Device
The controller determines the required output according to the configured control strategy. The corresponding analog output is transferred through the I/O hardware and system connection to the FTA.
At the FTA, the signal is presented at the appropriate field termination point. Field wiring then carries the analog command to the receiving device, such as a valve positioner or drive.
For example, a process controller may calculate a required control-valve position. The analog output signal travels through the Honeywell I/O architecture to the MU-GAOX12, where the field connection is terminated before continuing to the valve positioner.
The FTA itself does not execute PLC or DCS control logic. Its main function is to provide an organized and maintainable physical interface for the analog output channels.
Role in a Honeywell Analog Output Control Architecture
The MU-GAOX12 is positioned at the field termination level of the analog output architecture.
Controller → Analog Output Module → I/O Cable → MU-GAOX12 → Field Wiring → Valve / Drive / Actuator
| System Element | Function |
|---|---|
| Honeywell Controller | Executes control logic and calculates output commands |
| Analog Output Module | Generates the required analog output signal |
| I/O Cable | Connects the system-side I/O interface with the FTA |
| MU-GAOX12 | Provides field termination for analog output channels |
| Field Wiring | Carries analog commands to the receiving device |
| Valve Positioner | Converts the analog command into valve movement |
| Variable-Speed Drive | Uses the analog reference to regulate motor operation |
| Final Control Element | Changes the process condition according to the control command |
| Engineering / Operator System | Provides configuration, monitoring, alarms, and diagnostics |
The FTA is therefore part of the physical signal infrastructure that connects Honeywell I/O hardware with process equipment.
Industrial Applications
| Application | Typical Use |
|---|---|
| Control Valve Systems | Terminating analog commands for valve positioners |
| Process Skids | Organizing analog outputs between DCS cabinets and packaged equipment |
| Oil and Gas | Connecting modulating field equipment to Honeywell DCS outputs |
| Chemical Processing | Providing structured termination for analog process-control signals |
| Power Generation | Routing analog commands to valves, drives, and auxiliary equipment |
| Water Treatment | Connecting pump and valve control outputs |
| Refining | Supporting analog control loops for process equipment |
| Manufacturing Equipment | Terminating analog commands for drives and actuators |
| DCS Cabinet Expansion | Adding or reorganizing analog output field connections |
| System Maintenance | Replacing existing analog output termination assemblies |
Installation and Maintenance
- Verify that MU-GAOX12 51304638-325 matches the existing Honeywell I/O system and analog output configuration.
- Check the associated analog output module and system cable before connecting the FTA.
- Confirm terminal assignments against the approved Honeywell system wiring documentation.
- De-energize the relevant circuits according to the plant maintenance procedure before making wiring changes.
- Identify each field cable and corresponding channel before disconnecting an existing FTA.
- Install the FTA securely in the designated cabinet position and maintain adequate clearance for wiring and maintenance access.
- Keep analog signal wiring separated from high-current power and motor cables where practical.
- Ensure that field conductors are firmly secured and correctly identified at the appropriate termination points.
- Verify continuity and channel mapping after completing the wiring work.
- During commissioning, check the analog output from the control system and confirm the corresponding response at the field device.
- If a channel does not respond correctly, inspect the I/O module, system cable, FTA terminals, field wiring, and receiving device in sequence.
- During replacement, record the existing channel assignments and wiring arrangement before removing the original FTA.
Compatible System Components
| Component | Function |
|---|---|
| Honeywell Analog Output Module | Generates analog control signals |
| Honeywell I/O Cable | Connects system-side I/O hardware with the FTA |
| Honeywell Controller | Executes process-control logic |
| Honeywell DCS I/O System | Provides the analog output interface |
| Control Valve Positioner | Receives analog positioning commands |
| Variable-Speed Drive | Receives analog speed/reference commands |
| Field Actuators | Execute analog control commands |
| Terminal Blocks / Field Wiring | Connect FTA channels with process equipment |
| Honeywell Engineering System | Provides configuration and diagnostics |
Recommended Related Models
| Model / Product | Product Type | Typical Application |
|---|---|---|
| Honeywell MU-GAOX12 51304638-325 | Analog Output Field Termination Assembly | Analog output field termination |
| Honeywell 51304638-600 Rev F | Analog Output Galvanic Isolator | Galvanic isolation of analog output signals |
| Honeywell 51204033-001 | IOP to FTA Cable | Connecting I/O processor hardware to FTA |
| Honeywell MU-KFTS10 51204033-010 | FTA Cable | FTA system interconnection |
| Honeywell Analog Output Modules | Analog Output Hardware | Generating process-control output signals |
| Honeywell FTA Components | Field Termination Hardware | Organized field-side signal termination |
Key Advantages
- Dedicated analog output field termination.
- Provides an organized connection point for field wiring.
- Supports Honeywell DCS analog output architectures.
- Suitable for valves, drives, and other modulating field equipment.
- Simplifies channel identification and cabinet maintenance.
- Works with compatible Honeywell I/O cable assemblies.
- Suitable for installation, expansion, retrofit, and replacement projects.
Technical FAQs
What is the function of the Honeywell MU-GAOX12 51304638-325?
The MU-GAOX12 is an Analog Output Field Termination Assembly that provides the field-side termination point for compatible Honeywell analog output channels.
Does the MU-GAOX12 generate the analog output signal?
No. The analog output signal is generated by the Honeywell I/O hardware. The MU-GAOX12 provides the physical termination and connection between the I/O system and field wiring.
What equipment can be connected to an analog output FTA?
Depending on the configured Honeywell I/O architecture, analog outputs can be routed to devices such as control-valve positioners, variable-speed drives, and other field equipment that accepts compatible analog control signals.
What should be checked when replacing the MU-GAOX12?
Verify the complete part number, associated analog output module, system cable, terminal assignments, channel mapping, and field wiring. The replacement FTA should match the existing Honeywell I/O architecture before the system is returned to operation.
