- Bently Nevada
- 76680-00-06-10-1-2

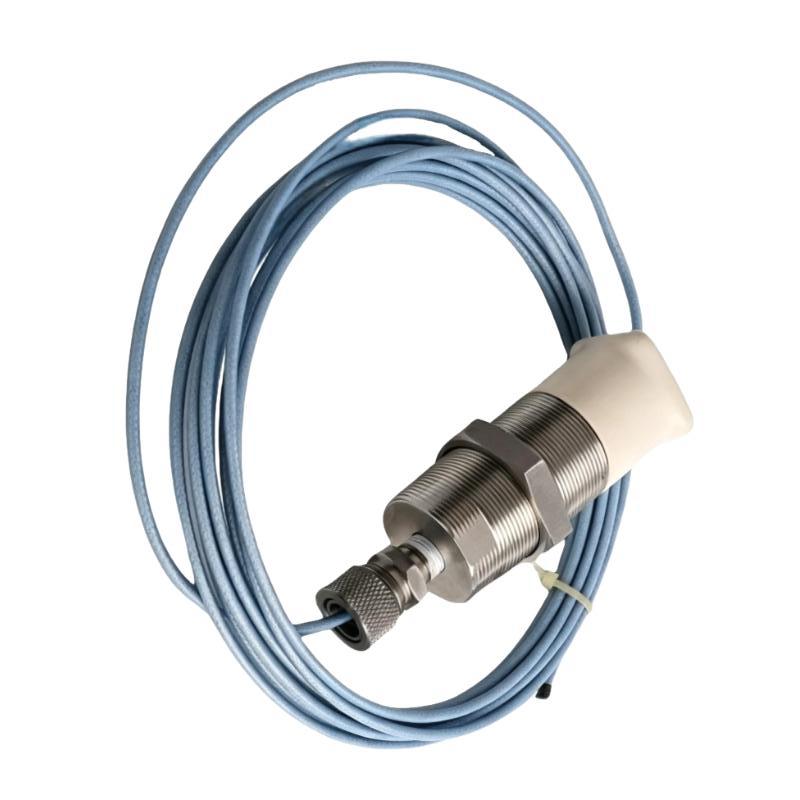

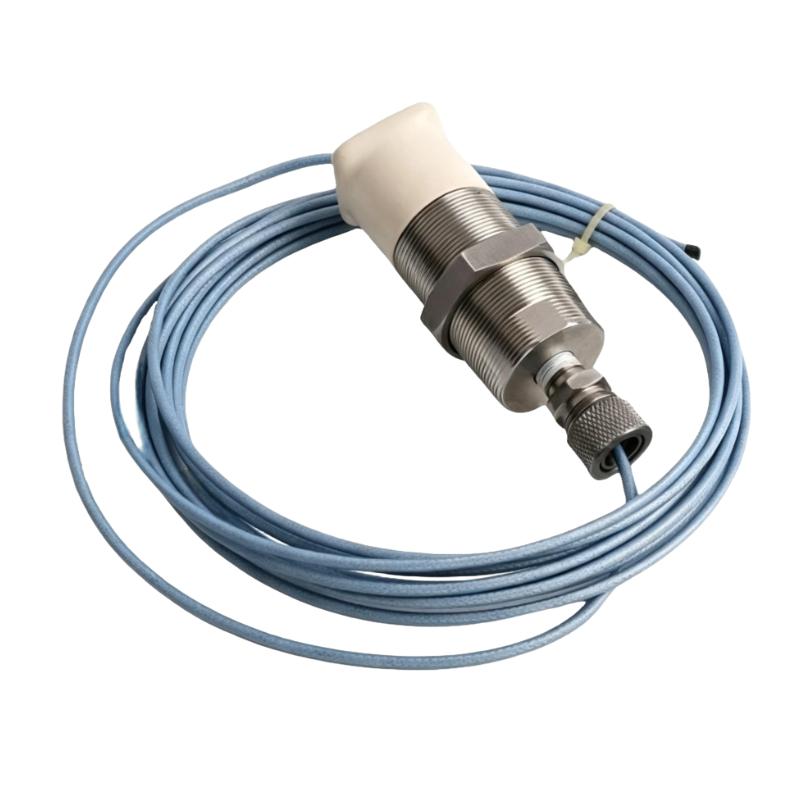

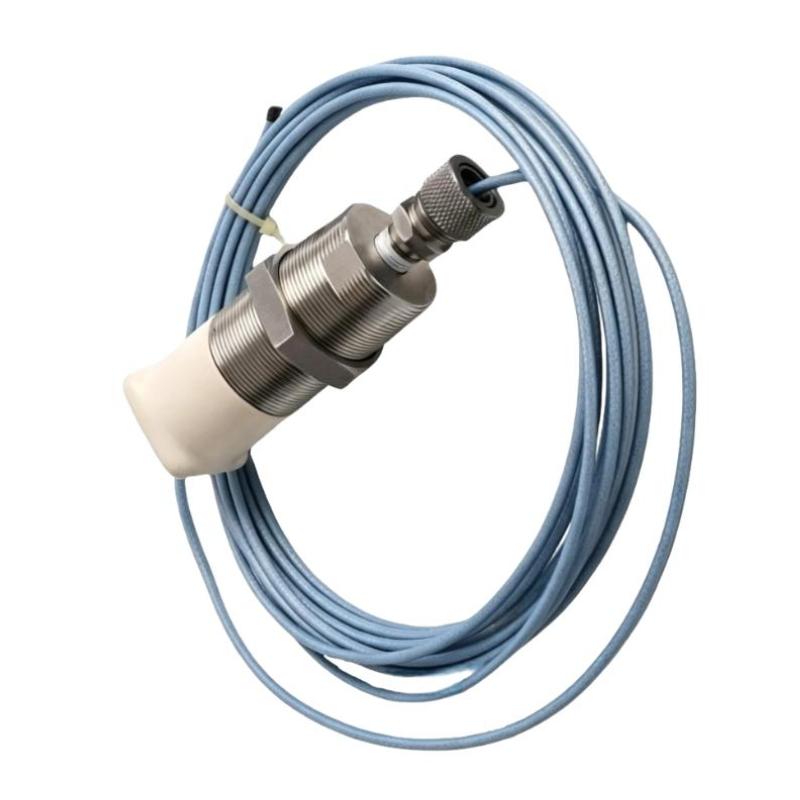

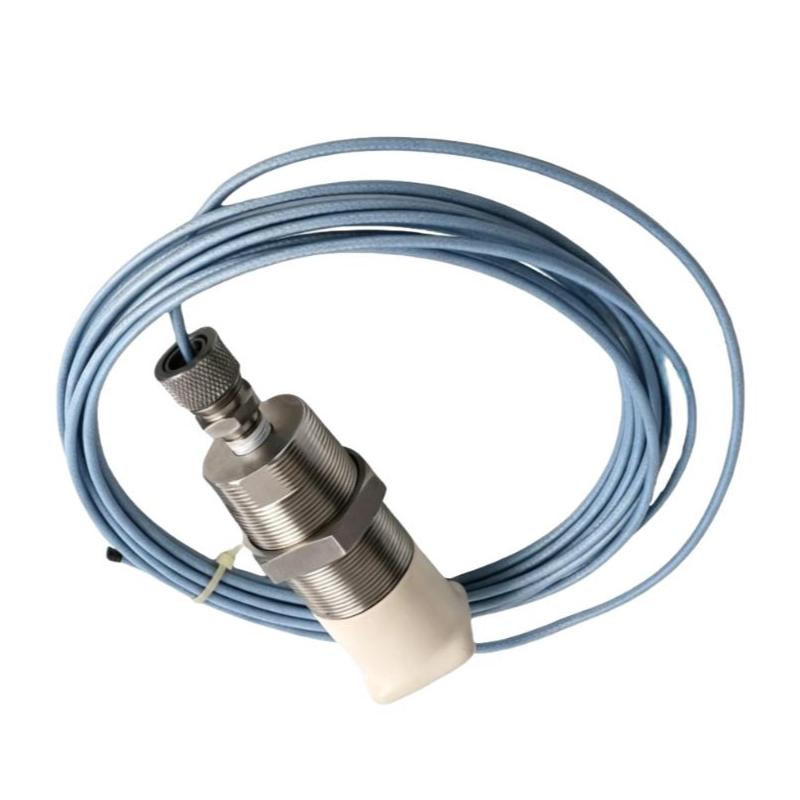

- 35 mm Extended Range Proximity Probe
- USA
- Optional
- 3 kg
- Xiamen, China
- New & In Stock
- T/T, PayPal, Western Union
- 1 Year
- 1-3 Working Days
- DHL, UPS, TNT, FedEx and EMS.
- 24-Hour Service
- COO
- 24
Our advantage
Global Logistics
We have a 10-year logistics and express cooperation agreement, so our products can be shipped to any place in the world.
Brand new and original
Our products are imported in bulk from the place of origin. Because of the cooperative relationship, our products are all original and 100% new.
24-hour service
We provide 7*24 hours service to our customers. We will be there whenever you need us.
Price advantage
All our products are priced very favorably because we have our own warehouse and supply.
| Company Information | |||
| [email protected] | |||
| Mobile | +8615980777398 | ||
| +8615980777398 | |||
| 15980777398 |
Product Overview
The Bently Nevada 76680-00-06-10-1-2 35 mm Extended Range Proximity Probe is used in machinery condition monitoring systems to measure the relative position and movement of conductive targets without physical contact. In rotating equipment, proximity probes are commonly installed near shaft surfaces to provide displacement signals that help monitoring equipment evaluate shaft vibration, radial movement, and changes in the rotor’s position.
The probe operates as part of a proximity measurement system rather than as a standalone monitoring instrument. Its output depends on the compatible probe driver, extension cable arrangement where applicable, target material, and installation geometry. When integrated with a machinery protection system, the measured signal can support vibration monitoring, alarm generation, and protective actions when configured limits are exceeded.
Applications may include turbines, compressors, pumps, and other rotating machinery where shaft motion needs to be monitored during normal operation. For maintenance teams, the probe’s model identification and system compatibility are important when replacing an existing sensor. The probe, extension cable, and driver must be treated as a matched measurement chain, with the specified range and calibration characteristics verified before commissioning.
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Bently Nevada |
| Model | 76680-00-06-10-1-2 |
| Product Type | Extended Range Proximity Probe |
| Probe Range Description | 35 mm Extended Range |
| Measurement Principle | Non-contact proximity measurement |
| Measurement Target | Compatible conductive target |
| Primary Measurement | Relative shaft position and displacement |
| Typical Monitoring Function | Shaft vibration and position monitoring |
| System Type | Eddy-current proximity measurement system |
| Signal Destination | Compatible proximity probe driver and monitoring equipment |
| Application | Rotating machinery condition monitoring |
| Installation Type | Fixed probe installation near the measurement target |
| Total Length | Optional |
| Shipping Weight | 3 kg |
Product Features
- Non-contact displacement measurement: Measures the position of a compatible conductive target without requiring the probe tip to touch the rotating shaft.
- Extended-range configuration: The model description identifies a 35 mm extended-range probe configuration. The applicable measurement range and calibration must be confirmed for the complete probe system.
- Rotating machinery monitoring: Supports applications in which shaft movement and relative displacement are important indicators of machine condition.
- Integration with monitoring equipment: Operates as part of a compatible proximity measurement chain that includes the probe driver and associated monitoring hardware.
- Continuous signal acquisition: Can support ongoing measurement during machinery operation when installed and configured according to system requirements.
- Machinery protection applications: Provides measurement information that compatible monitoring systems can use for alarms and protective logic.
- Maintenance and replacement use: Can be considered when servicing an existing Bently Nevada proximity measurement installation, provided the complete part number and system compatibility are verified.
- Condition-based maintenance support: Probe measurements can contribute to identifying changes in shaft behavior that warrant further investigation.
Working Principle
The 76680-00-06-10-1-2 operates on the eddy-current proximity measurement principle used by compatible Bently Nevada probe systems. The probe forms part of an electrical measurement circuit that converts changes in the distance between the probe tip and a conductive target into a measurable signal.
- Probe installation: The probe is positioned near the conductive shaft or target surface. Its mounting arrangement establishes the required measurement gap and alignment.
- Driver connection: The probe is connected to a compatible proximity probe driver through the specified cable arrangement. The driver supplies the excitation required for the measurement system.
- Electromagnetic field generation: The energized probe produces an alternating electromagnetic field near its tip.
- Target interaction: When the conductive target enters this field, eddy currents form in the target. Their effect on the probe circuit changes with the distance between the target and the probe.
- Signal conversion: The compatible driver converts the electrical response into a signal representing the target’s relative position within the calibrated operating range.
- Monitoring and analysis: Compatible machinery monitoring equipment receives the signal and can use it to evaluate shaft vibration, displacement, or position according to the installed channel configuration.
Measurement accuracy depends on the correct probe-driver combination, target material, probe gap, cable arrangement, and calibration. Incorrect installation or a mismatched measurement chain can produce misleading readings even when the monitoring equipment is operating normally.
Role in a Machinery Protection and Condition Monitoring Architecture
The Bently Nevada 76680-00-06-10-1-2 serves as the sensing element within a proximity measurement channel. The probe detects changes in the relative position of a conductive target, the driver conditions the measurement signal, and the monitoring system evaluates the signal against configured operating criteria.
| System Component | Function | Relationship to 76680-00-06-10-1-2 |
|---|---|---|
| 35 mm Extended Range Proximity Probe | Detects the position of a conductive target without contact | Provides the primary sensing element |
| Compatible Proximity Probe Driver | Excites the probe and converts its response into a usable measurement signal | Must match the probe’s electrical and calibration requirements |
| Extension Cable | Connects the probe to the driver when required by the system configuration | Must meet the specified cable and system-length requirements |
| Machinery Monitoring Module | Acquires and evaluates the proximity signal | Processes the measurement for monitoring and protection functions |
| Vibration Monitoring System | Tracks changes in machinery vibration and displacement | Uses the probe signal as one source of condition data |
| Shaft or Conductive Target | Provides the surface being measured | Determines the physical target from which displacement is measured |
| Probe Mounting Bracket | Holds the probe in the required position | Establishes alignment and the measurement gap |
| Control or Protection System | Initiates alarms or protective actions based on configured logic | May use monitoring-system outputs when the measurement channel is configured for that purpose |
Industrial Applications
| Application | Example of Use | Monitoring Purpose |
|---|---|---|
| Steam Turbines | Measuring relative shaft movement at designated monitoring locations | Supports shaft vibration and displacement assessment |
| Gas Turbines | Monitoring shaft position and dynamic movement | Helps identify changes in rotor behavior |
| Centrifugal Compressors | Measuring shaft displacement in high-speed rotating equipment | Supports condition monitoring and machinery protection |
| Industrial Pumps | Monitoring shaft movement in critical pump installations | Helps detect abnormal vibration or changes in shaft position |
| Power Generation Equipment | Integrating proximity measurements into turbine-generator monitoring channels | Provides data for machinery condition assessment |
| Refinery Machinery | Monitoring critical rotating equipment in continuous-process facilities | Supports maintenance decisions and protective monitoring |
| Petrochemical Plants | Measuring shaft displacement on compressors and other rotating assets | Helps identify deviations from established operating behavior |
| Predictive Maintenance Systems | Trending proximity measurements over time | Supports investigation of developing machinery problems |
Application suitability depends on the probe’s actual specifications, the target material, the compatible driver and cable configuration, the required measurement range, and the environmental conditions at the installation point.
Installation and Maintenance
- Verify the complete model number: Confirm the full 76680-00-06-10-1-2 part number and the required probe configuration before installation or replacement.
- Confirm system compatibility: Verify that the probe is compatible with the installed driver, extension cable, and monitoring channel.
- Inspect the mounting location: Check the probe holder and surrounding machinery for damage, looseness, contamination, or alignment problems.
- Check the target surface: Ensure the measurement area is suitable for proximity sensing and that the target material matches the system’s calibration requirements.
- Set the probe gap correctly: Follow the applicable installation procedure to establish the required initial gap and prevent contact between the probe tip and the rotating target.
- Inspect cable connections: Check connectors and cable routing for damage, loose connections, moisture ingress, or excessive mechanical stress.
- Verify the cable arrangement: Confirm that the probe and extension cable combination meets the requirements of the compatible driver.
- Check the driver and channel configuration: Verify the correct driver type, channel settings, calibration information, and monitoring-system configuration.
- Inspect electrical interference risks: Review grounding, cable routing, and nearby electrical equipment where noise or interference could affect the measurement signal.
- Validate the measurement signal: Before relying on the channel for machinery protection, verify the output against the specified calibration and commissioning procedure.
- Investigate abnormal readings: Check the probe gap, target condition, mounting stability, cable continuity, driver compatibility, and monitoring-channel status before replacing components.
- Document maintenance work: Record the probe part number, installation location, cable and driver configuration, gap setting, test results, and any replacement details.
Related Components
| Component | Function | Relationship to 76680-00-06-10-1-2 |
|---|---|---|
| Bently Nevada Proximity Probe Driver | Excites the probe and conditions the measurement signal | Must be compatible with the probe’s electrical characteristics |
| Bently Nevada Extension Cable | Connects the probe to the driver where required | Forms part of the complete proximity measurement chain |
| Bently Nevada Machinery Monitoring Module | Acquires and processes sensor signals | Uses the probe channel for condition monitoring or protection |
| Probe Mounting Bracket | Positions and secures the probe | Maintains the required alignment and measurement gap |
| Shaft or Conductive Target | Provides the surface being measured | Determines the physical displacement detected by the probe |
| Monitoring Rack | Houses compatible machinery monitoring modules | Provides the platform for signal acquisition and processing |
| Machinery Protection System | Evaluates monitored conditions against configured limits | Can use the proximity signal for alarms and protective actions |
| Signal Connection Hardware | Provides the required electrical connections | Maintains the connection between the probe, driver, and monitoring system |
Recommended Related Models
| Model | Product Name | Relationship |
|---|---|---|
| Bently Nevada 330101 | 3300 XL 8 mm Proximity Probe | Related proximity sensing product for applications requiring a different probe configuration |
| Bently Nevada 330103 | 3300 XL 8 mm Proximity Probe | Related model for comparing probe configuration and application requirements |
| Bently Nevada 330104 | 3300 XL 8 mm Proximity Probe | Related proximity probe model; verify system compatibility before selection |
| Bently Nevada 330180 | 3300 XL Extension Cable | Related cable product for compatible 3300 XL proximity systems |
| Bently Nevada 3300 XL Proximitor Sensor | Proximity Probe Driver | Related driver component used in compatible proximity measurement systems |
| Bently Nevada 3500 System | Machinery Monitoring and Protection System | Related monitoring platform for supported machinery measurement channels |
Key Advantages
- Non-contact sensing: Measures conductive target displacement without mechanical contact at the probe tip.
- Machinery condition monitoring: Supports analysis of shaft movement and vibration in rotating equipment.
- System-based measurement: Works with compatible drivers, cables, and monitoring hardware as part of a complete measurement channel.
- Maintenance applications: Provides a specific model reference for inspection and replacement planning.
- Continuous monitoring potential: Supports ongoing measurement when correctly installed and integrated.
- Protection-system integration: Can supply measurement data for configured alarm and protection functions.
Technical FAQs
1. What is the Bently Nevada 76680-00-06-10-1-2 used for?
It is identified as a 35 mm extended-range proximity probe for non-contact measurement of a conductive target. In rotating machinery applications, proximity measurements can be used to monitor shaft position and displacement when the probe is integrated with a compatible driver and monitoring system.
2. Does the probe operate independently of a proximity probe driver?
No. A proximity probe is normally part of a measurement chain that includes a compatible driver and, where required, an extension cable. The complete system must be correctly matched and calibrated to produce meaningful measurements.
3. What should be checked when replacing this proximity probe?
Verify the full part number, measurement range, driver compatibility, cable configuration, target material, mounting arrangement, and calibration requirements. The replacement must match the installed system’s electrical and mechanical requirements.
4. What can cause unstable or inaccurate proximity measurements?
Possible causes include an incorrect probe gap, a damaged or unsuitable target surface, loose mounting hardware, cable or connector faults, an incompatible driver, electrical interference, or incorrect channel calibration. These factors should be checked systematically before concluding that the probe itself has failed.
