Product Overview

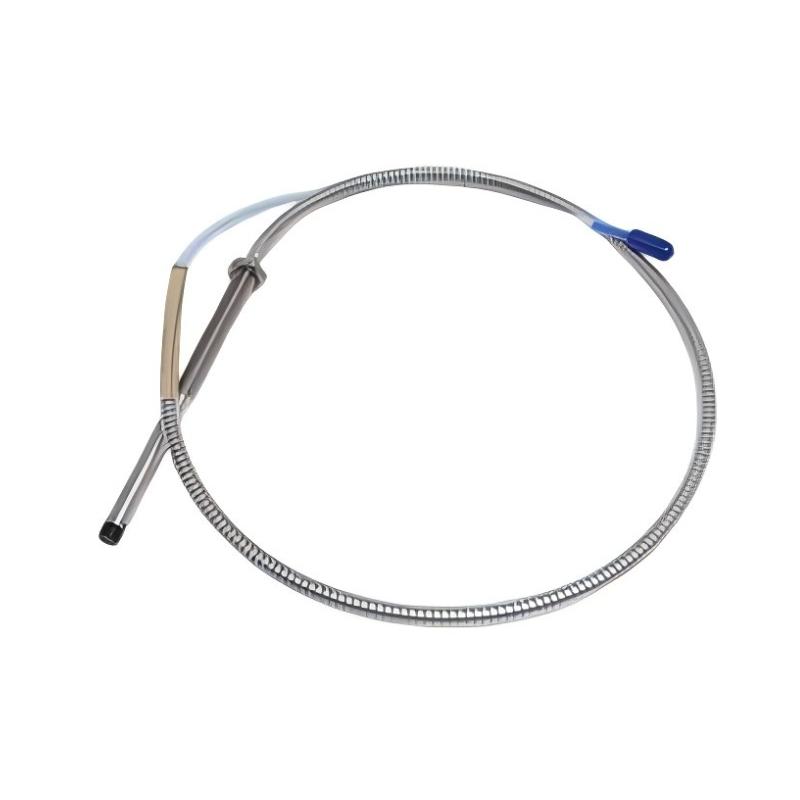

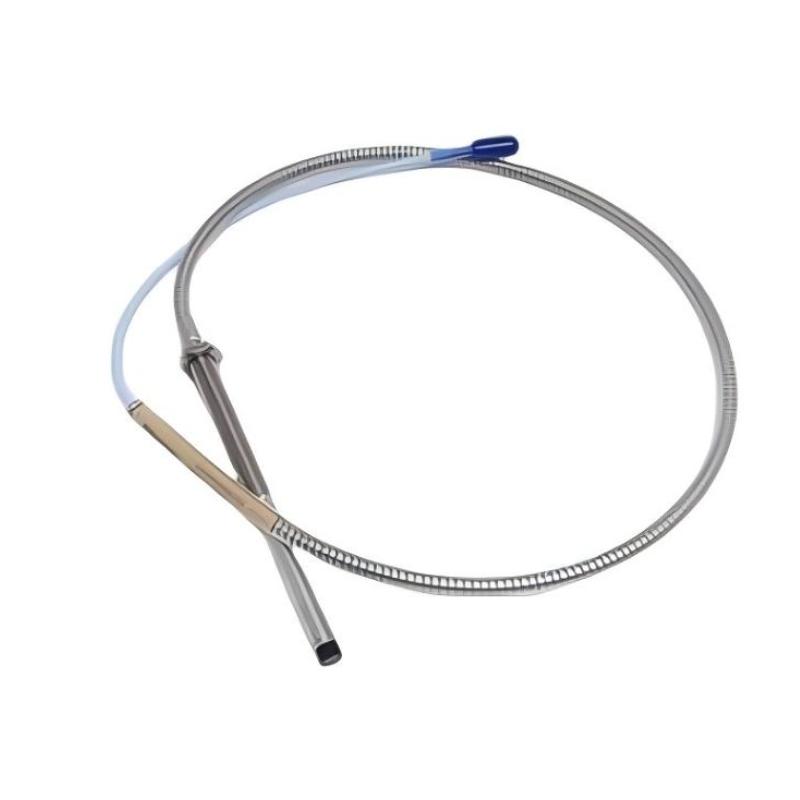

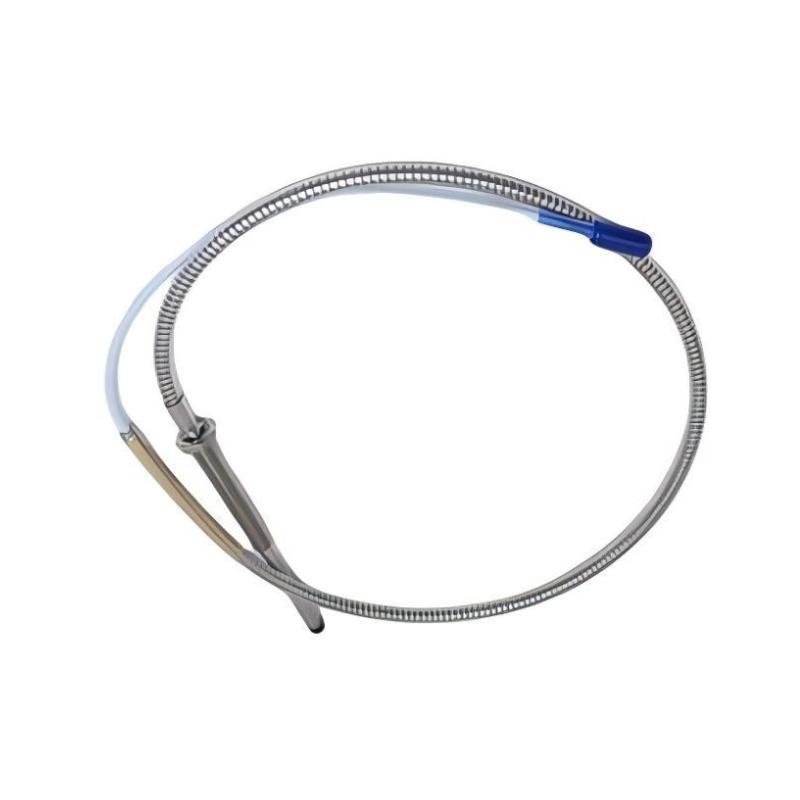

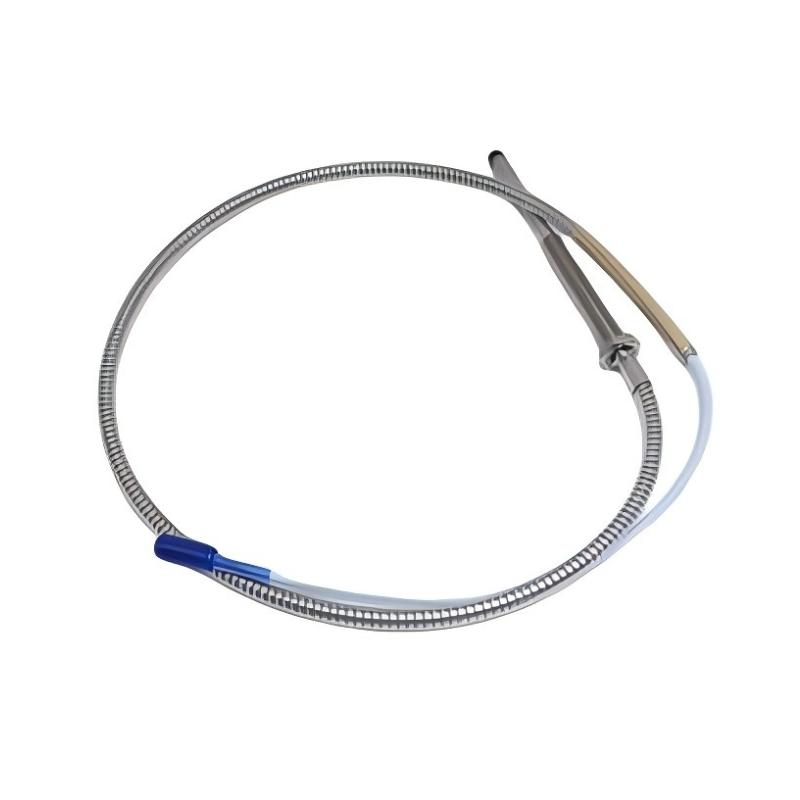

The Bently Nevada 22810-00-04-10-02 is a 7200 Series proximity probe used for non-contact measurement of shaft position, radial vibration, and other mechanical movement in rotating machinery. It is typically installed as part of a proximity measurement chain where the probe senses changes in the distance between the probe tip and a conductive machine target.
In turbine, compressor, pump, motor, and generator applications, the probe is mounted close to the monitored shaft or other rotating target. As the shaft moves relative to the probe, the measurement system detects the corresponding change and converts it into a usable vibration or position signal for machinery monitoring.
The 7200 Series probe is particularly suited to applications where continuous monitoring of rotating components is required. Typical installations include bearing housings, turbine shafts, compressor trains, and other critical rotating equipment where changes in shaft position or vibration can indicate mechanical problems.
The 22810-00-04-10-02 can be integrated into a complete proximity monitoring system with the appropriate driver and monitoring electronics. In an operating plant, the probe normally remains installed while maintenance personnel use the resulting measurement data for condition monitoring, alarm management, and troubleshooting.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 22810-00-04-10-02 |
| Product Family | 7200 Series |
| Product Series | 7200 Series Proximity Probe |
| Product Type | Proximity Probe |
| Measurement Type | Non-contact displacement measurement |
| Primary Function | Shaft vibration and position monitoring |
| Measurement Principle | Eddy-current proximity sensing |
| System Role | Rotating machinery condition monitoring |
| Typical Equipment | Turbines, compressors, pumps, motors, generators |
| Installation | Fixed proximity mounting near the rotating shaft |
| Diameter | 8 mm |
| Weight | 0.59 kg |
Product Features
- 7200 Series proximity probe for rotating machinery monitoring.
- Non-contact sensing avoids mechanical contact with the monitored shaft.
- Suitable for measuring relative shaft movement and displacement.
- Commonly used with proximity driver and monitoring electronics.
- Supports continuous monitoring of critical rotating equipment.
- Compact probe construction simplifies installation in confined machinery locations.
- Applicable to turbine, compressor, pump, motor, and generator monitoring systems.
Working Principle
The 22810-00-04-10-02 operates as the sensing element of an eddy-current proximity measurement system. The probe is positioned near a conductive rotating shaft or target surface. When the shaft moves toward or away from the probe tip, the electrical characteristics of the sensing field change.
The associated driver electronics interpret this change as a variation in the probe-to-target gap. The resulting signal can then be processed by a machinery monitoring system to determine shaft vibration, radial movement, or shaft position.
Rotating Shaft → 22810-00-04-10-02 Probe → Proximity Driver → Machinery Monitoring System → Alarm / Condition Monitoring
Typical measurement functions include:
- Radial shaft vibration monitoring
- Shaft displacement measurement
- Relative shaft position monitoring
- Mechanical movement detection
- Continuous condition monitoring of rotating equipment
Correct probe positioning is important because the measurement depends on the physical relationship between the probe tip and the monitored target surface.
Role in a Rotating Machinery Control Architecture
The probe normally forms the front-end sensing point of a machinery protection or condition monitoring channel. It does not independently analyze machine condition; instead, it supplies the displacement information required by downstream electronics.
Shaft Target → Proximity Probe → Driver / Signal Conditioning → Monitoring System → Control Room
| System Element | Function |
|---|---|
| Rotating Shaft | Provides the monitored mechanical target |
| 22810-00-04-10-02 | Detects changes in shaft-to-probe distance |
| Proximity Driver | Supplies probe excitation and conditions the measurement signal |
| Monitoring Module | Processes vibration or position information |
| Protection System | Generates alarms or protective actions when configured limits are exceeded |
| DCS / Control System | Receives relevant monitoring information for plant operation |
This architecture allows the probe to remain physically close to the machine while monitoring and protection electronics can be installed in the equipment cabinet.
Industrial Applications
| Application | Typical Use |
|---|---|
| Steam Turbines | Shaft vibration and relative displacement monitoring |
| Gas Turbines | Rotating shaft condition monitoring |
| Compressors | Radial vibration and shaft movement measurement |
| Pumps | Monitoring shaft movement and mechanical condition |
| Motors | Detection of abnormal shaft vibration |
| Generators | Rotor movement and vibration monitoring |
| Gearbox Systems | Monitoring rotating shaft behavior |
| Industrial Machinery | Continuous displacement and vibration measurement |
Installation and Maintenance
- Install the probe in a rigid mounting position suitable for the monitored shaft or target.
- Maintain the required probe-to-target relationship during installation.
- Ensure the probe mounting arrangement does not introduce excessive mechanical movement.
- Keep the sensing area free from unnecessary contamination or physical obstruction.
- Route the probe cable away from sources of excessive mechanical damage.
- Protect the cable from sharp edges, excessive bending, and unsuitable routing conditions.
- Verify the probe connection to the associated driver before commissioning.
- Check the measurement channel for stable output during initial startup.
- Compare the measurement with expected machinery operating conditions.
- Inspect the probe installation during scheduled machinery maintenance.
- Investigate abnormal signal changes together with other machine condition data.
- Replace the probe if physical damage, unstable measurement, or installation-related problems are confirmed.
For critical rotating equipment, probe condition should be checked as part of the overall machinery monitoring maintenance program rather than treated as an isolated component.
Related Components
| Component | Function |
|---|---|
| 7200 Series Proximity Probe | Detects shaft-to-probe displacement |
| Proximity Driver | Interfaces the probe with the monitoring electronics |
| Probe Extension Cable | Connects the probe to the associated driver |
| Machinery Monitoring Module | Processes vibration and position signals |
| Vibration Monitoring Channel | Provides continuous machinery measurement |
| Alarm System | Indicates abnormal operating conditions |
| Machinery Protection System | Provides configured protective functions |
| DCS Interface | Transfers monitoring information to the plant control system |
Recommended Related Models
| Model / Product Family | Product Type | Typical Application |
|---|---|---|
| Bently Nevada 7200 Series | Proximity Probe | Shaft vibration and displacement monitoring |
| Bently Nevada 3300 XL Series | Proximity Probe | Modern rotating machinery monitoring |
| Bently Nevada Proximity System | Proximity Measurement System | Non-contact shaft measurement |
| Bently Nevada 7200 Series Extension Cable | Extension Cable | Probe-to-driver connection |
| Bently Nevada Proximity Driver | Probe Driver | Probe signal interface |
| Bently Nevada Machinery Monitoring System | Monitoring System | Vibration and machine protection |
Key Advantages
- Non-contact measurement of rotating shaft movement.
- Suitable for continuous machinery monitoring.
- Compact probe format for fixed installation near rotating components.
- Applicable to vibration and displacement measurement systems.
- Integrates with associated proximity driver electronics.
- Suitable for critical rotating equipment applications.
- Established 7200 Series architecture for industrial machinery monitoring.
Technical FAQs
What type of measurement is the 22810-00-04-10-02 used for?
It is a non-contact proximity probe used to detect changes in the distance between the probe and a conductive rotating target, supporting shaft vibration and displacement monitoring.
Where is this proximity probe normally installed?
It is normally mounted near the monitored shaft or another suitable rotating target surface. Typical locations include turbine, compressor, pump, motor, and generator bearing or shaft-monitoring points.
Can the probe be connected directly to a control system?
The probe normally works as part of a complete proximity measurement channel. A compatible driver or signal-conditioning device is used between the probe and the machinery monitoring or control system.
What should be checked when commissioning the probe?
Probe mounting, target clearance, cable condition, driver connection, and signal stability should all be verified. The initial measurement should also be compared with the expected mechanical condition of the monitored equipment.
