Product Overview

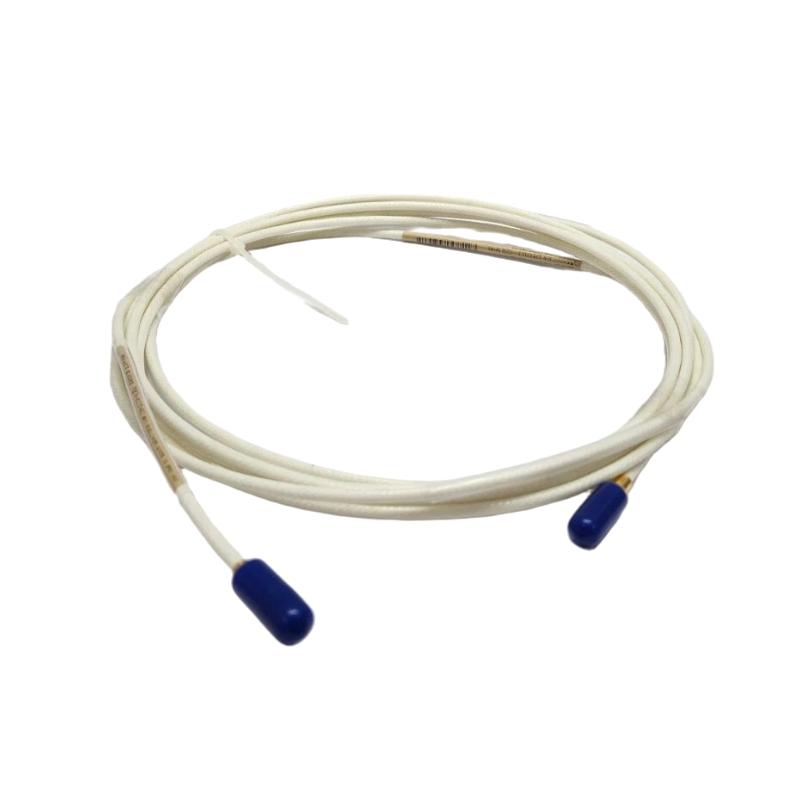

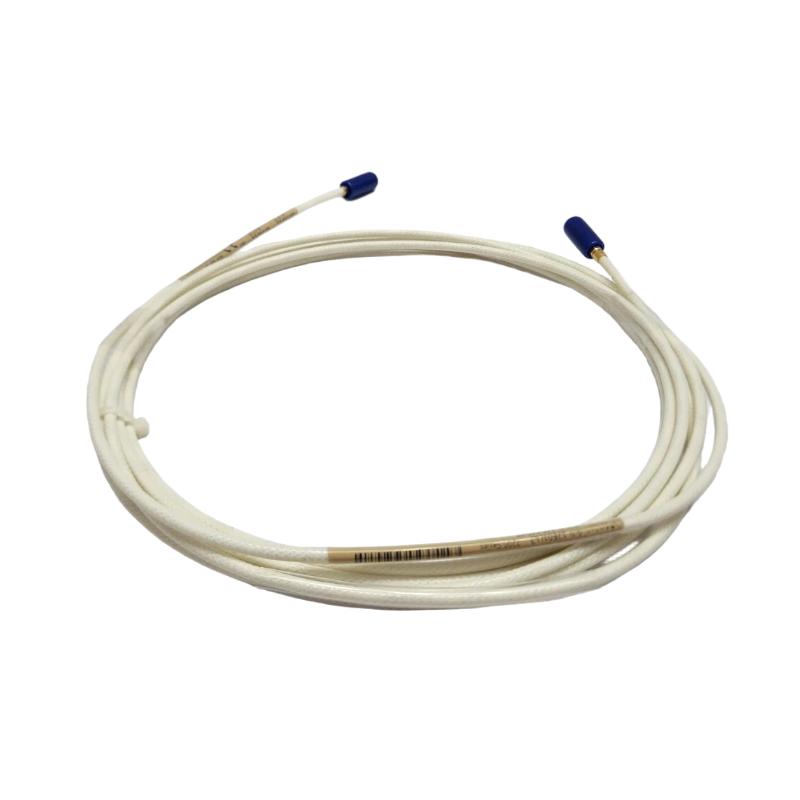

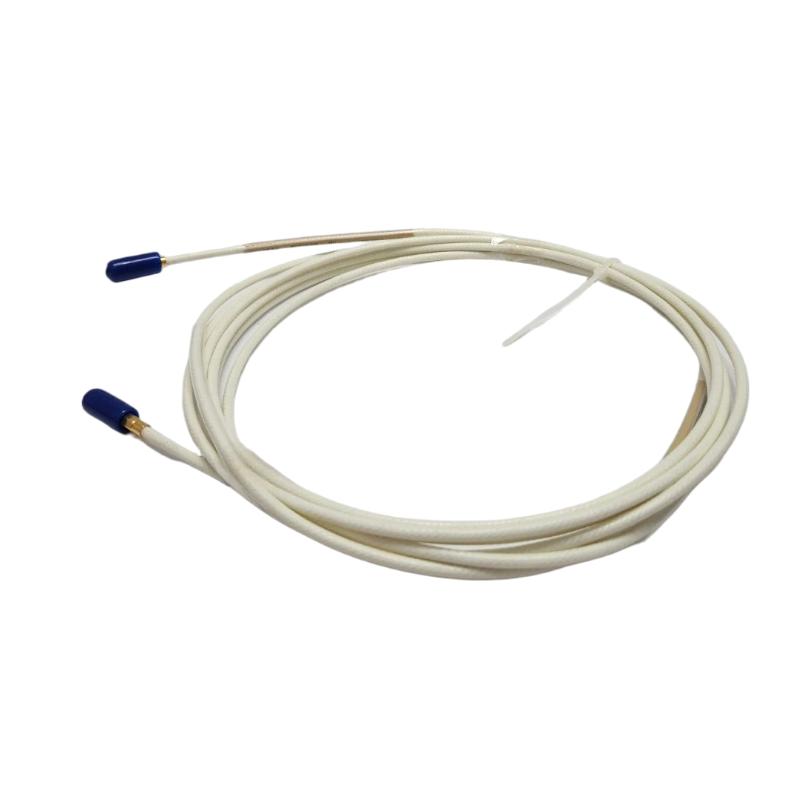

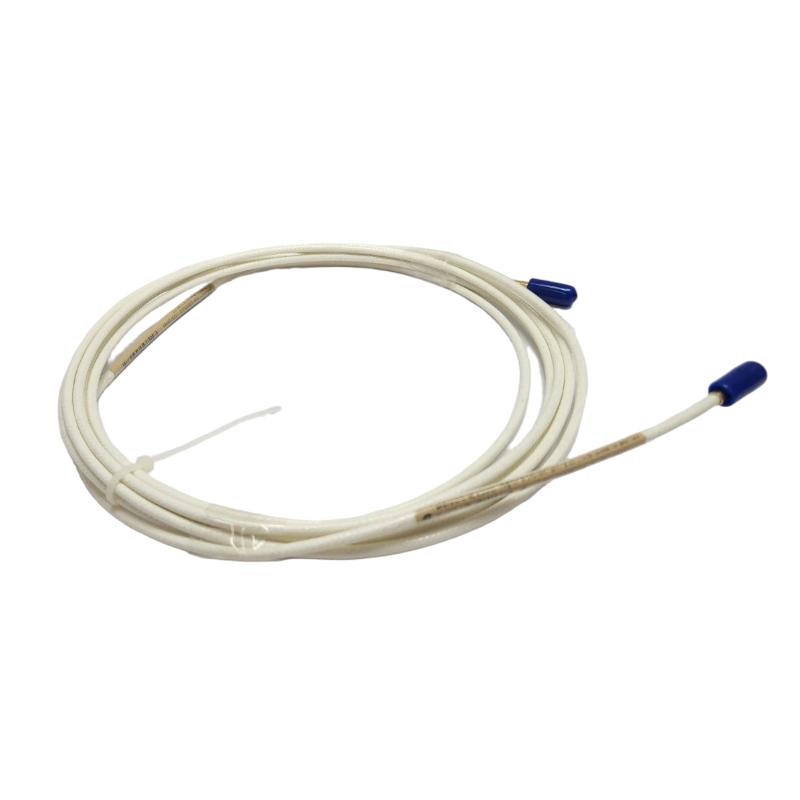

The Bently Nevada 21747-075-01 is a 7200 Series Extension Cable used within compatible Bently Nevada machinery monitoring installations. It extends the connection between a machine-mounted transducer and the associated monitoring or signal-conditioning equipment, allowing the sensing point and instrumentation hardware to be installed at separate physical locations.

The 7.5-meter cable length makes this model suitable for equipment layouts where the distance between the transducer and monitoring cabinet requires a relatively long extension. This type of arrangement is common on turbines, compressors, generators, pumps, and other rotating machinery with monitoring cabinets positioned outside the immediate machine area.

For maintenance teams, the exact suffix matters when replacing an existing cable. The 21747-075-01 should be matched against the installed 7200 Series configuration rather than selected solely by cable length.

Technical Specifications

Product Features

• 7200 Series application — Intended for compatible Bently Nevada 7200 Series transducer arrangements.
• 7.5-meter extension — Accommodates longer cable routes between the sensing location and monitoring equipment.
• Machinery monitoring connection — Used as part of a vibration or shaft-position measurement chain.
• Remote cabinet installation — Allows monitoring electronics to remain in a dedicated instrumentation or control area.
• Specific part-number identification — The 21747-075-01 designation assists with replacement and spare-parts management.
• Suitable for established monitoring installations — Useful when maintaining existing 7200 Series machinery monitoring equipment.

Working Principle

The 21747-075-01 acts as the extension section of the transducer circuit. A compatible 7200 Series sensing element is installed near the machinery measurement point, while the extension cable carries the signal toward the associated monitoring equipment.

For example, on a compressor train, the probe may be installed close to a bearing or shaft while the monitoring cabinet is located several meters away in a safer and more accessible instrumentation area. The 7.5-meter cable provides the physical reach required for this arrangement.

The cable does not independently measure vibration, displacement, or shaft position. Instead, it maintains the electrical connection required by the complete transducer system. Cable condition and routing can therefore directly affect the integrity of the measurement path.

Role in a 7200 Series Machinery Monitoring System

Industrial Applications

Installation and Maintenance

1. Confirm the exact part number — Check that 21747-075-01 matches the existing cable and the complete 7200 Series measurement configuration.
2. Plan the 7.5-meter route — Determine the cable path before installation and avoid unnecessary loops near hot or moving machinery.
3. Provide mechanical support — Secure the cable appropriately to prevent repeated movement caused by machine vibration.
4. Avoid physical damage — Keep the cable away from sharp edges, rotating components, excessive heat, crushing forces, and abrasion points.
5. Inspect connections during shutdowns — Check cable ends and associated connections for looseness, contamination, corrosion, or mechanical damage.
6. Verify the measurement channel after replacement — Confirm that the monitoring system receives the expected transducer signal before returning the machinery to normal operation.

Related Components

Recommended Related Models

Key Advantages

• 7.5-meter cable length supports longer transducer-to-monitoring equipment routes.
• Intended for compatible Bently Nevada 7200 Series applications.
• Suitable for turbine, compressor, generator, pump, and other rotating machinery installations.
• Helps position monitoring electronics away from the immediate machine environment.
• Dedicated part number simplifies replacement identification.
• Suitable for maintenance and spare-parts requirements on existing 7200 Series systems.

Technical FAQs

What is the significance of the “-01” suffix in 21747-075-01?

The suffix forms part of the complete Bently Nevada part number and should be retained when identifying a replacement. A cable with the same 7.5-meter length should not automatically be considered interchangeable solely because its length matches.

How should the 21747-075-01 be positioned relative to the monitored machine?

The cable normally runs from the machine-side transducer toward the monitoring or signal-conditioning equipment. Its route should minimize exposure to mechanical movement, excessive heat, abrasion, and unnecessary electrical interference.

Can the cable length be longer than the physical distance between the probe and cabinet?

Some excess length can be accommodated when routing requires it, but the cable should not be loosely bundled in a way that creates mechanical stress or interferes with nearby equipment. The installed route should be planned around the complete transducer-system requirements.

What symptoms may indicate a problem with the extension cable?

Intermittent measurement, abnormal monitoring readings, loss of a transducer signal, or unstable channel behavior can justify checking the cable and its connections. The cable should be inspected together with the probe and monitoring electronics rather than diagnosed in isolation.
