Product Overview

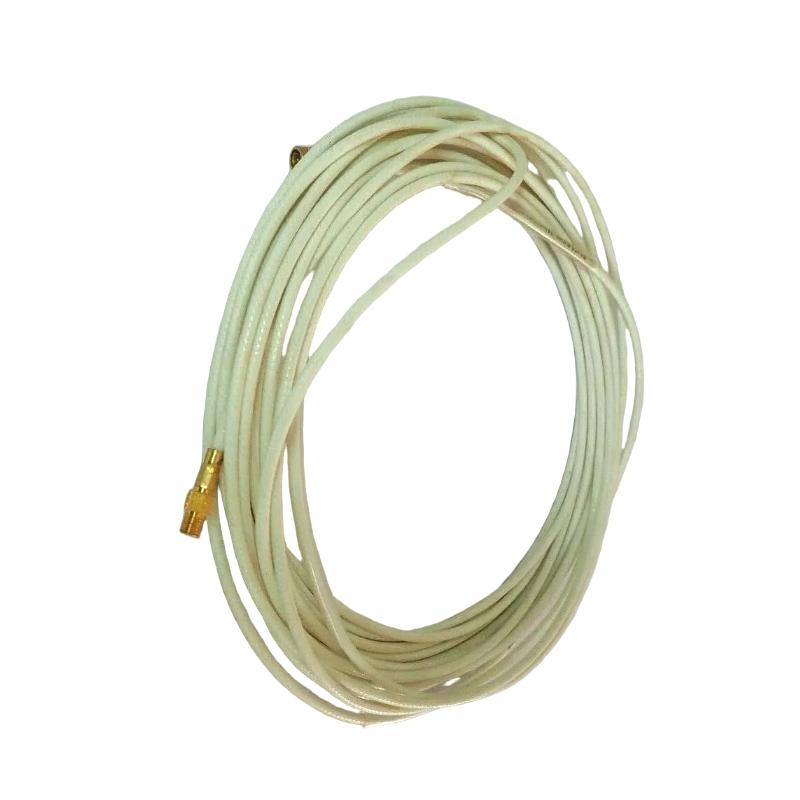

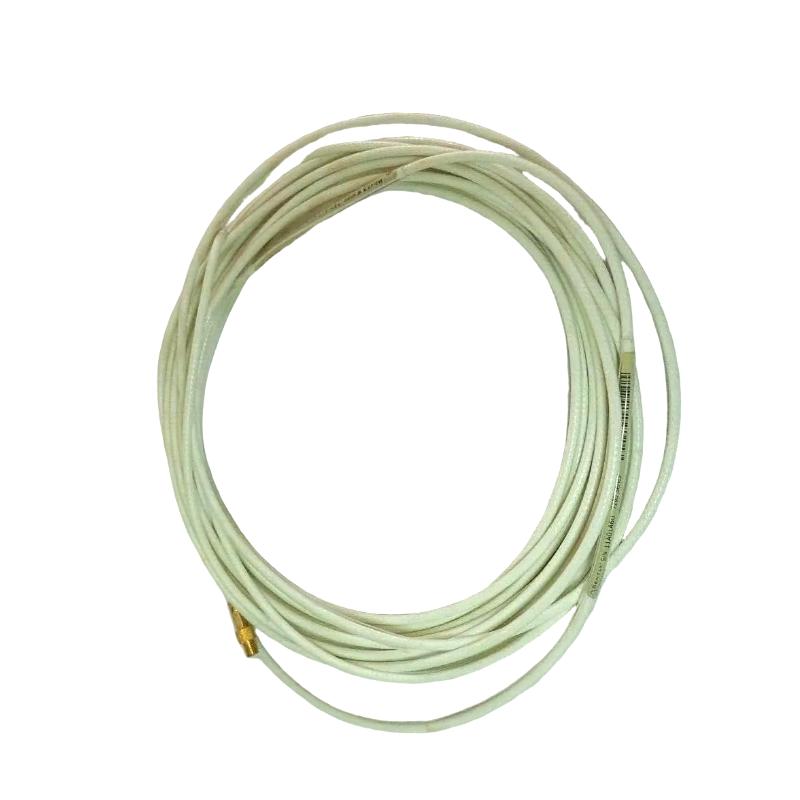

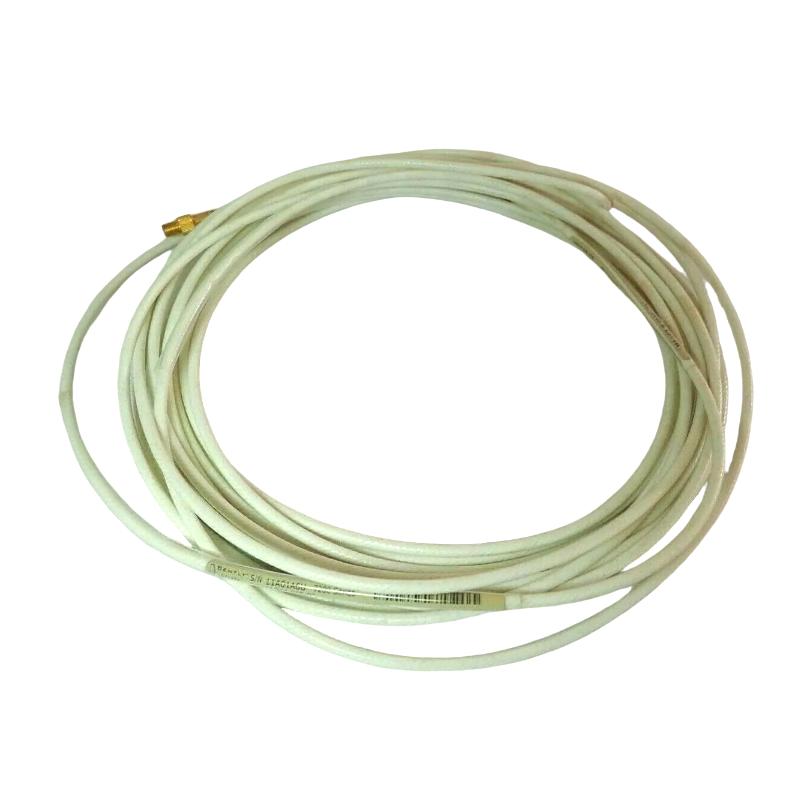

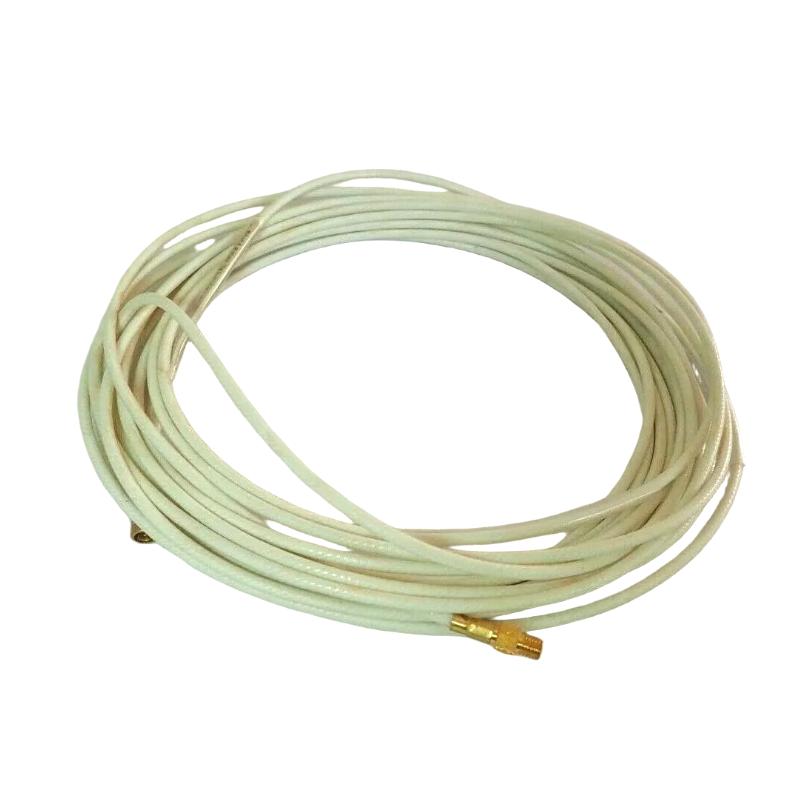

The Bently Nevada 21747-075-00 is a 7200 Series Extension Cable used to extend the connection between a compatible transducer assembly and the associated monitoring or signal-conditioning equipment. In rotating machinery installations, the sensing element is normally positioned close to the shaft or bearing location, while the monitoring electronics may be installed in a cabinet some distance away. The extension cable bridges this physical gap.

With a 7.5-meter cable length, the 21747-075-00 is suited to installations where a longer cable route is required than shorter 7200 Series extension options. This can be useful on large turbine trains, compressors, generators, pumps, and other machinery where the instrumentation cabinet is not located immediately beside the machine.

The cable should be considered part of the complete transducer measurement chain. Correct part-number selection and proper routing are therefore important when replacing an existing cable or building a 7200 Series monitoring installation.

Technical Specifications

Product Features

• 7200 Series extension cable — Intended for use within compatible Bently Nevada 7200 Series transducer arrangements.
• 7.5-meter cable length — Provides additional installation distance for machinery-to-cabinet cable routing.
• Suitable for rotating machinery monitoring — Supports measurement-chain wiring used in vibration and shaft-position monitoring applications.
• Remote instrumentation connection — Allows monitoring equipment to be positioned away from the machine.
• Dedicated part number — Simplifies identification during replacement, spare-parts planning, and maintenance.
• Practical for larger equipment layouts — The longer cable length can reduce the need to relocate monitoring cabinets simply to accommodate probe wiring.

Working Principle

The 21747-075-00 functions as an extension section within the 7200 Series transducer circuit. The sensing element is installed at the required measurement location, while the extension cable carries the resulting electrical signal toward the associated monitoring equipment.

In a turbine or compressor installation, for example, the probe may be mounted near a bearing or shaft while the monitoring cabinet is positioned in a separate instrumentation area. The 7.5-meter cable provides the physical reach needed between these two locations.

The cable itself does not analyze vibration or generate a machinery condition value. Those functions belong to the connected transducer and monitoring electronics. Its role is to maintain the required connection across the physical distance while forming part of the overall measurement circuit.

Role in a 7200 Series Machinery Monitoring System

Industrial Applications

Installation and Maintenance

1. Confirm the required cable length — The 7.5-meter length should be suitable for the planned route without excessive unused cable being left near the machinery.
2. Verify system compatibility — Confirm that the 21747-075-00 matches the specific 7200 Series transducer and associated monitoring equipment before installation.
3. Plan the cable route first — Keep the route clear of moving shafts, hot surfaces, sharp edges, and areas subject to mechanical impact.
4. Control mechanical stress — Secure the cable at suitable intervals and avoid excessive pulling, crushing, or repeated bending.
5. Inspect connection points — During scheduled machinery maintenance, check the cable ends and associated connections for contamination, corrosion, looseness, or physical damage.
6. Check the complete measurement channel — After replacement, verify the transducer circuit and monitoring channel before placing the machinery protection function back into normal service.

Related Components

Recommended Related Models

Key Advantages

• 7.5-meter length accommodates longer machinery-to-cabinet cable routes.
• Suitable for compatible Bently Nevada 7200 Series transducer configurations.
• Useful for large rotating machinery with physically separated instrumentation.
• Supports organized routing between machine-mounted sensors and monitoring equipment.
• Dedicated part number simplifies spare-parts identification.
• Suitable for replacement and maintenance work on existing 7200 Series installations.

Technical FAQs

When would the 21747-075-00 be selected instead of a shorter 7200 Series extension cable?

The 21747-075-00 is appropriate when the required physical cable route calls for approximately 7.5 meters of extension. The selection should also take the complete transducer-system configuration into account rather than relying only on physical length.

Can the 21747-075-00 be treated as a general-purpose instrumentation cable?

No. It should be selected as a component of the compatible 7200 Series measurement system. The electrical characteristics and system configuration of the transducer chain need to be considered when selecting a replacement.

What installation conditions are most likely to cause problems with the extension cable?

Common concerns include excessive bending, crushing, abrasion, contact with hot machinery surfaces, vibration-induced movement, and routing immediately alongside strong electrical interference sources. Proper mechanical support and a planned cable route help reduce these risks.

Does replacing the extension cable require checking the monitoring system afterward?

Yes. Because the cable forms part of the transducer measurement path, replacement should be followed by a check of the complete measurement channel. The associated monitoring equipment should receive the expected signal before the machinery is returned to normal monitored operation.
