Product Overview

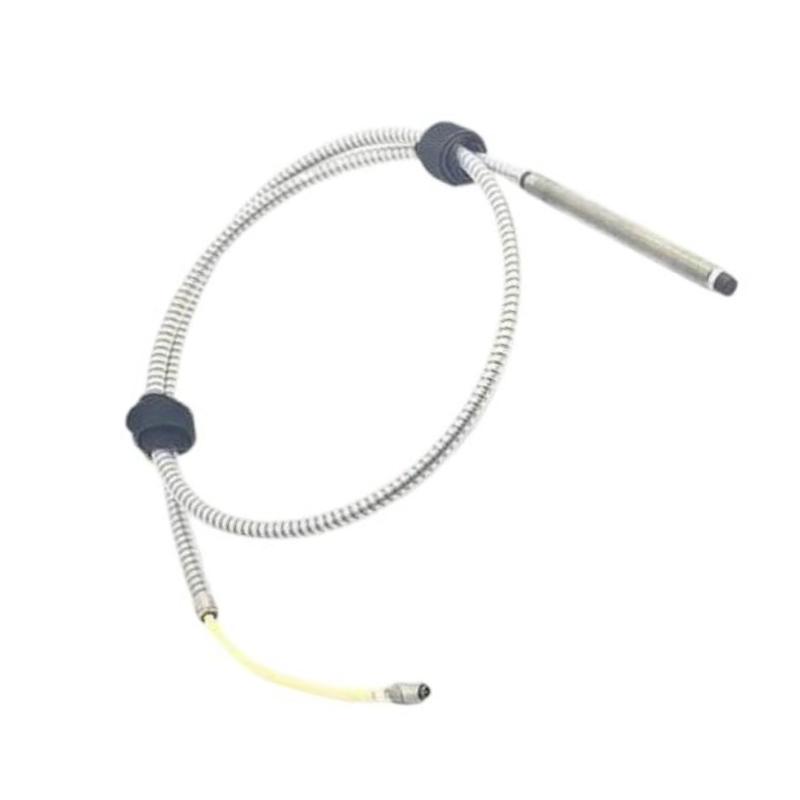

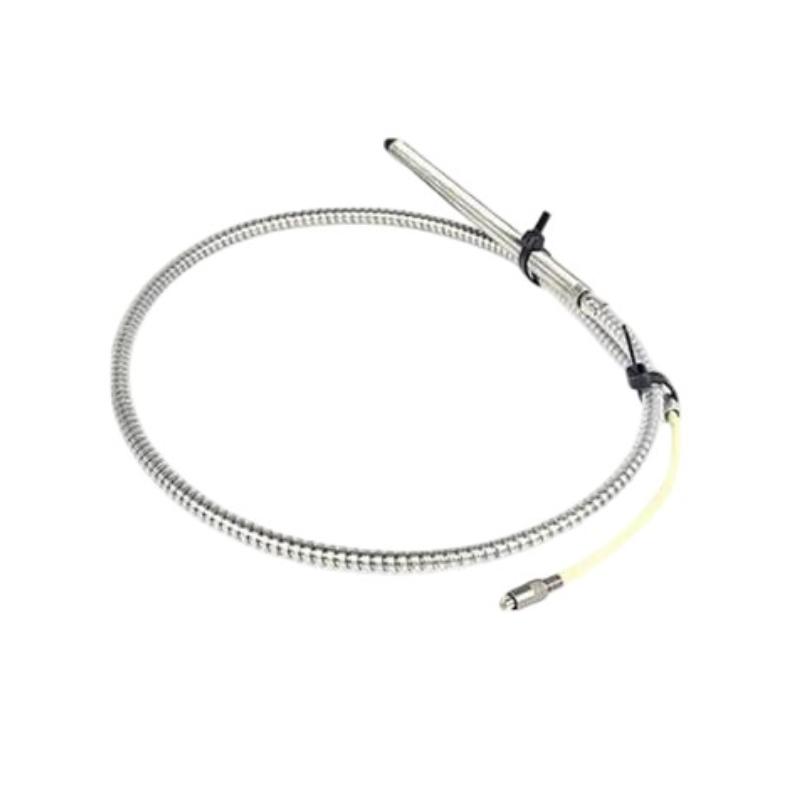

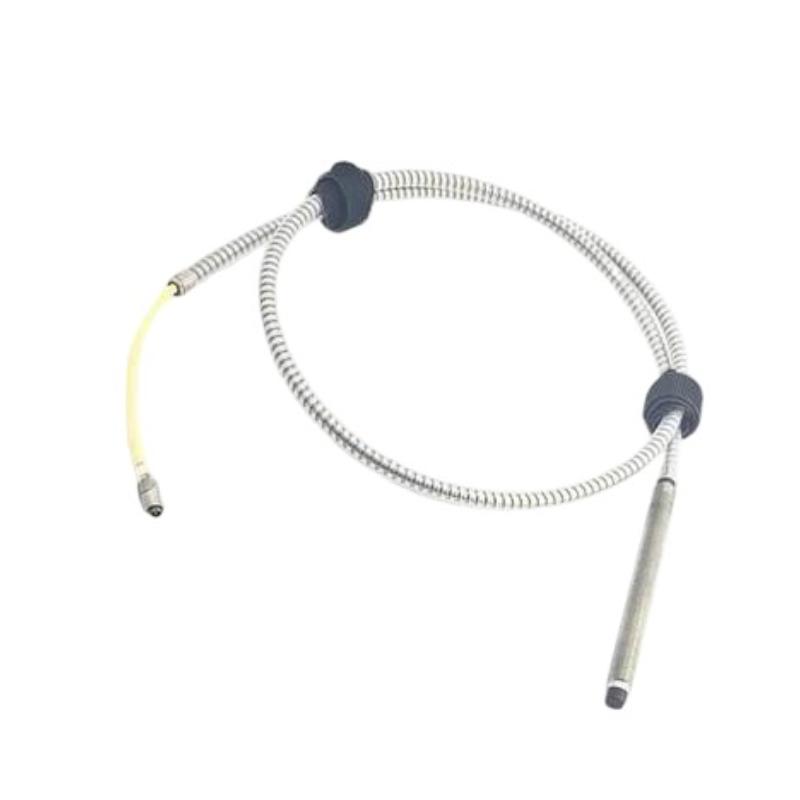

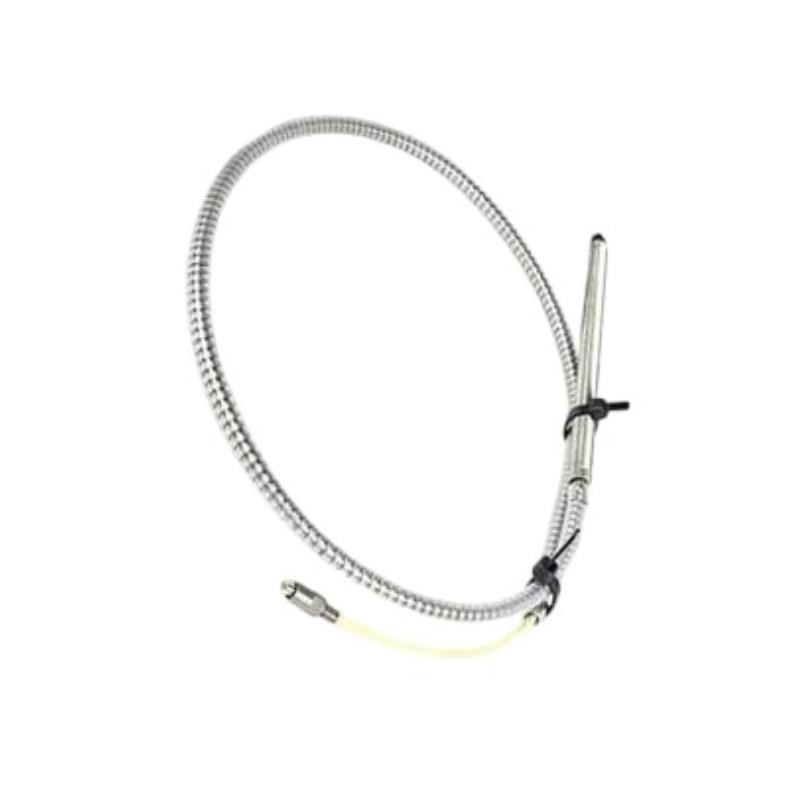

The Bently Nevada 21505-00-72-10-02 7200 Series Proximity Probe is a non-contact sensor used for monitoring the position and movement of rotating shafts. It is normally installed close to a shaft and works with associated proximity transducer electronics to convert changes in shaft-to-probe distance into a usable monitoring signal.

In industrial rotating equipment, this type of measurement is particularly useful when the shaft must be monitored continuously without physically contacting the rotating surface. Typical equipment includes steam turbines, gas turbines, compressors, pumps, generators, and other high-speed machinery.

A proximity probe channel can give maintenance personnel information about shaft movement that would not be available from casing vibration measurements alone. Changes in relative shaft position may be associated with rotor dynamics, bearing conditions, thermal movement, alignment changes, or other mechanical conditions.

The 21505-00-72-10-02 belongs to the 7200 Series. It should therefore be considered as one part of a complete measurement channel consisting of the probe, associated transducer, cabling, mounting hardware, and monitoring equipment. When replacing an existing probe, the complete part number and system configuration should be checked rather than relying on physical similarity.

Technical Specifications

Product Features

The 21505-00-72-10-02 is used where shaft movement needs to be observed while the monitored machine remains in operation.

Key characteristics include:

• 7200 Series proximity probe
• Non-contact shaft displacement measurement
• Suitable for rotating machinery monitoring
• Used with compatible proximity transducer electronics
• Suitable for shaft position and vibration-related monitoring
• Fixed installation near a rotating shaft
• Applicable to turbines, compressors, pumps, generators, and similar machinery
• Total length of 1 meter
• Stated weight of 0.22 kg

The probe is only one element of the measurement chain. The associated electronics establish how the probe signal is interpreted, while the mounting arrangement determines the physical relationship between the sensor and shaft.

For maintenance teams, the complete part number should be confirmed before replacement. A probe from the same product family should not automatically be considered interchangeable without checking the associated system.

Working Principle

The sensing tip is positioned close to the rotating shaft without making physical contact. As the shaft moves closer to or farther from the probe, the electrical response of the proximity sensing circuit changes.

The associated transducer receives this signal and converts it into an output that can be used by the machinery monitoring system. Depending on the installation, the resulting measurement can be used to observe shaft displacement, relative position, or vibration-related behavior.

In a turbine or compressor, for example, small changes in shaft position can occur as operating load, temperature, rotor dynamics, or bearing conditions change. A proximity measurement gives the monitoring system a direct indication of that relative movement.

The physical setup matters just as much as the electronics. A loose probe bracket, incorrect probe gap, damaged cable, or movement of the mounting structure can introduce errors that may initially look like a change in shaft condition.

Industrial Applications

The 21505-00-72-10-02 can be used in rotating machinery installations where shaft movement needs to be monitored continuously.

In larger machinery monitoring systems, proximity measurements are usually evaluated together with other operating parameters. Bearing vibration, shaft speed, temperature, process load, and other machine signals can provide useful context when a shaft-position measurement changes.

Compatible System Components

The 21505-00-72-10-02 normally works as part of a complete proximity measurement channel.

The transducer and cable should be checked whenever a probe is replaced. If the measurement channel remains unstable after installing a new sensor, the problem may be located in the cable, electronics, mounting arrangement, or machine itself rather than the probe.

Installation and Maintenance

Correct probe installation is essential for obtaining a meaningful shaft measurement. The probe should be firmly secured, correctly positioned, and installed according to the requirements of the complete proximity measurement system.

The mounting bracket should also be mechanically rigid. Any unwanted movement between the probe and machine structure can be interpreted by the measurement system as shaft movement.

Recommended checks include:

• Confirm the complete 21505-00-72-10-02 part number.
• Verify compatibility with the existing 7200 Series system.
• Check the associated transducer and extension cable.
• Inspect the probe tip for physical damage.
• Verify probe mounting hardware.
• Check the probe-to-shaft installation gap.
• Inspect cable routing and connectors.
• Check for loose or damaged terminals.
• Verify the monitoring channel after installation.
• Compare the signal with normal machine operating conditions.
• Inspect the shaft and nearby mechanical components if unusual readings remain.
• Perform controlled commissioning before returning the machine to normal service.

When troubleshooting an abnormal proximity signal, the probe should not be isolated from the rest of the system. Actual shaft movement, mounting vibration, incorrect gap, cable damage, and transducer problems can produce similar symptoms.

Recommended Related Models

For the 7200 Series, related probes and system components are more useful as comparison points than unrelated displacement sensors. Final replacement selection should be based on the existing monitoring configuration.

The 21505-00-60-10-02, 21505-00-59-10-02, and 21505-00-40-10-02 are useful same-family comparison models, but their similar general application does not by itself confirm direct interchangeability.

For a replacement project, the existing probe part number, transducer, cable arrangement, mounting position, and required measurement function should be checked before installation.

Key Advantages

• 7200 Series proximity probe
• Non-contact shaft displacement measurement
• Suitable for continuous rotating machinery monitoring
• Applicable to turbines, compressors, pumps, and generators
• Works as part of a complete proximity measurement channel
• Suitable for shaft position and vibration-related monitoring
• Total length of 1 meter
• Stated weight of 0.22 kg

Technical FAQs

What makes a proximity probe useful for turbine and compressor monitoring?

A proximity probe measures shaft movement without touching the rotating component. This allows the monitoring system to observe relative shaft position while the machine is operating at normal rotational speed.

What installation condition has the greatest effect on the probe signal?

The relationship between the probe tip and the shaft is critical. Incorrect probe positioning or an unsuitable installation gap can affect the signal delivered to the associated transducer and make the measurement difficult to interpret.

Should the 21505-00-72-10-02 be replaced together with its transducer?

Not necessarily. The existing transducer may remain in service if it is compatible and functioning correctly. However, its compatibility, wiring, and condition should be verified before commissioning the replacement probe.

How should an abnormal shaft-position reading be investigated?

Start by checking the probe gap, mounting rigidity, cable connections, and transducer output. If the measurement channel is functioning correctly, compare the reading with other machine parameters and investigate possible mechanical causes such as bearing movement, rotor behavior, thermal effects, or changing operating load.
