Product Overview

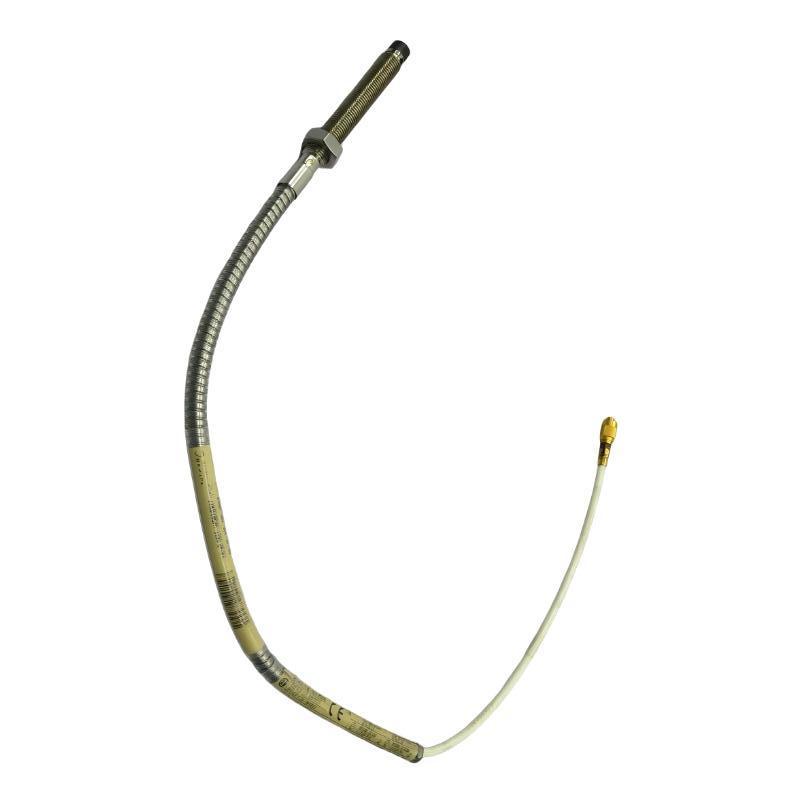

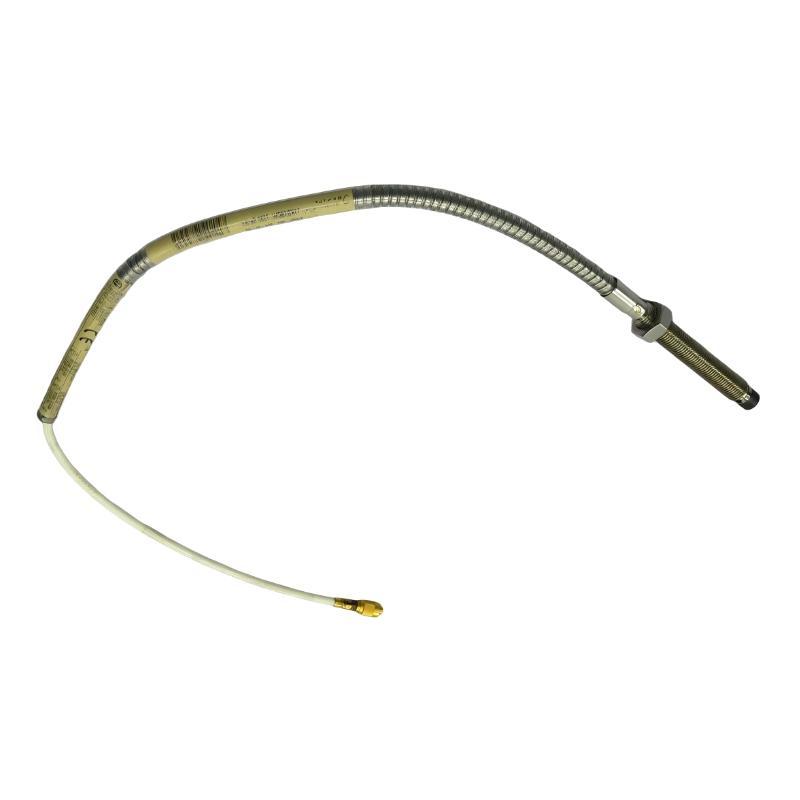

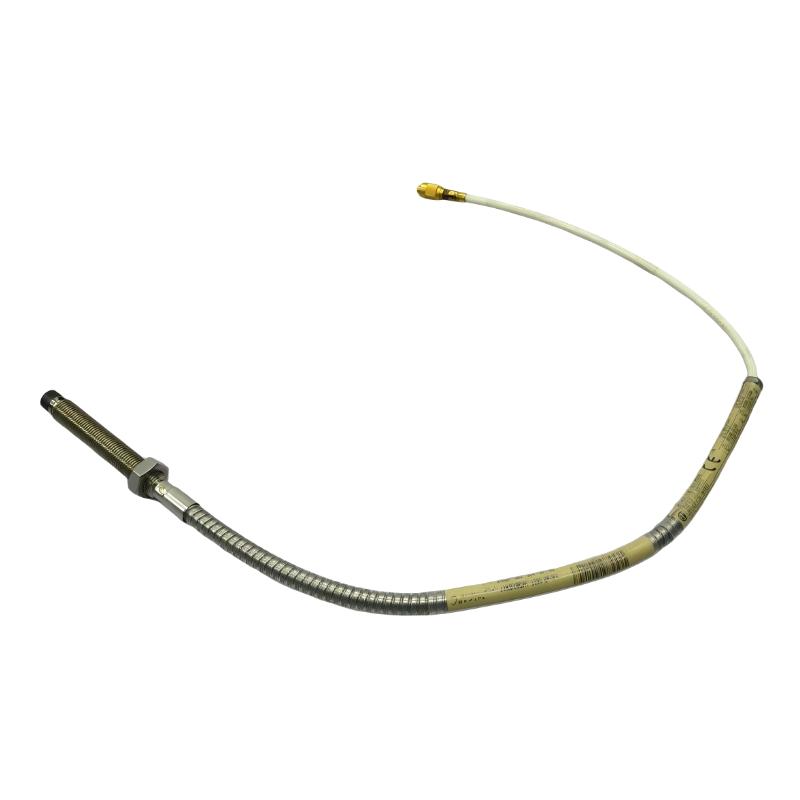

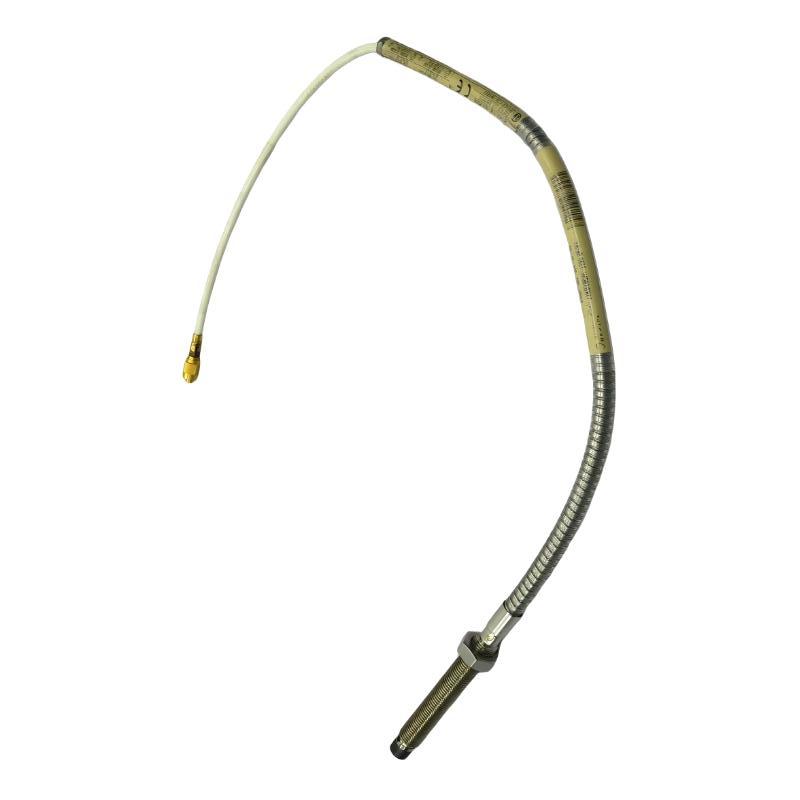

The Bently Nevada 21504-000-032-05-02 7200 Series Proximity Probe is a non-contact sensing component used in rotating machinery monitoring systems. It belongs to the Bently Nevada 7200 Series and forms the sensing end of a proximity measurement circuit.

In an operating turbine, compressor, pump, or other rotating machine, the shaft does not always remain perfectly centered relative to the stationary bearing structure. Small changes in rotor position can occur during startup, load changes, acceleration, deceleration, or abnormal operating conditions. A proximity probe allows the monitoring system to observe this relative movement without physically contacting the shaft.

The 21504-000-032-05-02 is installed at a fixed measurement location and works with associated signal-conditioning hardware. The probe senses changes in the distance between its tip and the conductive shaft surface. The resulting electrical response travels through the measurement circuit and is ultimately interpreted by the machinery monitoring equipment.

Its 0.5-meter total length is particularly relevant when planning the physical installation. Cable and probe routing must accommodate the actual distance between the sensing point and the associated connection hardware without creating unnecessary mechanical stress or an unsuitable installation arrangement.

For maintenance teams, replacing a proximity probe should therefore involve more than matching the general appearance. The complete part number, probe type, installation position, cable arrangement, Proximitor compatibility, and existing monitoring configuration should be checked before the replacement is installed.

Technical Specifications

Product Features

The 21504-000-032-05-02 is intended for applications where relative shaft movement needs to be detected without physical contact.

• Bently Nevada 7200 Series Proximity Probe
• Model 21504-000-032-05-02
• Non-contact measurement technology
• Suitable for rotating machinery applications
• Used for shaft movement and displacement monitoring
• Compatible with an appropriate 7200 Series measurement chain
• 0.5-meter total length
• Suitable for turbine and compressor instrumentation
• Applicable to machinery condition monitoring
• Useful for maintenance and replacement projects

The complete probe circuit should be checked before selecting a replacement.

Working Principle

The 21504-000-032-05-02 works by detecting changes in the electrical response associated with the distance between the probe and a conductive target.

In a typical installation:

Rotating Shaft → Proximity Probe → Extension / Connection → Proximitor → Monitoring System

The probe remains stationary while the shaft rotates. As the shaft moves relative to the probe tip, the measurement gap changes.

The proximity system detects this change and produces a corresponding electrical response. The associated Proximitor then conditions the signal for the downstream monitoring equipment.

The practical relationship is:

Rotor Movement → Gap Change → Probe Response → Conditioned Signal → Monitoring Data

This allows the monitoring system to observe relative shaft movement that may not be obvious from casing vibration measurements alone.

For example, during turbine startup, the rotor may pass through different operating conditions as speed increases. A proximity measurement system can observe changes in shaft position throughout this process, helping engineers evaluate rotor behavior against the expected operating pattern.

Role in a 7200 Series Machinery Monitoring System

The 21504-000-032-05-02 serves as the sensing point closest to the rotating target.

A simplified architecture is:

Rotor / Shaft → 21504-000-032-05-02 → Signal Connection → Proximitor → Machinery Monitor

The probe’s performance therefore depends on both its mechanical installation and the rest of the measurement circuit.

Why the 0.5-Meter Probe Length Matters

The 0.5-meter total length is a practical installation parameter rather than simply a catalog dimension.

In rotating machinery, proximity probes may be installed in relatively confined areas around bearings, seals, thrust assemblies, or other monitoring points. The available space can determine how the probe and its associated connection are routed.

A suitable installation should avoid:

• Excessive bending or mechanical stress
• Interference with moving machine components
• Poorly supported cable routing
• Unnecessary contact with hot or vibrating surfaces
• Changes to the intended probe position

When replacing an existing probe, matching the total length can help maintain the original installation arrangement.

However, physical length alone should not be used as the selection criterion. The complete 21504-000-032-05-02 part number and the existing system configuration should be verified.

Shaft Monitoring Applications

The proximity probe is particularly useful where the movement of the rotor itself needs to be observed.

Typical monitoring objectives include:

• Radial shaft movement
• Relative shaft vibration
• Rotor displacement
• Shaft position
• Changes in shaft-to-bearing relationship
• Abnormal rotor behavior

For example, a probe mounted near a compressor bearing can monitor relative shaft movement during normal operation. If the shaft behavior changes significantly from the established operating pattern, the monitoring system can flag the condition for further investigation.

The probe itself does not determine the final machine alarm or trip condition. Those functions depend on the associated monitoring and protection equipment.

Industrial Applications

Installation and Maintenance

A proximity probe installation should be inspected as a complete mechanical and electrical assembly.

Recommended practices include:

• Confirm the complete 21504-000-032-05-02 part number.
• Verify the required 7200 Series configuration.
• Confirm compatibility with the associated Proximitor.
• Check the required connection arrangement.
• Inspect the probe body for physical damage.
• Examine the sensing tip for contamination or damage.
• Verify the probe mounting location.
• Confirm the probe position relative to the shaft.
• Check the measurement gap according to the approved equipment procedure.
• Inspect cable routing.
• Avoid unnecessary mechanical stress on the probe connection.
• Keep the cable away from moving machine components.
• Check for excessive heat or vibration exposure.
• Inspect connectors and associated wiring.
• Review the monitoring channel configuration.
• Compare the measured signal with established machine data.
• Follow the approved machine isolation procedure before replacement.
• Install the replacement probe in the correct position.
• Restore the connection carefully.
• Verify the associated Proximitor.
• Confirm the monitoring channel receives the expected signal.
• Check the resulting shaft measurement.
• Verify alarms and protection functions where applicable.

If the measurement changes significantly after probe replacement, check the probe position, connection, cable condition, and Proximitor before diagnosing the machine itself.

Compatible System Components

The 21504-000-032-05-02 is normally used with other components that form the 7200 Series proximity measurement chain.

Exact compatibility should be confirmed using the complete installed system configuration.

Recommended Related Models

For related-product SEO, the following models cover the main components commonly associated with Bently Nevada 7200 Series proximity measurement and rotating machinery monitoring.

Key Advantages

• Bently Nevada 7200 Series Proximity Probe.
• Model 21504-000-032-05-02.
• Non-contact rotating-shaft measurement.
• Suitable for relative shaft movement monitoring.
• 0.5-meter total length.
• Applicable to turbines, compressors, pumps, and other rotating machinery.
• Works as part of a complete 7200 Series proximity measurement chain.
• Suitable for maintenance and replacement applications.

Technical FAQs

What does the 21504-000-032-05-02 measure on rotating machinery?

It detects changes in the distance between the stationary probe and a conductive rotating target. Within the configured monitoring system, this information can be used to evaluate relative shaft movement, displacement, or vibration.

Why should the 0.5-meter total length be considered during replacement?

Probe length affects the physical installation arrangement. A replacement with a different physical configuration may require changes to routing or mounting. Matching the existing part number helps maintain the established installation arrangement.

Can the proximity probe detect shaft movement without touching the rotor?

Yes. The 7200 Series proximity measurement principle uses non-contact sensing. The probe remains stationary while detecting changes in the electrical response caused by changes in the distance to the conductive shaft.

If the probe is replaced but the reading remains abnormal, what should be checked next?

The troubleshooting sequence should include the probe position, measurement gap, connection, cable condition, Proximitor, and monitoring channel. If the complete instrumentation path checks out, the actual mechanical condition of the rotor and associated machine components should then be investigated.
