Product Overview

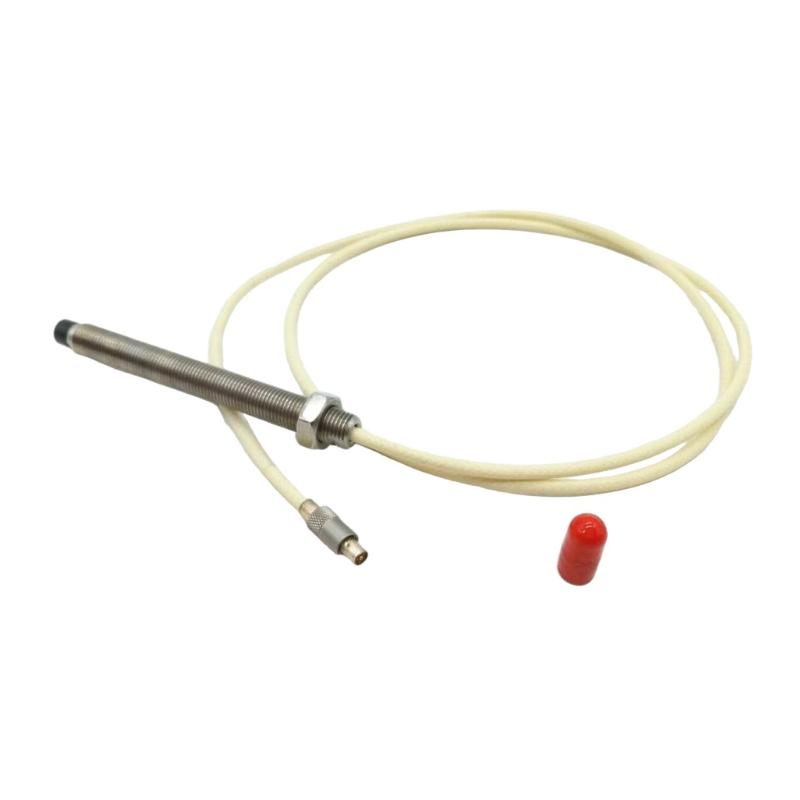

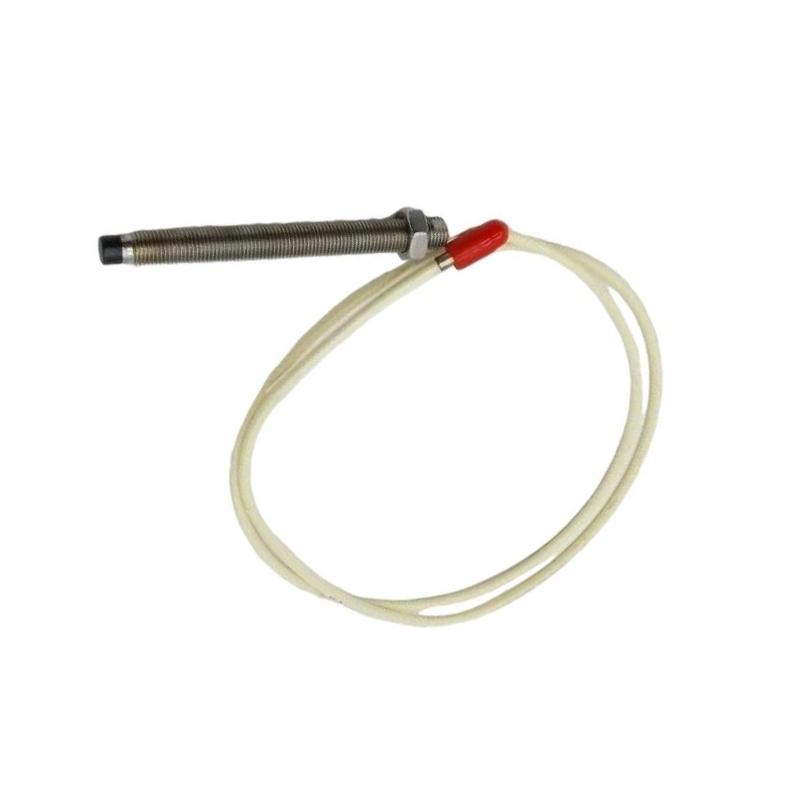

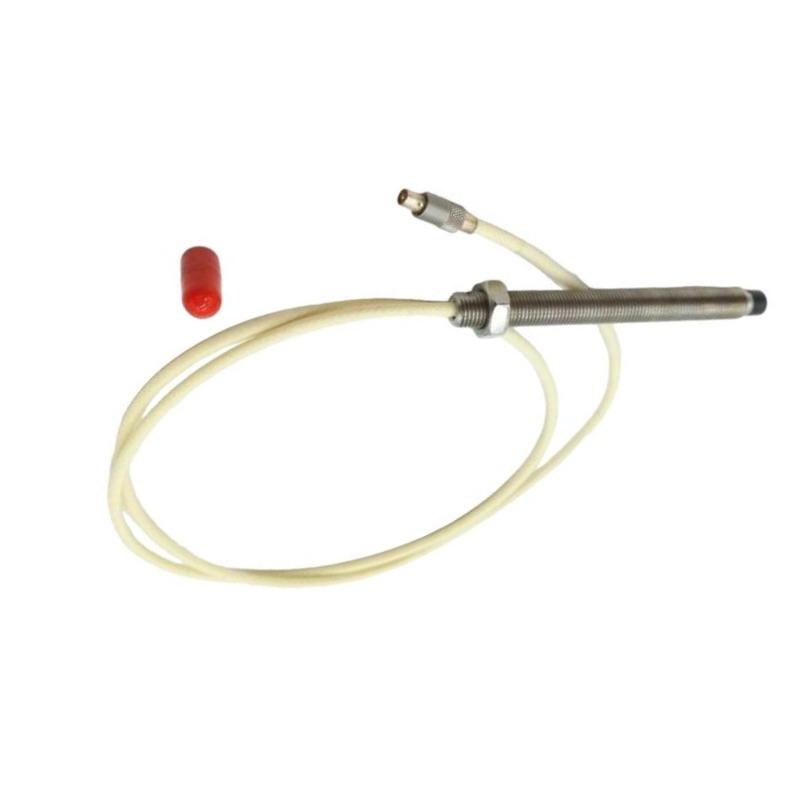

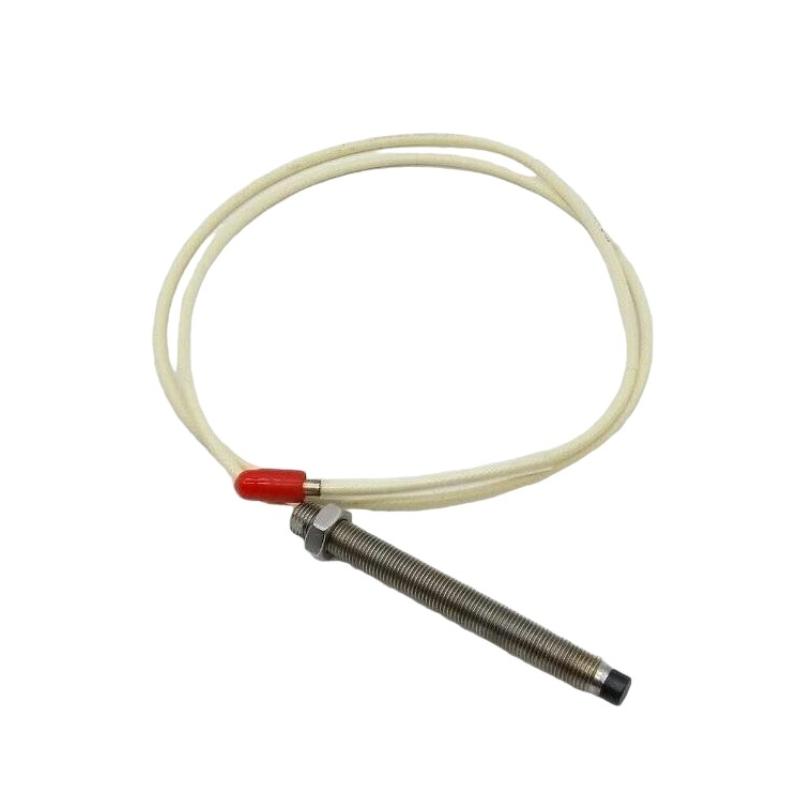

The Bently Nevada 21504-00-52-10-02 7200 Series 8 mm Probe is a non-contact proximity sensing component used in rotating machinery monitoring systems. It is designed to detect changes in the position of a conductive machine shaft without making physical contact with the rotating surface.

Shaft vibration and radial movement are important indicators of the operating condition of turbines, compressors, pumps, generators, and other high-speed machinery. A proximity probe provides a direct measurement point for observing these small mechanical movements and supplying the resulting signal to a machinery monitoring system.

The 21504-00-52-10-02 is part of the Bently Nevada 7200 Series 8 mm probe family. It is normally used together with the appropriate probe driver, extension cable, monitoring electronics, and machinery protection equipment. The probe itself performs the sensing function, while the associated electronics provide signal conditioning and interpretation.

The non-contact operating principle is particularly useful for rotating equipment because the sensing element does not physically rub against the shaft. This avoids mechanical contact between the probe tip and target surface during normal operation and allows continuous monitoring of shaft movement.

The total length is 1 meter, with a stated weight of 0.22 kg. This configuration provides a practical installation length for machinery monitoring applications where the sensing point and associated monitoring hardware are connected within the same equipment area.

Technical Specifications

Product Features

The Bently Nevada 21504-00-52-10-02 is designed for applications where reliable shaft movement measurement is required without physical contact.

Key features include:

• 8 mm proximity probe construction
• Eddy current sensing principle
• Non-contact shaft measurement
• Suitable for rotating machinery
• Supports vibration and shaft position monitoring
• Designed for continuous condition monitoring
• 1 meter total length
• Compact sensing configuration
• Suitable for integration with compatible monitoring electronics

The probe is particularly useful when the monitoring system needs to detect relatively small changes in shaft position while the machine is operating at speed.

Working Principle

The probe uses an electromagnetic sensing principle to detect changes in the distance between the probe tip and a conductive target.

When the probe is positioned near a rotating shaft, an electromagnetic field is established around the sensing tip. The conductive shaft interacts with this field. As the shaft moves closer to or farther away from the probe, the electrical characteristics of the sensing circuit change.

The measurement chain can be described as follows:

• The probe establishes an electromagnetic sensing field.
• The rotating shaft acts as the conductive target.
• Shaft movement changes the probe-to-target gap.
• The electrical response of the probe changes with the gap.
• The associated driver converts and conditions the probe response.
• The monitoring system evaluates the resulting displacement signal.

This allows shaft movement to be monitored without introducing a mechanical contact point between the sensor and the rotating component.

Role in Industrial Monitoring Systems

The 21504-00-52-10-02 acts as the sensing element within a machinery monitoring channel.

The probe does not independently determine whether machinery is healthy or experiencing a fault. That evaluation is performed by the associated monitoring and protection electronics.

Industrial Applications

The 7200 Series 8 mm probe is suitable for machinery where shaft movement must be monitored continuously.

For critical machines, proximity measurements can be combined with other vibration and process measurements to provide a more complete picture of equipment operating condition.

Installation and System Integration

The mechanical installation of a proximity probe has a direct influence on measurement quality. The probe must be positioned correctly relative to the shaft and secured so that its position does not change during machine operation.

Recommended installation steps include:

• Confirm the complete probe model before installation.
• Verify compatibility with the associated driver and monitoring system.
• Install the probe using the appropriate mounting arrangement.
• Establish the required probe-to-shaft gap.
• Ensure the probe axis is correctly aligned with the measurement surface.
• Secure the probe against mechanical movement.
• Route the cable without excessive tension or bending.
• Check the signal during commissioning.

The shaft surface should also be suitable for proximity measurement. Excessive mechanical runout, surface damage, or an unsuitable target condition can affect the measured displacement signal.

Compatible System Components

The probe normally operates as one part of a complete proximity measurement system.

The probe and its associated driver and cable should be selected as a compatible measurement chain. Electrical and mechanical compatibility should be confirmed before replacing individual components.

Recommended Alternative Models

An alternative should not be selected based only on probe diameter or overall length. The complete model number, probe-driver compatibility, cable configuration, mounting requirements, electrical characteristics, and monitoring system should be checked before replacement.

Key Advantages

• Provides non-contact shaft displacement measurement
• Suitable for rotating machinery monitoring
• Uses an eddy current sensing principle
• Supports vibration and shaft position measurement
• Eliminates mechanical contact with the rotating shaft
• Suitable for continuous machinery condition monitoring
• 1 meter total length for practical system integration
• Compact 8 mm probe configuration
• Suitable for compatible machinery protection systems

Technical FAQs

How does shaft runout influence the signal from a proximity probe?

Shaft runout creates periodic changes in the distance between the shaft surface and probe tip even when the machine is not experiencing the type of vibration being investigated. If runout is significant, it can become part of the measured waveform and should be considered when establishing the machine’s normal operating baseline.

Why must the probe gap be established carefully during commissioning?

The probe gap determines the operating point of the measurement channel. If the probe is positioned too close to or too far from the target, the usable measurement range can be reduced and the resulting signal may not accurately represent shaft movement.

What role does the conductive shaft surface play in eddy current sensing?

The conductive shaft interacts with the electromagnetic field produced by the probe. Changes in the distance between the probe and conductive target alter the electrical response of the sensing circuit, allowing relative shaft movement to be detected.

Can the 21504-00-52-10-02 be evaluated independently of its driver and monitoring electronics?

The probe should be considered part of a complete measurement chain. Its electrical characteristics, driver configuration, extension cable, mounting arrangement, and monitoring equipment all influence the final measurement. Compatibility should therefore be confirmed across the complete system rather than by evaluating the probe alone.
