Product Overview

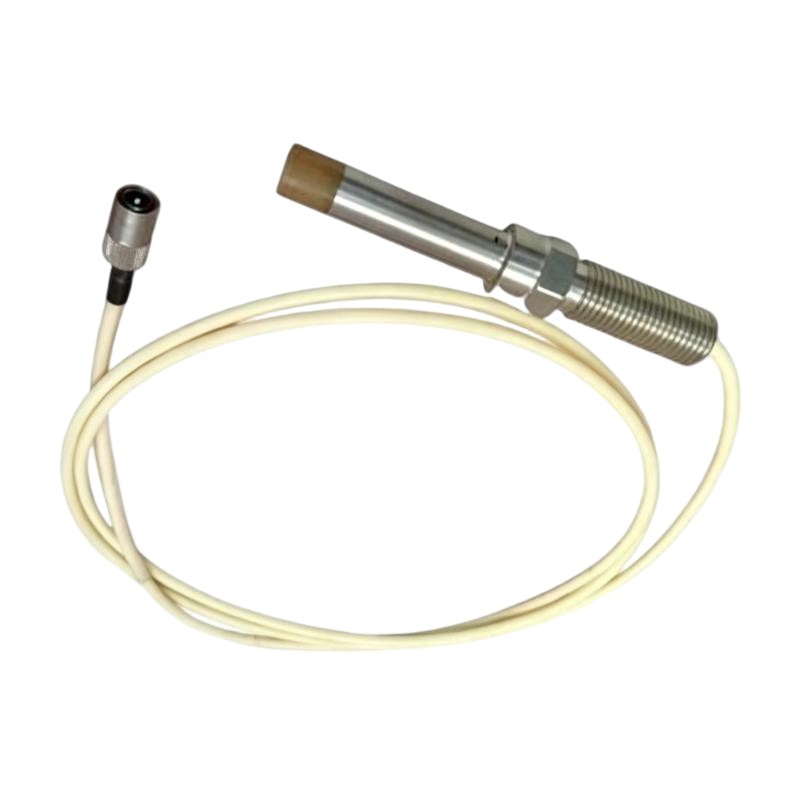

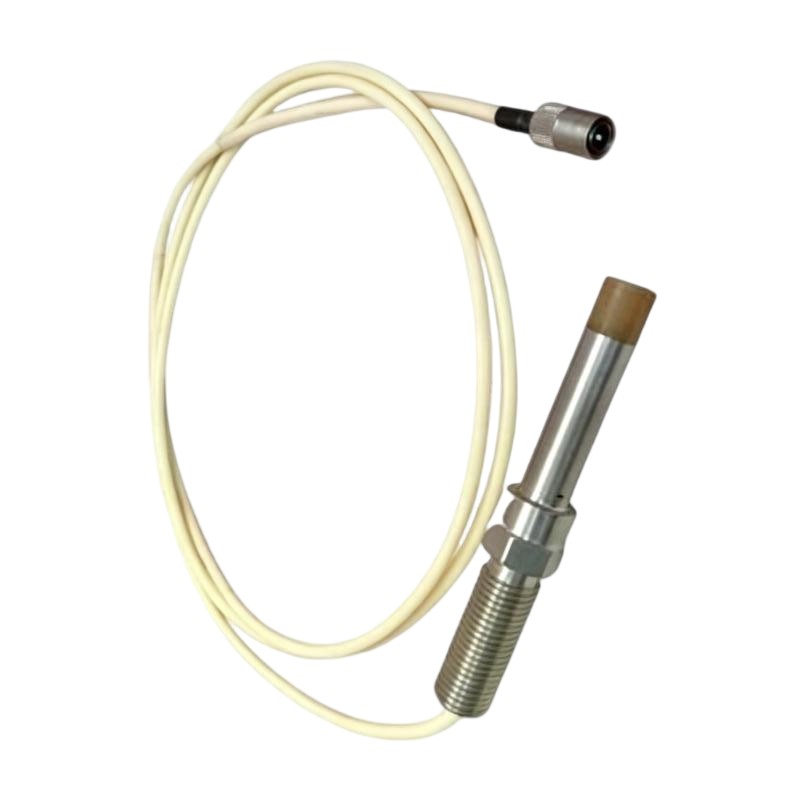

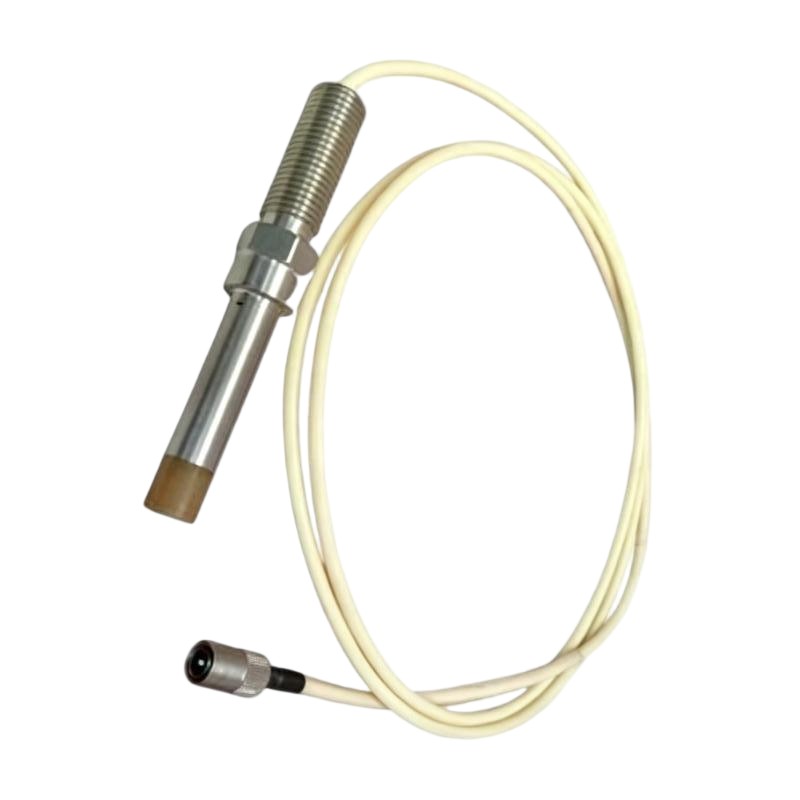

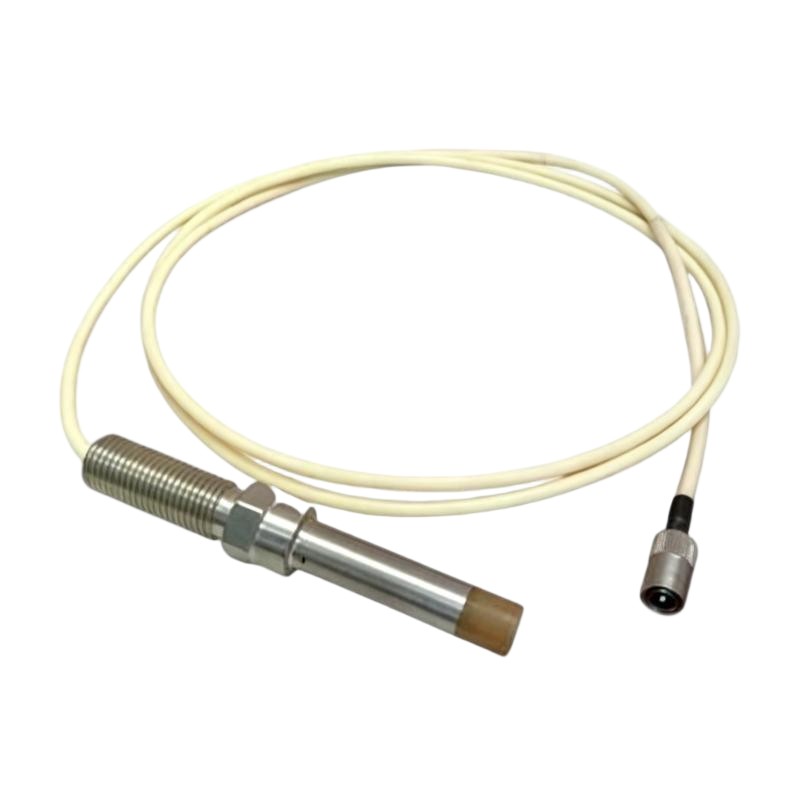

The Bently Nevada 21502-14 7200 Series Proximity Probe is a non-contact displacement probe used as part of a 7200 Series proximity measurement system for rotating machinery. It detects changes in the distance between the probe tip and a conductive machine target, typically a rotating shaft, without requiring physical contact.

In practical machinery monitoring, the probe is installed at a fixed position near the shaft. As the rotor moves during operation, the gap between the probe and shaft changes. This movement can then be converted into an electrical signal through the associated 7200 Series signal-conditioning components.

This measurement method is particularly useful on machinery where the movement of the shaft itself needs to be observed rather than relying only on casing vibration. Steam turbines, compressors, pumps, motors, and other rotating equipment can use proximity probes to monitor radial shaft movement or other displacement-related conditions.

The 21502-14 is therefore one component within a larger measurement chain. The probe works together with the appropriate extension cable and Proximitor, while the downstream monitoring equipment interprets the resulting signal.

For maintenance engineers, probe installation deserves as much attention as the electronic components. Probe position, mechanical mounting, target surface condition, cable integrity, and the associated Proximitor all influence the quality of the final measurement.

Technical Specifications

Product Features

The 21502-14 forms the sensing end of a 7200 Series proximity measurement arrangement.

• Bently Nevada 7200 Series Proximity Probe
• Model 21502-14
• Non-contact shaft measurement
• Eddy-current proximity sensing principle
• Suitable for rotating machinery monitoring
• Used with compatible extension cable and Proximitor
• Applicable to shaft movement and displacement monitoring
• Suitable for turbine and compressor instrumentation
• Useful for machinery condition-monitoring applications
• Relevant to maintenance and replacement of 7200 Series probe installations

The complete probe circuit should be checked for compatibility before replacement.

Working Principle

The 21502-14 uses the proximity principle to observe the relative position of a conductive target.

A simplified measurement chain is:

Rotating Shaft → 21502-14 Probe → Extension Cable → Proximitor → Monitoring System

The probe is mounted close to the shaft without touching it. When the shaft moves, the distance between the sensing tip and the shaft changes.

The electrical characteristics of the probe circuit vary with this distance. The associated Proximitor converts the probe response into a usable electrical output that can be sent to the machinery monitoring system.

For radial shaft monitoring, the relationship can be represented as:

Shaft Movement → Probe Gap Change → Electrical Signal → Monitoring Data

For example, if a compressor rotor begins moving differently from its normal operating position, the proximity probe detects the resulting change in relative position. The monitoring system can then compare the measurement with configured limits or established operating conditions.

This is different from simply measuring vibration at the machine casing. The proximity probe observes the relative movement between the shaft and the stationary probe location, making it useful for rotor-focused monitoring.

Role in a 7200 Series Proximity Measurement System

The 21502-14 is installed at the machine and forms the sensing interface between the rotating target and the monitoring electronics.

A typical system can be represented as:

Rotating Shaft → 21502-14 → Extension Cable → Proximitor → Machinery Monitor

The probe cannot normally be evaluated independently from the rest of this signal chain.

Probe Position and Shaft Measurement

Correct mechanical positioning is one of the most important considerations when installing a proximity probe.

A simplified arrangement is:

Stationary Structure

↓

Probe Mounting

↓

21502-14

↓

Measurement Gap

↓

Rotating Shaft

The probe must maintain the intended relationship with the shaft throughout operation.

If the probe is incorrectly positioned, mechanically loose, damaged, or affected by an unsuitable target surface, the resulting measurement may not represent the actual shaft condition.

This is why an abnormal reading should be investigated from both mechanical and electrical perspectives.

A practical troubleshooting path is:

Probe Position → Cable → Proximitor → Monitoring Channel → Machine Condition

This approach helps prevent an installation problem from being incorrectly diagnosed as a failed electronic component.

Shaft Vibration and Displacement Monitoring

A proximity probe is particularly useful when the behavior of the rotor itself is important.

On large rotating equipment, engineers may need to monitor conditions such as:

• Radial shaft movement
• Relative shaft vibration
• Rotor displacement
• Shaft position
• Changes in the shaft-to-bearing relationship

The exact measurement depends on the probe location and the overall machinery monitoring configuration.

For example, probes positioned around a bearing can provide information about the radial movement of the shaft within the bearing clearance. Multiple measurement channels can then be compared to help identify changes in rotor behavior.

Industrial Applications

The actual measurement purpose depends on the machine design and probe installation location.

Installation and Maintenance

A proximity probe should be maintained as part of the complete measurement circuit rather than treated as an isolated sensor.

Recommended practices include:

• Confirm the complete 21502-14 model.
• Verify the required 7200 Series configuration.
• Confirm the compatible Proximitor.
• Verify extension-cable compatibility.
• Inspect the probe body and sensing tip.
• Check the mounting arrangement.
• Verify probe positioning relative to the shaft.
• Inspect the probe cable and connectors.
• Check cable routing for mechanical stress.
• Inspect the shaft target surface where accessible.
• Check for contamination around the sensing location.
• Review the associated monitoring channel.
• Compare readings with established machine data.
• Follow the approved machinery isolation procedure.
• Remove the existing probe according to the equipment maintenance procedure.
• Install the replacement probe correctly.
• Verify the probe position.
• Restore the extension-cable connection.
• Check the Proximitor signal.
• Confirm the monitoring channel receives the expected measurement.
• Verify normal shaft-position or vibration readings.
• Check alarm and protection functions.

If a new probe produces an unexpected reading, engineers should verify probe positioning and the complete probe circuit before concluding that the replacement probe itself is defective.

Compatible System Components

The 21502-14 normally works as part of a complete 7200 Series proximity measurement system.

The exact probe, cable, Proximitor, and monitoring configuration should be verified before replacement.

Recommended Related Models

The following recommendations focus on Bently Nevada proximity probes and associated 7200 Series monitoring components, making them suitable for related-product SEO and replacement searches.

Key Advantages

• Bently Nevada 7200 Series Proximity Probe.
• Model 21502-14.
• Non-contact measurement of rotating-machine targets.
• Suitable for shaft movement and displacement monitoring.
• Works with compatible 7200 Series Proximitor and extension cable.
• Applicable to turbines, compressors, pumps, and other rotating equipment.
• Useful for machinery condition monitoring and protection.
• Suitable for maintenance and replacement of existing 7200 Series installations.

Technical FAQs

What does the 21502-14 actually detect?

The probe detects changes in the distance between its sensing tip and a conductive target, normally a rotating shaft. The resulting signal can be used to determine relative shaft movement or displacement within the configured monitoring system.

Why should the probe gap be checked after installation?

The measurement depends on the relationship between the probe and the target surface. If the probe is installed too close, too far away, or at an incorrect position, the resulting electrical signal may not accurately represent the intended shaft movement.

Can a faulty extension cable produce symptoms similar to a failed 21502-14?

Yes. The probe and extension cable form part of the same measurement circuit. An open connection, damaged cable, poor connector condition, or other cable problem can interrupt or distort the signal and may initially appear to be a probe problem.

What is the best way to troubleshoot an abnormal 7200 Series proximity reading?

Start with the complete measurement chain: inspect the probe installation and gap, check the extension cable and connections, verify the associated Proximitor, and then review the monitoring channel. Once the instrumentation path has been confirmed, the actual mechanical condition of the shaft can be evaluated.
