Product Overview

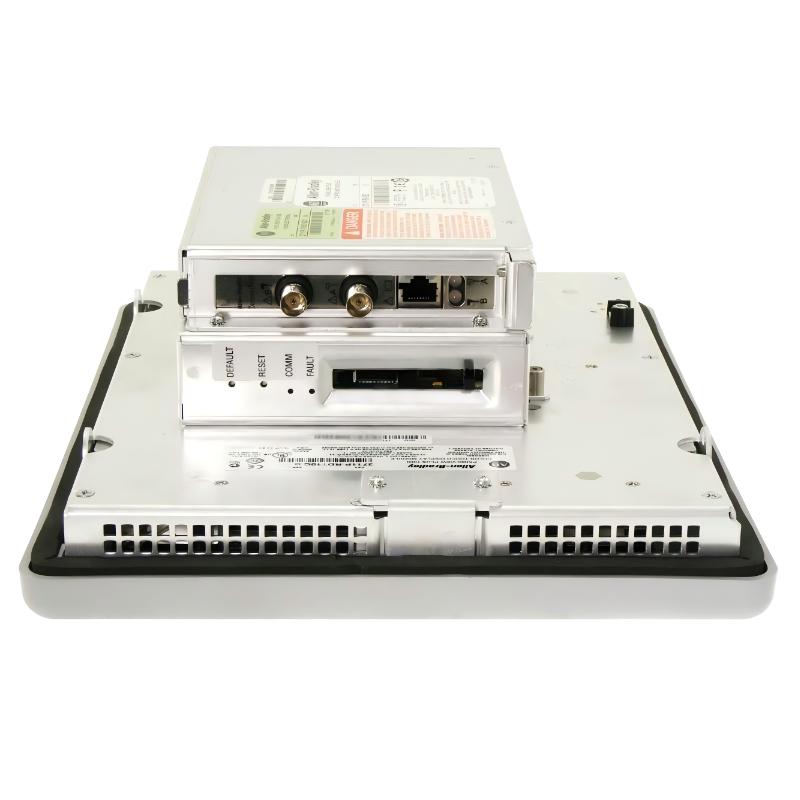

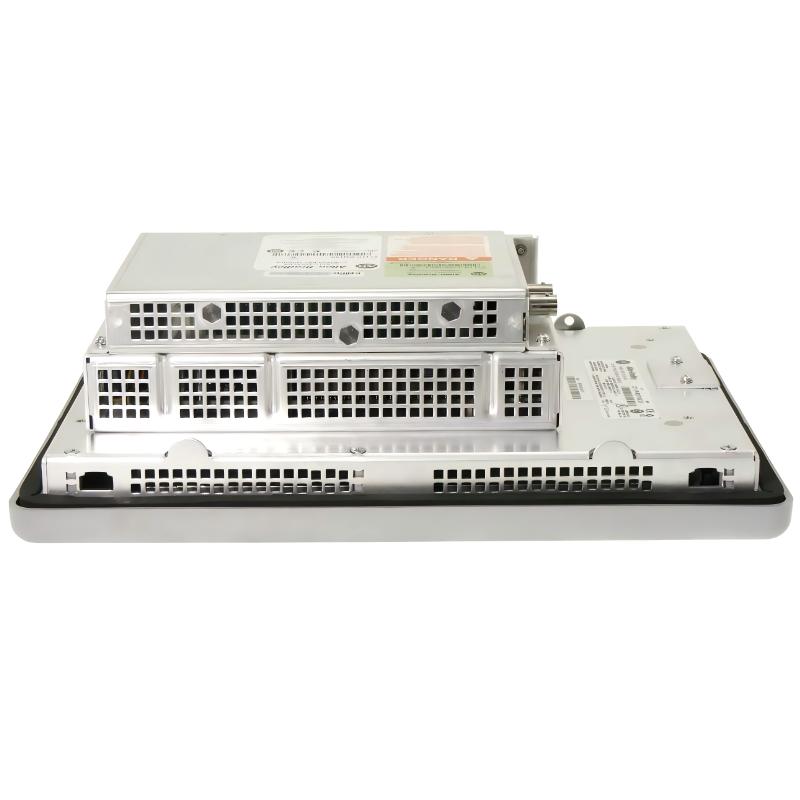

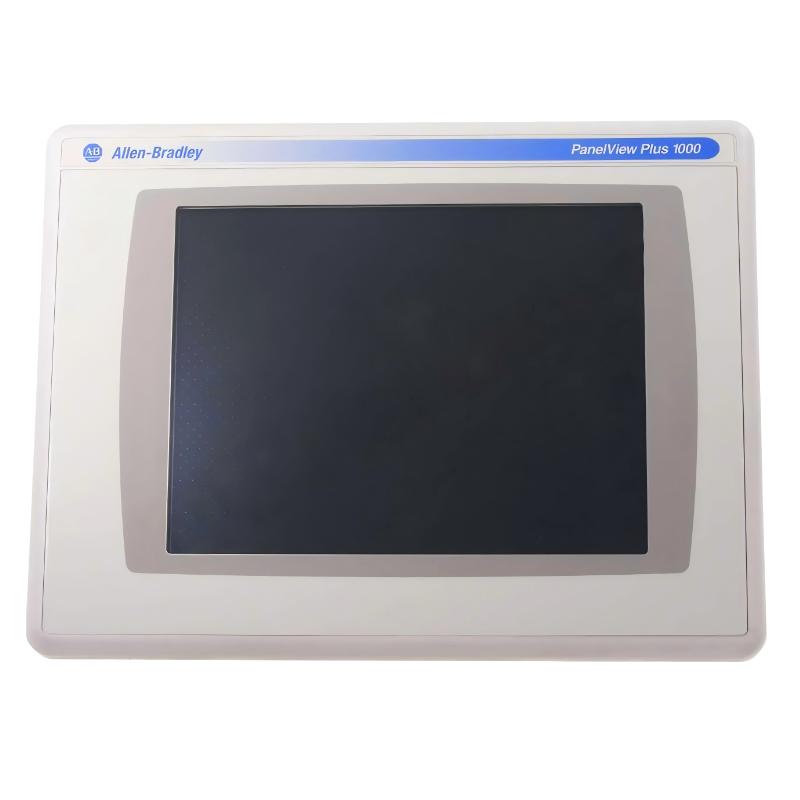

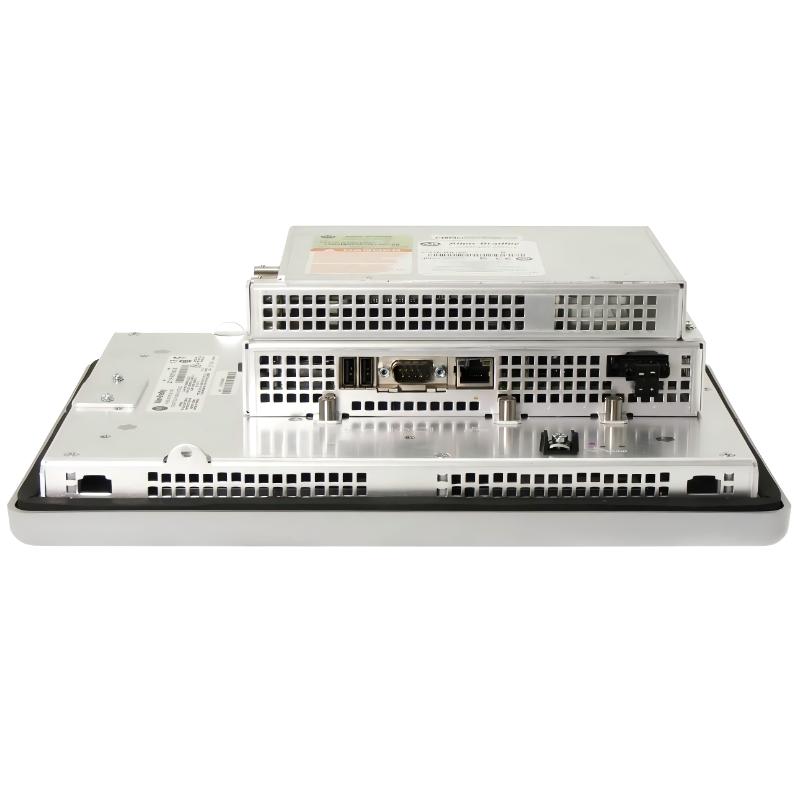

The Allen-Bradley 2711P-T10C15D1 is a PanelView Plus 1000 Human Machine Interface (HMI) designed for industrial automation control and visualization. It provides operators with a 10.4-inch color touchscreen interface to monitor and control PLC-driven processes in real time.
This model is commonly used in manufacturing, process industries, and machine automation systems, where reliable operator interaction with PLC systems is required.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Allen-Bradley (Rockwell Automation) |
| Model | 2711P-T10C15D1 |
| Product Type | PanelView Plus 1000 Operator Interface (HMI) |
| Display Size | 10.4-inch color TFT touchscreen |
| Resolution | 640 × 480 (VGA) |
| Input Type | Analog resistive touchscreen |
| Power Supply | 18–32 VDC (24 VDC nominal) |
| Communication Ports | ControlNet, Ethernet, RS-232, USB (varies by configuration) |
| Memory | 64 MB RAM / 64 MB Flash |
| Dimensions | 329 × 55 × 248 mm |
| Weight | 2.6 kg |
| Software | FactoryTalk View Machine Edition (ME) |
Function and Working Principle
The PanelView Plus 1000 acts as a visual and control interface between operators and PLC systems.
Working Principle
- The HMI connects to a PLC (such as ControlLogix or CompactLogix).
- It continuously reads process data (temperature, pressure, motor speed, alarms).
- Operators interact via touchscreen to:
- Start/stop equipment
- Adjust setpoints
- Acknowledge alarms
- Navigate process screens
- Commands are sent back to the PLC over industrial networks.
This creates a real-time industrial control and monitoring loop.
Key Features
- 10.4-inch color industrial touchscreen
- Real-time PLC data visualization
- Alarm and event management
- Trend display for process variables
- Recipe and parameter control
- Multi-protocol communication support (ControlNet / Ethernet depending on config)
- FactoryTalk View ME runtime support
- Rugged industrial enclosure design
Industrial Applications
- Factory automation systems
- Packaging machines
- Oil & gas processing plants
- Chemical production lines
- Water treatment systems
- Food and beverage production
- Conveyor and material handling systems
- HVAC and utility control systems
Installation Overview
- Panel-mounted installation in control cabinets
- Requires PLC communication setup (ControlNet/Ethernet depending on module)
- Configured using FactoryTalk View Studio ME
- Runtime application downloaded via network or USB
- Proper grounding and enclosure protection required for industrial environments
Compatible Systems
- Allen-Bradley ControlLogix PLCs
- CompactLogix PLCs
- PowerFlex drive systems (via PLC integration)
- FactoryTalk View ME software platform
- Industrial Ethernet and ControlNet networks
Alternative Models
| Model | Description |
|---|---|
| 2711P-T10C15D1 | Standard PanelView Plus 1000 (this model) |
| 2711P-T10C4D1 | Alternative communication configuration |
| 2711P-T7C4D8 | 7-inch PanelView Plus variant |
| PanelView Plus 7 Standard | Newer generation replacement |
| PanelView 5500 | Modern high-performance HMI platform |
Key Advantages
- Intuitive touchscreen operation
- Strong integration with Rockwell Automation systems
- Reliable industrial-grade design
- Real-time process visualization and control
- Flexible communication options
- Widely supported in legacy automation systems
Technical FAQs
What is the main function of this HMI?
It provides operator visualization and control of PLC-controlled industrial processes.
Does it directly control machines?
No. It sends commands to a PLC, which performs the actual control.
Is this model still widely used?
Yes, especially in existing industrial installations.
What software is used for configuration?
FactoryTalk View Studio Machine Edition (ME).
What happens if communication is lost?
The HMI will display faults or outdated values but does not control equipment directly.
Conclusion
The Allen-Bradley 2711P-T10C15D1 PanelView Plus 1000 is a robust industrial HMI designed for real-time operator interaction with PLC systems. Despite being part of an older generation, it remains widely used due to its reliability, compatibility with Rockwell PLC ecosystems, and stable performance in industrial environments.
