- Allen Bradley
- 2711P-RDT15C

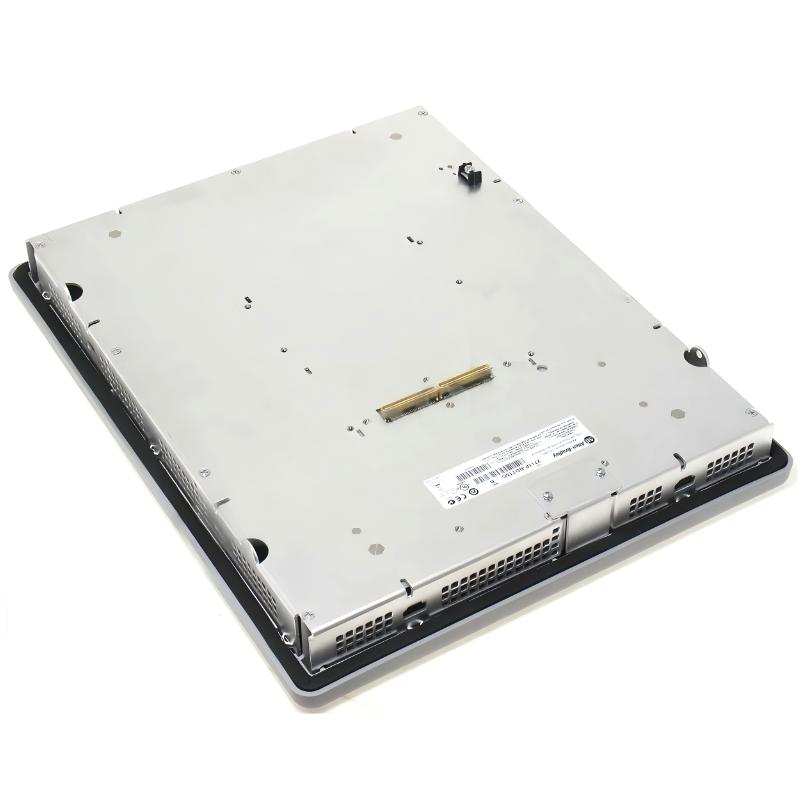

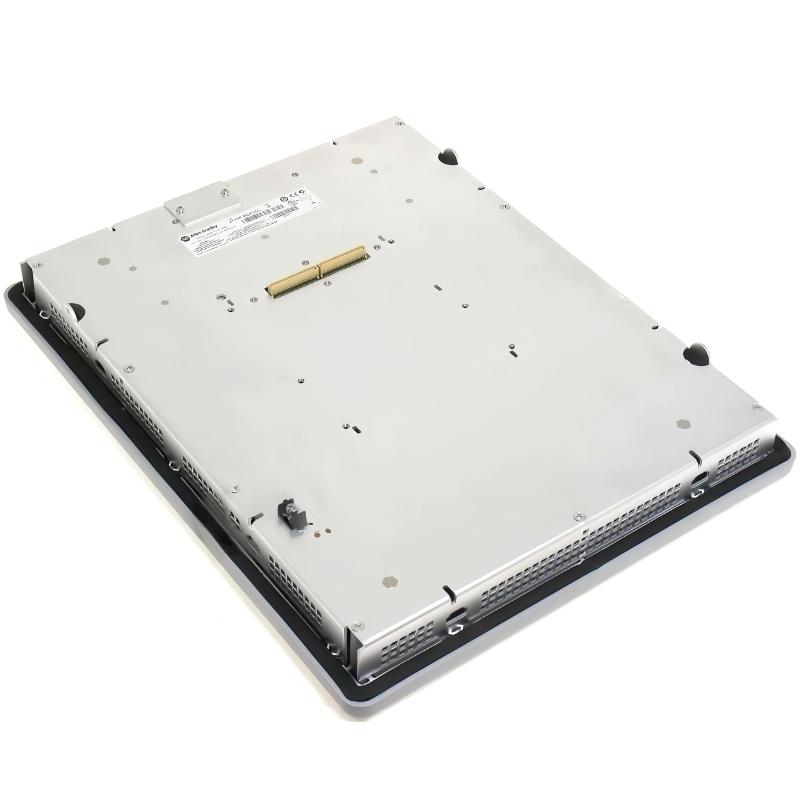

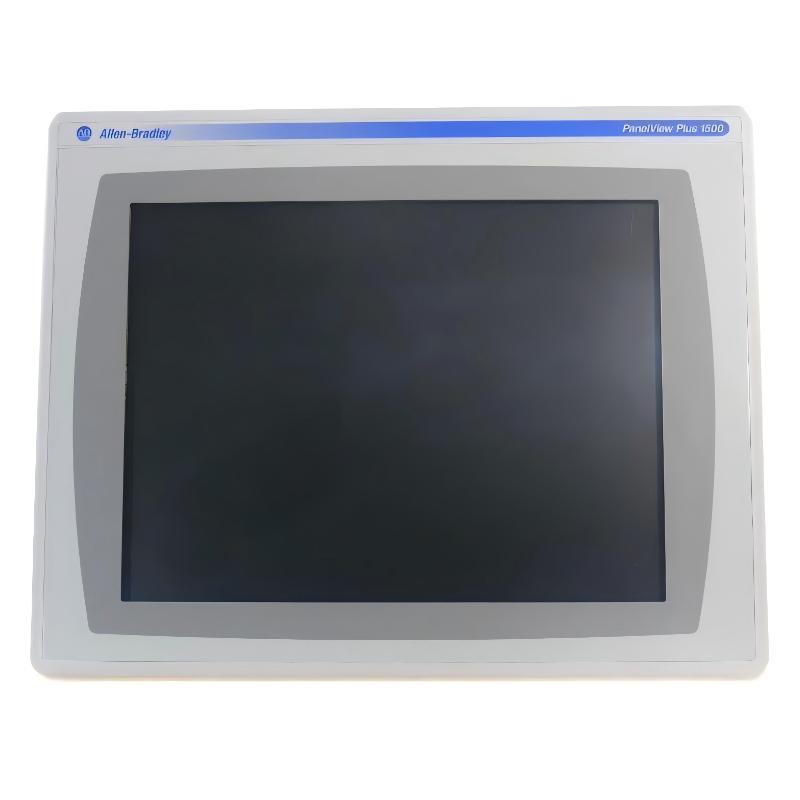

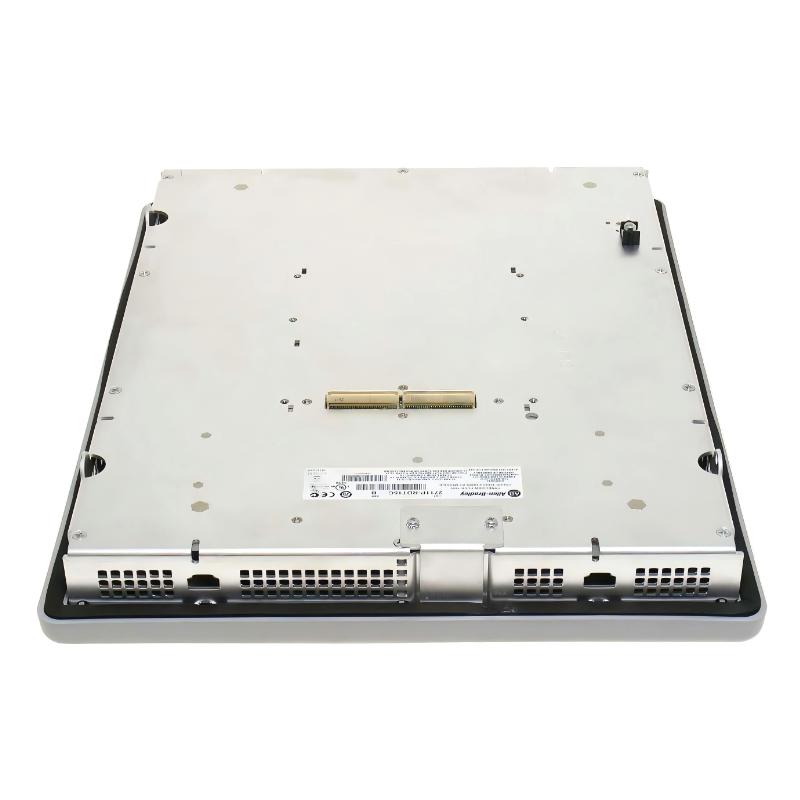

- PanelView Plus 1500 Display Module
- USA
- 416 x 65 x 330 mm
- 4.2 kg
- Xiamen, China
- New & In Stock
- T/T, PayPal, Western Union
- 1 Year
- 1-3 Working Days
- DHL, UPS, TNT, FedEx and EMS.
- 24-Hour Service
- COO
- 7
Our advantage
Global Logistics
We have a 10-year logistics and express cooperation agreement, so our products can be shipped to any place in the world.
Brand new and original
Our products are imported in bulk from the place of origin. Because of the cooperative relationship, our products are all original and 100% new.
24-hour service
We provide 7*24 hours service to our customers. We will be there whenever you need us.
Price advantage
All our products are priced very favorably because we have our own warehouse and supply.
| Company Information | |||
| [email protected] | |||
| Mobile | +8615980777398 | ||
| +8615980777398 | |||
| 15980777398 |
Product Overview
The Allen Bradley 2711P-RDT15C PanelView Plus 1500 Display Module is a large-format industrial HMI designed for advanced operator interaction in automation systems. It provides a high-resolution 15-inch color touchscreen for monitoring, controlling, and visualizing complex industrial processes in real time.
This module is widely deployed in Allen Bradley PanelView Plus 1500 series systems, offering strong visualization capability, stable PLC communication, and rugged industrial performance for demanding environments.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Allen Bradley |
| Model | 2711P-RDT15C |
| Product Type | PanelView Plus 1500 Display Module |
| Dimensions | 416 × 65 × 330 mm |
| Weight | 4.2 kg |
| Display Type | Color TFT LCD (Active Matrix) |
| Display Size | 15 inch |
| Resolution | 1024 × 768 pixels (XGA) |
| Input Method | Analog resistive touchscreen |
| Communication Ports | Ethernet, RS-232, USB |
| Power Supply | 85–264 V AC |
| Protection Rating | NEMA 4X / IP65 front |
| Brightness | Approx. 300 cd/m² |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -25°C to 60°C |
| Mounting Type | Panel / flush mount |
| Application | Industrial HMI / automation control systems |
Function and Working Principle
The 2711P-RDT15C operates as a human-machine interface (HMI) that translates PLC data into graphical visualization and converts operator inputs into control commands.
Core Functions:
- Real-time process monitoring and visualization
- Alarm and event management
- Touchscreen-based operator control
- Historical data and trend display
- PLC communication and system interaction
Working Principle:
The display module communicates with Allen Bradley PLC systems via Ethernet or serial links. Process data is rendered on the 15-inch screen, while operator touch inputs are transmitted back to the controller for execution, enabling responsive and stable system control.
Role in Industrial Control Systems
This PanelView Plus 1500 module serves as a central operator interface in industrial automation systems, enabling:
- Centralized monitoring of complex processes
- Direct machine and system control
- Alarm handling and diagnostics
- Visualization of multi-variable industrial data
It significantly improves operator awareness, system safety, and response efficiency in large-scale industrial environments.
Industrial Applications
The 2711P-RDT15C is commonly used in:
- Large manufacturing automation systems
- Oil and gas processing facilities
- Chemical and petrochemical plants
- Power generation and utility systems
- Water treatment and infrastructure control
- Complex industrial machine control panels
Its large display makes it ideal for high-density process visualization environments.
Installation and System Integration
Proper installation ensures stable operation and long service life:
- Mounted in industrial control cabinet panels
- Connected to PLC systems via Ethernet or serial communication
- Powered by 85–264 V AC industrial supply
- Configured using FactoryTalk View Machine Edition software
- Requires proper grounding and EMI-compliant wiring practices
Correct integration ensures reliable communication and accurate process visualization.
Compatible System Components
The 2711P-RDT15C works with:
- Allen Bradley ControlLogix PLC systems
- CompactLogix controller series
- FactoryTalk View ME runtime software
- PanelView Plus logic modules (e.g., RP series)
- Industrial Ethernet switches
- Remote I/O and communication modules
These components form a complete industrial automation architecture supporting large-scale control systems.
Recommended Alternative Models
| Model | Type | Key Feature | Application |
|---|---|---|---|
| 2711P-RDT10C | PanelView Plus 1000 | Smaller display version | Mid-size systems |
| 2711P-K10C4A3 | PanelView Plus 1250 | Keypad interface | Legacy keypad control |
| 2711P-T15C22D9P | PanelView Plus 1500 upgrade | Modern HMI platform | System modernization |
| PanelView Plus 7 Performance | Modern HMI | Enhanced processing & graphics | Upgrades |
| 2711P-RDB15C | Display module variant | Compatible legacy replacement | Maintenance systems |
Key Advantages
- Large 15-inch high-resolution display for complex visualization
- Strong compatibility with Allen Bradley PLC systems
- Rugged industrial-grade construction
- Stable long-term operation in harsh environments
- High visibility for multi-process control
- Reliable communication for mission-critical systems
Technical FAQs
Q1: What is the main function of the 2711P-RDT15C?
It provides operator interface functionality for monitoring and controlling industrial processes.
Q2: What type of display does it use?
A 15-inch XGA color TFT touchscreen display.
Q3: Which PLC systems is it compatible with?
Allen Bradley ControlLogix and CompactLogix systems.
Q4: Is it suitable for harsh environments?
Yes, it is designed with NEMA 4X / IP65 front protection.
Q5: Is it still widely used today?
Yes, it is commonly used in both legacy and installed base industrial systems.
Conclusion
The Allen Bradley 2711P-RDT15C PanelView Plus 1500 Display Module is a robust industrial HMI designed for large-scale automation environments. With its 15-inch touchscreen, stable PLC connectivity, and rugged construction, it delivers reliable visualization and control for complex industrial processes. It remains a key component in industrial automation systems requiring high-performance operator interaction.
