Product Overview

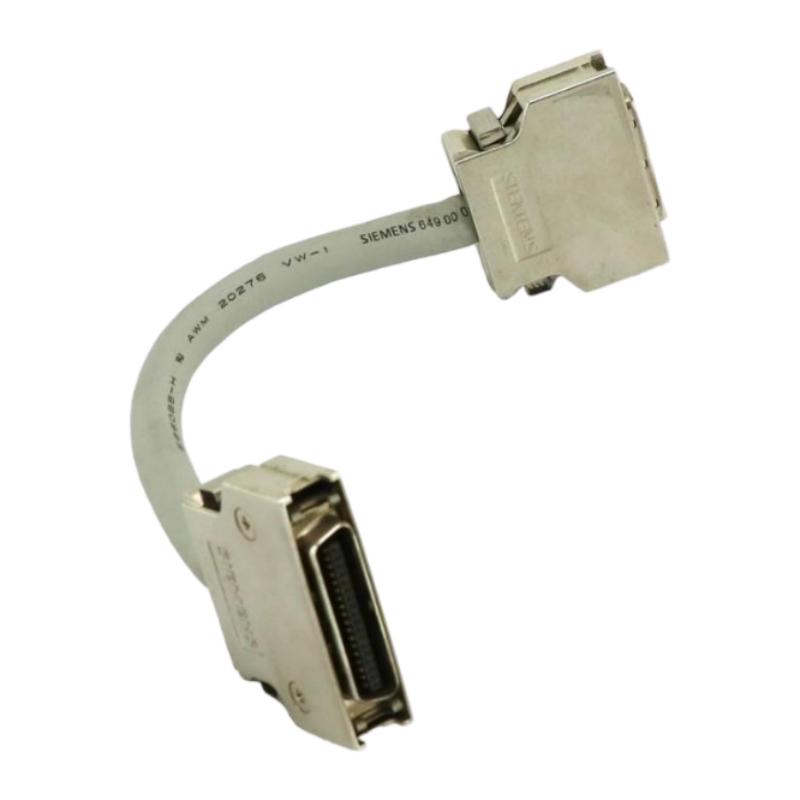

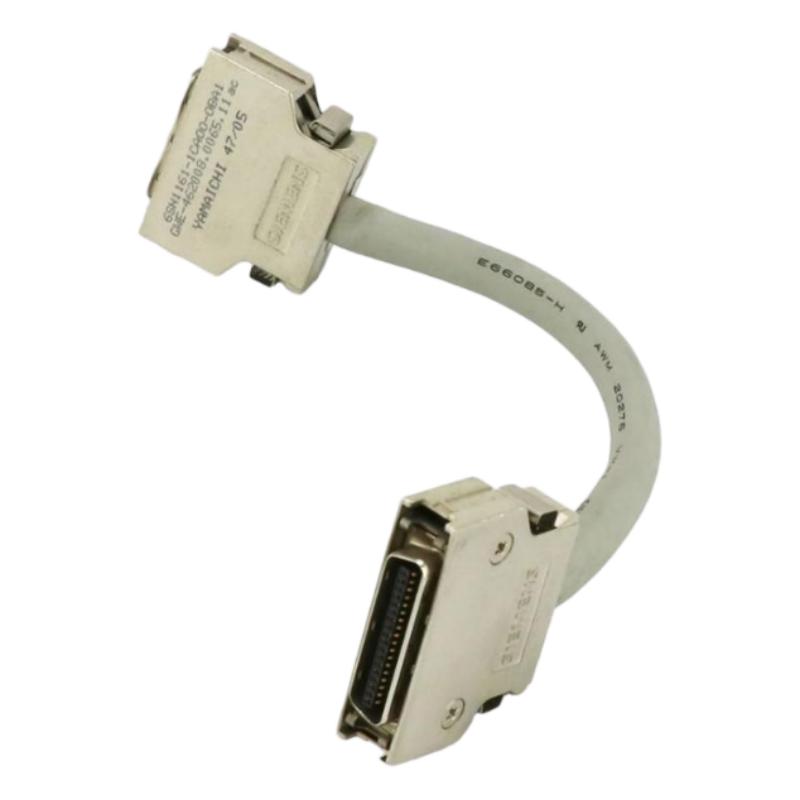

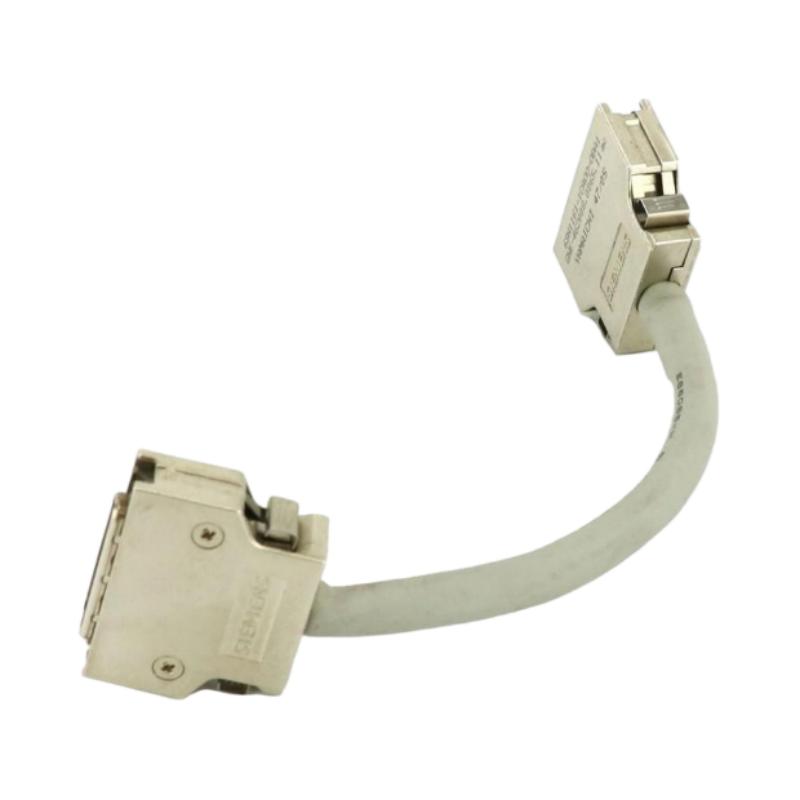

The Siemens 6SN1161-1CA00-0BA1 Drive Bus Cable is a connection component designed for Siemens SIMODRIVE 611-D drive systems. It is used to establish the drive-bus connection between compatible modules in industrial motion-control and CNC applications.

In multi-axis drive systems, reliable connections between control and drive components are essential for coordinated machine operation. Drive-bus cabling supports the communication and interconnection requirements of the configured system, helping the installed components operate as part of an integrated motion-control architecture.

This cable is identified as a shielded round drive-bus cable for the SIMODRIVE 611-D family. Its shielding is relevant to electromagnetic compatibility in industrial environments, where motor drives, switching devices, and power conductors can generate electrical interference.

The 6SN1161-1CA00-0BA1 is a specialized system cable rather than a general-purpose network cable or motor power cable. Its suitability depends on the connected equipment, the required module spacing, the connector arrangement, and the original system configuration. Substituting a visually similar cable without verifying its part number and electrical interface may result in an incompatible connection.

The product has been discontinued, so it is primarily relevant to maintenance, repair, and spare-parts sourcing for existing installations. When purchasing this cable, engineers should confirm the complete Siemens order number and compare the replacement against the original cable assembly.

Technical Specifications

Note: The listed dimensions may represent the packaged item or a supplier’s dimensional entry rather than the cable’s usable length. Confirm the actual cable length and connector configuration before ordering.

Function and Working Principle

The 6SN1161-1CA00-0BA1 provides a dedicated physical connection for a compatible SIMODRIVE drive-bus arrangement. Its role is to maintain the required electrical connection between designated components within the drive system.

1. Drive-Bus Interconnection

Industrial drive systems can contain several coordinated components, including control units and drive modules. The drive-bus cable provides the specified connection between compatible points in the system.

The exact connection arrangement depends on the system design. Correct cable selection ensures that the physical interface, connector arrangement, and cable routing match the requirements of the installed SIMODRIVE configuration.

2. Signal Transmission

A drive-bus connection carries the signals required by the corresponding system interface. Reliable signal transmission depends on using the correct cable assembly, maintaining connector integrity, and following the manufacturer’s installation instructions.

This cable should not be treated as a universal Ethernet cable or substituted with an ordinary communication cable solely because the connectors appear similar. The interface and cable construction must match the intended SIMODRIVE application.

3. Shielding and Electromagnetic Compatibility

The cable is identified as a shielded round cable. Shielding helps reduce the effects of electromagnetic interference when the cable is correctly installed within the intended system.

The effectiveness of the shielding depends on the complete installation, including connector condition, shield termination, grounding arrangements, and separation from power wiring. Proper cable routing is especially important in cabinets containing high-power drives and motor conductors.

4. Maintaining System Continuity

A damaged or incorrect drive-bus cable can interrupt the connection between system components and may prevent normal drive-system operation.

Using the correct replacement cable helps restore the intended interconnection without introducing unnecessary changes to the original system layout. It is therefore important to record the cable’s part number and connection location during maintenance.

Role in Industrial Control Systems

The 6SN1161-1CA00-0BA1 is a supporting component in a larger motion-control system. It does not independently control a motor; instead, it provides the connection required by the compatible drive-system architecture.

SIMODRIVE 611-D Drive Systems

SIMODRIVE 611-D equipment is used in industrial motion-control applications, including machine tools and CNC installations. The cable supports the physical interconnection specified for compatible drive-system modules.

When maintaining an existing installation, engineers should check the equipment documentation to determine the cable’s exact position and the modules it connects.

CNC Machine Integration

Computer numerical control systems coordinate machine axes, drive electronics, and control functions. Correct drive-bus connections are important for maintaining the intended communication path between compatible system components.

During troubleshooting, the cable should be checked alongside the associated connectors, modules, and system diagnostics. Replacing the cable alone will not resolve faults caused by defective drive electronics, incorrect configuration, or other system components.

Cabinet-Level Interconnection

The cable may be routed inside a drive cabinet or between closely positioned modules, depending on the original configuration. Correct routing helps maintain an orderly installation and reduces the risk of mechanical damage or electromagnetic interference.

The required cable length and module spacing should be confirmed before replacement. The dimensional data provided for this listing should not be used as a substitute for the actual cable-length specification.

Industrial Applications

The Siemens 6SN1161-1CA00-0BA1 is primarily relevant to existing SIMODRIVE 611-D installations that require the specified drive-bus connection.

1. CNC Machine Tools

CNC machine tools depend on coordinated control of multiple axes and drive components. The cable can be used in a compatible SIMODRIVE configuration where the specified drive-bus connection is required.

During maintenance, confirming the original cable part number helps reduce the risk of installing an incompatible assembly.

2. Industrial Motion-Control Systems

Motion-control equipment uses interconnected drive components to execute coordinated movement. A correctly specified bus cable supports the system’s intended interconnection and contributes to reliable operation.

Compatibility must be established from the system documentation rather than inferred from the general product category.

3. Multi-Axis Drive Cabinets

Drive cabinets may contain multiple modules installed side by side. Dedicated bus cables are used where the system design requires connections between particular components.

The correct cable length, connector arrangement, and module-spacing requirements should be checked against the installed hardware.

4. Legacy Automation Equipment

Older industrial systems may continue operating for many years after individual components have been discontinued. Keeping suitable cables available can help maintenance teams restore connections during repairs and minimize unnecessary cabinet modifications.

For legacy installations, preserving the original part number and cable arrangement is particularly valuable because visually similar replacement products may have different specifications.

Installation and System Integration

Correct installation helps maintain signal integrity and prevents avoidable connection faults.

1. Verify the Complete Order Number

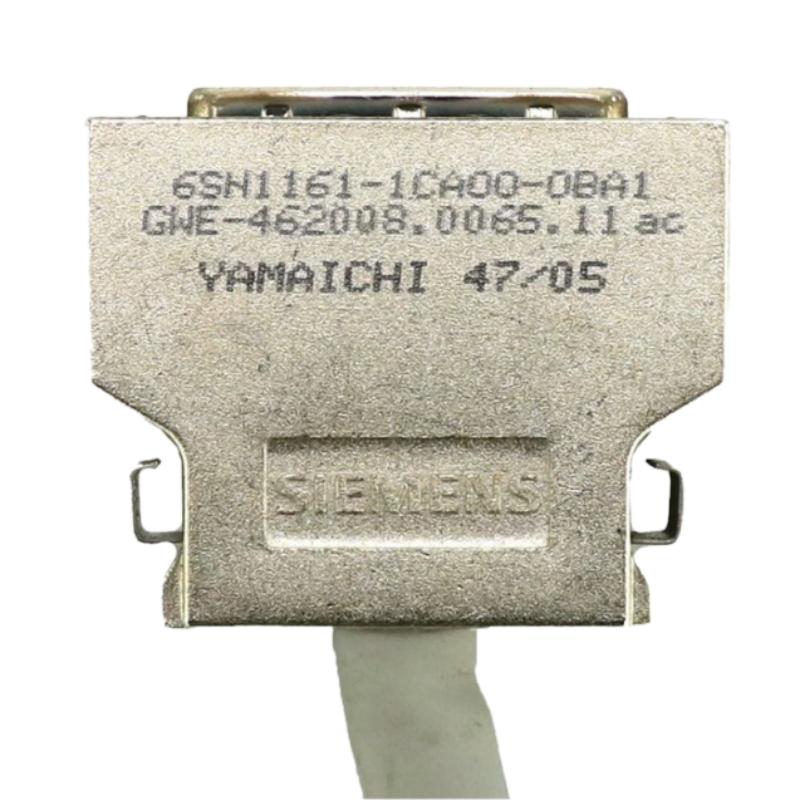

Before installation, confirm that the cable is marked 6SN1161-1CA00-0BA1. Do not assume that another cable from the same product family is interchangeable.

Check the equipment documentation and the original cable label where available.

2. Confirm Cable Length and Module Spacing

Verify the required length and the distance between the modules being connected. Product listings may describe cable dimensions or packaging measurements differently, so the supplied dimensions of 64 × 49 × 76 mm should not be interpreted as the cable’s usable length.

The exact module-width application should also be checked against the relevant Siemens documentation, because related cable variants can be specified for different module arrangements.

3. Inspect Connectors Before Installation

Examine the connectors for bent contacts, contamination, corrosion, or physical damage. Check the cable jacket for cuts, crushing, kinks, and other signs of deterioration.

Do not force a connector into a socket if the alignment or fit appears incorrect.

4. Maintain Shielding and Cable Routing

Follow the system’s shielding and grounding requirements. Route the cable according to the equipment documentation and avoid unnecessary proximity to high-power conductors where separation is required.

Do not modify the shield termination or connector wiring unless the manufacturer documentation explicitly permits it.

5. Follow Safe Maintenance Procedures

Before disconnecting the cable, place the machine in a safe state and follow the facility’s isolation procedures. Drive cabinets may contain hazardous voltages even after the main supply has been switched off.

Allow the equipment to reach the required safe condition before handling connectors or working inside the cabinet.

6. Test the System After Replacement

After installation, verify that both ends of the cable are fully seated and that the cable is routed without excessive tension. Restore the system according to the approved commissioning procedure and check for relevant drive or control-system faults.

If the fault remains, inspect the connected modules, configuration, and associated wiring rather than repeatedly replacing the cable.

Compatible System Components

The 6SN1161-1CA00-0BA1 should be used only in a system configuration that specifies this cable or an officially confirmed equivalent.

The table describes the wider system context. It does not imply that these components are supplied with the cable.

Alternative Models and Replacement Considerations

Siemens produced related SIMODRIVE drive-bus cables for different module arrangements and connection requirements. Related part numbers should not be considered interchangeable without checking the manufacturer’s documentation.

Before choosing a substitute, compare:

• Complete order number.
• Cable length and physical construction.
• Connector type and pin arrangement.
• Required module spacing.
• Shielding requirements.
• Compatible SIMODRIVE configuration.
• Routing and installation constraints.

A cable that belongs to the same product family may still be unsuitable for a specific installation. When the original model is unavailable, obtain confirmation of the replacement’s compatibility before purchasing.

Key Advantages

Dedicated SIMODRIVE Compatibility

The cable is intended for the SIMODRIVE 611-D drive-bus application, making correct part-number matching central to its use in existing installations.

Shielded Round-Cable Construction

Its shielded construction supports the intended industrial interconnection when the cable is installed according to the system’s electromagnetic compatibility requirements.

Compact Interconnection

The cable provides a dedicated connection for compatible drive-system components without requiring an improvised wiring arrangement.

Support for Legacy Equipment

The product remains relevant to repair and maintenance work on existing installations, particularly where the original drive-system configuration must be preserved.

Straightforward Replacement Identification

The complete Siemens order number provides a clear reference for identifying the required cable and distinguishing it from related variants.

Technical FAQs

1. What is the Siemens 6SN1161-1CA00-0BA1?

It is a shielded round drive-bus cable designed for use in compatible Siemens SIMODRIVE 611-D drive-system configurations.

2. What is the cable used for?

It provides the specified drive-bus connection between compatible components in a motion-control system. The exact connection points depend on the installed equipment configuration.

3. Is it an Ethernet cable?

It should not be treated as a general-purpose Ethernet cable. It is a dedicated SIMODRIVE drive-bus cable, and substitution with another cable type requires explicit compatibility confirmation.

4. Is the cable shielded?

Yes. The product is identified as a shielded round cable. Correct shield termination and routing remain important for electromagnetic compatibility.

5. What are the listed dimensions and weight?

The supplied listing dimensions are 64 × 49 × 76 mm, and the supplied weight is 0.084 kg. Confirm whether the dimensions describe packaging or the cable assembly, and verify the usable cable length separately.

6. Can another SIMODRIVE cable replace this model?

Not automatically. Related variants may differ in length, module-spacing requirements, or connection configuration. Check the complete order number and equipment documentation before substitution.

7. Is the 6SN1161-1CA00-0BA1 still in production?

The model is listed as discontinued. Availability may depend on remaining inventory and the industrial spare-parts market.

8. What should be checked when purchasing a replacement?

Confirm the complete part number, cable condition, connector integrity, shielding, required length, and compatibility with the installed SIMODRIVE modules. For critical equipment, request clear product photographs and confirmation of the supplied part number.

9. Can a damaged cable cause drive-system faults?

Yes. Physical damage, poor connector contact, or an incorrect cable can interrupt the required connection and may cause system faults. However, similar symptoms can also result from defective modules, configuration problems, or other wiring issues.

10. How should the cable be maintained?

Inspect the cable jacket, connectors, and routing during scheduled maintenance. Avoid sharp bends, crushing, excessive tension, and unauthorized modifications. Replace damaged cables with a verified compatible assembly.

Procurement and Maintenance Recommendations

Because the Siemens 6SN1161-1CA00-0BA1 is discontinued, procurement should focus on accurate identification and verified compatibility.

For existing SIMODRIVE 611-D equipment, record the complete cable part number and the modules it connects. Compare the replacement with the original assembly and confirm the required cable length, connector arrangement, shielding, and module-spacing requirements.

When purchasing new-old-stock or surplus items, request clear photographs of the label and connectors. Check whether the cable is unused, refurbished, or previously installed, and confirm the supplier’s inspection and return conditions.

During maintenance, inspect the cable for jacket damage, contamination, connector wear, and improper routing. Keep the cable away from mechanical pinch points and follow the system’s electromagnetic compatibility requirements.

If a replacement cable does not resolve a connection fault, investigate the connected drive modules, connectors, control-system configuration, and associated wiring. A systematic diagnosis is more effective than assuming every communication or drive fault originates from the cable.

Conclusion

The Siemens 6SN1161-1CA00-0BA1 SIMODRIVE 611-D Drive Bus Cable is a specialized shielded round cable used for the specified interconnection in compatible industrial drive systems. It is particularly relevant to CNC equipment, motion-control cabinets, and maintenance of legacy SIMODRIVE installations.

Because this cable model has been discontinued, confirming the complete order number, connector configuration, cable length, and module compatibility is essential when sourcing a replacement. Correct identification and installation help preserve the intended system connection and reduce the risk of avoidable downtime.
