Product Overview

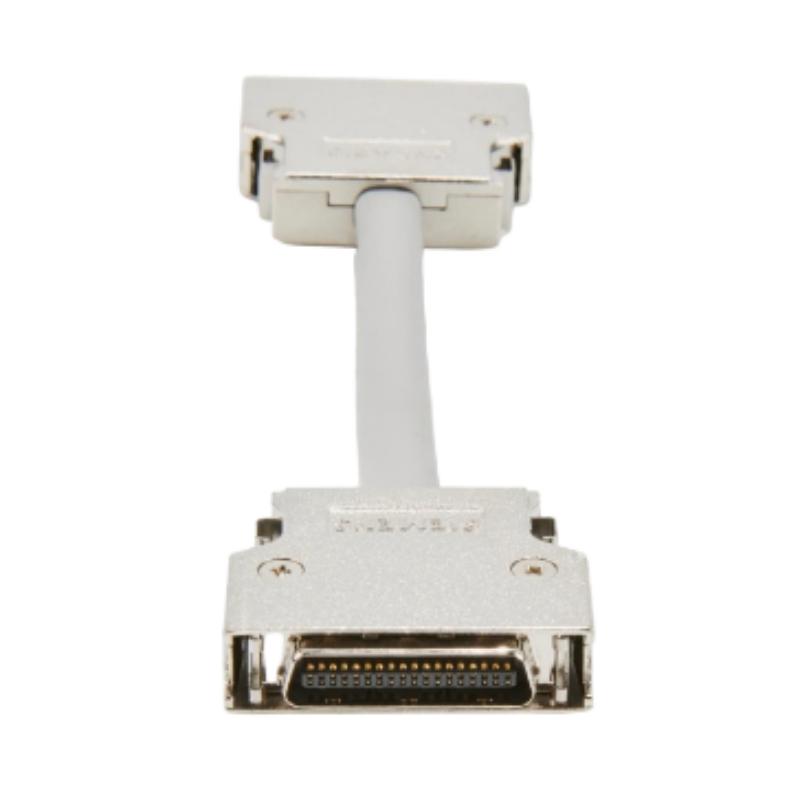

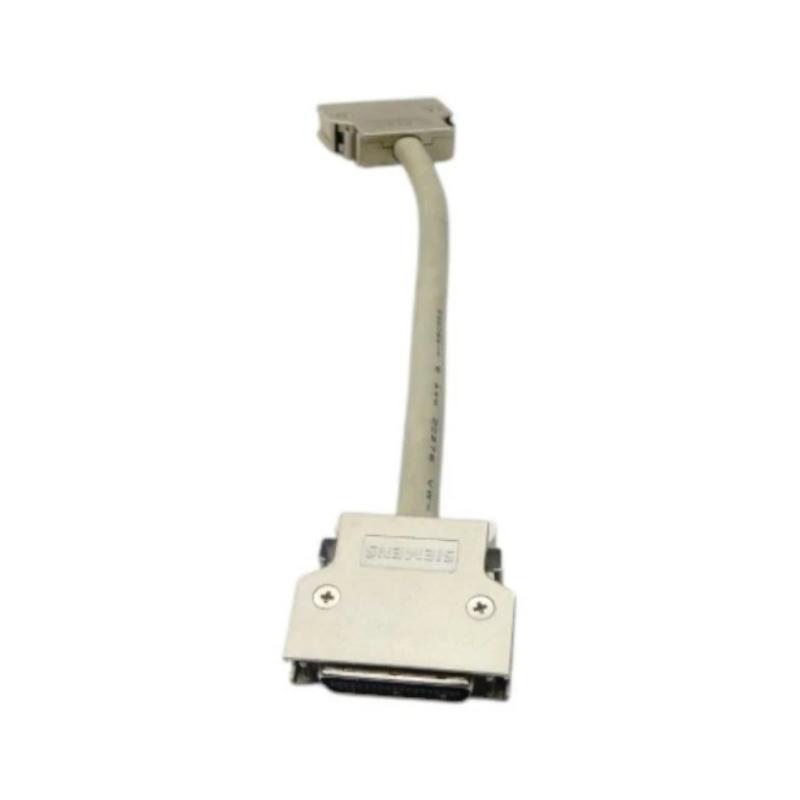

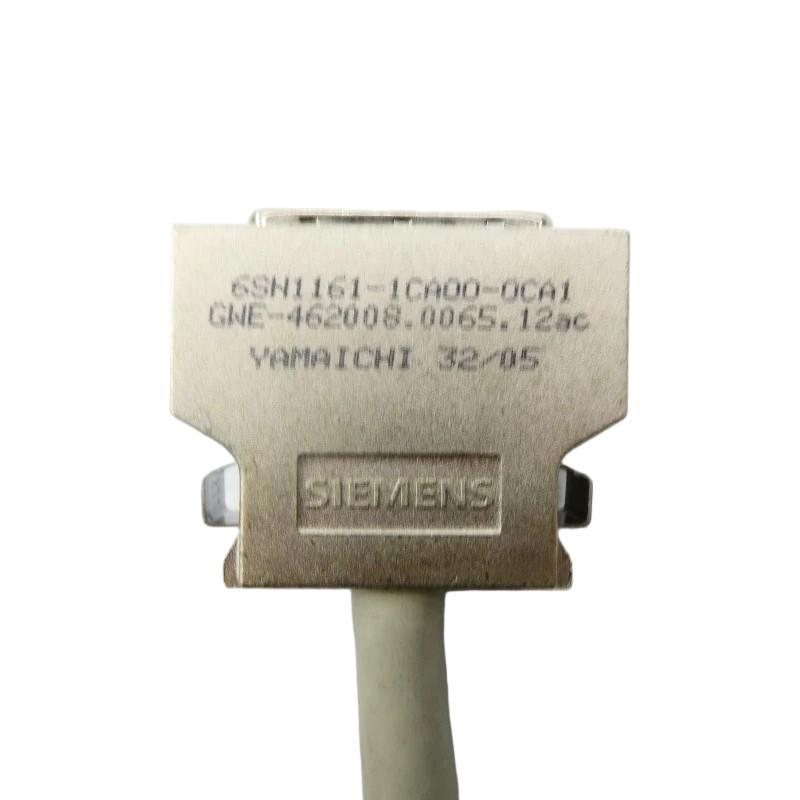

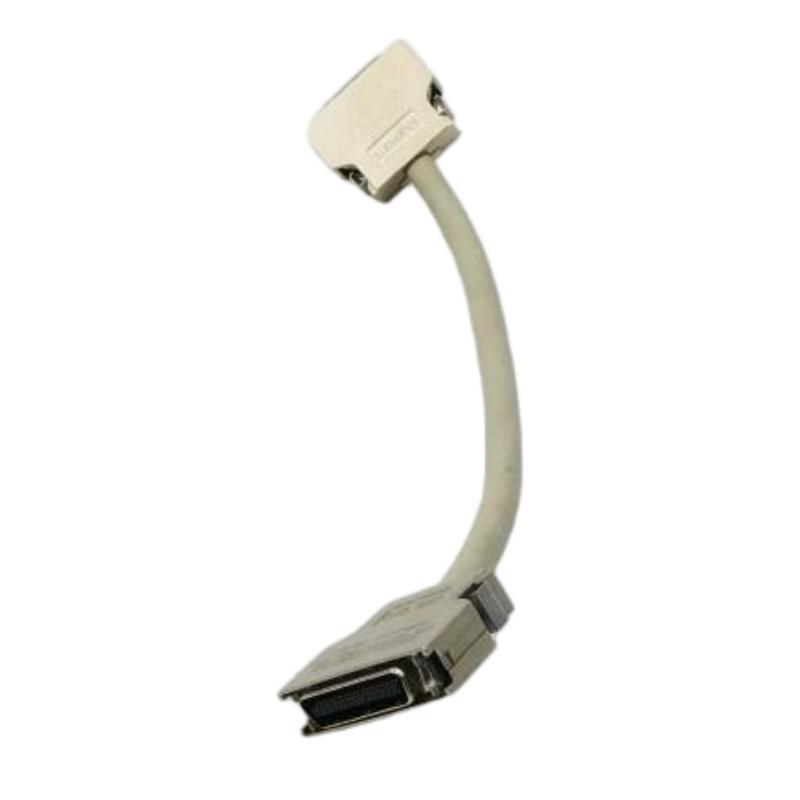

The Siemens 6SN1161-1CA00-0CA1 Drive Bus Cable is a specialized connection cable designed for Siemens SIMODRIVE 611-D digital drive systems. It is specified as a round drive bus cable for a module width of 150 mm and is used to establish the required control and communication connection within compatible industrial drive configurations.

In multi-axis CNC and industrial automation systems, drive modules must exchange control information through the designated system interfaces. The correct bus cable helps establish this connection between compatible components, supporting coordinated operation of the drive system.

Unlike a motor power cable, the 6SN1161-1CA00-0CA1 is intended for the drive bus interface. Its selection therefore depends on the installed SIMODRIVE hardware, module arrangement, and cable specification rather than motor current or power rating alone.

This component is particularly relevant to maintenance and repair projects involving legacy Siemens SIMODRIVE 611-D installations. When a bus cable is damaged, missing, or suspected of causing intermittent communication problems, replacing it with the correct part number can help restore the intended system connection.

The complete ordering number must be checked before procurement. Similar-looking Siemens cables may differ in cable construction, supported module width, length, connector arrangement, or intended interface. A cable designed for another module width should not be assumed to be interchangeable.

Technical Specifications

The listed dimensions represent the supplied product listing dimensions. Confirm the cable’s actual length, connector details, and packaging dimensions before ordering or preparing a replacement.

Function and Working Principle

The 6SN1161-1CA00-0CA1 is used as part of the drive bus connection in a compatible SIMODRIVE 611-D installation. Its role is to provide the specified physical link through which the drive system’s designated control interface can operate.

1. Drive Bus Connection

Digital drive systems rely on dedicated connections to transfer control information between compatible system components. The drive bus cable provides the physical connection required by the specified arrangement.

The correct cable helps ensure that the intended interface is connected according to the system’s design. It must match the equipment and connection points for which it was specified.

2. Support for Coordinated Drive Operation

CNC machines and multi-axis systems often contain several drive modules working under a common control architecture. Reliable communication between the control and drive components is essential for coordinated machine operation.

The cable supports the physical drive bus connection, but it does not independently perform motion control, calculate axis positions, or regulate motor current. These functions are handled by the relevant control units and drive electronics.

3. Compatibility with the 150 mm Module Configuration

The 6SN1161-1CA00-0CA1 is identified for a 150 mm module width. This designation is an important selection criterion when determining the appropriate cable for a SIMODRIVE installation.

The module-width specification should not be confused with the physical length of the cable. Before ordering, compare the part number with the system’s configuration documentation and the existing cable.

4. Physical Signal Connection

The cable provides the physical connection for the designated drive bus interface. Reliable operation depends on correct routing, secure connections, compatible hardware, and the absence of cable damage.

A damaged or incorrectly installed bus cable may contribute to communication interruptions or drive-system faults. However, such symptoms can also originate from control modules, connectors, configuration errors, or other system components, so troubleshooting should examine the complete interface.

Role in Industrial Control Systems

The Siemens 6SN1161-1CA00-0CA1 is a connection component within a broader digital drive architecture. It supports the physical interface needed for communication between compatible elements of a SIMODRIVE 611-D system.

CNC Machine Integration

Computer numerical control machines coordinate several drive axes to execute machining operations. Depending on the machine configuration, the control system exchanges commands and status information with the drive system.

The drive bus cable helps establish the designated connection required by the installed architecture. Correct cable selection is therefore important when maintaining the original CNC system.

Multi-Axis Drive Systems

Multi-axis machinery may contain several drive modules arranged within a common cabinet. The module arrangement determines which connections and cable variants are required.

The 150 mm module-width designation helps identify the appropriate cable variant for the intended configuration. Engineers should use the original equipment documentation to confirm the correct connection arrangement.

Legacy Automation Maintenance

Many industrial facilities continue to operate established CNC and drive systems because replacing an entire machine can involve substantial cost, downtime, and engineering work.

For these installations, identifying the exact cable part number can simplify maintenance planning. A correct replacement can preserve the original wiring arrangement and reduce the risk of introducing an incompatible connection.

Industrial Applications

The 6SN1161-1CA00-0CA1 is intended for compatible Siemens SIMODRIVE 611-D drive systems. Its use is associated primarily with drive-system connectivity rather than standalone control or power conversion.

1. CNC Machine Tools

CNC milling machines, turning centers, and other machine tools use coordinated drive systems to control machine axes. The drive bus cable may be required as part of the internal connection arrangement.

Correct replacement is important when restoring a machine to its original configuration after cable damage or maintenance work.

2. Multi-Axis Motion Systems

Machines with multiple controlled axes depend on the correct interconnection of control and drive components. A specified drive bus cable helps provide the physical interface required by the system architecture.

The exact cable variant should be selected according to the installed module arrangement and the applicable Siemens documentation.

3. Industrial Machinery Modernization

During machine refurbishment, technicians may inspect or replace legacy drive connections while retaining the existing control and power hardware.

Using the correct part number helps preserve compatibility with the original system. Any broader changes to the drive configuration should be evaluated separately.

4. Spare Parts and Repair Services

Industrial repair providers may stock the 6SN1161-1CA00-0CA1 for maintenance of SIMODRIVE 611-D installations. Since the product is associated with a legacy drive family, procurement may involve new old stock, unused surplus, or tested refurbished parts.

The condition, connector integrity, and exact model should be confirmed before installation.

Installation and System Integration

Correct installation helps maintain a reliable connection and reduces the risk of avoidable drive-system faults.

1. Verify the Complete Part Number

Confirm that the replacement cable is Siemens 6SN1161-1CA00-0CA1. Do not select a substitute solely because it is described as a SIMODRIVE cable.

Compare the complete order number, cable construction, intended module width, and connector configuration with the existing installation.

2. Confirm the Module Arrangement

This model is specified for a 150 mm module width. Review the cabinet layout and system documentation to confirm that the cable is appropriate for the actual connection.

Do not assume that all SIMODRIVE 611-D bus cables have identical dimensions or connection requirements.

3. Isolate Equipment Before Servicing

Before inspecting or replacing a cable inside a drive cabinet, follow the machine’s isolation and lockout procedures. Ensure that hazardous electrical energy has been removed and that the equipment is safe to service.

Observe the manufacturer’s instructions for handling drive-system components and their connections.

4. Inspect Connectors and Cable Condition

Check the cable for cuts, crushing, abrasion, deformation, or other visible damage. Inspect the connectors and mating interfaces for contamination, bent contacts, or signs of mechanical stress.

A replacement cable will not resolve a fault caused by a damaged connector on the drive or control unit. Inspect the mating hardware if problems persist.

5. Route the Cable Correctly

Follow the original routing and the system’s cable-management requirements. Avoid sharp bends, excessive tension, pinching, and routing that exposes the cable to unnecessary heat or mechanical damage.

Maintain the separation and routing practices required by the equipment documentation to reduce interference and improve serviceability.

6. Verify System Operation

After installation, check that the cable is securely connected and that the cabinet has been returned to its intended configuration. Restore power according to the prescribed commissioning procedure.

Check for drive-system alarms, communication errors, and normal operation of the connected equipment. If faults remain, continue troubleshooting the complete control and drive interface rather than assuming the cable is the only possible cause.

Compatible System Components

The 6SN1161-1CA00-0CA1 should be treated as a system-specific cable rather than a universal industrial communication cable.

The table describes related system elements, not items included with the cable. Compatibility must be established from the complete equipment configuration.

Alternative Models and Replacement Considerations

The 6SN1161-1CA00-0CA1 is a specific cable variant for a 150 mm module width. A replacement should be chosen by exact part number and connection requirements.

These are related part numbers, not guaranteed direct replacements. Even when two variants share a module-width designation, differences in cable construction or suffix may matter.

Before ordering an alternative, confirm:

• The full part number of the original cable.
• The module width and physical arrangement.
• The required cable construction.
• The connection points and interface requirements.
• The routing distance and mechanical clearances.
• The condition and compatibility of the mating connectors.
• The relevant Siemens documentation for the installed drive system.

For legacy equipment, retaining the original cable specification is generally preferable unless the system documentation explicitly supports a different variant.

Key Advantages

Application-Specific Compatibility

The part number identifies a cable variant intended for a defined SIMODRIVE 611-D module-width configuration, helping maintenance teams select the appropriate connection component.

Support for Digital Drive Connectivity

The cable provides the physical drive bus connection required by compatible control and drive arrangements.

Compact Spare-Part Format

With a listed weight of 0.1 kg and supplied dimensions of 152 × 152 × 25 mm, the cable is convenient to handle and store as a maintenance spare.

Useful for Legacy System Maintenance

The part supports repair and continued operation of compatible SIMODRIVE 611-D installations without requiring a complete drive-system replacement solely because a cable is damaged or missing.

Straightforward Identification

The complete Siemens ordering number helps distinguish this variant from other drive bus cables designed for different module widths or constructions.

Technical FAQs

1. What is Siemens 6SN1161-1CA00-0CA1?

It is a SIMODRIVE 611-D drive bus cable specified as a round cable for a 150 mm module-width configuration.

2. What does the cable do?

It provides the designated physical connection for the drive bus interface in a compatible drive system. It is not intended to serve as a motor power cable.

3. Which system is it designed for?

It is designed for compatible Siemens SIMODRIVE 611-D digital drive configurations. The exact application should be confirmed against the installed system documentation.

4. What does the 150 mm designation mean?

It refers to the specified module width associated with the cable variant. It should not be interpreted as the cable’s physical length.

5. What are the dimensions and weight?

The supplied listing values are 152 × 152 × 25 mm and 0.1 kg. Confirm actual shipping dimensions separately if packaging measurements are required.

6. Can it replace a 100 mm module-width cable?

Not automatically. The 100 mm and 150 mm designations refer to different module-width configurations. Verify the original system layout and Siemens documentation before selecting a replacement.

7. Can a damaged drive bus cable cause communication faults?

Yes, a damaged cable or poor connection may interrupt the designated interface. However, similar symptoms can also result from connector damage, control hardware faults, configuration problems, or other system issues.

8. Is the 6SN1161-1CA00-0CA1 still a current production item?

It is listed as a discontinued spare part. Availability may therefore depend on remaining inventory, surplus stock, or refurbished spare-parts channels.

9. What should be checked before buying a used cable?

Confirm the complete part number, connector condition, visible cable damage, and suitability for the installed module arrangement. For critical equipment, request condition details and appropriate inspection or test information.

10. What should be checked before installation?

Verify the part number and connection arrangement, isolate the equipment safely, inspect the mating interfaces, route the cable correctly, and confirm normal system operation after installation.

Procurement and Maintenance Recommendations

When sourcing Siemens 6SN1161-1CA00-0CA1, begin by confirming the full ordering number on the existing cable or in the machine’s documentation. Do not rely solely on the general description “SIMODRIVE drive bus cable,” as the family includes different variants.

For new old stock or refurbished items, request photographs of the actual cable and connectors. Confirm the cable’s condition, the applicable return terms, and whether the item has been inspected. For critical CNC machinery, it is useful to keep an identified spare available when the original system is difficult to replace.

During maintenance, inspect cable routing, connectors, strain points, and surrounding cabinet conditions. Replace damaged cables with the specified variant and document the change in the machine’s maintenance records.

If communication faults continue after replacement, inspect the mating interfaces and relevant control hardware. A systematic diagnosis can prevent unnecessary replacement of otherwise functional components.

Because this cable belongs to a legacy drive platform, compatibility verification is particularly important when sourcing parts through surplus or third-party suppliers.

Conclusion

The Siemens 6SN1161-1CA00-0CA1 SIMODRIVE 611-D Drive Bus Cable is a specialized round cable for a 150 mm module-width configuration. It provides the designated physical drive bus connection in compatible industrial drive systems and is relevant to CNC machine maintenance, multi-axis installations, and legacy automation repairs.

Its compact size and 0.1 kg listed weight make it practical as a spare component, but the most important selection criteria are the complete ordering number, cable construction, and compatibility with the installed system. Verify these details before procurement and installation to support reliable drive-system operation.
