Product Overview

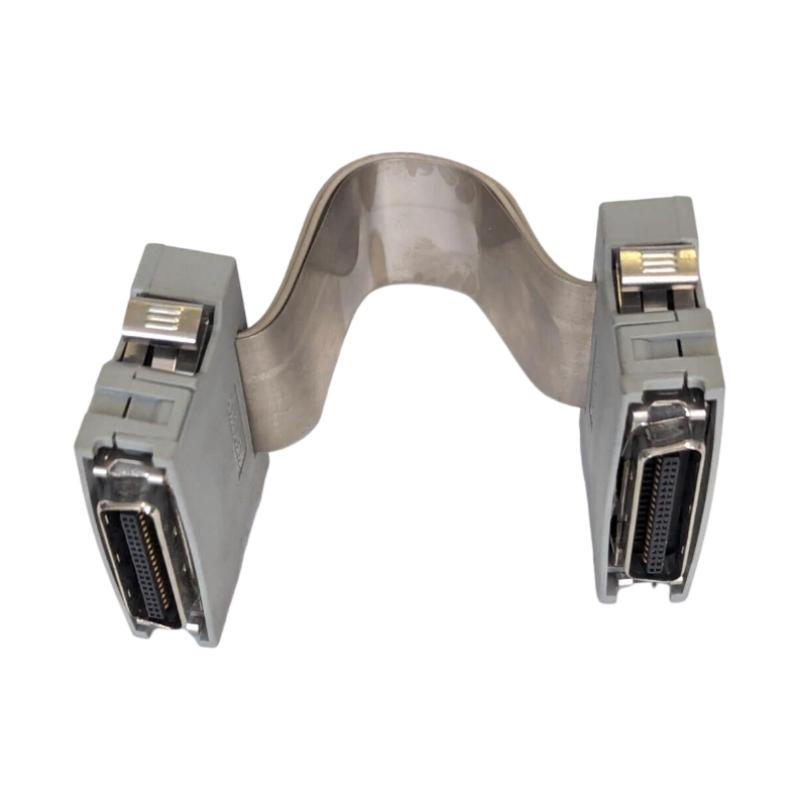

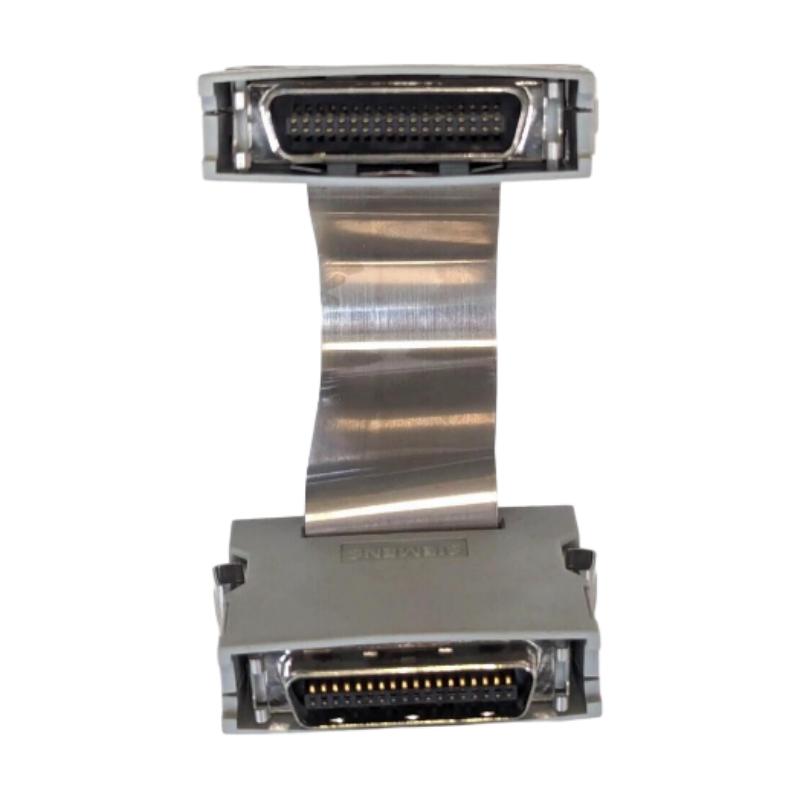

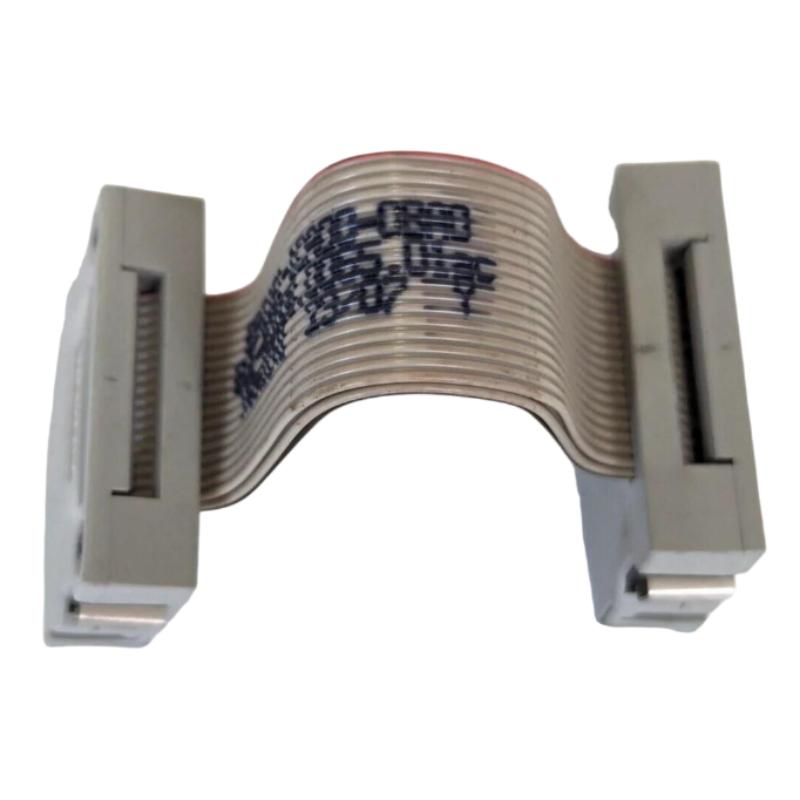

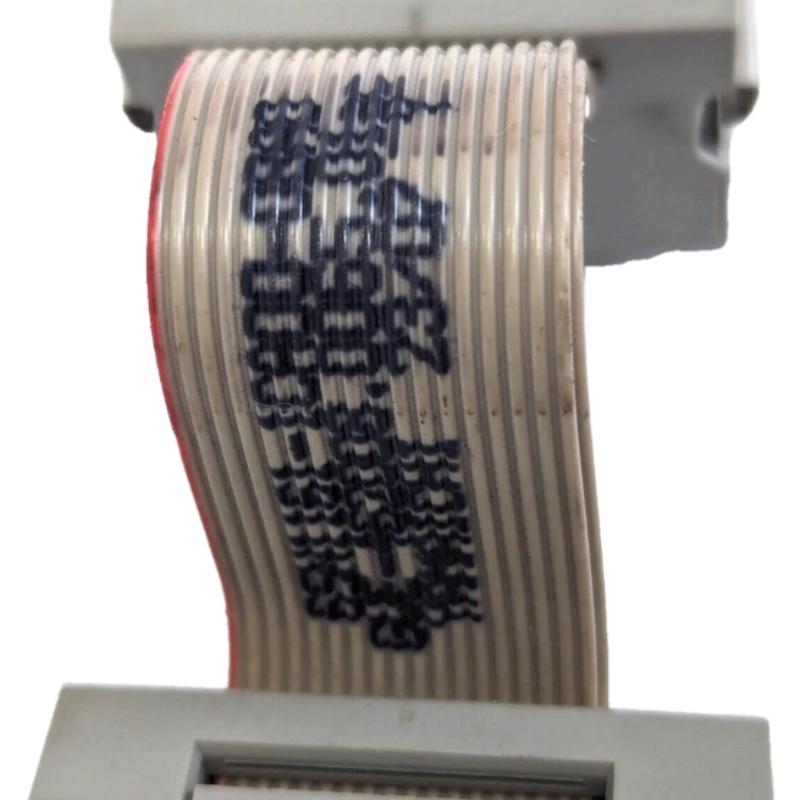

The Siemens 6SN1161-1CA00-0BA0 Drive Bus Cable is a connection cable designed for Siemens SIMODRIVE 611-D drive systems. It is used to establish the required bus connection between compatible drive-system modules, supporting communication and coordination within a modular industrial motion-control installation.

In industrial automation, drive systems often consist of multiple power and control components installed side by side. These components must be connected using the correct cables and interfaces to ensure reliable system operation. A drive bus cable provides a dedicated connection between compatible modules and helps maintain the intended system architecture.

The 6SN1161-1CA00-0BA0 is associated with the SIMODRIVE 611-D family and is identified as a drive bus cable for a module width of 100 mm. Its purpose is different from that of a motor power cable: it is intended for the drive system’s bus connection rather than for carrying the main electrical power delivered to a motor.

Correct cable selection is particularly important when maintaining legacy CNC equipment and industrial machine tools. Differences in module width, connector configuration, cable construction, and cable length can affect whether a replacement is suitable for an existing installation.

This model has been discontinued, making accurate identification important for spare-parts procurement. Before ordering, maintenance personnel should compare the complete part number with the original equipment documentation and inspect the installed cable and connectors.

Technical Specifications

Note: The dimensions and weight are the supplied listing values. Confirm the actual cable assembly and packaging dimensions before using these figures for logistics or installation planning.

Function and Working Principle

The Siemens 6SN1161-1CA00-0BA0 is a dedicated drive bus connection component. Its function is to provide the appropriate connection between compatible components in a SIMODRIVE 611-D installation.

1. Drive-System Bus Connection

Modular drive systems contain components that must exchange control-related information as part of the overall machine architecture. A compatible bus cable provides the physical connection required by the specified system design.

The exact role of the cable depends on the connected modules and the system configuration. It should be installed only in the connection position specified by the equipment documentation.

2. Support for Modular Drive Configurations

Industrial drive systems are often arranged according to the number of axes, module widths, and machine-control requirements. The correct cable configuration helps connect modules in the intended arrangement.

The 6SN1161-1CA00-0BA0 is identified for a 100 mm module-width application. This detail is important when selecting a replacement because cables designed for other module widths may have different physical configurations.

3. Reliable Signal Transmission

A properly specified and installed bus cable supports the signal connection required by the drive system. Cable damage, connector contamination, loose connections, or an incorrect replacement can interfere with reliable communication between connected components.

For this reason, the cable should be inspected during maintenance and replaced with a compatible part whenever its physical condition or connection integrity is questionable.

4. Difference Between Bus Cables and Motor Cables

A drive bus cable should not be confused with a motor power cable. Motor cables carry electrical power from the drive to the motor, while bus cables provide the connection specified for the drive system’s communication or control architecture.

Using the wrong cable type can lead to connection problems and may damage equipment if incompatible interfaces are connected. Always identify the cable by its full part number and intended application.

Role in Industrial Control Systems

The 6SN1161-1CA00-0BA0 can form part of a larger Siemens CNC and drive-control installation. Although it is a small component, the correct connection cable is important to the integrity of the overall system.

1. SIMODRIVE 611-D Integration

SIMODRIVE 611-D is a Siemens drive-system family used in industrial motion-control applications. Its modular architecture requires compatible connections between the relevant control and drive components.

The cable must be selected according to the installed modules and the original system design. The 100 mm module-width designation should be checked before procurement.

2. CNC Machine Tool Operation

Computer numerical control machines coordinate several axes to produce precise movements. The drive system, CNC control, feedback devices, and other machine components must operate as a coordinated system.

A suitable drive bus connection supports the intended hardware arrangement. The cable itself does not perform motion calculations or regulate motor speed; those functions are handled by the associated control and drive electronics.

3. Multi-Axis Drive Configurations

Machines with multiple controlled axes may contain several drive modules connected in a defined arrangement. Correct cable selection helps maintain the required physical connections between modules.

When modifying an existing system, engineers should confirm module positions, widths, cable routing, and the prescribed connection sequence before installing or replacing a cable.

4. Legacy Automation Maintenance

Older CNC machines may continue to operate reliably for many years, even when some original components are no longer manufactured. In these systems, correct spare-part identification is essential.

The 6SN1161-1CA00-0BA0 may be relevant to maintenance of existing SIMODRIVE 611-D installations. Procurement teams should verify the exact model and the condition of any surplus or refurbished cable before purchase.

Industrial Applications

The Siemens 6SN1161-1CA00-0BA0 is intended for compatible SIMODRIVE 611-D installations. Its practical applications depend on the machine architecture and the original cable specification.

1. CNC Machine Tools

CNC machine tools use coordinated drive axes to control cutting tools, tables, spindles, and other mechanical assemblies. The correct bus connection helps maintain the intended configuration of the drive system.

During maintenance, technicians should inspect the cable and connectors for damage, contamination, or signs of improper handling.

2. Milling and Turning Machines

Industrial milling and turning equipment may use multi-axis drive configurations to coordinate tool movement and workpiece positioning.

When replacing a drive bus cable, maintenance personnel should confirm the module width, part number, connector arrangement, and required cable routing rather than relying on appearance alone.

3. Industrial Production Machinery

Legacy production equipment may incorporate Siemens drive components as part of a larger automated machine. A compatible connection cable can be required when replacing modules, restoring a drive system, or carrying out cabinet maintenance.

The cable should be treated as a system-specific component, not as a generic signal cable.

4. Motion-Control Systems

Motion-control applications depend on the correct interaction between control hardware, drive modules, and feedback-related components. The 6SN1161-1CA00-0BA0 can support the required connection in a compatible SIMODRIVE 611-D arrangement.

The actual functions available to the machine depend on the installed control and drive hardware, configuration, and software.

5. Industrial Equipment Refurbishment

During the refurbishment of older machinery, cable assemblies may need to be replaced because of wear, damaged connectors, or changes made during previous repairs.

Using the exact cable specification helps reduce the risk of wiring errors and unnecessary modifications. Where the original cable is unavailable, an alternative should be approved through technical documentation rather than selected solely on physical similarity.

Installation and System Integration

Correct handling and installation help preserve connection reliability and reduce the risk of equipment faults.

1. Verify the Complete Part Number

Before installation, confirm that the replacement is Siemens 6SN1161-1CA00-0BA0. Pay attention to every character in the part number, since closely related cable assemblies may have different lengths, connector arrangements, or module-width applications.

Do not assume that a similar-looking cable is interchangeable.

2. Confirm Module Width and Connection Position

This model is associated with a 100 mm module-width application. Check the width of the relevant module and consult the system documentation to confirm the cable’s intended connection position.

If the drive configuration has been modified since the machine was commissioned, verify the actual hardware arrangement before ordering.

3. Inspect the Cable and Connectors

Before installation, inspect the cable jacket, connector housings, contacts, and strain-relief areas. Look for bent contacts, cracked housings, corrosion, damaged insulation, or evidence of excessive bending.

A cable with visible damage should not be installed in a critical drive system without appropriate evaluation.

4. Follow Safe Isolation Procedures

Before connecting or disconnecting components, follow the machine manufacturer’s isolation procedures. Switch off the equipment as required, isolate relevant power sources, and allow any prescribed discharge time for the drive system.

Only qualified personnel should carry out installation and maintenance work in accordance with the applicable safety requirements.

5. Route the Cable Correctly

Route the cable according to the original equipment design. Avoid excessive bending, pulling, crushing, or contact with sharp edges. Keep the cable away from sources of mechanical damage and follow the specified routing and separation requirements.

Do not alter the cable length or connector arrangement unless an approved engineering procedure explicitly permits it.

6. Verify the Connection After Installation

After installation, check that the connectors are fully seated and secured as intended. Confirm that the cable follows the correct route and does not interfere with cabinet doors, moving components, or cooling arrangements.

Once the machine is returned to service, verify the system’s normal startup and drive operation. If a fault occurs, check the cable connection alongside the relevant module status and system diagnostics.

Compatible System Components

The 6SN1161-1CA00-0BA0 should be used with the equipment and module arrangement specified for the SIMODRIVE 611-D system.

The table identifies related system elements rather than a list of included accessories. The cable should not be assumed to include other drive components or connection hardware.

Alternative Models and Replacement Considerations

Because the 6SN1161-1CA00-0BA0 is discontinued, replacement planning should focus on exact technical compatibility.

Before selecting an alternative, compare the following:

• Complete Siemens order number.
• Intended SIMODRIVE system.
• Module width and physical connection position.
• Cable type and construction.
• Connector type and pin configuration.
• Required cable length and routing.
• Environmental and mechanical requirements.
• Availability of supporting technical documentation.

A cable with a different suffix should not be treated as interchangeable unless the manufacturer documentation or a qualified engineering assessment confirms compatibility.

Key Advantages

System-Specific Connection

The cable is designed for a defined Siemens SIMODRIVE 611-D drive-system application, helping maintain the intended module connection when the correct configuration is used.

Compact Cable Assembly

Its small physical form makes it suitable for installation within compact industrial drive cabinets and modular equipment arrangements.

Support for Legacy Equipment

The part number can be useful when maintaining existing machines that depend on SIMODRIVE 611-D hardware.

Simplified Spare-Part Identification

Using the complete model number helps purchasing and maintenance teams distinguish the required cable from related cable assemblies.

Reduced Modification Risk

Selecting the correct original cable can reduce the need for unverified connector changes, cable alterations, or other modifications to the drive system.

Practical Maintenance Replacement

A verified replacement cable can help restore the original connection arrangement when the installed cable is damaged or unsuitable for continued use.

Technical FAQs

1. What is the Siemens 6SN1161-1CA00-0BA0?

It is a Siemens SIMODRIVE 611-D drive bus cable designed for a specified module connection in the drive system.

2. What is the purpose of this cable?

It provides the physical bus connection required by compatible drive-system modules. It is not a general-purpose motor power cable.

3. Which module width is associated with this model?

The 6SN1161-1CA00-0BA0 is identified for a module width of 100 mm. Verify the original system documentation before selecting a replacement.

4. Can it be used with any Siemens drive?

No. It should be used only where the intended system, module arrangement, and connection requirements match its specification. Siemens cable assemblies may differ in length, connector configuration, and intended application.

5. Is this product still manufactured?

The model is listed as discontinued. Availability may depend on remaining original stock, surplus inventory, or specialist industrial spare-parts suppliers.

6. How should I identify a replacement cable?

Check the complete order number, the module width, the connector configuration, and the connection position in the system. Compare the original cable with the replacement before installation.

7. What should be checked when buying a used cable?

Inspect the cable jacket, connectors, contacts, and strain-relief points. Request clear product photographs and confirm the condition, test status, and return terms with the supplier.

8. Can a cable with a similar part number be substituted?

Not automatically. A similar model may be designed for a different module width or connection arrangement. Confirm compatibility through technical documentation before substitution.

9. Does the cable control motor speed?

No. The cable provides a physical connection within the drive system. Motor-control functions are performed by the associated control and drive electronics.

10. Why is the exact cable part number important?

The complete part number identifies the intended cable configuration. Using the correct cable helps avoid connection mismatches and reduces the risk of unnecessary modifications to legacy drive equipment.

Procurement and Maintenance Recommendations

When purchasing the Siemens 6SN1161-1CA00-0BA0, begin by checking the original machine documentation and the identification markings on the existing cable. Confirm the module width, connector arrangement, and intended connection position.

Because the product is discontinued, buyers may encounter unused original stock, surplus parts, or refurbished items. Request clear photographs, confirm the cable’s condition, and ask about testing and return policies. Do not assume that every listing with a similar description contains the same cable configuration.

For maintenance, inspect drive bus cables during scheduled equipment checks and whenever a drive-system fault suggests a possible connection issue. Look for physical damage, loose connectors, contamination, or signs of improper routing.

When replacing the cable, use the prescribed installation procedure and avoid changing the cable length or connector arrangement without technical approval. Record the replacement part number and maintenance date to support future troubleshooting.

For machine refurbishment projects, verify the cable requirements alongside the connected modules and the overall drive-system configuration. This approach helps preserve compatibility and reduce avoidable downtime.

Conclusion

The Siemens 6SN1161-1CA00-0BA0 Drive Bus Cable is a system-specific connection component for Siemens SIMODRIVE 611-D installations, associated with a 100 mm module-width application. It supports the intended physical connection between compatible drive-system modules and is relevant to maintenance of legacy CNC and industrial motion-control equipment.

Since this model has been discontinued, accurate part-number identification and compatibility checks are essential before purchasing a replacement. Confirm the connector arrangement, module width, and original system requirements to help ensure that the selected cable is suitable for the intended installation.
