Product Overview

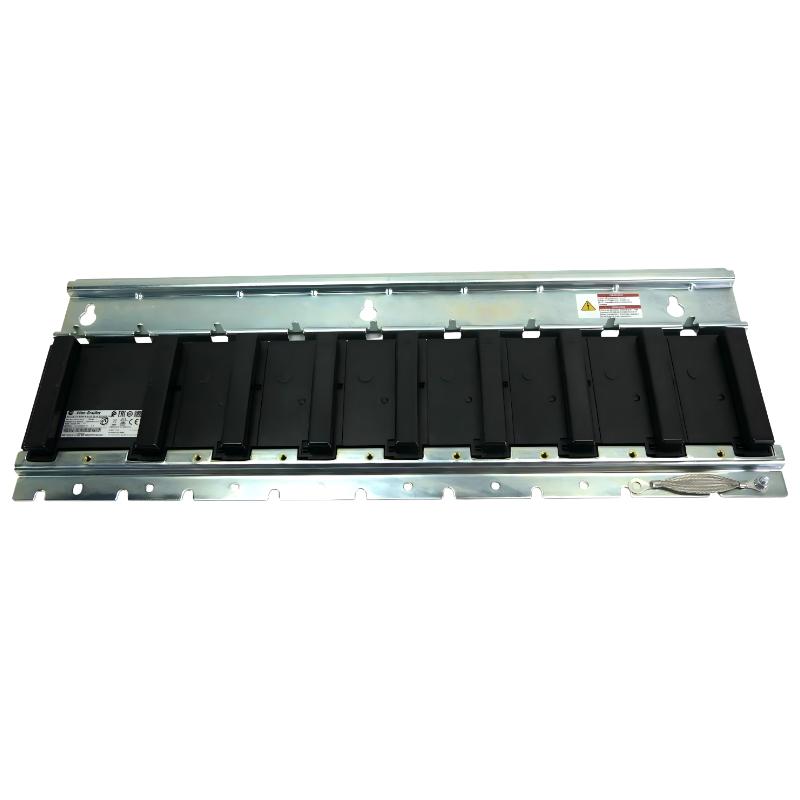

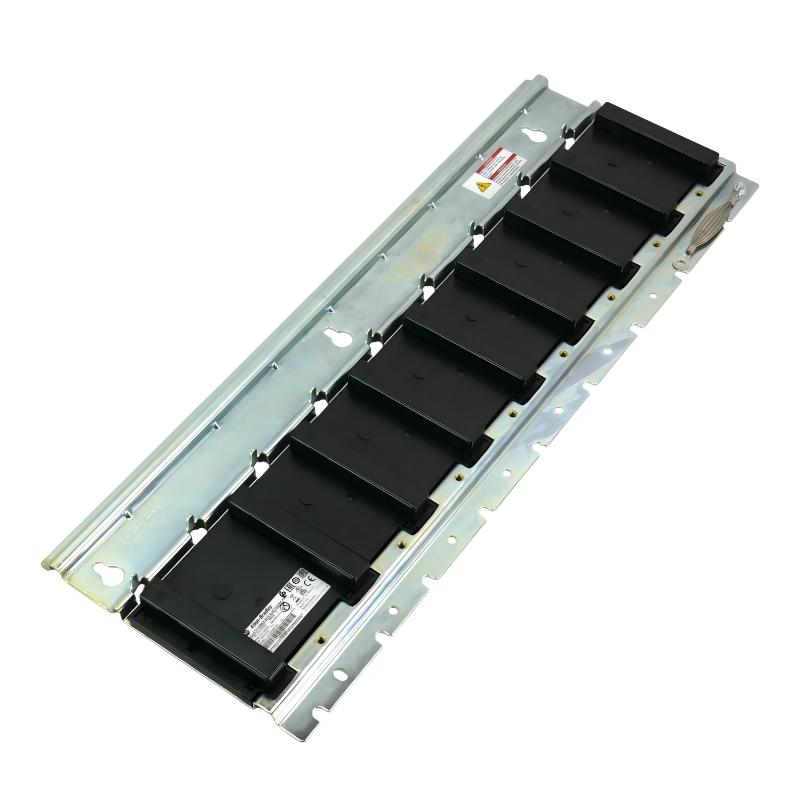

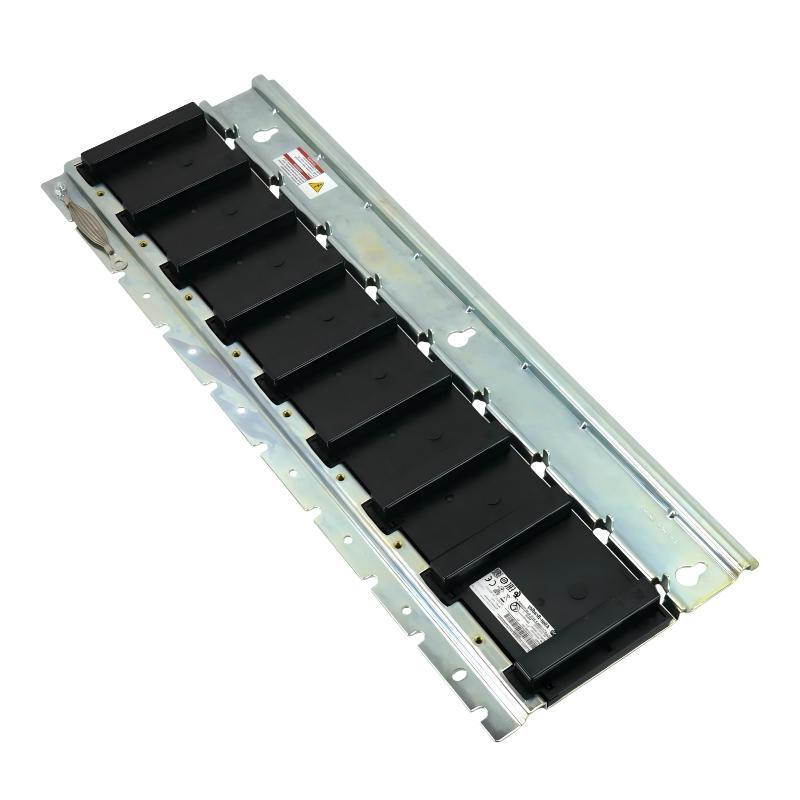

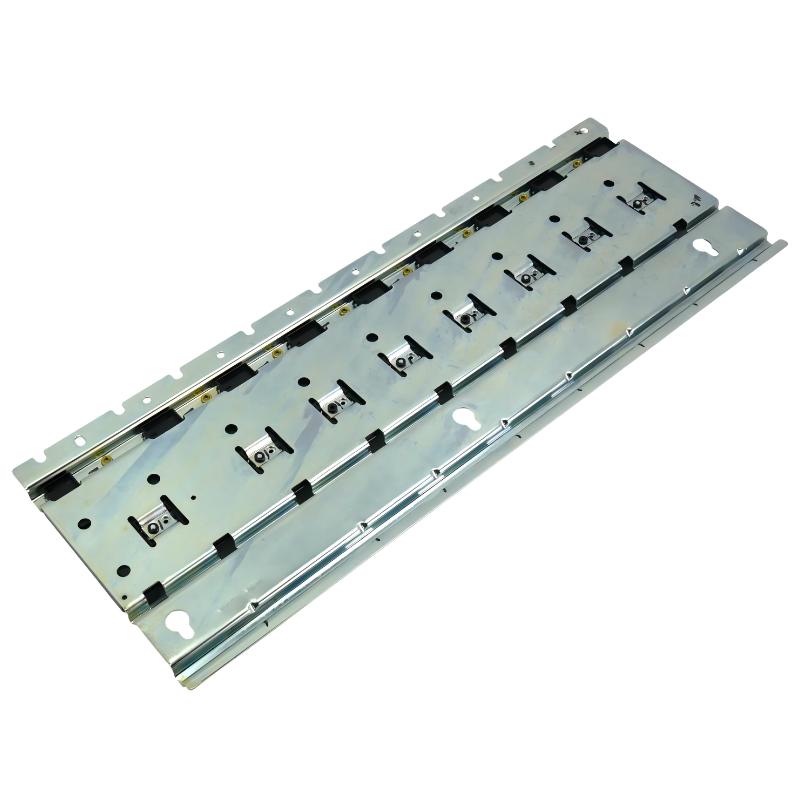

The 2094-PRS8 is an 8-axis ultra-thin power rail used in the Allen-Bradley Kinetix 6000 servo drive system. It provides the mechanical mounting structure and internal DC bus/backplane connections for multiple servo modules in a compact multi-axis motion control architecture.
It is designed for high-density servo applications, allowing up to 8 axes to be installed in a single integrated rail system.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Allen-Bradley |
| Series | Kinetix 6000 |
| Model | 2094-PRS8 |
| Product Type | Ultra-Thin Power Rail |
| Axis Capacity | Up to 8 axes |
| Function | Mounting + DC bus distribution + signal backplane |
| Compatible Modules | IAM, AM, shunt modules, slot fillers |
| System Voltage | 230 / 460 VAC drive systems |
| Installation Type | Panel-mounted rail system |
| Dimensions | 632.5 × 25.4 × 231 mm |
| Weight | 4.43 kg |
Function and Working Principle
The 2094-PRS8 acts as the central structural and electrical backbone of a Kinetix 6000 multi-axis drive system.
Its operation includes:
- Mounting and aligning servo drive modules in sequence
- Distributing DC bus power across all connected modules
- Carrying control and communication signals between modules
- Supporting synchronized multi-axis motion control
- Enabling expansion through additional axis or shunt modules
It does not execute control logic itself; it supports motion system hardware integration.
Key Features
- Supports up to 8 servo axes on one rail
- Compact ultra-thin mechanical design
- Modular architecture for motion systems
- Integrated power and signal backplane
- Scalable axis expansion capability
- Designed for high-performance motion control
Industrial Applications
- Packaging machinery
- Robotics and automated assembly systems
- CNC and machining equipment
- Printing and converting machines
- High-speed production lines
- Material handling systems
Role in Industrial Systems
This module serves as the core platform for multi-axis servo integration, enabling:
- Centralized servo drive installation
- Shared DC bus power distribution
- Reduced wiring complexity
- Coordinated multi-axis motion control
Installation Notes
- Installed inside industrial control cabinets
- Requires correct IAM/AM/shunt module arrangement
- Unused slots must be filled with slot fillers
- Proper grounding and torque specifications are required
- Must follow Kinetix 6000 system design rules strictly
Compatible Equipment
- Kinetix 6000 Integrated Axis Modules (IAM)
- Kinetix 6000 Axis Modules (AM)
- Shunt modules
- Slot filler modules
- Rockwell motion control systems
Advantages
- High-density 8-axis motion architecture
- Compact cabinet footprint
- Reduced wiring and installation complexity
- Modular scalability
- Stable high-speed servo performance
Limitations
- Legacy system (not part of current-generation motion platforms)
- Only compatible with Kinetix 6000 architecture
- Requires strict configuration rules
- Replaced by newer Kinetix families in modern systems
Conclusion
The 2094-PRS8 Kinetix 6000 Ultra-Thin Power Rail is a high-density motion control backbone designed for 8-axis servo systems.
It provides mechanical structure and electrical distribution for coordinated multi-axis automation in legacy industrial motion control applications.
