Siemens 1FK7101-2AC71-1RG1 Servo Motor: Technical Specifications, Product Overview, Applications, and Related Models

1. Product Introduction

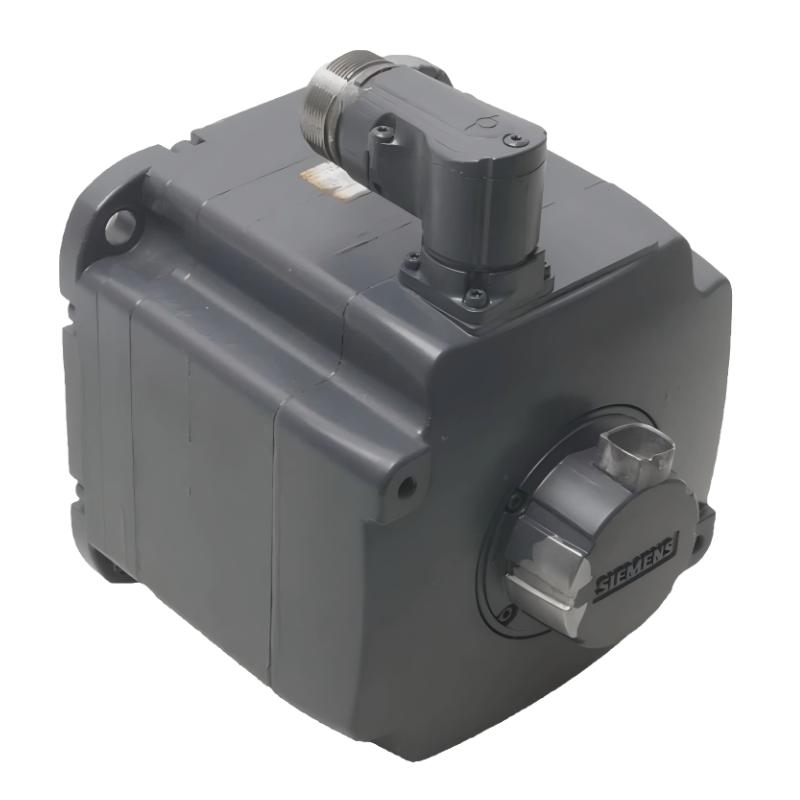

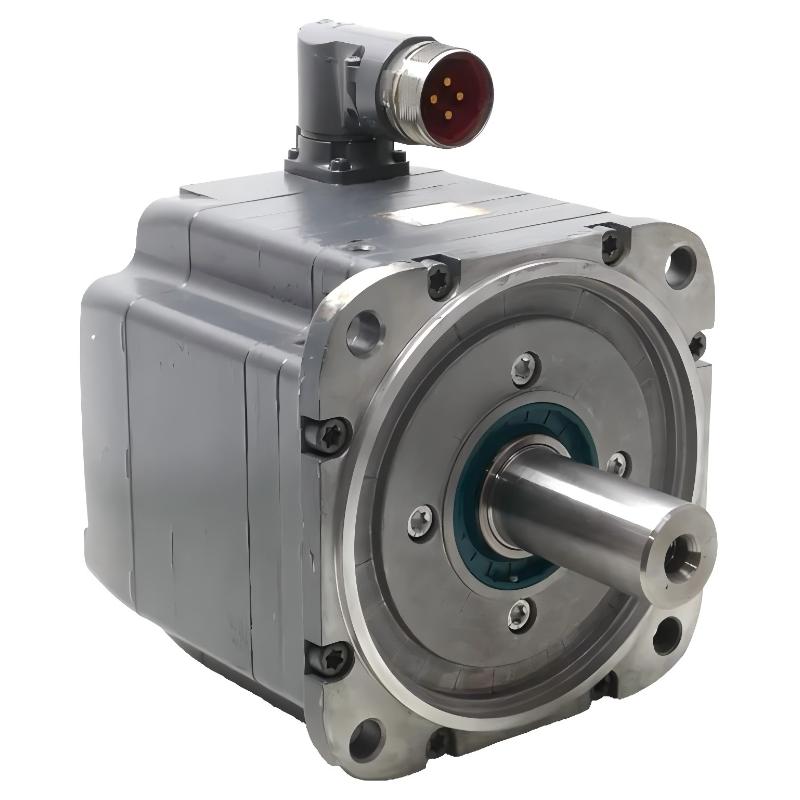

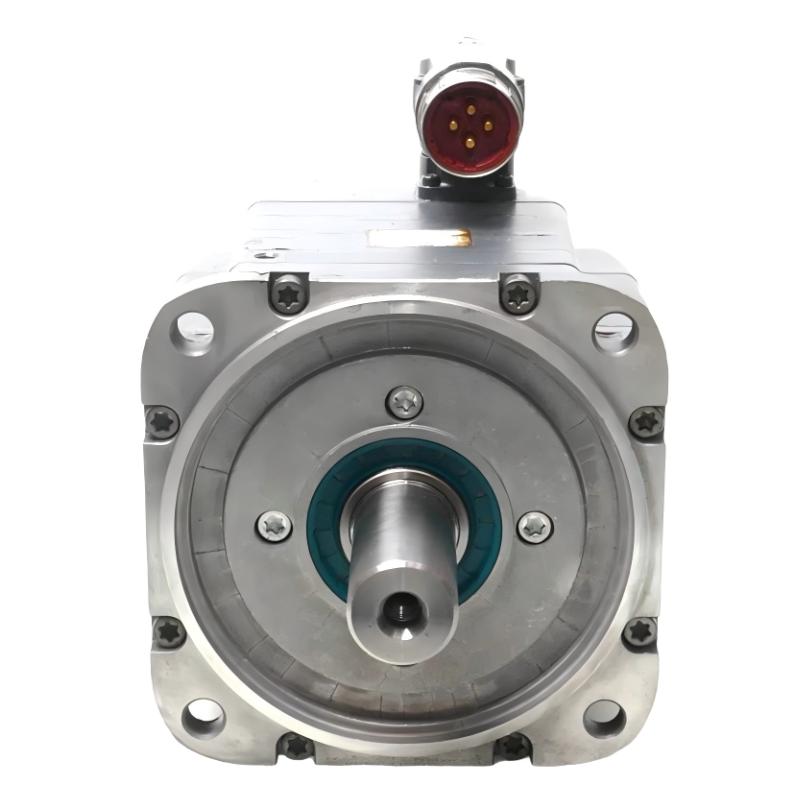

The Siemens 1FK7101-2AC71-1RG1 is a model in the SIMOTICS S family of industrial synchronous servo motors. The 1FK7 series is designed for precision motion-control applications where controlled speed, reliable torque delivery, and repeatable positioning are important to machine performance.

Servo motors are commonly used in automated machinery that must move a mechanical axis to a defined position, follow a programmed speed profile, or coordinate its movement with other machine components. When paired with a compatible servo drive, a motor in this family can support controlled acceleration, deceleration, and position feedback.

The 1FK7101 designation identifies a motor within the 1FK7 range, while the remainder of the order code specifies its configuration. Differences in the final characters may indicate changes to the encoder, shaft arrangement, brake equipment, connectors, or other technical details.

For this particular model, the exact suffix matters. Specifications for a similar 1FK7101 motor should not automatically be applied to the 1FK7101-2AC71-1RG1 configuration without checking the nameplate and matching mechanical drawing.

This description therefore separates the general characteristics of the motor family from details that should be verified for the complete order code. Where a precise dimension or variant-specific value cannot be established confidently, it is marked for confirmation rather than presented as a guaranteed specification.

2. Brand and Product Series

About the SIMOTICS S 1FK7 series

The SIMOTICS S family includes motors designed for controlled industrial motion. In a typical servo system, the drive regulates electrical current to control motor torque and speed, while the feedback device supplies information used to monitor the motor’s movement.

The 1FK7 range covers different motor sizes and configurations for machine tools, automated production equipment, packaging machinery, and positioning systems. Selection depends on the required torque, operating speed, load inertia, feedback interface, and installation requirements.

A complete model number is particularly important when replacing an existing motor. Two motors can share a similar frame and performance rating while differing in shaft dimensions, encoder compatibility, brake configuration, or connector arrangement.

3.5 Confirmed configuration details

The 1RG1 configuration is particularly important because it distinguishes this motor from related variants with a holding brake or a different feedback system.

The multi-turn absolute encoder provides position information across multiple revolutions, which can be useful in positioning systems where the controller needs to distinguish the motor’s position beyond a single shaft revolution. The DRIVE-CLiQ interface must be supported by the selected drive.

4. Product Applications

4.1 CNC machines and machine tools

The motor can be used in machine-tool axes where accurate movement, repeatable positioning, and controlled acceleration are required.

Typical applications include:

• Feed-axis drives.

• Positioning carriages.

• Auxiliary machine axes.

• Automated tool-positioning mechanisms.

• Coordinated motion between several machine axes.

The encoder’s multi-turn capability can be useful in systems that need position information across several revolutions. The actual positioning accuracy still depends on the complete mechanical and control system, including transmission backlash, machine stiffness, encoder processing, and drive tuning.

4.2 Packaging and production machinery

Packaging equipment often needs repeated movements that follow a programmed sequence. Servo motors are commonly used to coordinate feeding, indexing, cutting, and transfer mechanisms.

Potential applications include material feeding, product positioning, indexing tables, and synchronized movement of packaging components.

For high-speed production, the motor must be sized for the full cycle. Frequent starts and stops can create peak torque demands well above the continuous load, so acceleration, deceleration, and thermal duty should be calculated before final selection.

4.3 Automated assembly systems

Automated assembly equipment may use servo motors to position parts, move fixtures, and coordinate different stages of a production sequence.

The 1FK7101-2AC71-1RG1 can be considered for positioning axes when its torque, speed, feedback interface, and mounting arrangement match the machine design.

Where the application involves pressing, clamping, or force-sensitive operations, the motor’s torque rating alone is not enough to determine the permitted process force. The transmission, mechanical structure, and control method must also be evaluated.

4.4 Material handling and transfer equipment

Servo motors can drive handling systems that need controlled movement and repeatable stopping positions.

Typical examples include transfer units, sorting mechanisms, feeding stations, and positioning platforms. The multi-turn encoder may be useful where the control system tracks position over multiple motor revolutions.

For vertical axes or suspended loads, the absence of an integrated holding brake must be considered. An appropriate mechanical holding arrangement may be required to prevent movement when the drive is disabled.

4.5 Printing and converting machinery

Printing, paper processing, and converting equipment often needs coordinated material feeding and accurate movement between processing stages.

Servo motors may be used for feed rollers, cutting mechanisms, positioning axes, and synchronized movement. The selected feedback system must be compatible with the drive and the machine’s control architecture.

4.6 Automated manufacturing lines

The motor can be considered for an axis within a larger automated production system. A compatible drive and controller can coordinate its movement with other servo axes, conveyors, feeders, and handling equipment.

The main selection considerations are the required continuous and peak torque, speed range, load inertia, feedback interface, installation space, and operating duty cycle.

4.7 Replacement and maintenance applications

When replacing an existing motor, the full order code should be matched rather than selecting a motor based only on frame size or power rating.

For this model, the multi-turn encoder, DRIVE-CLiQ interface, smooth shaft, absence of a holding brake, IP65 rating, and 23.001 kg net weight are important identification details.

5. Main Product Advantages

5.1 Multi-turn absolute position feedback

The AM20DQI encoder provides 20-bit single-turn and 12-bit multi-turn feedback through DRIVE-CLiQ. This allows the compatible drive to receive position information covering multiple revolutions.

This can be valuable in positioning systems where the controller needs to track movement over a wider mechanical travel range. Actual machine accuracy depends on the complete axis, not simply the encoder’s resolution.

5.2 Strong torque capability

The motor has a rated torque of 20.5 Nm at a 100 K temperature rise and a static torque rating of 27 Nm at a 100 K temperature rise.

These figures make it worth evaluating for industrial motion axes that require substantial torque at a nominal speed of 2,000 rpm. The final selection should account for continuous torque, short-duration peak torque, acceleration requirements, and thermal loading.

5.3 High maximum mechanical speed

The motor’s maximum permissible mechanical speed is 5,000 rpm. The permitted speed of the complete motor-drive system may be lower; for the corresponding drive configuration, the inverter speed limit is listed at 4,000 rpm.

The applicable limit must be confirmed for the installed drive and operating conditions. The motor should not be operated at its mechanical limit merely because that value appears in its technical data.

5.4 Natural cooling

Natural cooling can simplify installation because the motor does not require a separate forced-air cooling unit as part of the specified arrangement.

The motor still needs adequate heat dissipation. Restricted airflow, high ambient temperature, or sustained high torque may affect the available continuous output.

5.5 Industrial protection rating

The IP65 rating provides dust-tight protection and protection against water jets under the applicable test conditions.

This is useful in many industrial environments, but it does not mean that the motor can be immersed in water or exposed to every type of washdown process. Connectors, cables, and installation details must also maintain the intended level of protection.

5.6 Flexible mounting arrangements

The motor supports the IM B5 mounting design, with IM V1 and IM V3 arrangements within the specified family.

This provides options for integrating the motor into different machine layouts. The precise flange dimensions, shaft geometry, and connector clearance must still be confirmed using the matching drawing.

5.7 No integrated holding brake

The absence of a holding brake can be appropriate for axes that are mechanically supported and do not need motor-based holding when power is removed.

For vertical axes or loads that may move under gravity, an external holding device or a suitable brake-equipped motor configuration may be necessary. The energized torque of the servo motor should not be treated as a substitute for a safety-rated holding arrangement.

6. Five Related Models in the Same Series

The following models are relevant comparison candidates within the 1FK7101-2AC71 family. The suffixes distinguish important features, particularly encoder type, shaft configuration, brake equipment, and protection details.

The torque and speed figures in this table represent the common 1FK7101-2AC71 motor family. Confirm each complete order code and its individual technical data before selecting a replacement.

How to choose among the related models

• 1FK7101-2AC71-1RG1: Suitable as the reference configuration when a multi-turn absolute encoder is needed and an integrated holding brake is not required.

• 1FK7101-2AC71-1RH1: Worth considering when the application requires a holding brake while retaining the related multi-turn feedback arrangement.

• 1FK7101-2AC71-1UG0: A possible comparison for a system designed around resolver feedback, with a different protection configuration.

• 1FK7101-2AC71-1PH1: An alternative where resolver feedback and a holding brake are required.

• 1FK7101-2AC71-1CH2: A candidate for applications requiring a 24-bit single-turn plus 12-bit multi-turn encoder and a holding brake.

The encoder types are not interchangeable by default. The drive must support the feedback interface, and a brake-equipped motor must be evaluated against the machine’s load-holding requirements.

7. Five Other Siemens Servo Motor Models to Consider

These additional models cover other configurations and frame sizes in the broader servo-motor range. They may be useful for comparing installation requirements, torque capacity, and control-system compatibility.

These models are comparison candidates rather than confirmed direct replacements. In particular, changing the frame size or motor family may require changes to the mounting arrangement, coupling, drive configuration, or machine control settings.

What to compare before choosing an alternative

8. Installation and Commissioning

8.1 Mechanical installation

Mount the motor on a rigid surface and ensure that the motor shaft is aligned correctly with the driven mechanism. Misalignment can cause vibration, bearing wear, and excessive mechanical loading.

Before installation, verify the flange dimensions, shaft diameter, shaft extension, and overall length. Allow enough room for the rotatable power connector and the associated cable bend radius.

8.2 Electrical connection

Use the appropriate power cable and DRIVE-CLiQ feedback connection for the specified configuration. Grounding, shielding, connector fit, and cable routing should follow the machine’s electrical design.

Because the motor uses an absolute encoder, the feedback interface must be compatible with the selected drive. A motor with a resolver or incremental encoder should not be substituted without confirming the electrical and control-system compatibility.

8.3 Drive configuration

Configure the servo drive with the correct motor and encoder data. Motor identification, current limits, feedback settings, and control parameters must correspond to the installed variant.

During commissioning, check the direction of rotation, feedback operation, current behavior, acceleration response, and positioning performance. Confirm that the drive and motor operate within their permitted limits before applying the full machine load.

8.4 Load and safety considerations

The reference motor has no integrated holding brake. Vertical axes, suspended loads, and mechanisms that could move under gravity require particular attention.

Where necessary, use an appropriate external load-holding or safety arrangement. Do not rely on energized motor torque alone to keep a load stationary after power loss.

8.5 Thermal management

Natural cooling depends on the installation allowing heat to dissipate. Avoid blocking the motor housing or placing it in an enclosure that prevents adequate heat transfer.

For demanding applications, calculate the continuous and peak torque requirements over the complete duty cycle. Rated power alone does not establish whether the motor can operate continuously under a particular load.

9. Maintenance Recommendations

Routine inspection can help identify developing problems before they lead to an unexpected production stoppage. Repeated drive faults should be investigated rather than simply reset.

Always follow the machine’s isolation procedures before handling connectors or carrying out mechanical work.

10. Final Summary

The Siemens 1FK7101-2AC71-1RG1 is a SIMOTICS S 1FK7-CT synchronous servo motor with a 600 V DC-link class, a rated speed of 2,000 rpm, and an optimum operating power of 4.3 kW.

Its principal ratings include 20.5 Nm rated torque, 27 Nm static torque at a 100 K temperature rise, a maximum mechanical speed of 5,000 rpm, and a maximum torque rating of 80 Nm under the specified operating conditions.

The motor uses an AM20DQI absolute encoder with 20-bit single-turn and 12-bit multi-turn feedback through DRIVE-CLiQ. It has a smooth shaft, natural cooling, IP65 protection, no integrated holding brake, a 100 mm shaft height, and a net weight of 23.001 kg.

Its main strengths are its multi-turn position feedback, torque capability, industrial mounting options, and suitability for controlled motion in automated machinery. It can be considered for machine tools, packaging systems, assembly equipment, material handling, and other industrial positioning applications where the motor’s electrical and mechanical characteristics meet the requirements.

For replacement work, the complete model number should be checked carefully. Encoder compatibility, brake requirements, shaft geometry, mounting dimensions, and the installed drive’s permitted operating range are all essential to selecting the correct motor.
