Siemens 1FK7101-5AF71-1AG0 Servo Motor: Technical Specifications, Product Overview, Applications and Advantages

1. Product Overview

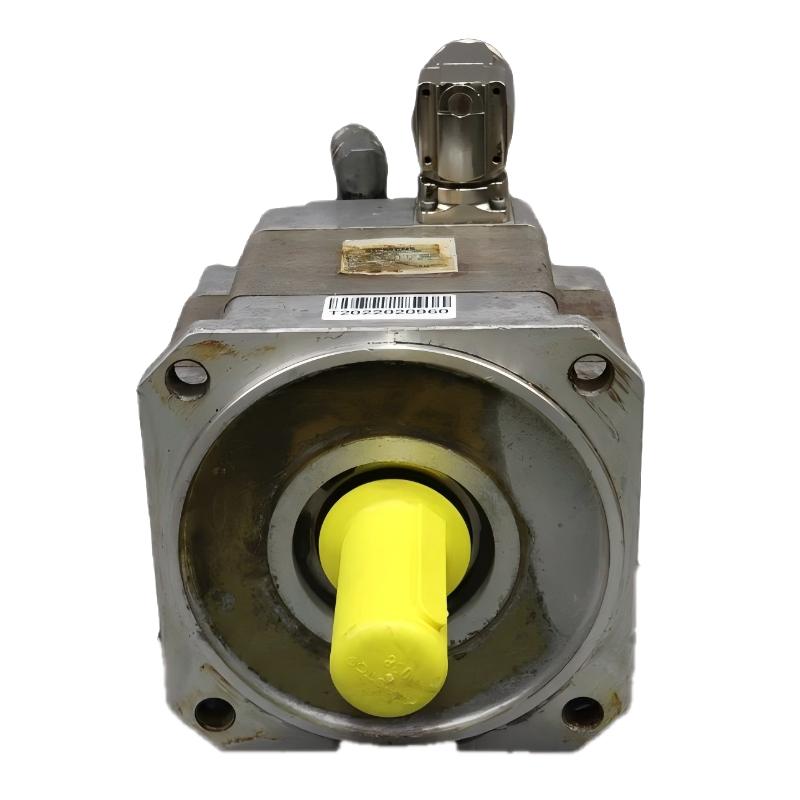

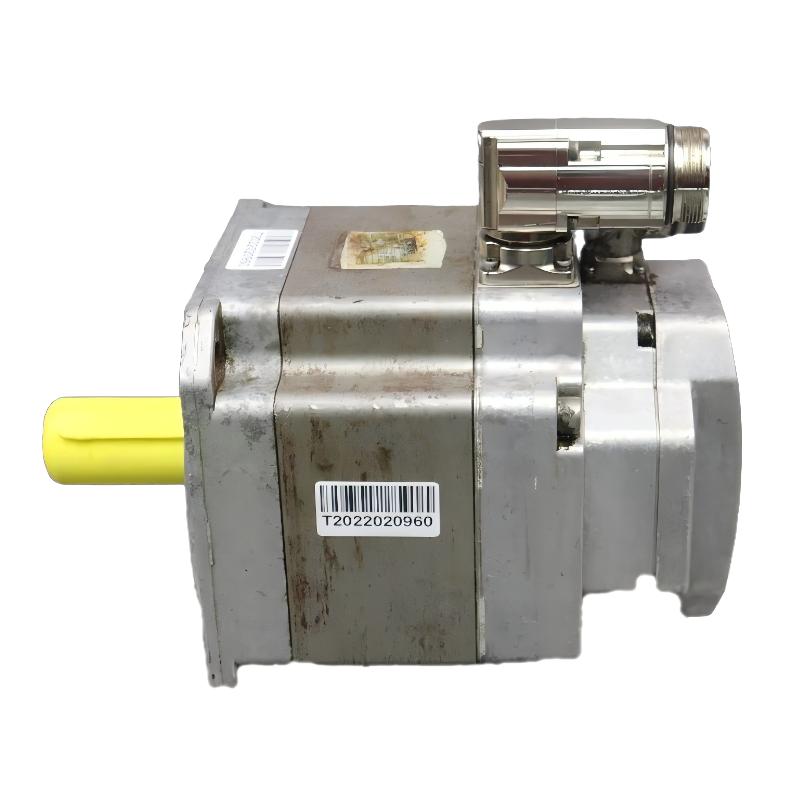

The Siemens 1FK7101-5AF71-1AG0 is a servo motor model within the SIMOTICS S 1FK7 product family. It is intended for industrial motion-control systems where reliable torque delivery, controlled acceleration, accurate speed regulation and repeatable positioning are important.

Servo motors are commonly used in automated machinery that must follow a defined movement profile rather than run continuously at a fixed speed. Typical tasks include moving machine axes, positioning workpieces, operating feeding mechanisms and synchronizing motion between multiple machine components.

The 1FK7 family includes motors with different winding specifications, feedback systems, shaft arrangements, mounting options and brake configurations. The complete order number is therefore essential when selecting a replacement or designing a new installation.

For the specific 1FK7101-5AF71-1AG0, the suffix must be matched to the correct motor data before confirming exact electrical ratings, encoder type, brake arrangement, dimensions or weight. The information below provides a structured product overview, together with the key parameters that should be verified against the exact nameplate and mechanical drawing.

2. Brand and Product Series

About the SIMOTICS S 1FK7 Series

The SIMOTICS S 1FK7 series is designed for industrial motion-control applications. Motors in this family are used in systems that require controlled movement, repeatability and integration with a servo drive.

In a typical installation, the controller sends motion commands to the drive. The drive regulates the motor’s electrical current and uses the applicable feedback system to control the motor’s speed and position. The result is a coordinated motion system suited to production equipment, machine tools and automated handling applications.

When selecting a 1FK7 motor, it is important to distinguish between models that share a similar frame size and models that have the same complete electrical and mechanical configuration. Differences in winding, feedback, shaft design and brake options can affect the motor’s performance and compatibility.

3. Detailed Technical Specifications

The 1FK7101-5AF71-1AG0 is a compact synchronous servo motor with a specified optimum operating power of 4.85 kW, an optimum speed of 3,000 rpm and a static torque rating of 27 Nm at a 100 K temperature rise. It uses an incremental encoder, a smooth shaft and natural cooling, and it does not have an integrated holding brake.

3.1 Power and Torque

The motor’s optimum operating power is 4.85 kW at 3,000 rpm. This is a useful reference for preliminary motor selection, but the motor’s actual output depends on the drive, load, speed, duty cycle and thermal conditions.

The rated torque of 15.5 Nm represents the specified running torque at the stated temperature-rise condition. The static torque of 27 Nm is a separate rating and should not be treated as the continuous running torque available at every speed.

The maximum torque rating of 80 Nm is a limiting value for the applicable operating conditions. It is not a guarantee that the motor can deliver this torque continuously. The servo drive’s current capability, the operating speed and the duration of peak loading all affect the usable torque.

3.2 Encoder and Feedback

This model uses an incremental SIN/COS encoder with a 1 Vpp signal and a resolution of 2,048 pulses per revolution.

An incremental encoder provides relative movement information. Depending on the controller and machine setup, the system may need a reference or homing procedure to establish a known machine position after startup.

When replacing this motor, make sure the drive supports the encoder signal type and resolution. A motor with an absolute encoder or resolver may look similar mechanically but require different feedback connections and drive settings.

3.3 Cooling and Protection

The motor uses natural cooling, so a separate liquid-cooling circuit is not part of its standard cooling arrangement. Adequate heat dissipation is still necessary, particularly in enclosed machinery or applications with frequent high-torque movements.

The IP64 rating provides protection against dust ingress at the specified level and water splashing. It does not mean that the motor is suitable for immersion or high-pressure washdown. The complete installation must be appropriate for the surrounding environment.

3.4 Dimensions and Weight

The motor’s approximate net weight is 20.87 kg, and its shaft height is 100 mm. These values are useful for initial machine-layout and handling calculations.

The flange envelope and frame reference dimensions listed above are preliminary values, not a complete mechanical specification. Before installation, verify the mounting holes, shaft diameter, shaft extension, coupling clearance, connector orientation and overall length against the drawing for the exact order number.

4. Product Introduction

The Siemens 1FK7101-5AF71-1AG0 is a compact industrial servo motor designed for machinery that needs controlled rotation and repeatable movement. It is intended to work with a compatible servo drive rather than operate as a standalone fixed-speed motor.

In a typical installation, the machine controller sends a position, speed or torque command to the servo drive. The drive regulates the electrical current supplied to the motor, while the encoder provides feedback about shaft movement. This closed-loop arrangement allows the system to adjust motor operation according to the required motion profile.

The motor’s 4.85 kW optimum power rating and 3,000 rpm operating speed make it a candidate for medium-duty industrial positioning and motion applications. Its 27 Nm static torque rating at a 100 K temperature rise is relevant when assessing standstill torque requirements, while its rated running torque must be used for continuous-duty calculations.

The incremental encoder is an important part of the model’s configuration. It provides relative position information through a SIN/COS signal. The control system interprets that feedback to regulate motor movement. For machines that need a defined reference position after startup, the controller may perform a homing operation.

The motor has a smooth shaft rather than a keyed shaft. The coupling or transmission must therefore be suitable for the specified shaft dimensions and connection method. A correctly selected coupling helps transfer torque while limiting unwanted radial and axial forces on the motor bearings.

The motor uses natural cooling, which can simplify the machine’s cooling arrangement. However, its installation must allow heat to dissipate. High ambient temperatures, restricted airflow and frequent peak-torque movements can all affect the permitted operating duty.

The 1AG0 configuration does not include an integrated holding brake. Where a machine axis must remain stationary after the drive is disabled, the machine designer must determine whether a separate brake or another mechanical restraint is needed.

5. Product Applications

5.1 CNC Machine Tools

The motor can be considered for suitable machine-tool feed axes, positioning mechanisms and auxiliary motion systems. Servo control supports controlled acceleration, deceleration and repeatable movement.

For a CNC application, the motor should be selected according to axis inertia, cutting forces, required positioning accuracy, speed range and the transmission ratio. Continuous torque and peak acceleration torque must both be checked.

5.2 Packaging Machinery

Packaging machines commonly use servo motors for material feeding, indexing, cutting, sealing and product transfer. A servo system can coordinate these movements with the machine’s production sequence and help maintain consistent cycle timing.

The 1FK7101-5AF71-1AG0 may be suitable where its speed, torque and encoder configuration match the equipment. Repeated starts and stops should be included in the duty-cycle calculation because they can create substantial peak-current demands.

5.3 Automated Assembly Equipment

Assembly machines often move parts between stations, align components and perform repeated positioning operations. A correctly configured servo motor can help provide consistent motion and controlled stopping positions.

The incremental encoder can be suitable for systems designed around relative position feedback. The control system must provide the required referencing method and support the encoder’s signal format.

5.4 Material Handling and Transfer Systems

Servo motors are frequently used in automated transfer mechanisms, horizontal slides, indexing systems and positioning tables. The motor can support controlled movement when the load and acceleration profile remain within its operating limits.

Since this configuration does not have an integrated holding brake, vertical or gravity-loaded mechanisms require additional consideration. A separate brake or suitable mechanical restraint may be needed to prevent unwanted movement when power is removed.

5.5 Printing and Converting Equipment

Printing and converting machinery may require controlled feed rollers, indexing mechanisms and coordinated movement between several shafts. Servo control can help maintain repeatable speed and synchronized motion.

The final motor selection should account for material tension, operating speed, acceleration time, load inertia and the feedback system used by the machine controller.

5.6 Special-Purpose Machinery

Special-purpose machines often combine feeding, rotating, transferring and positioning functions in one production sequence. A servo motor can support these tasks when the controller needs predictable movement rather than simple continuous rotation.

The 1FK7101-5AF71-1AG0 is a candidate where its power, torque, shaft arrangement, encoder and mounting interface suit the machine design.

6. Main Product Advantages

6.1 Controlled Speed and Position

The motor is designed for servo operation, allowing a compatible drive to control speed, torque and position. This makes it useful for machinery that needs repeatable movement and controlled acceleration.

6.2 Incremental SIN/COS Encoder

The 2,048-pulse-per-revolution incremental encoder provides movement feedback for a compatible controller. The SIN/COS signal format is important when selecting the drive and feedback cable.

6.3 Useful Power Rating

The 4.85 kW optimum operating power gives the motor a useful position in the 1FK7 Compact range. It may suit machinery requiring a combination of controlled speed and moderate-to-high torque, provided the load remains within the motor’s operating envelope.

6.4 High Static Torque Capability

The specified static torque of 27 Nm at a 100 K temperature rise is useful when evaluating standstill torque requirements. It should not be mistaken for continuous torque available at every speed.

6.5 Smooth Shaft Design

The smooth shaft can suit couplings and mechanical connections designed for that configuration. The coupling must be selected to match the shaft diameter, fit, torque and operating speed.

6.6 Natural Cooling

Natural cooling avoids the need for a separate liquid-cooling circuit. The motor still needs sufficient heat-dissipation space and a duty cycle that respects its thermal limits.

6.7 Industrial Flange Mounting

The flange-mounted construction supports integration into compatible machinery. Proper alignment and confirmation of the mounting dimensions help reduce vibration and excessive bearing loads.

6.8 Compact Motor Construction

The approximately 20.87 kg weight and 100 mm shaft height provide useful reference points for machine layout and installation planning. The final mounting design should still use the exact mechanical drawing.

6.9 Integration into Automated Systems

The motor can be integrated into a suitable servo-control architecture using compatible power and feedback connections. Correct drive configuration is essential to obtain the intended motion performance.

6.10 No Integrated Brake for Applications That Do Not Require One

For applications where an integrated motor holding brake is unnecessary, the 1AG0 configuration avoids that additional component. If the load must be held safely when power is removed, the machine may still require a separate holding arrangement.

7. Five Related Models in the Same Series

The following models are closely related to the 1FK7101-5AF71 family. Their configurations differ in encoder type, shaft arrangement, brake options or protection rating. The tables distinguish known family characteristics from items that must be confirmed for the exact order number.

Model Comparison

1FK7101-5AF71-1AG0

This is the reference model. It is suitable as a starting point when the installation requires an incremental encoder, smooth shaft, natural cooling and no integrated brake.

1FK7101-5AF71-1AG5

This model has a closely related configuration with IP65 protection. It may be worth considering where the specified protection level is needed, but the mechanical dimensions and electrical configuration should still be checked before substitution.

1FK7101-5AF71-1UG0

This version uses resolver feedback instead of the incremental encoder. It may be appropriate for a control system designed around resolver feedback, but it is not automatically interchangeable with the 1AG0.

1FK7101-5AF71-1EH0

This configuration uses an absolute encoder and includes a holding brake. It may suit applications requiring the corresponding feedback architecture and brake function. Confirm the motor’s configured performance, especially where absolute-encoder-related derating applies.

1FK7101-2AF71-1AG0

This is a related 1FK7 motor configuration with a different model designation. Before choosing it, verify the complete motor data, shaft arrangement, feedback configuration and drive compatibility.

These models are comparison candidates rather than guaranteed drop-in replacements. The full order number, encoder, shaft, brake, protection rating and mechanical dimensions must match the application.

8. Five Other Siemens Servo Motor Models to Consider

The following alternatives provide a starting point for comparing different frame sizes and motion-control requirements. The precise electrical ratings depend on the complete order number, so confirm the exact variant before using these figures for engineering or purchasing decisions.

Choosing an Alternative

A model from the same 1FK7 family may be the easiest place to start when replacing an existing motor, but the series name alone is not enough to establish compatibility.

If the original motor is being replaced, the following should be checked before selecting an alternative:

• Rated and static torque requirements.

• Operating speed and maximum permissible speed.

• Required acceleration and deceleration times.

• Load inertia and transmission ratio.

• Encoder signal type and resolution.

• Shaft diameter, shaft extension and coupling design.

• Mounting flange and overall installation envelope.

• Holding-brake requirements.

• Protection rating and operating environment.

• Servo-drive compatibility and available current.

A smaller motor may be appropriate for a lighter load, but only if it can meet both the continuous torque requirement and the peak acceleration demand. A motor with a different encoder or shaft configuration may require additional electrical or mechanical changes.

9. Installation and Commissioning

9.1 Mechanical Installation

Verify the mounting flange, bolt pattern, shaft diameter, shaft extension and coupling clearance against the exact drawing. The mounting surface should be rigid and properly aligned with the driven mechanism.

Because this model uses a smooth shaft, select a coupling designed for the actual shaft dimensions and torque. Incorrect fit or alignment can cause vibration, excessive bearing loads and premature wear.

9.2 Electrical Connection

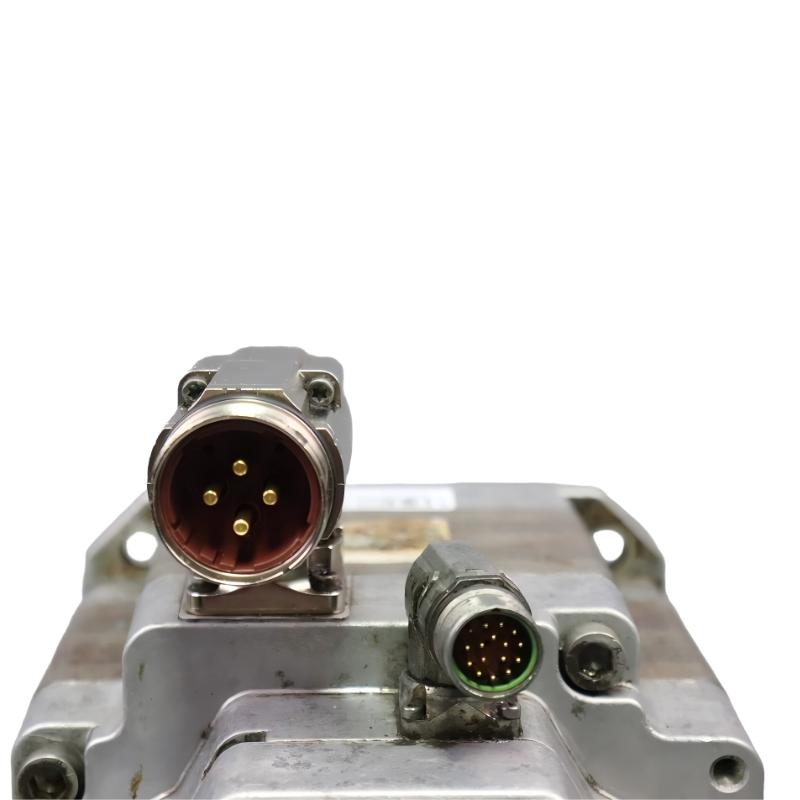

Use compatible power and feedback cables. Check connector pin assignments, cable ratings, grounding, shielding and cable routing before energizing the motor.

The drive must support the incremental SIN/COS encoder signal and its resolution. Do not assume that wiring for a resolver or absolute encoder can be reused without changes.

9.3 Drive Configuration

Configure the servo drive using the correct motor data. Verify motor identification, encoder settings, current limits, speed limits and control parameters before commissioning.

Start with conservative movement settings and verify motor direction, feedback response and stopping behavior before running the machine under full load.

9.4 Homing and Position Reference

Because the model uses incremental feedback, the control system may need a homing procedure to establish a known machine reference after startup. The appropriate method depends on the controller, machine design and reference hardware.

Confirm that the homing procedure is reliable and that the machine cannot move into an unsafe position during referencing.

9.5 Thermal Management

Natural cooling requires sufficient space for heat dissipation. Avoid mounting arrangements that restrict cooling or expose the motor to excessive ambient temperatures.

For applications with frequent high-torque movements, prolonged low-speed operation or repeated acceleration, assess the thermal duty cycle rather than relying on rated power alone.

9.6 Holding and Safety Requirements

The 1AG0 configuration does not include an integrated holding brake. For vertical axes or mechanisms that can move under gravity, determine whether a separate mechanical brake or other suitable restraint is required.

Do not rely on the motor’s torque alone to hold a load safely when the drive is disabled or power is removed.

10. Maintenance and Troubleshooting

Routine checks can help prevent avoidable downtime and identify mechanical or electrical problems early.

– Abnormal vibration: Inspect the mounting surface, coupling alignment, shaft connection and load balance.

– Unexpected temperature rise: Review the load profile, current demand, ambient temperature and cooling clearance.

– Encoder faults: Check the feedback cable, connectors, shielding and drive configuration. Confirm that the encoder signal type matches the installed motor.

– Positioning errors: Check the homing procedure, mechanical backlash, coupling condition and motion-control settings.

– Overload alarms: Review acceleration and deceleration times, load inertia, peak torque and drive current limits.

– Mechanical wear: Inspect the shaft and coupling connection for looseness, fretting or damage.

– Replacement preparation: Record the complete motor number, drive parameters, feedback settings, wiring arrangement and machine reference positions before removing the existing motor.

The motor’s actual service life depends on its load, temperature, vibration, installation quality, operating hours and maintenance conditions. A guaranteed service life cannot be determined from the model number alone.

11. Product Summary

The Siemens 1FK7101-5AF71-1AG0 is a SIMOTICS S 1FK7 Compact synchronous servo motor with an optimum operating power of 4.85 kW, an optimum speed of 3,000 rpm and a static torque rating of 27 Nm at a 100 K temperature rise.

Its main characteristics include natural cooling, IM B5 flange mounting, a smooth shaft, a 2,048-pulse-per-revolution incremental SIN/COS encoder, IP64 protection and no integrated holding brake. Its approximate net weight is 20.87 kg, with a shaft height of 100 mm.

The motor is intended for industrial motion-control applications where controlled movement, repeatable positioning and integration with a compatible servo drive are important. Its suitability depends on the load, required torque, speed profile, feedback architecture and installation environment.

For a replacement or new installation, verify the full order number, encoder compatibility, shaft dimensions, flange pattern, drive settings, protection requirements and holding arrangements. The exact mechanical drawing and motor data should be used for final engineering decisions.
