Siemens 1FK7100-5AF71-1SG0 Servo Motor: Technical Specifications, Product Description, Applications, and Related Models

1. Product Overview

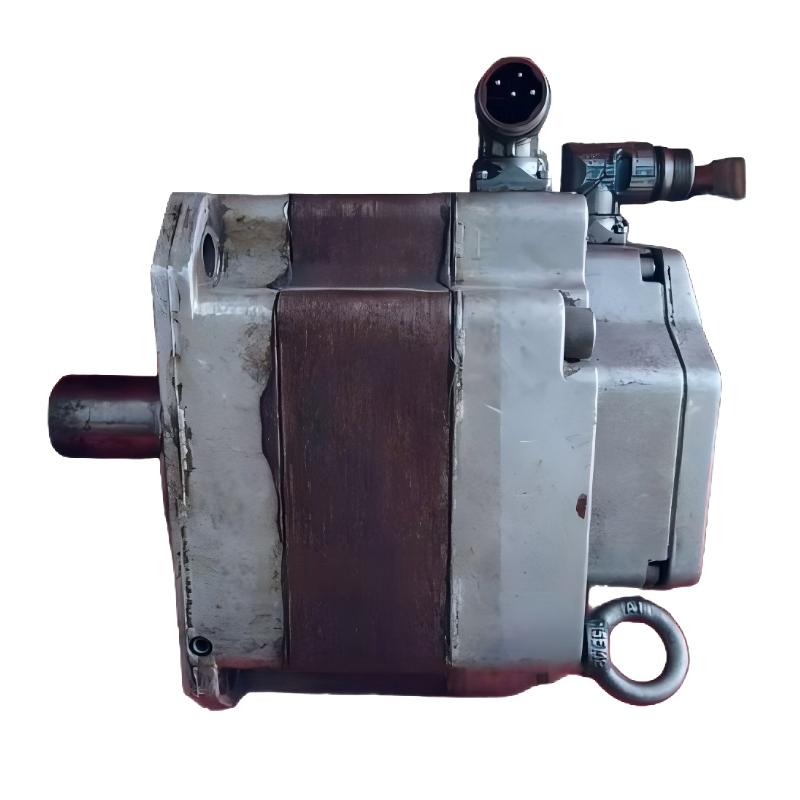

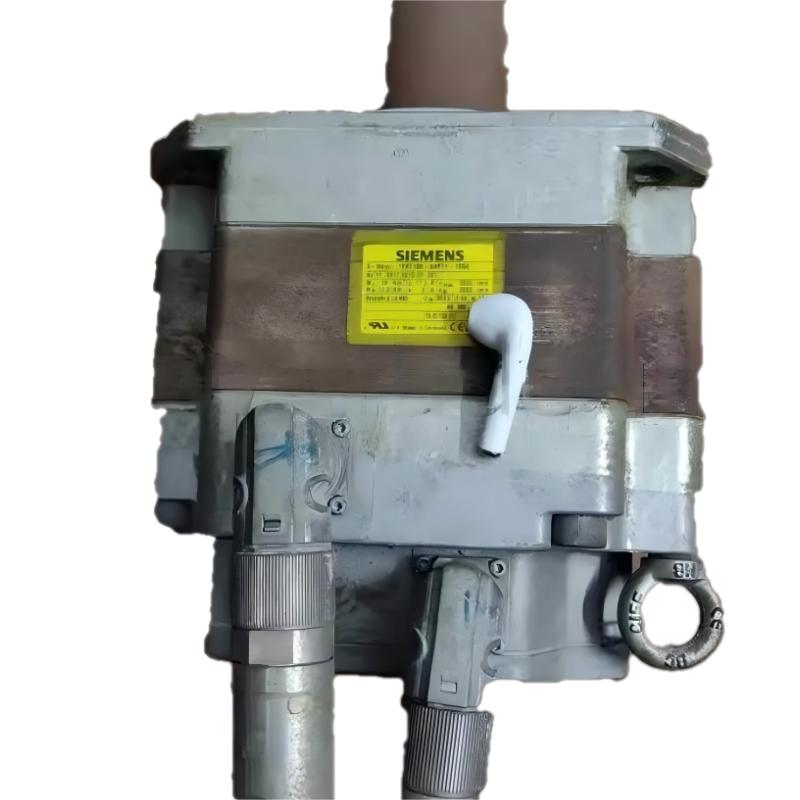

The Siemens 1FK7100-5AF71-1SG0 belongs to the SIMOTICS S family of industrial synchronous servo motors. The 1FK7 series is designed for motion-control applications that require accurate positioning, controlled speed, responsive acceleration, and repeatable movement during automated production.

Servo motors are used in machinery where movement must follow a defined command rather than simply rotate continuously. Typical tasks include moving a machine axis to a programmed position, synchronizing a feed mechanism with another axis, and controlling the speed of a production process.

The 1FK7100 model designation identifies a motor in the 1FK7 family with a 100 mm shaft-height frame. However, the complete order code is important: its suffix can identify differences in feedback equipment, connectors, braking arrangements, and other configuration details.

Technical identification note: The exact specifications for the complete order code 1FK7100-5AF71-1SG0 should be verified against its nameplate and mechanical drawing before the motor is purchased or installed. The information below distinguishes general 1FK7 family characteristics from details that require confirmation for this exact variant. Where a value cannot be established reliably, it is marked accordingly rather than treated as a confirmed specification.

2. Brand and Product Series

About the SIMOTICS S family

SIMOTICS S motors are intended for applications in which the motor and drive operate together as a motion-control system. The motor provides mechanical movement, while the drive regulates current, torque, speed, and position according to the control requirements.

Within the 1FK7 family, different frame sizes and configurations are available for different machine designs. Motors that share the same frame designation may nevertheless have different feedback systems, brake options, connector arrangements, or electrical ratings.

For this reason, the full model number should be used when identifying a replacement or preparing a technical specification sheet.

3. Detailed Technical Parameters

The following values describe the 1FK7100-5AF71 motor configuration and its related technical family. The complete -1SG0 suffix should be checked before treating feedback, brake, protection, or weight details as final.

3.1 Main technical data

3.2 Electrical and motor performance

These figures provide a useful basis for understanding the motor’s general performance class. They should not be used as a substitute for the exact motor data when setting drive current limits, calculating peak torque, or determining the permitted operating speed.

3.3 Dimensions and weight

The complete overall dimensions cannot be reliably established from the model prefix alone. The motor’s shaft height is a useful reference, but it does not determine its shaft diameter, flange pattern, total length, or connector clearance.

For installation planning, obtain the drawing corresponding to the full 1FK7100-5AF71-1SG0 code. This is particularly important when replacing an existing motor inside a machine enclosure, where even a small difference in length or connector orientation can affect fit.

4. Product Structure and Operating Principle

4.1 Permanent-magnet synchronous motor

A synchronous servo motor uses permanent magnets in its rotor. The drive supplies controlled electrical current to the stator windings, creating a rotating magnetic field that interacts with the rotor.

This design is well suited to closed-loop motion control. The drive can adjust the motor’s output in response to commanded movement and feedback from the installed encoder or other feedback device.

The resulting system can provide controlled acceleration, deceleration, speed regulation, and positioning, provided the motor, drive, feedback device, and mechanical load are correctly matched.

4.2 Torque characteristics

Torque is one of the main factors in choosing a servo motor. The rated torque describes the motor’s capability under specified operating conditions, while static or stall torque refers to a different operating point.

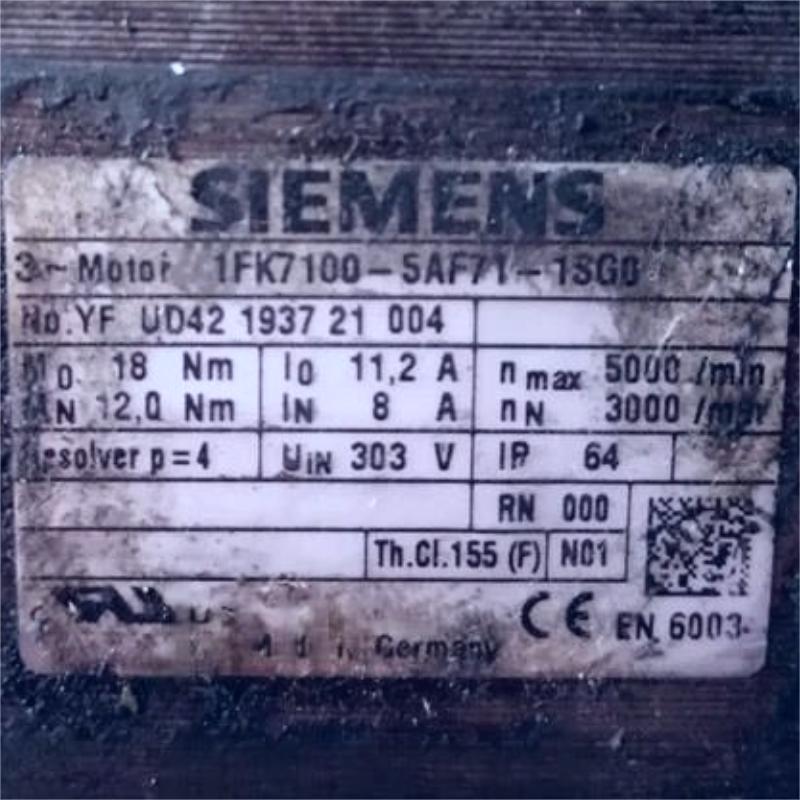

The related 1FK7100-5AF71 family has a reference static torque of 18 Nm at a 100 K temperature rise and a rated torque of approximately 12 Nm. These values should not be confused with the maximum torque available for short periods.

The required motor torque depends on the driven load, friction, transmission ratio, acceleration, and operating cycle. For a machine with frequent acceleration and braking, the peak torque requirement can be considerably different from the continuous torque requirement.

4.3 Feedback and positioning

The feedback system provides information that allows the drive to monitor motor movement. Different feedback options have different electrical interfaces and methods of establishing position.

Because the precise encoder configuration of 1SG0 needs confirmation, it is important not to assume that it uses the same interface as another 1FK7100 variant. The selected feedback type must be compatible with the drive and the machine’s control system.

4.4 Natural cooling

Natural cooling removes heat through the motor’s surface and the surrounding installation. It avoids the need for a separate forced-air cooling unit as part of the standard motor arrangement.

However, the motor still needs suitable operating conditions. A tightly enclosed space, high ambient temperature, restricted airflow, or prolonged high-torque operation can affect the available continuous output.

4.5 Mounting and mechanical integration

The 1FK7100 frame is intended for industrial machine integration. The mounting arrangement, shaft design, connector position, and cable routing all need to be considered during installation.

A correctly selected coupling helps transfer torque while limiting the additional forces applied to the motor shaft. Poor alignment or excessive radial and axial loads can shorten bearing life and increase vibration.

5. Product Applications

The 1FK7100-5AF71-1SG0 may be considered for industrial motion-control applications where its actual torque, speed, feedback, and mechanical configuration meet the machine requirements.

5.1 CNC machine tools

Servo motors are commonly used to control machine axes and feed mechanisms. A properly matched 1FK7 motor and drive can support controlled movement along programmed paths.

Typical applications include:

• Machine-axis positioning.

• Feed drives.

• Tool-carriage movement.

• Auxiliary positioning mechanisms.

• Coordinated movement between multiple axes.

The final positioning performance depends on the whole axis system, including the feedback arrangement, mechanical stiffness, transmission backlash, and drive tuning.

5.2 Packaging machinery

Packaging equipment often relies on repeated movements that must remain synchronized with material feeding and product handling.

Potential applications include:

• Film-feeding mechanisms.

• Indexing tables.

• Product transfer units.

• Cutting and sealing mechanisms.

• Positioning of packaging components.

The motor should be selected according to the machine’s cycle rate, acceleration requirements, inertia, and continuous operating load. A motor that can handle a short peak load may still be unsuitable for a demanding production cycle.

5.3 Automated assembly systems

In automated assembly, servo motors help move components into repeatable positions and coordinate different stages of a process.

Possible uses include positioning slides, transfer mechanisms, rotary tables, and automated fixtures. For pressing or force-sensitive operations, the machine’s mechanical design and force-control strategy must also be considered.

5.4 Material handling equipment

Servo motors can be used where conveyors or handling systems need controlled speed changes and accurate stopping positions.

Typical examples include transfer units, sorting mechanisms, feeding stations, and positioning platforms. High-inertia loads require particular attention because acceleration and deceleration can produce substantial peak torque demands.

5.5 Printing and converting machinery

Printing and converting machines often need coordinated material feeding and repeated positioning.

Servo-controlled movement can be useful for roller drives, web feeding, cutting cycles, and other mechanisms where the movement must follow a defined sequence. The selected feedback system must support the control method used by the machine.

5.6 Industrial production lines

On an automated production line, servo motors may operate individual axes within a larger coordinated system. The motor’s ability to follow speed and position commands can support repeatable material transfer and synchronized machine cycles.

Before selecting this particular variant, check that its rated performance, feedback interface, mounting design, and environmental protection are suitable for the installation.

5.7 Maintenance and replacement applications

The model may also be considered during maintenance of existing 1FK7 equipment. When replacing a motor, matching the complete order code is more reliable than choosing a model based only on frame size or rated torque.

The replacement should be checked for:

• Feedback type and connector interface.

• Holding-brake configuration.

• Shaft diameter and extension.

• Flange dimensions and mounting holes.

• Rated current and winding data.

• Protection rating.

• Overall length and connector clearance.

• Compatibility with the installed servo drive.

6. Main Product Advantages

6.1 Controlled, repeatable movement

The 1FK7 servo motor family is designed for motion-control systems that require controlled positioning and speed. When used with a compatible drive and feedback arrangement, it can support repeatable machine movements.

This is useful for production equipment that repeats the same operation throughout a shift and needs consistent movement from cycle to cycle.

6.2 Useful torque capability

The related 1FK7100-5AF71 configuration has a reference rated torque of approximately 12 Nm and static torque of 18 Nm at a 100 K temperature rise.

These figures make it worth evaluating for industrial axes that require a combination of torque and speed within this performance range. Actual suitability depends on the application’s continuous and peak load requirements.

6.3 Integration into industrial machinery

The 1FK7 family provides motor configurations intended for industrial machine integration. Depending on the exact variant, the mounting arrangement and connector options can help simplify mechanical and electrical installation.

The complete order code should always be used to confirm which options are included in the specific motor.

6.4 Natural cooling arrangement

Natural cooling can simplify the installation by avoiding a separate motor cooling fan in the specified configuration. Fewer auxiliary components may also make the mechanical arrangement easier to maintain.

Adequate heat dissipation is still necessary, especially when the machine operates for long periods at elevated torque.

6.5 Options within the same motor family

The wider 1FK7 range includes different motor sizes and configurations. This gives machine designers several options when selecting a motor for a particular torque requirement, installation space, or feedback system.

The benefit comes from choosing the correct variant, not from assuming that every 1FK7 motor is interchangeable.

6.6 Potentially straightforward replacement

When the original motor model is known and the replacement matches its electrical and mechanical configuration, retaining the existing mounting and drive arrangement may simplify maintenance.

This advantage depends on confirming the full order code, the drive’s supported motor data, and the machine’s mechanical dimensions.

7. Five Related Models in the Same Series

The following models are related to the 1FK7100-5AF71 family and provide useful comparison points. The exact suffix determines the included equipment, so the table should be used as a shortlist rather than as a declaration of direct compatibility.

Choosing a related model

• For an existing installation: Compare the reference model with the original motor’s complete nameplate and electrical data.

• For absolute feedback: Examine the encoder interface and drive compatibility of the absolute-encoder options.

• For a load that must be held when power is removed: A brake-equipped variant may be appropriate, but its brake rating and safety suitability must be confirmed.

• For a resolver-based system: A resolver-equipped configuration may be worth evaluating if the installed drive supports it.

• For different environmental requirements: Check the exact protection rating and connector configuration rather than relying on the family designation alone.

The variants in this table have related frame and performance characteristics, but they should not be treated as equivalent without checking the suffix-specific details.

8. Five Other Siemens Servo Motor Models to Consider

These additional models cover other frame sizes and product-family options. They can be useful for comparison when designing a new machine or looking for an alternative motor, but exact order-code specifications must be established before purchase.

These models are comparison candidates, not confirmed drop-in replacements. In particular, a motor from a different frame size or series may require changes to the mounting arrangement, coupling, drive configuration, or machine control settings.

What to compare before selecting an alternative

9. Installation and Commissioning

9.1 Mechanical mounting

Install the motor on a rigid mounting surface and align the shaft carefully with the driven equipment. Misalignment can cause vibration, bearing wear, and additional loads on the shaft.

Before fitting the motor, verify the flange dimensions, shaft diameter, shaft extension, and mounting-hole positions against the mechanical drawing.

9.2 Electrical connection

Use the appropriate power and feedback cables for the selected configuration. Check connector compatibility, grounding, shielding, and cable routing according to the machine’s electrical design.

Power and feedback wiring should be installed in a way that reduces electrical interference and avoids cable damage during machine movement.

9.3 Drive setup

The servo drive must be configured for the correct motor and feedback system. Motor data, current limits, control parameters, and feedback settings should match the actual installed variant.

During commissioning, verify direction of rotation, feedback operation, current behavior, speed response, and positioning performance. Do not assume that the parameters for a visually similar motor will be correct.

9.4 Load and safety assessment

The machine’s mechanical load should be assessed before the motor is placed into service. Vertical axes, suspended loads, and mechanisms that may move under gravity require particular attention.

If the exact variant does not include a holding brake, an appropriate external load-holding or safety arrangement may be necessary.

9.5 Thermal management

Natural cooling relies on the motor’s ability to dissipate heat to its surroundings. Avoid installations that block heat transfer or expose the motor to operating conditions beyond its permitted limits.

For demanding duty cycles, calculate the expected continuous and peak load rather than relying on the rated-power figure alone.

10. Maintenance Recommendations

Maintenance should follow the machine’s safety procedures. Isolate the equipment before handling connectors or carrying out mechanical work, and investigate repeated drive faults rather than simply resetting them.

11. Final Summary

The Siemens 1FK7100-5AF71-1SG0 is identified as a member of the SIMOTICS S 1FK7 servo motor family. The related 1FK7100-5AF71 configuration has reference ratings of approximately 3,000 rpm, 12 Nm rated torque, 18 Nm static torque at a 100 K temperature rise, and 3.77 kW optimum power.

Its intended role is controlled industrial motion, including positioning, speed regulation, coordinated machine movement, and automated production tasks. Its practical advantages depend on correct drive matching, suitable mechanical installation, and operation within the motor’s permitted load and thermal limits.

The key point for this particular model is to confirm the full -1SG0 configuration before finalizing its feedback type, brake arrangement, protection rating, exact dimensions, and net weight. The 100 mm shaft height helps identify the frame size, but the complete mechanical drawing is necessary for installation or replacement work.

The related 1FK7100 variants are the most relevant starting point for comparison. Other 1FK7 and 1FT6 motors can also be evaluated where a different frame size or configuration is required, provided their complete electrical and mechanical specifications are checked before selection.
