Product Overview

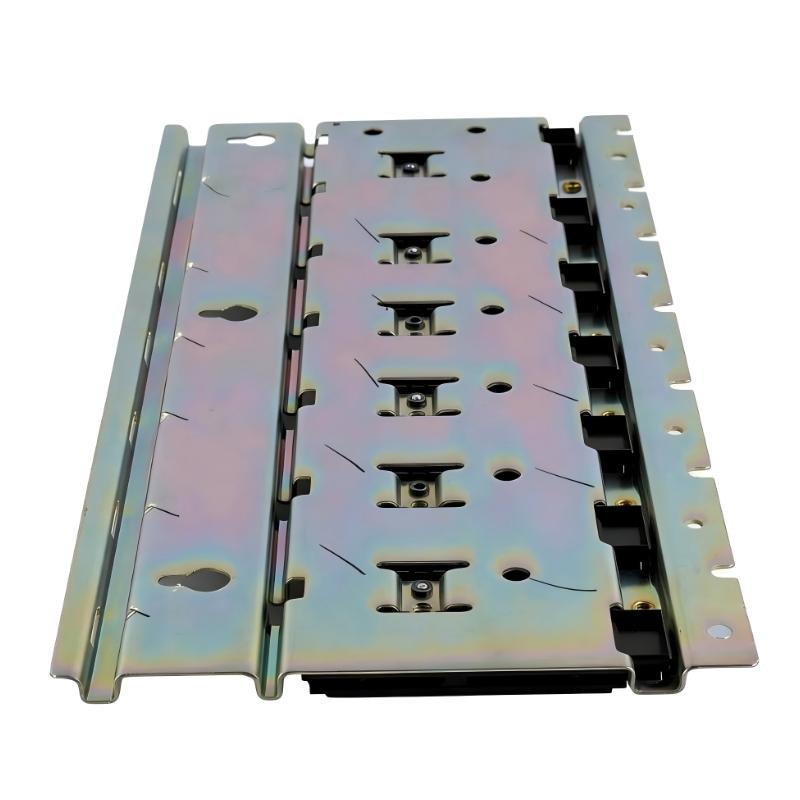

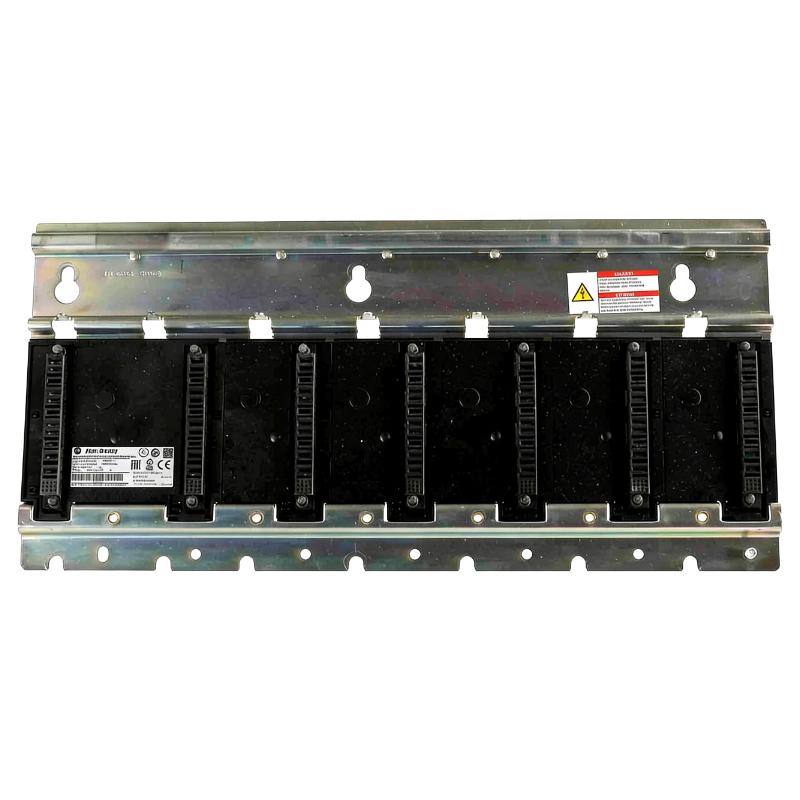

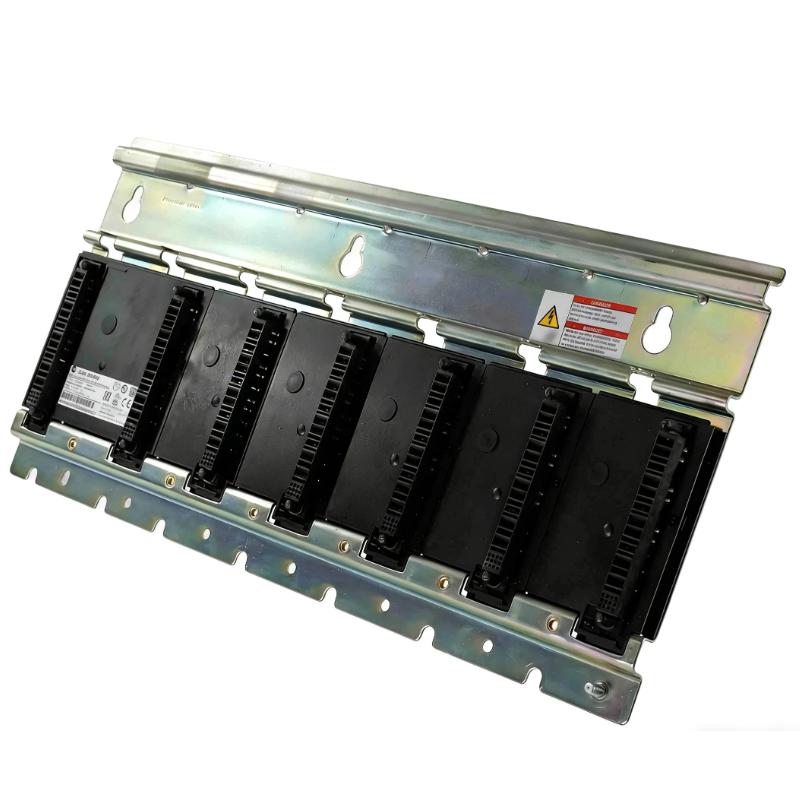

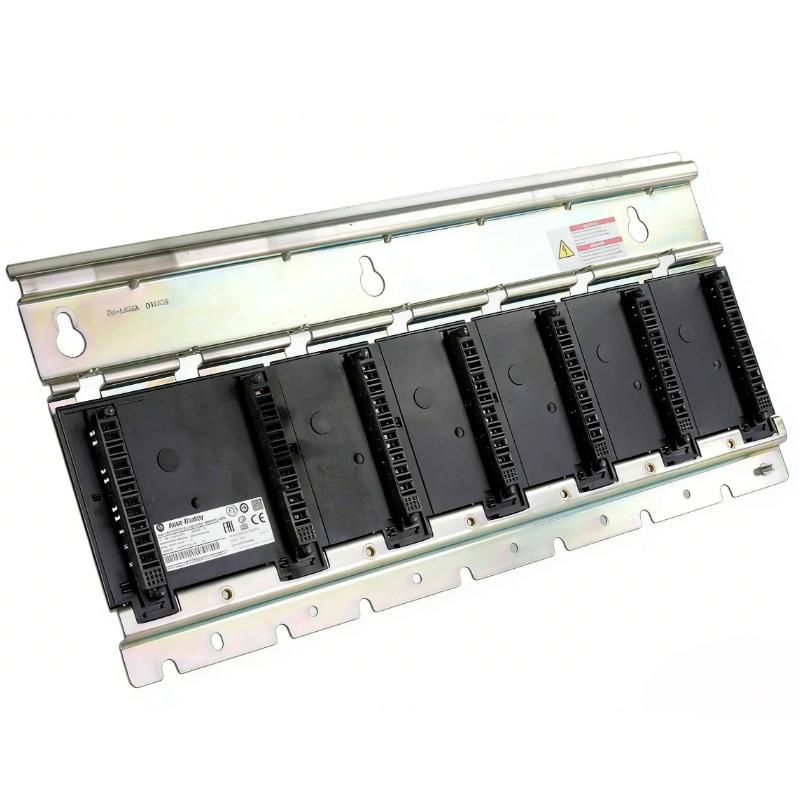

The 2094-PRS6 is a 6-axis ultra-thin power rail used in the Allen-Bradley Kinetix 6000 servo drive system. It provides the mechanical mounting structure and internal DC bus/backplane connections for multi-axis servo modules.
It is designed for compact motion control systems requiring multiple servo drives installed on a single shared rail.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Allen-Bradley |
| Series | Kinetix 6000 |
| Model | 2094-PRS6 |
| Product Type | Slim Power Rail |
| Axis Capacity | Up to 6 axes |
| Function | Mounting + DC bus + signal distribution |
| Compatible Modules | IAM, AM, shunt modules, slot fillers |
| Installation Type | Panel-mounted rail system |
| Dimensions | 490.2 × 25.4 × 231 mm |
| Weight | 3.55 kg |
Function and Working Principle
The 2094-PRS6 acts as the core structural and electrical backbone of a Kinetix 6000 drive system.
Its functions include:
- Providing mounting positions for servo drive modules
- Distributing DC bus power between modules
- Supporting communication and control signals across axes
- Enabling modular multi-axis motion architecture
- Allowing expansion through additional axis modules
It does not perform control logic itself; it supports motion hardware integration.
Key Features
- Supports up to 6 servo axes on a single rail
- Compact “ultra-thin” mechanical design
- Modular expansion structure
- Integrated power and signal backplane
- Designed for multi-axis synchronized motion systems
Industrial Applications
- Packaging machinery
- Robotics systems
- CNC and machining centers
- Printing and converting equipment
- High-speed automation lines
- Material handling systems
Role in Industrial Systems
This module is used as the foundation platform for servo drive installation, enabling:
- Multi-axis motion control architecture
- Shared DC bus distribution
- Centralized drive mounting
- Reduced cabinet wiring complexity
Installation Notes
- Installed inside industrial control cabinets
- Requires correct axis/module layout (IAM + AM + shunt configuration)
- Unused slots must be filled with filler modules
- Proper grounding and torque specifications must be followed
- System layout must match Kinetix 6000 design rules
Compatible Equipment
- Kinetix 6000 Integrated Axis Modules (IAM)
- Kinetix 6000 Axis Modules (AM)
- Shunt modules
- Slot filler modules
- Rockwell motion control systems
Advantages
- Compact multi-axis design
- Reduces wiring and cabinet space
- Supports scalable servo systems
- High mechanical stability
- Efficient power distribution across axes
Limitations
- Legacy system (no longer current-generation platform)
- Only compatible with Kinetix 6000 architecture
- Requires strict configuration rules
- Not compatible with modern EtherNet/IP servo families
Conclusion
The 2094-PRS6 Kinetix 6000 Power Rail is a modular motion control base designed for compact multi-axis servo systems, providing both mechanical structure and internal power distribution for Kinetix 6000 drives.
