- Allen Bradley
- 2094-BC07-M05

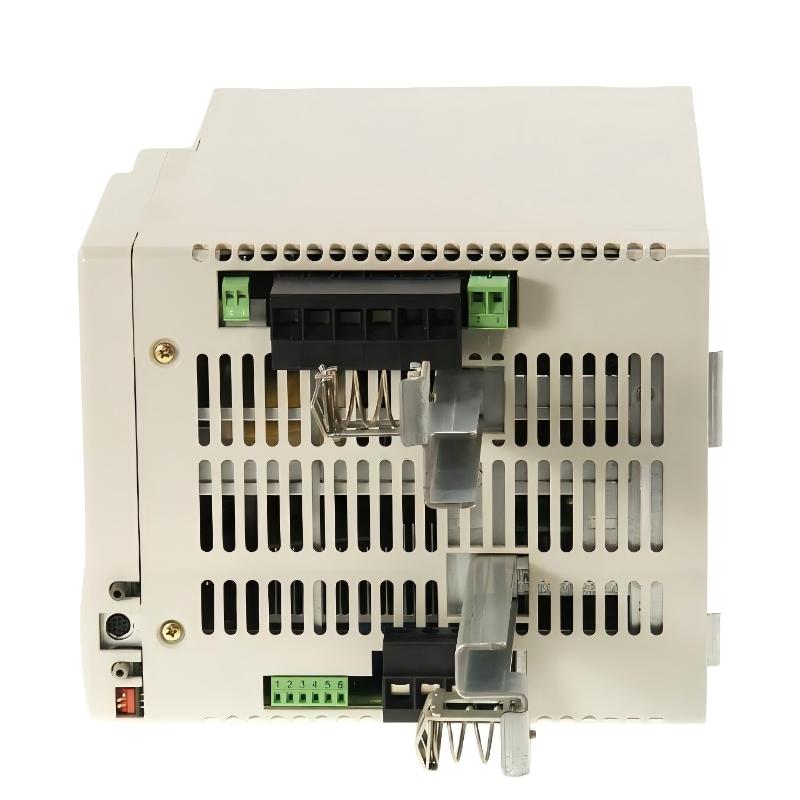

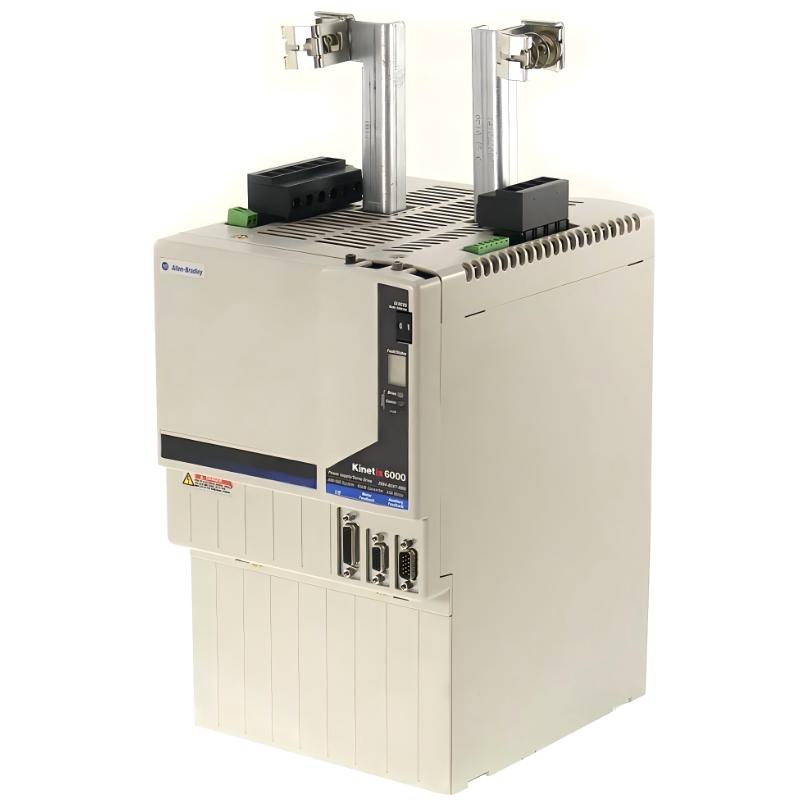

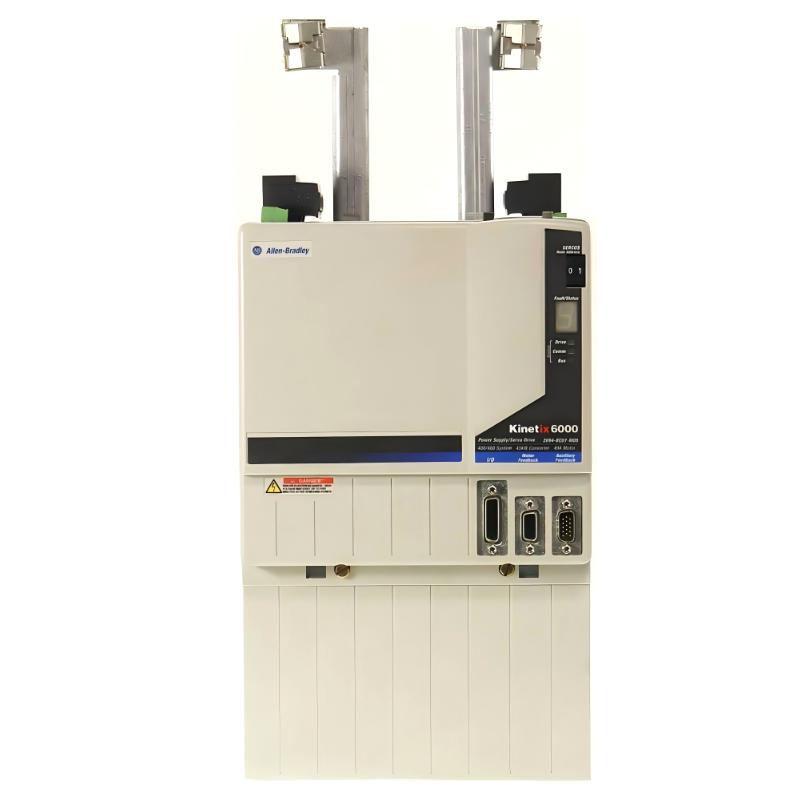

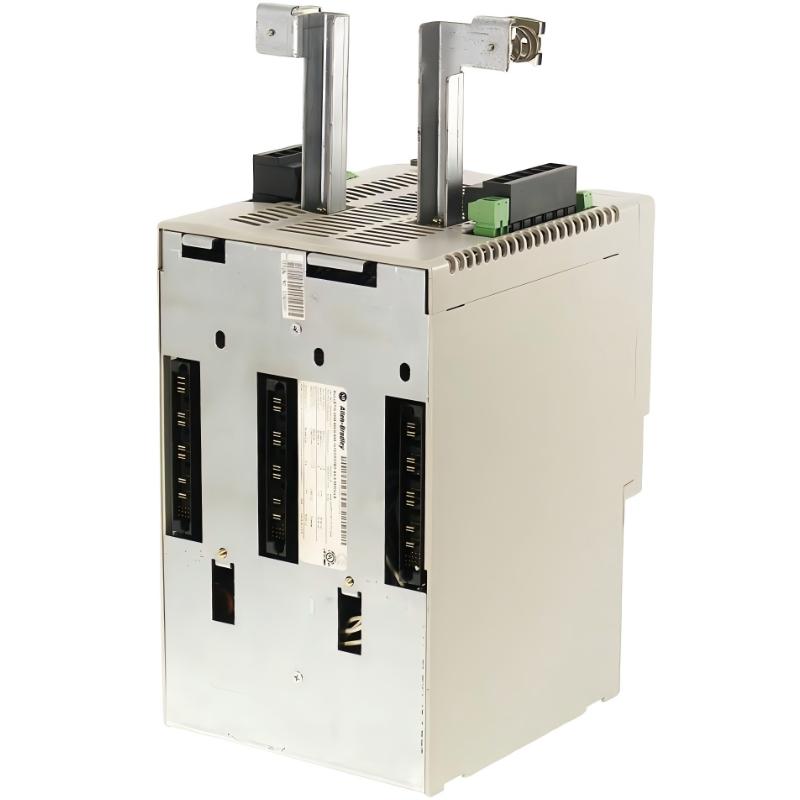

- Kinetix 6000 Integrated Axis Module
- USA
- 375 x 196 x 249 mm
- 10.1 kg
- Xiamen, China
- New & In Stock
- T/T, PayPal, Western Union
- 1 Year
- 1-3 Working Days
- DHL, UPS, TNT, FedEx and EMS.
- 24-Hour Service
- COO
- 21
Our advantage
Global Logistics
We have a 10-year logistics and express cooperation agreement, so our products can be shipped to any place in the world.
Brand new and original
Our products are imported in bulk from the place of origin. Because of the cooperative relationship, our products are all original and 100% new.
24-hour service
We provide 7*24 hours service to our customers. We will be there whenever you need us.
Price advantage
All our products are priced very favorably because we have our own warehouse and supply.
| Company Information | |||
| [email protected] | |||
| Mobile | +8615980777398 | ||
| +8615980777398 | |||
| 15980777398 |
Product Overview
High-performance motion control is essential for modern industrial automation systems. The Allen Bradley 2094-BC07-M05 Kinetix 6000 Integrated Axis Module is designed to provide precise and reliable servo motion control for Kinetix 6000 drives, supporting complex automation applications.
This integrated axis module combines control, communication, and feedback functions in a single unit, simplifying system architecture while delivering high-speed and accurate motion performance for demanding industrial environments.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Allen Bradley |
| Model | 2094-BC07-M05 |
| Product Type | Integrated Axis Module |
| Function | Servo motion control for Kinetix 6000 |
| Dimensions | 375 x 196 x 249 mm |
| Weight | 10.1 kg |
| Integration | Integrated axis module for servo drives |
| Communication | EtherNet/IP compatible |
| Installation | Rack-mounted / cabinet-mounted |
| Environment | Industrial-grade |
| Application | High-speed motion control in automation systems |
| Compatibility | Kinetix 6000 servo drives |
Function and Working Principle
The 2094-BC07-M05 operates by receiving motion commands from a controller and executing precise control of servo motors. Key functions include:
- Accurate positioning, speed, and torque control for servo applications
- Seamless integration with Kinetix 6000 drives for compact system design
- Real-time communication via EtherNet/IP for high-speed motion synchronization
- Feedback monitoring from encoders to maintain precision
By combining control and drive functions in one module, it reduces wiring complexity, improves reliability, and ensures high-precision motion.
Role in Industrial Control Systems
This module is a critical component in motion control systems, providing:
- Servo control for robotics, conveyor systems, and automated machinery
- Real-time monitoring for safe and precise motion operation
- Integration with Kinetix 6000 servo drives and EtherNet/IP controllers
- Support for complex automation sequences requiring precise and reliable motion
It ensures responsive and accurate performance in demanding industrial environments.
Industrial Applications
The 2094-BC07-M05 Kinetix 6000 Integrated Axis Module is commonly used in:
- Robotic assembly and automation systems
- CNC machining and precision manufacturing
- High-speed material handling and conveyor systems
- Packaging and labeling machinery
- Industrial automation processes requiring high-precision motion control
Its robust industrial design ensures consistent performance under challenging conditions.
Installation and System Integration
For optimal performance:
- Mount securely in control cabinets or Kinetix-compatible drive racks
- Connect to Kinetix 6000 servo drives and EtherNet/IP controllers
- Configure motion parameters in the automation programming environment
- Follow industrial electrical safety standards
Proper installation ensures precise motion control and reliable system operation.
Compatible System Components
The 2094-BC07-M05 typically works with:
- Kinetix 6000 servo drives
- Allen Bradley Logix-based controllers
- Servo motors and encoders
- EtherNet/IP industrial network infrastructure
Together, these components form a scalable and high-performance motion control system.
Recommended Alternative Models
| Model | Type | Key Feature | Application |
|---|---|---|---|
| 2094-BC07-M05 | Kinetix Integrated Axis Module | High-capacity motion control | Demanding automation applications |
| 2094-BC02-M02-S | Integrated Axis Module | Compact, mid-range performance | General automation systems |
| 2094-BC01-M01-M | Integrated Axis Module | Standard performance | Mid-level motion control applications |
| 2094-BC07-M05-EX | Hazardous Area Axis Module | Certified for hazardous areas | Motion control in hazardous environments |
Key Advantages
- Provides high-speed, precise motion control for industrial automation
- Integrated design reduces wiring and simplifies system architecture
- Compatible with Kinetix 6000 servo drives and Logix controllers
- Supports real-time communication and feedback for accurate positioning
- Industrial-grade for continuous operation in demanding environments
- Enhances system reliability, safety, and overall performance
Technical FAQs
What is the main function of the 2094-BC07-M05?
It delivers integrated servo motion control for Kinetix 6000 drives, enabling precise positioning, speed, and torque regulation.
Where is it typically used?
It is used in industrial automation systems requiring high-precision and reliable motion, such as robotics, CNC machines, and conveyor systems.
Can it integrate with Kinetix 6000 drives?
Yes, it is fully compatible with Kinetix 6000 servo drives and EtherNet/IP-based controllers.
Is it suitable for hazardous areas?
The standard model is industrial-grade; certified hazardous-area versions are available.
Conclusion
The Allen Bradley 2094-BC07-M05 Kinetix 6000 Integrated Axis Module is a compact, high-performance solution for industrial servo motion control.
By integrating control, communication, and feedback in a single module, it ensures precise, reliable, and high-speed motion, making it a vital component in modern industrial automation systems.
