Product Overview

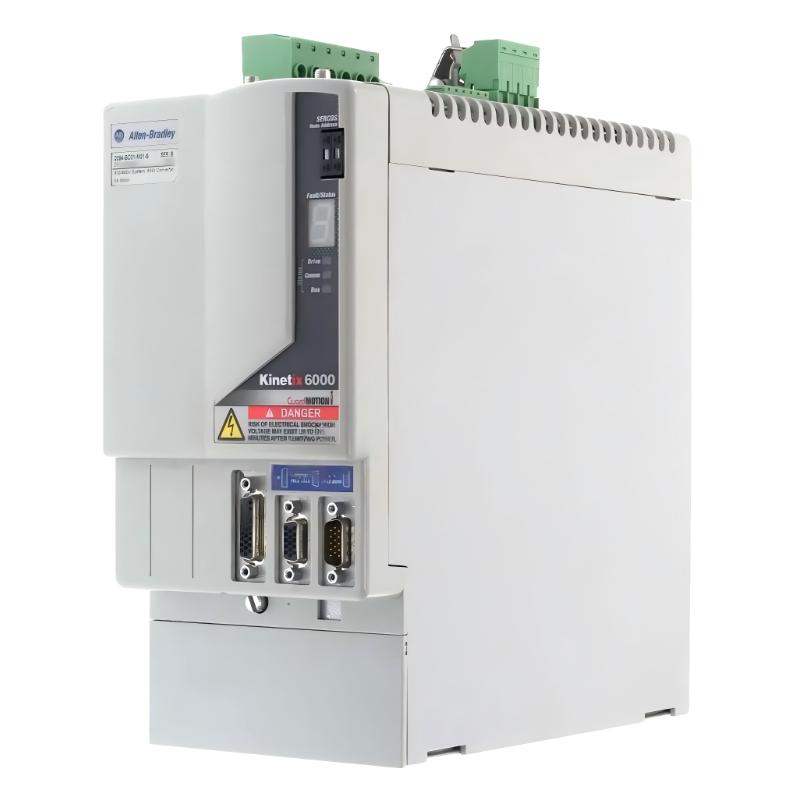

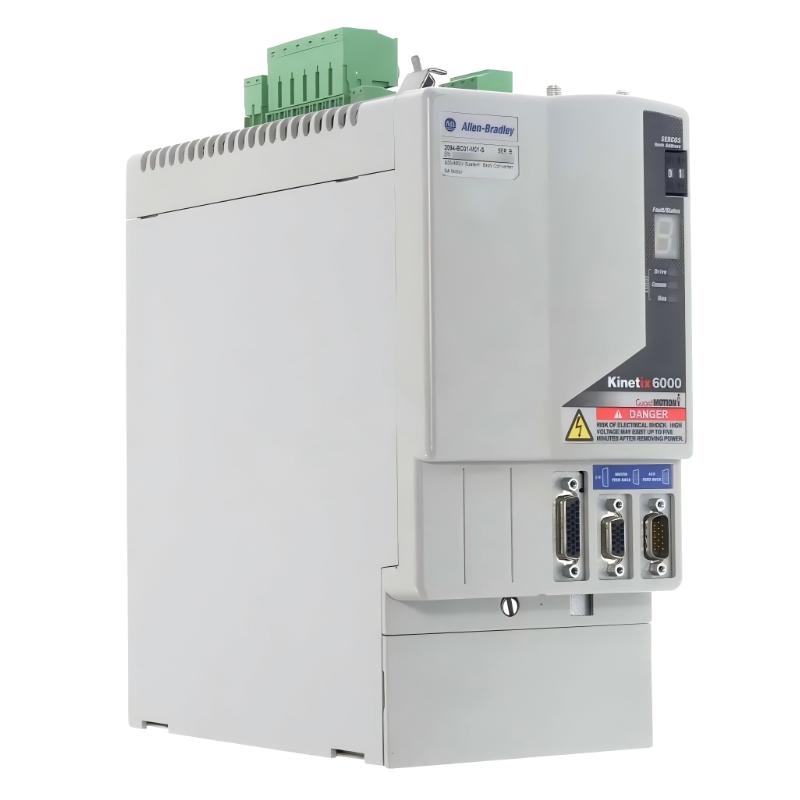

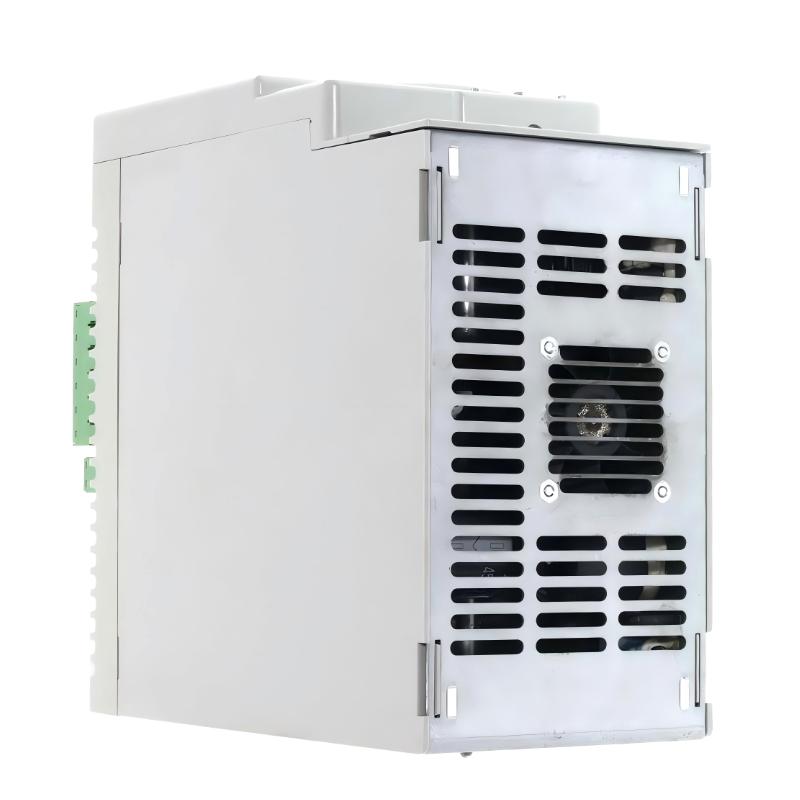

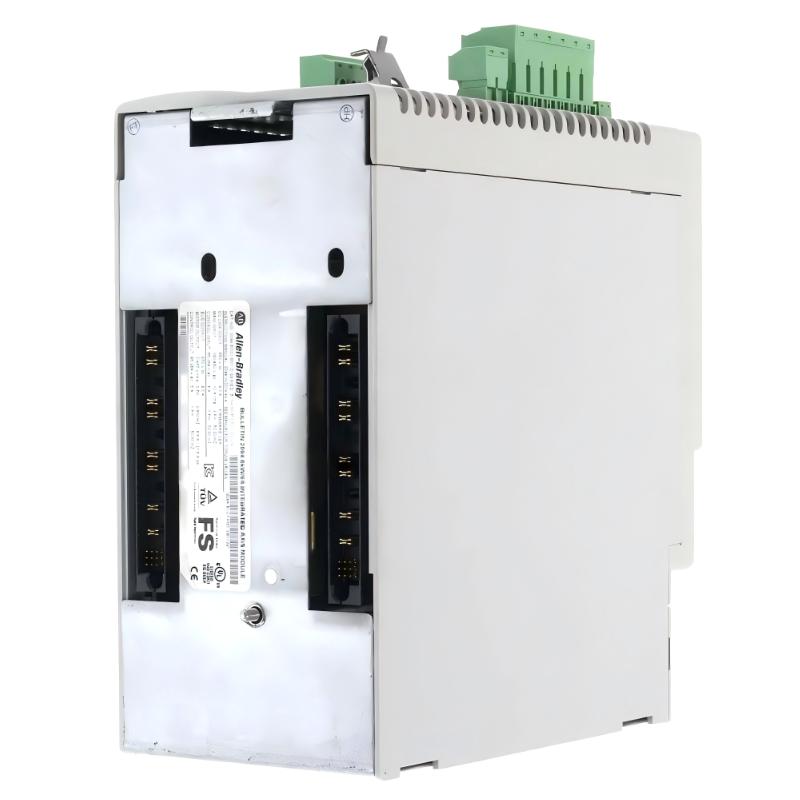

The Allen-Bradley 2094-BC01-M01-S is an Integrated Axis Module (IAM) from the Kinetix 6000 motion control system by Rockwell Automation. It is used in multi-axis servo applications to supply power conversion, DC bus management, and servo drive control for industrial motion systems.
It is commonly deployed in high-performance automation environments such as packaging, material handling, robotics, and CNC systems.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Rockwell Automation (Allen-Bradley) |
| Series | Kinetix 6000 |
| Model | 2094-BC01-M01-S |
| Product Type | Integrated Axis Module (IAM) |
| Function | Servo drive + power conversion module |
| Input Voltage | 360–480 VAC, 3-phase |
| DC Bus Voltage | 458–747 VDC |
| Continuous Output Power | ~6 kW |
| Peak Output Power | ~12 kW |
| Continuous Output Current | ~9 A |
| Efficiency | ~97% |
| Safety Function | Safe Torque Off (STO) |
| Communication | SERCOS interface (fiber optic) |
| Mounting Type | Power rail system |
| Cooling | Convection (no fan in module itself) |
| Dimensions | 287 × 125 × 249 mm |
| Weight | 5.03 kg |
Function and Working Principle
The 2094-BC01-M01-S acts as a dual-function motion control module:
- AC–DC conversion stage: Converts 3-phase AC input into a regulated DC bus
- Inverter stage: Supplies controlled output power to servo motors
- Motion control execution via SERCOS communication with motion controllers
- Servo feedback handling for precise motor positioning and torque control
It is part of a common DC bus architecture, meaning multiple axis modules share power through the same bus system.
Key Features
- Integrated drive + power supply architecture
- High-efficiency motion control (up to ~97%)
- Supports multi-axis synchronized motion
- Safe Torque Off (STO) safety function
- Fiber-optic SERCOS communication for noise immunity
- Modular plug-in design for scalable axis expansion
- Industrial-grade motion performance for precision applications
Industrial Applications
- Industrial robotics systems
- Packaging and bottling machines
- CNC and machining centers
- Conveyor and material handling systems
- Printing and labeling automation
- High-speed synchronized motion lines
Role in Industrial Systems
The module serves as the power and motion core of a servo axis system, responsible for:
- Supplying regulated DC power to shared bus systems
- Driving servo motors with precise current control
- Executing motion commands from the controller
- Maintaining synchronization across multiple axes
Without this module, the Kinetix 6000 system cannot operate servo axes.
Installation Notes
- Mounted on Kinetix 6000 power rail
- Requires correct DC bus interconnection between modules
- Proper grounding and shielding essential
- Fiber-optic SERCOS cables must be clean and properly seated
- Maintenance should be performed only by qualified automation engineers
- System must be de-energized before installation/removal
Compatible Equipment
- Kinetix 6000 servo drives
- Kinetix MP / TL / RDB servo motors
- Rockwell PLC motion controllers (Logix family)
- SERCOS fiber optic communication modules
- Industrial motion control systems
Advantages
- Highly integrated motion control solution
- Excellent precision and synchronization capability
- Modular scalability for multi-axis systems
- High efficiency and stable DC bus architecture
- Built-in safety function (STO)
Limitations
- Now discontinued (end-of-life product)
- Requires specialized Kinetix 6000 ecosystem knowledge
- Fiber-optic SERCOS network complexity
- Not easily adaptable to modern Ethernet-based motion systems
- Replacement typically requires migration to newer Kinetix platforms (e.g., Kinetix 5700/5500 series)
Conclusion
The Allen-Bradley 2094-BC01-M01-S Kinetix 6000 Integrated Axis Module is a high-performance motion control component used in synchronized multi-axis industrial automation systems.
Although powerful and widely used in legacy installations, it is now discontinued and typically replaced by newer Ethernet-based Kinetix drive platforms in modern automation upgrades.
