Compact PLC Controller Technical Report

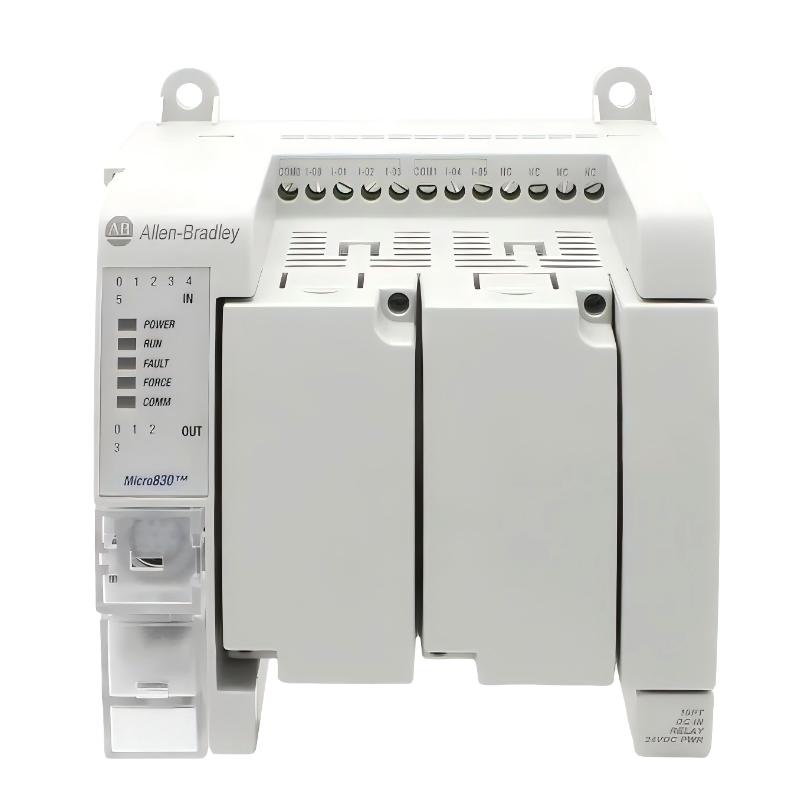

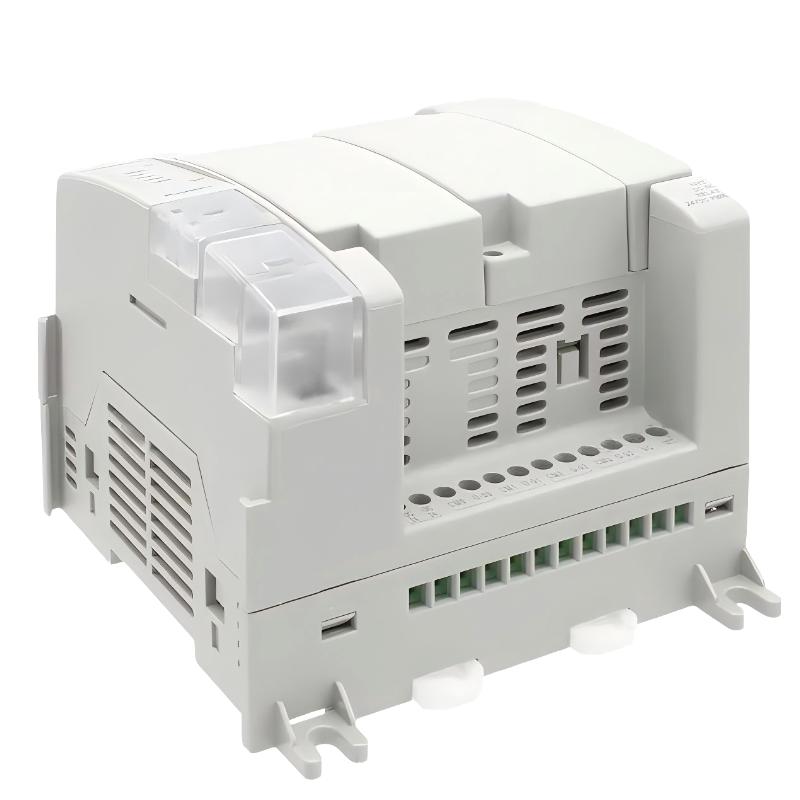

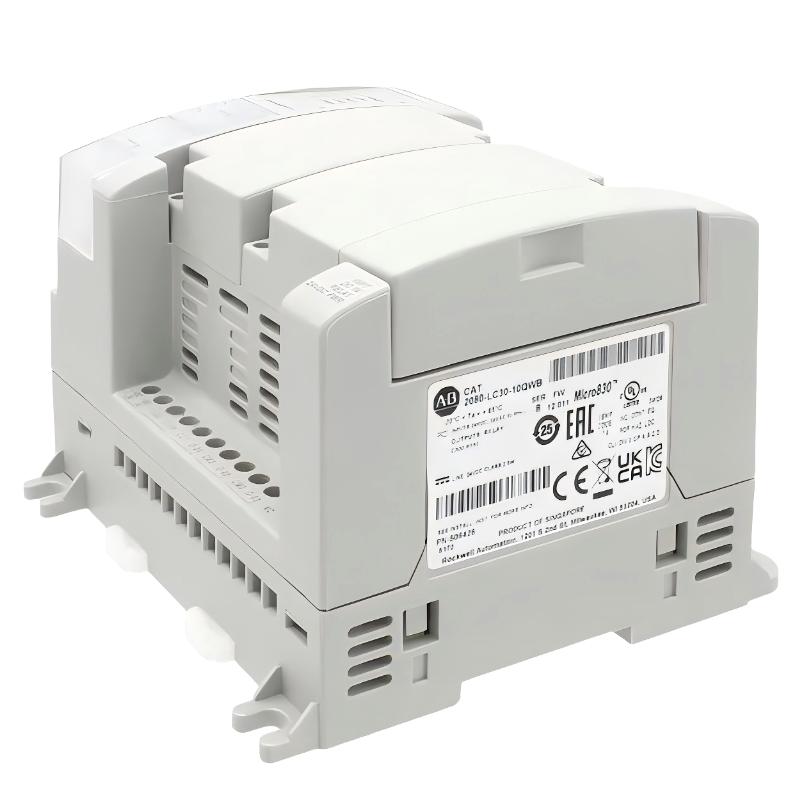

Model: 2080-LC30-10QWB
1. Product Overview
The 2080-LC30-10QWB is a compact programmable logic controller designed for small to mid-level industrial automation applications.
It integrates a central processing unit, digital inputs, digital outputs, and communication functions into a single compact device.
This structure reduces wiring complexity and improves installation efficiency in machine-level automation systems.
It is commonly used in applications requiring stable logic control, moderate I/O handling, and reliable industrial operation.
The controller is designed for continuous performance in environments with vibration, electrical noise, and temperature fluctuations.
2. Brand Information
| Item | Details |
|---|---|
| Brand | Allen Bradley |
| Product Model | 2080-LC30-10QWB |
| Product Type | Compact PLC controller |
| Product Category | Micro800 / Micro830 automation controller |
| Main Function | Machine control and automation logic processing |
| Installation Method | DIN rail mounting |
| Industry Application | Industrial machinery and automation systems |
3. Product Series Information
The 2080-LC30-10QWB belongs to the Micro800 / Micro830 PLC series.
This series is designed for compact machine control applications requiring integrated control, flexible expansion, and cost-effective automation solutions.
It is widely used in small and medium industrial machines where simplicity and reliability are essential.
Key characteristics of the series include:
- Compact PLC design
- Integrated CPU and I/O structure
- Cost-efficient automation architecture
- Easy programming environment
- Expandable modular system
- Ethernet communication support
- Suitable for standalone machine control
4. Product Introduction
The 2080-LC30-10QWB is a compact industrial controller designed for machine-level automation systems.
It provides reliable logic processing for sequencing, timing, interlocking, and general machine control functions.
The controller integrates processing, I/O, and communication capabilities into a single device to simplify system design.
It is suitable for applications that require more I/O capacity than entry-level PLCs but still demand compact size.
Its structure allows installation in small control cabinets or machine-integrated environments.
The controller supports flexible programming and can handle a variety of automation tasks in industrial environments.
5. Technical Parameters
| Parameter | Specification |
|---|---|
| Product Model | 2080-LC30-10QWB |
| Product Type | Compact PLC controller |
| Series | Micro800 / Micro830 platform |
| Processor Type | Embedded industrial CPU |
| Digital Inputs | 16–24 channels (typical configuration) |
| Digital Outputs | Transistor output type |
| Output Type | DC switching outputs |
| Communication | Ethernet + serial communication |
| Expansion Support | Yes, modular expansion available |
| Programming Software | Connected Components Workbench |
| Input Voltage | 24V DC industrial power |
| Power Consumption | Low-power industrial design |
| Mounting Type | DIN rail mounting |
| Housing Material | Industrial thermoplastic |
| Operating Temperature | -20°C to +55°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 5% to 95% non-condensing |
| Protection Level | Industrial enclosure standard |
| Dimensions (L × W × H) | Approx. 120 mm × 95 mm × 80 mm |
| Weight | Approx. 0.36 kg |
6. Main Product Features
Compact Integrated Architecture
The 2080-LC30-10QWB combines CPU, I/O, and communication into one compact controller.
This reduces system wiring and simplifies machine installation.
Medium I/O Capacity
The controller provides more I/O capability compared to entry-level models, making it suitable for moderately complex machines.
Ethernet Connectivity
Built-in Ethernet enables communication with HMI systems, SCADA platforms, and industrial networks.
Flexible Expansion
The controller supports additional I/O modules for system scalability.
Industrial Reliability
Designed for stable operation under vibration, noise, and temperature variation conditions.
7. Product Advantages
| Advantage | Description |
|---|---|
| Compact Size | Saves installation space |
| Integrated System | CPU + I/O + communication in one unit |
| Medium I/O Capacity | Suitable for mid-level machines |
| Easy Programming | Simple automation logic structure |
| Cost Efficiency | Balanced performance and cost |
| Stable Operation | Industrial-grade reliability |
| Flexible Expansion | Supports system growth |
| Network Ready | Ethernet communication included |
8. Product Applications
The 2080-LC30-10QWB is widely used in industrial automation systems requiring moderate I/O capacity and compact control design.
Typical applications include:
- Packaging machinery
- Conveyor systems
- Assembly machines
- Textile machinery
- Food processing equipment
- Pump and motor control systems
- HVAC systems
- Material handling systems
- Light manufacturing lines
- Industrial automation equipment
- Standalone machine controllers
- Retrofit automation systems
It is suitable for machines requiring stable and scalable control solutions.
9. Recommended Models (Same Series or Related Models)
| Model | Description | Function Type | Compatibility | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|
| 2080-LC30-10QWB | Compact PLC controller | Machine control | Micro800 series | 120 × 95 × 80 | 0.36 |
| 2080-LC20-20QWB | Entry PLC controller | Basic automation | Micro800 series | 110 × 90 × 75 | 0.34 |
| 2080-LC20-20QBB | Compact PLC controller | Basic machine control | Micro800 series | 110 × 90 × 75 | 0.32 |
| 2080-LC50-48QWB | High I/O PLC controller | Advanced automation | Micro800 series | 150 × 90 × 80 | 0.45 |
| 2080-IF4 | Analog input module | Signal expansion | Micro800 system | 90 × 60 × 40 | 0.15 |
10. Recommended Popular Models (Same Brand)
| Model | Description | Product Type | Main Application | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|
| 1756-L85E | High-performance PLC | Control system | Large automation plants | 145 × 105 × 140 | 0.55 |
| 1769-L33ER | Compact PLC system | Machine control | Medium automation systems | 118 × 87 × 87 | 0.35 |
| 1734-IB8 | Digital input module | Input device | Distributed I/O systems | 56 × 12 × 75 | 0.08 |
| 1756-EN2TR | Ethernet module | Network communication | Industrial networking | 145 × 105 × 35 | 0.31 |
| 1606-XLS480E | Power supply unit | Power module | Control cabinet systems | 123 × 50 × 120 | 0.85 |
11. System Integration Characteristics
The 2080-LC30-10QWB functions as a compact controller for standalone and small-to-medium automation systems.
It provides direct machine control without requiring complex PLC architectures.
Its Ethernet connectivity enables integration into industrial communication networks.
The modular expansion capability supports future system upgrades.
It is suitable for scalable industrial automation applications.
12. Conclusion
The 2080-LC30-10QWB is a compact programmable logic controller designed for industrial automation systems requiring moderate I/O capacity, integrated control, and stable performance.
Its compact structure, flexible expansion, and communication capability make it suitable for machine-level automation applications.
It is widely used in packaging, conveyor systems, HVAC, and manufacturing equipment where reliability, efficiency, and space saving are essential.
