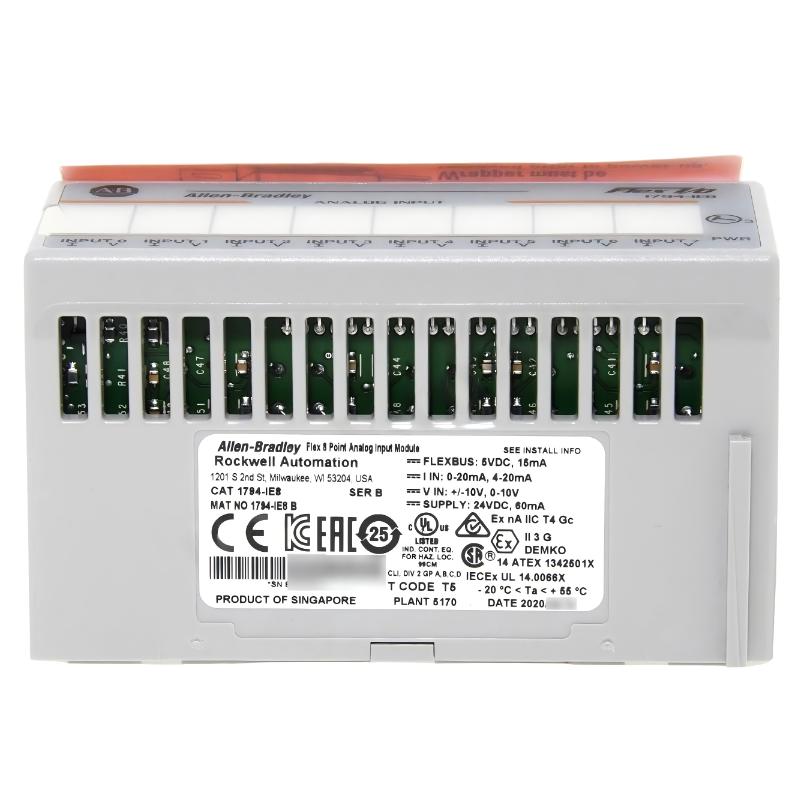

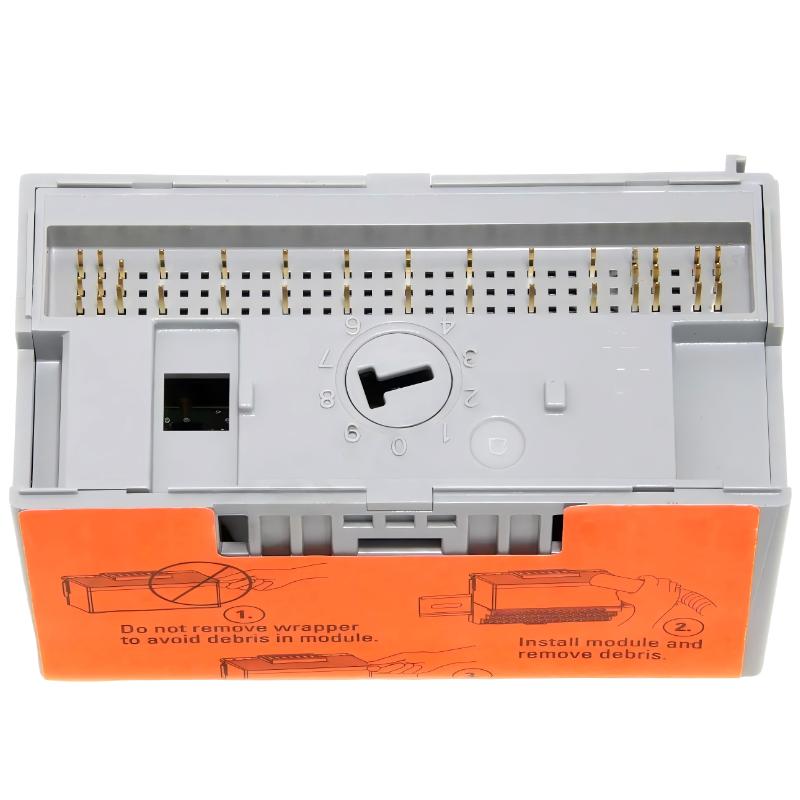

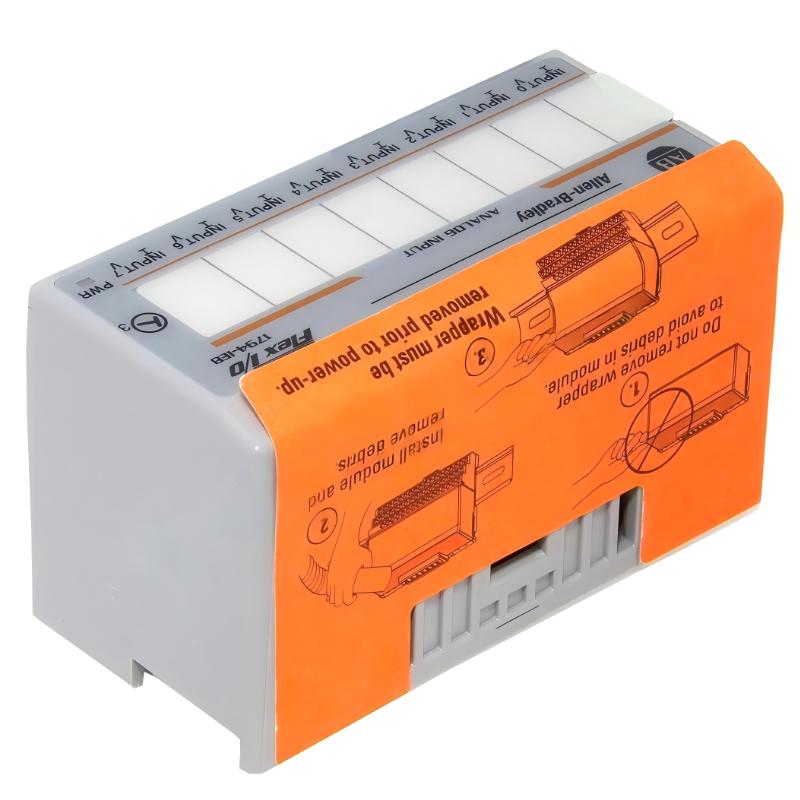

1794-IE8 FLEX I/O 8-Channel Analog Input Module – Detailed Technical Overview
1. Product Introduction
The 1794-IE8 is a FLEX I/O distributed 8-channel analog input module designed for industrial automation systems. It is used to collect continuous analog signals from field instruments such as pressure transmitters, flow meters, temperature transmitters, and other process sensors, and convert them into digital data for PLC processing.
It supports both voltage and current input types, making it suitable for general-purpose process monitoring applications in distributed control architectures.
The module is mounted on a FLEX I/O terminal base and communicates with the controller through a FLEX backplane system, allowing decentralized signal acquisition close to field devices.
2. Product Features
- 8-channel analog input configuration
- Supports voltage and current signals
- High-resolution 12-bit A/D conversion
- 16-bit data format output
- Fast conversion using successive approximation
- Flexible industrial signal compatibility
- LED status indicator
- DIN rail mounting design
- Modular FLEX I/O architecture
- Stable operation in industrial environments
3. Technical Parameters
| Parameter | Specification |
|---|---|
| Model | 1794-IE8 |
| Product Type | Analog input module |
| Series | FLEX I/O 1794 Series |
| Input Channels | 8 single-ended inputs |
| Input Types | 0–20 mA, 4–20 mA, 0–10 V, ±10 V |
| Resolution | 12-bit (unipolar), 11-bit bipolar |
| Data Format | 16-bit 2’s complement |
| Conversion Type | Successive approximation |
| Conversion Rate | 256 µs (all channels) |
| Input Accuracy | ~±0.2% full scale @ 25°C |
| Input Voltage Range | ±10 V / 0–10 V |
| Input Current Range | 0–20 mA / 4–20 mA |
| Input Impedance | ~100 kΩ (voltage), ~238 Ω (current) |
| Step Response | ~9–18 ms |
| Power Supply | 24V DC (10–31.2V DC range) |
| FlexBus Current | ~20–60 mA |
| Power Dissipation | ~3.0 W |
| Thermal Dissipation | ~10.2 BTU/hr |
| Isolation Voltage | 50V continuous (field-to-system) |
| Channel Isolation | No channel-to-channel isolation |
| Indicator Lights | 1 status LED |
| Mounting Type | DIN rail |
| Terminal Base | TB2 / TB3 / TB3S compatible |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -40°C to 85°C |
| Humidity Range | 5%–95% non-condensing |
| Vibration Resistance | 5g (10–500 Hz) |
| Shock Resistance | 30g |
| IP Rating | IP20 |
| Dimensions | 94 × 94 × 69 mm |
| Weight | 0.11 kg |
4. Product Function Description
The 1794-IE8 functions as an analog signal acquisition module in distributed control systems.
Each of the 8 channels receives continuous analog signals from field devices. The module converts these signals into digital values using high-speed A/D conversion and transmits them to the PLC via the FLEX I/O backplane.
It supports both voltage and current input types, allowing flexible connection to a wide range of industrial sensors.
The module is designed for process monitoring rather than control output, focusing on accurate and stable data acquisition.
5. Product Applications
The 1794-IE8 is widely used in industrial process measurement and monitoring systems.
Typical Applications
- Process automation systems
- Chemical and petrochemical plants
- Water treatment facilities
- HVAC systems
- Oil and gas monitoring systems
- Power plant auxiliary systems
- Food and beverage production lines
- Industrial machinery monitoring
- Environmental control systems
- OEM equipment instrumentation
Typical Field Devices
- Pressure transmitters
- Flow transmitters
- Level sensors
- Temperature transmitters
- Industrial analog sensors
- Signal conditioners
6. Product Advantages
6.1 Multi-Signal Compatibility
Supports both voltage and current inputs, allowing flexible sensor integration.
6.2 High Conversion Speed
Fast 256 µs conversion enables near real-time process monitoring.
6.3 Reliable Industrial Design
Stable operation under electrical noise and industrial conditions.
6.4 Modular FLEX I/O Structure
Easily integrates into distributed control systems.
6.5 Compact Installation
DIN rail design reduces cabinet space usage.
6.6 Stable Measurement Accuracy
Provides ±0.2% full-scale accuracy for industrial applications.
6.7 Easy Maintenance
Hot-swappable module design simplifies replacement and servicing.
7. Brand Overview
This product belongs to a globally recognized industrial automation technology provider specializing in:
- PLC control systems
- Distributed I/O platforms
- Industrial communication networks
- Motion and process automation
- Safety and control technologies
Its systems are widely applied in manufacturing, energy, oil & gas, water treatment, and process industries due to reliability and long-term lifecycle support.
8. Product Series Information
Series Name
FLEX I/O 1794 Series
Series Type
Distributed analog I/O system
Key Characteristics
- Modular distributed I/O design
- DIN rail mounting
- Hot-swappable modules
- Wide analog and digital signal support
- Flexible system expansion
- Industrial-grade reliability
The 1794-IE8 is a standard 8-channel analog input module in this platform.
9. Recommended Related Models (Same Series or Similar)
| Model | Product Type | Function | Dimensions | Weight (kg) | Key Parameters |
|---|---|---|---|---|---|
| 1794-IE8 | Analog input module | 8-channel AI | 94 × 94 × 69 mm | 0.11 kg | Voltage/current input |
| 1794-IE12 | Analog input module | 12-channel AI | 94 × 94 × 69 mm | 0.12 kg | Higher density input |
| 1794-IE4XOE2 | Analog combo module | 4AI + 2AO | 94 × 94 × 69 mm | 0.12 kg | Mixed analog I/O |
| 1794-OE4 | Analog output module | 4-channel AO | 94 × 94 × 69 mm | 0.10 kg | Output control |
| 1794-IF4I | Isolated analog input | 4-channel AI | 94 × 94 × 69 mm | 0.11 kg | High isolation input |
10. Recommended Popular Models from Same Brand
| Model | Product Type | Function | Dimensions | Weight (kg) | Key Parameters |
|---|---|---|---|---|---|
| 1756-L81E | PLC controller | ControlLogix CPU | 145 × 175 × 52 mm | 0.92 kg | High-performance controller |
| 1769-L33ER | Compact PLC | CompactLogix system | 118 × 87 × 87 mm | 0.60 kg | Integrated Ethernet |
| 1734-AENTR | Ethernet adapter | POINT I/O network | 75 × 75 × 55 mm | 0.18 kg | Distributed I/O |
| 2711P-T10C4D8 | HMI panel | Operator interface | 271 × 212 × 60 mm | 1.80 kg | Industrial touchscreen |
| 20-COMM-E | Drive communication module | Ethernet interface | 140 × 95 × 30 mm | 0.22 kg | Industrial communication |
11. Installation Notes
- Use compatible TB2/TB3 terminal bases
- Maintain proper grounding for analog accuracy
- Keep analog wiring away from power cables
- Ensure stable 24V DC supply
- Avoid ground loop interference
- Secure DIN rail installation properly
12. Maintenance Recommendations
- Periodically check signal calibration
- Inspect wiring connections
- Monitor channel stability
- Maintain clean cabinet environment
- Replace module if signal drift occurs
13. Summary
The 1794-IE8 is a widely used 8-channel analog input module designed for distributed industrial automation systems. It provides reliable signal acquisition, flexible input compatibility, and stable performance for process monitoring applications across multiple industries.
