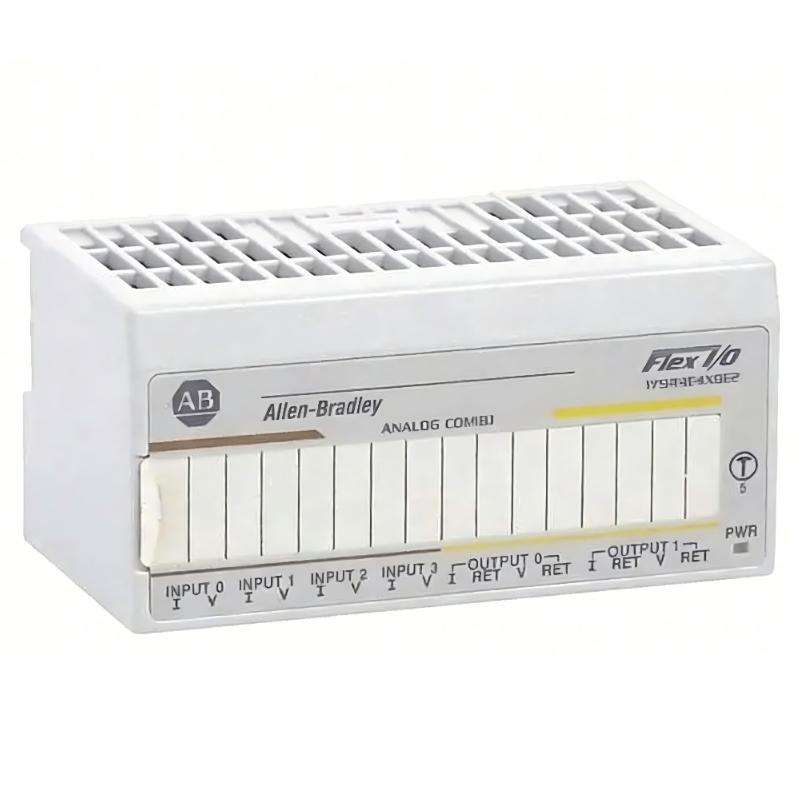

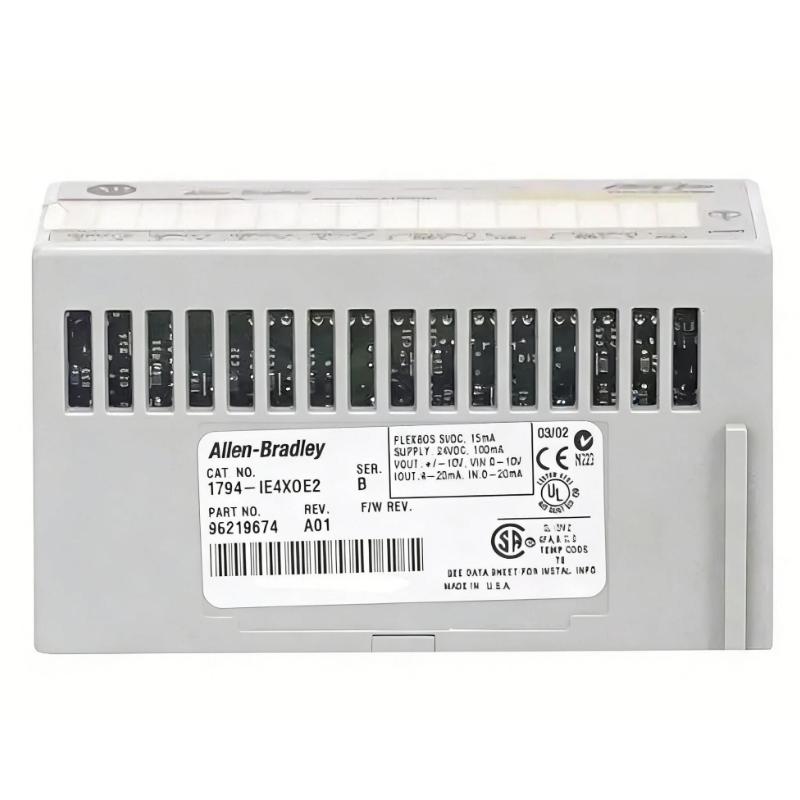

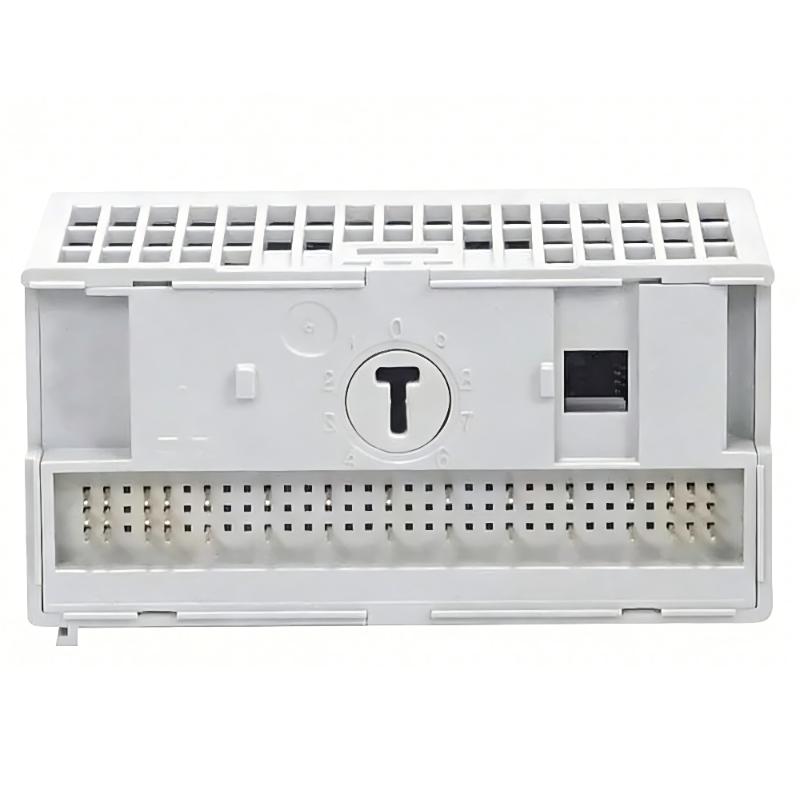

1794-IE4XOE2 FLEX I/O Analog Combination Module – Detailed Technical Overview
1. Product Introduction
The 1794-IE4XOE2 is a FLEX I/O analog combination module designed for distributed industrial automation systems. It integrates both analog input and analog output functions into a single compact module, making it suitable for applications requiring bidirectional analog signal processing.
This module is commonly used in FLEX I/O architectures where space saving, wiring reduction, and mixed signal handling are required. It supports multiple industrial signal types and provides high-speed analog conversion for process control environments.
The device is typically installed on a FLEX I/O terminal base and communicates with PLC systems through the backplane structure, enabling flexible distributed control configurations.
2. Product Features
- 4-channel analog inputs
- 2-channel analog outputs
- Supports current and voltage signal types
- Flexible signal configuration per channel
- High-speed analog conversion design
- Modular FLEX I/O architecture compatibility
- DIN rail mounting system
- LED status indication
- Compact combination I/O structure
- Stable industrial-grade operation
3. Technical Parameters
| Parameter | Specification |
|---|---|
| Model | 1794-IE4XOE2 |
| Product Type | Analog combination I/O module |
| Series | FLEX I/O 1794 Series |
| Input Channels | 4 single-ended inputs |
| Output Channels | 2 single-ended outputs |
| Input Signal Types | 0–20 mA, 4–20 mA, 0–10 V, ±10 V |
| Output Signal Types | 0–20 mA, 4–20 mA, 0–10 V, ±10 V |
| Resolution | 12-bit (inputs), 11-bit bipolar |
| Conversion Type | Successive approximation (ADC) |
| Output Conversion | PWM-based DAC |
| Input Accuracy | ~±0.15% full scale @ 25°C |
| Output Accuracy | ~±0.13–0.20% full scale @ 25°C |
| Conversion Rate | ~256–300 µs per channel |
| Step Response | ~9–18 ms depending on signal type |
| FlexBus Current | ~20 mA |
| Power Supply | 24V DC (19.2–31.2V DC) |
| Power Dissipation | ~2.5–4 W |
| Thermal Dissipation | ~8.5–10.2 BTU/hr |
| Input Impedance | ~100 kΩ (voltage), ~238 Ω (current) |
| Isolation | Basic field-to-system isolation |
| Channel Type | Non-isolated channels |
| Indicator Lights | Status LED |
| Mounting Type | DIN rail |
| Terminal Base | 1794-TB2 / TB3 / TB3S compatible |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -40°C to 85°C |
| Humidity Range | 5%–95% non-condensing |
| Vibration Resistance | 5g (10–500 Hz) |
| Shock Resistance | 30g |
| IP Rating | IP20 |
| Dimensions | 94 × 94 × 69 mm |
| Weight | 0.11–0.14 kg |
4. Product Function Description
The 1794-IE4XOE2 operates as a mixed analog signal interface module within a distributed control system.
On the input side, it receives analog signals from field instruments such as transmitters and sensors, converting them into digital values through an internal ADC system. On the output side, it generates analog control signals used to regulate actuators, valves, or variable-speed drives.
This combination of input and output functionality in one module reduces system footprint and simplifies wiring in control panels.
It is widely used in systems requiring simultaneous monitoring and control of analog process variables.
5. Product Applications
The 1794-IE4XOE2 is suitable for process automation systems requiring mixed analog signal handling.
Typical Applications
- Process control systems
- Chemical and petrochemical plants
- Water and wastewater treatment systems
- HVAC control systems
- Power plant auxiliary control
- Food and beverage processing
- Industrial batching systems
- Pump and valve control systems
- OEM machine control systems
- Environmental monitoring systems
Typical Field Devices
- Pressure transmitters
- Flow sensors
- Temperature transmitters
- Control valves
- Variable speed drives
- Level sensors
6. Product Advantages
6.1 Combined I/O Functionality
Integrates both analog input and output in a single module, reducing system complexity.
6.2 Flexible Signal Support
Supports multiple industrial signal standards including current and voltage types.
6.3 Space Saving Design
Reduces cabinet space requirements by combining functions.
6.4 High-Speed Conversion
Fast response time improves real-time process control performance.
6.5 Stable Industrial Performance
Designed for harsh environments with electrical noise resistance.
6.6 Modular Flexibility
Easily integrates into FLEX I/O distributed architectures.
6.7 Reduced Wiring Cost
Fewer modules reduce wiring labor and terminal usage.
7. Brand Overview
This product belongs to a globally recognized industrial automation provider specializing in:
- PLC systems
- Distributed I/O solutions
- Industrial process control systems
- Motion and drive control technologies
- Factory automation infrastructure
Its equipment is widely used in oil & gas, manufacturing, energy, water treatment, and process industries due to reliability and long lifecycle support.
8. Product Series Information
Series Name
FLEX I/O 1794 Series
Series Type
Distributed analog/digital combination I/O system
Key Characteristics
- Modular I/O architecture
- Mixed analog and digital modules
- DIN rail mounting
- Hot-swappable capability
- Flexible system integration
- Wide industrial signal compatibility
The 1794-IE4XOE2 is a specialty mixed-signal module within this series.
9. Recommended Related Models (Same Series or Similar)
| Model | Product Type | Function | Dimensions | Weight (kg) | Key Parameters |
|---|---|---|---|---|---|
| 1794-IE4XOE2 | Analog combo module | 4AI + 2AO | 94 × 94 × 69 mm | 0.12 kg | Mixed analog I/O |
| 1794-IE8 | Analog input module | 8-channel AI | 94 × 94 × 69 mm | 0.11 kg | Pure input module |
| 1794-OE4 | Analog output module | 4-channel AO | 94 × 94 × 69 mm | 0.10 kg | Output control |
| 1794-IF4I | Isolated analog input | 4-channel AI | 94 × 94 × 69 mm | 0.11 kg | High isolation |
| 1794-IE12 | Analog input module | 12-channel AI | 94 × 94 × 69 mm | 0.12 kg | High-density input |
10. Recommended Popular Models from Same Brand
| Model | Product Type | Function | Dimensions | Weight (kg) | Key Parameters |
|---|---|---|---|---|---|
| 1756-L81E | PLC controller | ControlLogix CPU | 145 × 175 × 52 mm | 0.92 kg | High-performance PLC |
| 1769-L33ER | Compact PLC | CompactLogix system | 118 × 87 × 87 mm | 0.60 kg | Integrated Ethernet |
| 1734-AENTR | Ethernet adapter | POINT I/O network | 75 × 75 × 55 mm | 0.18 kg | Distributed I/O |
| 2711P-T10C4D8 | HMI panel | Operator interface | 271 × 212 × 60 mm | 1.80 kg | Industrial touchscreen |
| 20-COMM-E | Drive communication module | Ethernet interface | 140 × 95 × 30 mm | 0.22 kg | Industrial communication |
11. Installation Notes
- Install on compatible FLEX I/O terminal base
- Ensure correct signal wiring for input/output channels
- Maintain proper grounding for analog accuracy
- Separate signal cables from power lines
- Verify 24V DC supply stability
- Ensure secure DIN rail mounting
12. Maintenance Recommendations
- Periodically check analog signal accuracy
- Inspect wiring and terminal tightness
- Monitor channel response stability
- Keep cabinet dry and clean
- Replace module if signal deviation occurs
13. Summary
The 1794-IE4XOE2 is a compact analog combination module designed for mixed signal acquisition and control in distributed industrial automation systems. Its integration of input and output functions, flexible signal compatibility, and modular architecture make it suitable for complex process control environments requiring efficient space utilization and reliable analog performance.
