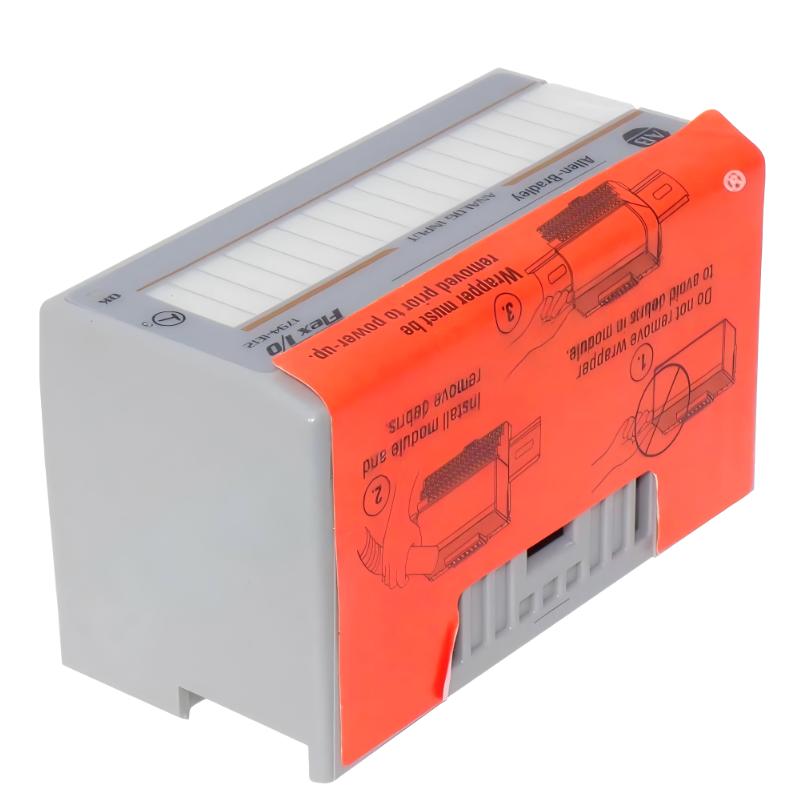

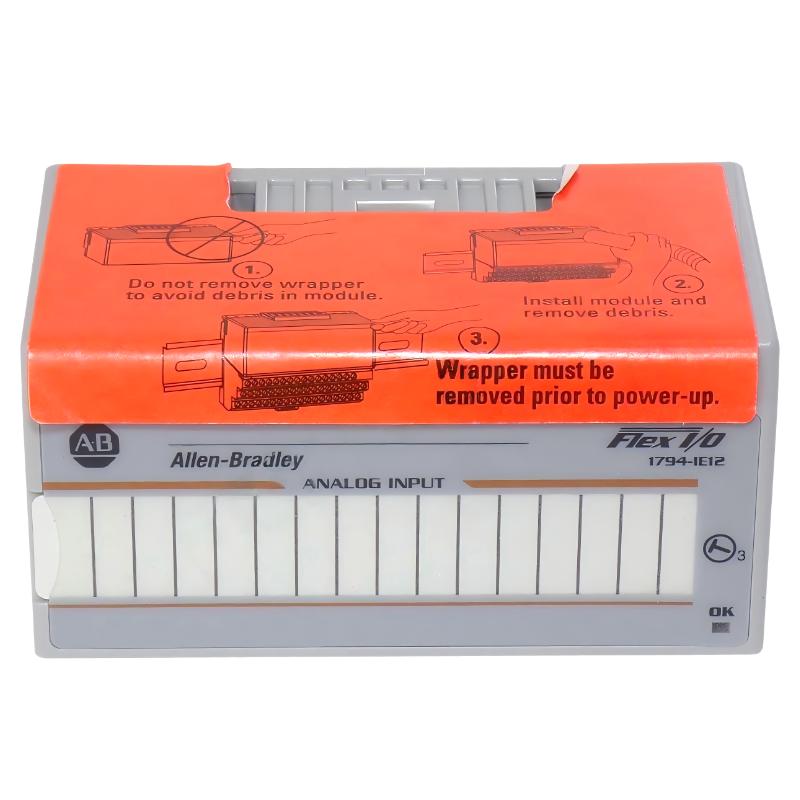

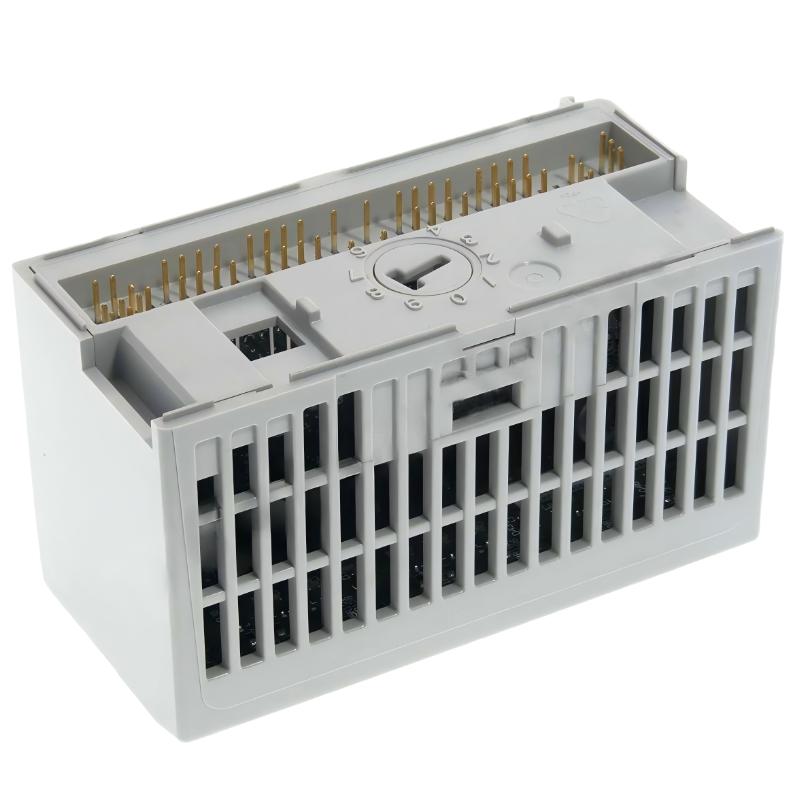

1794-IE12 FLEX I/O 12-Channel Analog Input Module – Detailed Technical Overview
1. Product Introduction
The 1794-IE12 is a high-density analog input module designed for the FLEX I/O distributed control system. It is used to acquire multiple analog signals from field instrumentation such as pressure transmitters, flow meters, temperature sensors, and level sensors, and convert them into digital data for PLC processing.
This module supports 12 single-ended analog input channels and is capable of handling both voltage and current signals, making it suitable for general-purpose process monitoring and industrial measurement applications.
It is widely used in distributed I/O architectures where centralized analog signal collection is not practical due to wiring distance or system complexity.
2. Product Features
- 12-channel analog input module
- Supports voltage and current input types
- FLEX I/O distributed architecture compatibility
- 16-bit high-resolution conversion
- 8 ms conversion rate across all channels
- LED status indicator for diagnostics
- DIN rail mounting system
- Modular plug-in design
- High accuracy signal acquisition
- Stable operation in industrial environments
3. Technical Parameters
| Parameter | Specification |
|---|---|
| Model | 1794-IE12 |
| Product Type | Analog input module |
| Series | FLEX I/O 1794 Series |
| Input Channels | 12 single-ended channels |
| Input Types | 0–20 mA, 4–20 mA, ±10 V, 0–10 V |
| Resolution | 16-bit (voltage: 320 μV/count, current: 0.641 μA/count) |
| Conversion Rate | 8 ms (all channels) |
| Accuracy | ±0.1% full scale @ 25°C |
| Input Impedance | >1 MΩ (voltage), <100 Ω (current) |
| Power Supply | 24V DC (10–31.2V DC range) |
| FlexBus Current | ~30–80 mA |
| Power Dissipation | ~1.1–1.2 W |
| Thermal Dissipation | ~4.1 BTU/hr |
| Isolation Voltage | 50V continuous (field-to-system) |
| Channel Isolation | No channel-to-channel isolation |
| Calibration | Internal automatic calibration |
| Indicator Lights | 1 status LED (green/red) |
| Mounting Type | DIN rail |
| Terminal Base | 1794-TB3G / TB3GS compatible |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -40°C to 85°C |
| Humidity Range | 5%–95% non-condensing |
| Vibration Resistance | 5g (10–500 Hz) |
| Shock Resistance | 30g |
| IP Rating | IP20 |
| Dimensions | 94 × 94 × 69 mm |
| Weight | 0.12 kg |
4. Product Function Description
The 1794-IE12 functions as a multi-channel analog signal acquisition module in industrial automation systems.
Each channel receives analog signals from field devices and converts them into digital values using high-resolution A/D conversion. These values are then transmitted through the FLEX I/O backplane to the PLC controller.
The module supports both voltage and current inputs, allowing flexible integration with different types of industrial sensors.
It is commonly used in process control systems where multiple analog signals must be monitored simultaneously.
5. Product Applications
The 1794-IE12 is widely used in industrial process measurement and control systems.
Typical Applications
- Process control systems
- Chemical production lines
- Water treatment systems
- Oil and gas monitoring systems
- HVAC control systems
- Food and beverage processing
- Power plant auxiliary monitoring
- Industrial automation systems
- Environmental monitoring systems
- OEM machinery instrumentation
Typical Field Devices
- Pressure transmitters
- Flow meters
- Temperature sensors (via transmitters)
- Level sensors
- Industrial transducers
- Signal conditioning devices
6. Product Advantages
6.1 High Channel Density
12 analog channels in a single compact module reduce cabinet space and wiring complexity.
6.2 Multi-Signal Compatibility
Supports both voltage and current inputs, increasing application flexibility.
6.3 High Accuracy Measurement
Provides ±0.1% full-scale accuracy for stable industrial measurement.
6.4 Fast Conversion Speed
8 ms conversion rate ensures near real-time monitoring.
6.5 Modular Architecture
Easily integrates into FLEX I/O distributed systems.
6.6 Stable Industrial Performance
Designed for noise immunity and long-term industrial reliability.
6.7 Low Power Consumption
Efficient design reduces heat generation and system load.
7. Brand Overview
This product belongs to a globally recognized industrial automation technology provider specializing in:
- PLC systems
- Distributed I/O platforms
- Industrial communication systems
- Motion and process control solutions
- Factory automation technologies
Its products are widely used across energy, manufacturing, oil and gas, water treatment, and process industries due to reliability and long lifecycle support.
8. Product Series Information
Series Name
FLEX I/O 1794 Series
Series Type
Distributed modular I/O system
Key Characteristics
- Modular analog and digital I/O expansion
- DIN rail mounting design
- Hot-swappable modules
- Flexible system architecture
- Wide signal compatibility
- Industrial communication integration
The 1794-IE12 is the high-density analog input module within this series.
9. Recommended Related Models (Same Series or Similar)
| Model | Product Type | Function | Dimensions | Weight (kg) | Key Parameters |
|---|---|---|---|---|---|
| 1794-IE12 | Analog input module | 12-channel AI | 94 × 94 × 69 mm | 0.12 kg | Voltage/current input |
| 1794-IE8 | Analog input module | 8-channel AI | 94 × 94 × 69 mm | 0.11 kg | Lower density AI |
| 1794-OE4 | Analog output module | 4-channel AO | 94 × 94 × 69 mm | 0.10 kg | Analog output control |
| 1794-IF4I | Isolated AI module | 4-channel isolated input | 94 × 94 × 69 mm | 0.11 kg | Isolated measurement |
| 1794-IRT8 | RTD input module | Temperature input | 94 × 94 × 69 mm | 0.11 kg | RTD sensors |
10. Recommended Popular Models from Same Brand
| Model | Product Type | Function | Dimensions | Weight (kg) | Key Parameters |
|---|---|---|---|---|---|
| 1756-L81E | PLC controller | ControlLogix CPU | 145 × 175 × 52 mm | 0.92 kg | High-performance processor |
| 1769-L33ER | Compact PLC | CompactLogix system | 118 × 87 × 87 mm | 0.60 kg | Integrated Ethernet |
| 1734-AENTR | Ethernet adapter | POINT I/O network | 75 × 75 × 55 mm | 0.18 kg | Distributed I/O |
| 2711P-T10C4D8 | HMI panel | Operator interface | 271 × 212 × 60 mm | 1.80 kg | Industrial touchscreen |
| 20-COMM-E | Drive communication module | Ethernet interface | 140 × 95 × 30 mm | 0.22 kg | Industrial networking |
11. Installation Notes
- Use TB3G/TB3GS compatible terminal bases
- Maintain proper grounding for analog accuracy
- Separate analog wiring from power cables
- Ensure stable 24V DC supply
- Avoid ground loop conditions
- Secure DIN rail mounting firmly
12. Maintenance Recommendations
- Periodically verify signal calibration
- Inspect wiring connections for stability
- Monitor channel accuracy drift
- Keep enclosure clean and dry
- Replace module if measurement errors persist
13. Summary
The 1794-IE12 is a 12-channel high-density analog input module designed for industrial process monitoring and distributed automation systems. It provides accurate, stable, and flexible signal acquisition for a wide range of analog field devices.
Its combination of multi-signal compatibility, high resolution, and modular architecture makes it suitable for complex industrial environments requiring reliable analog data acquisition.
