1794-IB10XOB6XT FLEX XT Combination I/O Module – Detailed Technical Overview
1. Product Introduction

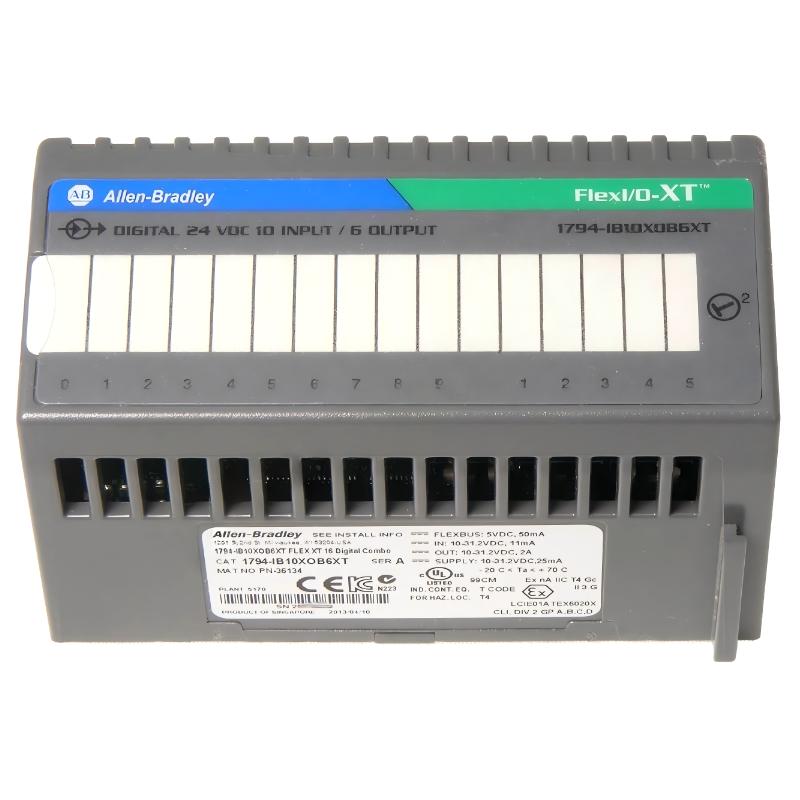

The 1794-IB10XOB6XT is a FLEX XT series industrial combination I/O module designed for harsh environment automation systems. It integrates 10 digital DC inputs (sinking type) and 6 digital DC outputs (sourcing type) in a single compact unit.
This module is an upgraded “XT” version of standard FLEX I/O, engineered for extended temperature environments and higher resistance to industrial stress conditions.
It is widely used in distributed control systems where both input monitoring and output control are required in a compact footprint. The design supports modular expansion and fast replacement within FLEX I/O racks.
The module is typically installed in DIN rail-based control cabinets and connected through a terminal base system, enabling flexible wiring and simplified maintenance.
2. Product Features
- 10-channel 24V DC sinking digital inputs
- 6-channel 24V DC sourcing digital outputs
- FLEX XT extended temperature design
- Combined input/output architecture
- LED status indicators for all channels
- Modular plug-in structure
- DIN rail installation
- Hot-swappable capability
- High resistance to vibration and shock
- Industrial-grade electrical noise immunity
- Conformal coating option (environment dependent)
3. Technical Parameters
| Parameter | Specification |
|---|---|
| Model | 1794-IB10XOB6XT |
| Product Type | FLEX XT combination I/O module |
| Series | FLEX I/O XT Series |
| Input Channels | 10 digital inputs (24V DC sinking) |
| Output Channels | 6 digital outputs (24V DC sourcing) |
| Input Voltage Range | 10–31.2V DC |
| Output Voltage | 24V DC nominal |
| Max Output Current | 2.0A per channel (approx.) |
| Total Output Current | Up to 10A module total |
| FlexBus Current | ~35–50 mA |
| Power Dissipation | ~6.0 W max |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 5%–95% non-condensing |
| Vibration Resistance | 5g (10–500 Hz) |
| Shock Resistance | 30g operating |
| Isolation | Basic field-to-system isolation |
| Indicator Status | 16 LEDs (I/O status) |
| Mounting Type | DIN rail |
| Compatible Base | FLEX XT terminal base |
| Dimensions | ~100 × 120 × 50 mm |
| Weight | 0.50 kg |
4. Product Function Description
The 1794-IB10XOB6XT functions as a mixed signal interface module in distributed automation architectures.
It performs two key roles:
- Input acquisition: 10 channels monitor 24V DC field signals such as sensors, switches, and interlocks
- Output control: 6 channels drive external devices such as relays, solenoids, and indicator lamps
The module communicates with the controller through the FLEX backplane system, converting physical I/O signals into digital data and control commands.
The XT version is optimized for environments with higher temperature fluctuations and industrial stress, making it suitable for demanding applications.
5. Product Applications
The 1794-IB10XOB6XT is used in a wide range of industrial automation environments requiring mixed I/O in a compact module.
Typical Applications
- Heavy industrial automation systems
- Process control plants
- Oil and gas equipment control panels
- Outdoor or high-temperature machinery systems
- Packaging and production lines
- Conveyor and material handling systems
- Pump and compressor control systems
- HVAC industrial systems
- Water treatment plants
- Remote control cabinets
Typical Field Devices
- Proximity sensors
- Limit switches
- Push buttons
- Solenoid valves
- Motor starter relays
- Alarm indicators
- Safety interlocks
6. Product Advantages
6.1 Extreme Environment Capability
The XT version is designed for extended temperature operation from -20°C to +70°C, suitable for harsh industrial environments.
6.2 Integrated I/O Design
Combines input and output channels in a single module, reducing system complexity and cabinet space usage.
6.3 Reduced Wiring Complexity
Fewer modules mean fewer terminal bases and simplified wiring layout.
6.4 High Reliability
Designed for vibration, shock, and electrical noise resistance in industrial environments.
6.5 Fast Maintenance
Hot-swappable structure allows quick replacement without major system shutdown.
6.6 Efficient Diagnostics
LED indicators provide instant feedback on I/O status for faster troubleshooting.
6.7 Scalable Architecture
Fully compatible with FLEX I/O XT distributed systems for easy expansion.
7. Brand Overview
This product belongs to a globally established industrial automation manufacturer known for:
- PLC control systems
- Distributed I/O platforms
- Motor control solutions
- Industrial communication systems
- Safety automation systems
- Motion control technology
Its equipment is widely deployed in automotive production, energy systems, manufacturing automation, and process industries.
The brand is recognized for long-term reliability, strong industrial standards compliance, and broad system integration capability.
8. Product Series Information
Series Name
FLEX I/O XT Series
Series Type
Extreme environment distributed I/O platform
Key Characteristics
- Extended temperature rating (-20°C to +70°C)
- Conformal coated modules available
- Modular I/O architecture
- DIN rail installation
- Hot-swappable modules
- Designed for harsh industrial environments
- Compatible with standard FLEX I/O infrastructure
The 1794-IB10XOB6XT belongs to the mixed digital input/output module category within this XT platform.
9. Recommended Related Models (Same Series or Similar)
| Model | Product Type | Function | Dimensions | Weight (kg) | Key Parameters |
|---|---|---|---|---|---|
| 1794-IB10XOB6XT | Combo I/O XT module | 10DI + 6DO mixed I/O | 100 × 120 × 50 mm | 0.50 kg | Extreme temp version |
| 1794-IB16 | DC input module | 16-channel input | 94 × 94 × 69 mm | 0.32 kg | Standard FLEX I/O |
| 1794-OB16 | DC output module | 16-channel output | 94 × 94 × 69 mm | 0.30 kg | Standard output module |
| 1794-IA16 | AC input module | 16-channel AC input | 94 × 94 × 69 mm | 0.11 kg | 120V AC input |
| 1794-TB3XT | Terminal base | XT-compatible base | 94 × 94 × 69 mm | 0.19 kg | Harsh environment base |
10. Recommended Popular Models from Same Brand
| Model | Product Type | Function | Dimensions | Weight (kg) | Key Parameters |
|---|---|---|---|---|---|
| 1756-L85E | PLC controller | ControlLogix CPU | 145 × 175 × 52 mm | 0.95 kg | High performance processor |
| 1769-L33ER | Compact PLC | CompactLogix controller | 118 × 87 × 87 mm | 0.60 kg | Integrated Ethernet |
| 1734-AENTR | Ethernet adapter | POINT I/O network module | 75 × 75 × 55 mm | 0.18 kg | Distributed I/O communication |
| 2711P-T10C4D8 | HMI panel | Operator interface | 271 × 212 × 60 mm | 1.80 kg | Industrial touchscreen |
| 20-COMM-E | Drive communication | Ethernet module | 140 × 95 × 30 mm | 0.22 kg | Industrial drive networking |
11. Installation Notes
- Confirm XT-compatible terminal base before installation
- Maintain proper grounding in control cabinet
- Separate signal wiring from power cables
- Avoid mechanical stress on connectors
- Ensure correct 24V DC supply stability
- Secure DIN rail mounting firmly
12. Maintenance Recommendations
- Inspect terminal connections periodically
- Monitor LED indicators for fault detection
- Check output load conditions regularly
- Maintain clean and dry enclosure environment
- Replace module immediately if instability occurs
13. Summary
The 1794-IB10XOB6XT is an industrial-grade FLEX XT combination I/O module designed for harsh environments. With integrated input/output functionality, extended temperature tolerance, and compact modular architecture, it provides a reliable solution for distributed automation systems.
It is especially suitable for demanding industrial applications where space efficiency, environmental resistance, and system flexibility are required in a single I/O module.
