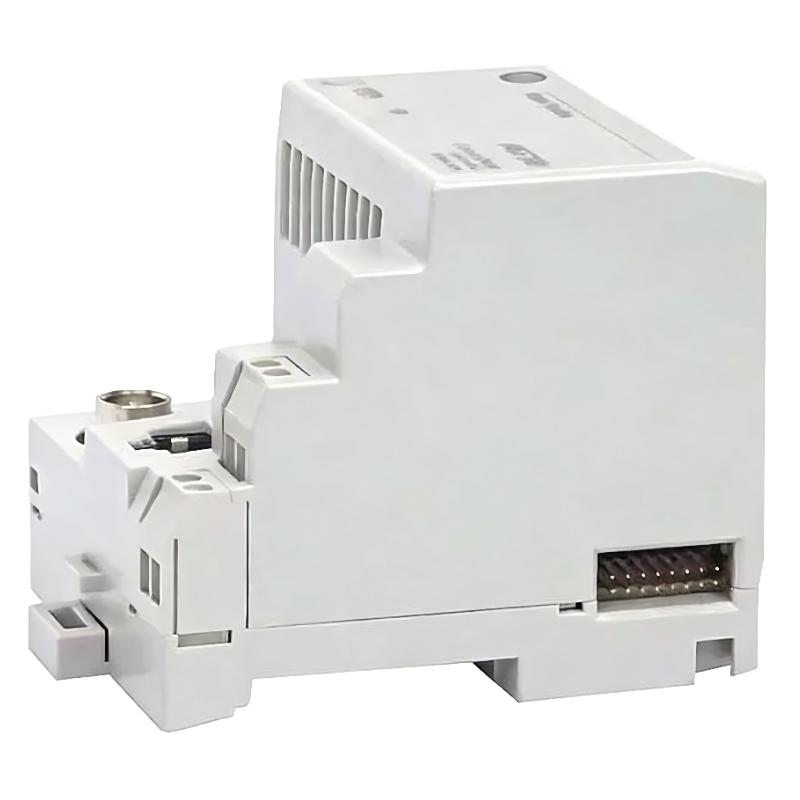

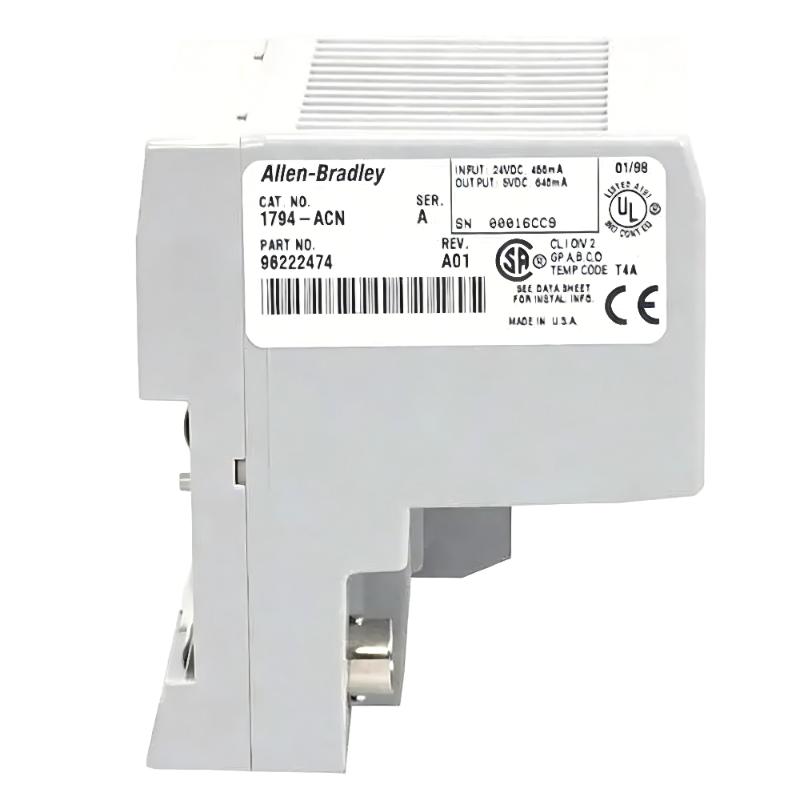

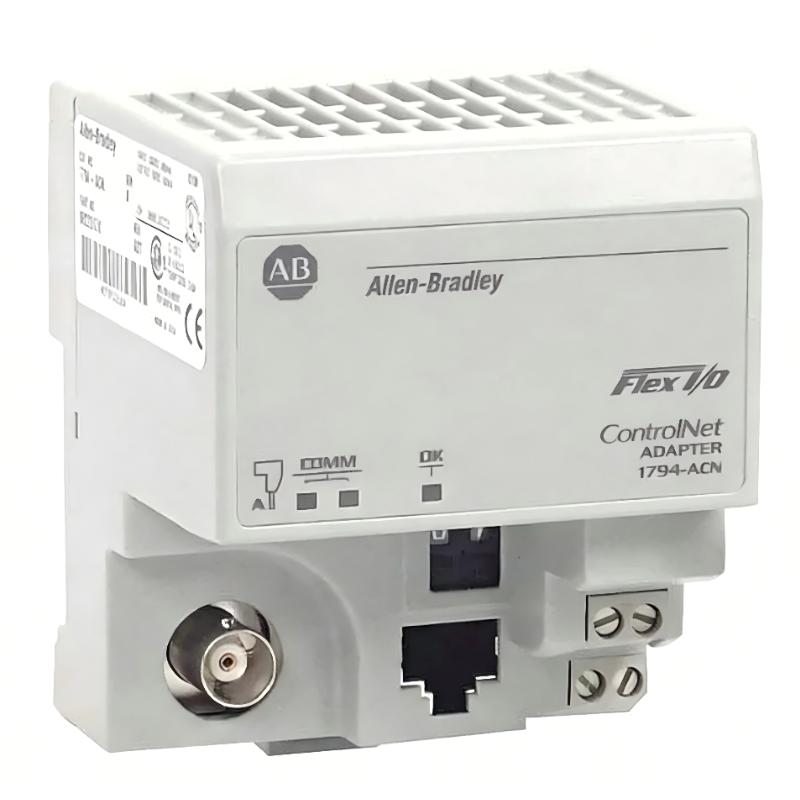

- ControlNet Flex I/O Adapter Module
- USA
- 87.4 mm * 94 mm * 92 mm
- 0.29kg
- Xiamen, China
- New & In Stock
- T/T, PayPal, Western Union
- 1 Year
- 1-3 Working Days
- DHL, UPS, TNT, FedEx and EMS.
- 24-Hour Service
- COO
- 4
Our advantage
Global Logistics
We have a 10-year logistics and express cooperation agreement, so our products can be shipped to any place in the world.
Brand new and original
Our products are imported in bulk from the place of origin. Because of the cooperative relationship, our products are all original and 100% new.
24-hour service
We provide 7*24 hours service to our customers. We will be there whenever you need us.
Price advantage
All our products are priced very favorably because we have our own warehouse and supply.
| Company Information | |||
| [email protected] | |||
| Mobile | +8615980777398 | ||
| +8615980777398 | |||
| 15980777398 |
Technical Report: FLEX I/O ControlNet Adapter Module 1794-ACN
1. Product Overview
The 1794-ACN is a FLEX I/O ControlNet communication adapter module used in distributed industrial automation systems. It functions as a network interface between FLEX I/O terminal bases and a ControlNet control network.
This module allows a PLC or controller to communicate with distributed I/O blocks through a high-speed deterministic ControlNet fieldbus, enabling real-time data exchange for industrial process and machine control applications.
It supports up to 8 FLEX I/O modules per adapter, forming a compact distributed I/O station.
2. Brand Information
- Brand: Industrial Automation Control Brand
- Product Category: FLEX I/O Communication Adapter
- Technology Field: Industrial Fieldbus / ControlNet Networking
- Manufacturing Origin: United States (varies by production batch)
3. Product Series
- Series Name: FLEX I/O Series
- System Architecture: Distributed I/O platform
- Compatible Networks: ControlNet
- Installation Type: DIN rail / panel mounted modular system
The FLEX I/O system is designed for distributed control applications where remote I/O must be integrated into a centralized PLC architecture.
4. Product Introduction
The 1794-ACN serves as a ControlNet network adapter that connects FLEX I/O modules to a PLC scanner or controller over a deterministic network.
Key functions include:
- Network communication via ControlNet protocol
- Conversion of field I/O signals into network data
- Backplane power distribution for FLEX I/O modules
- Support for up to 8 I/O modules per node
It is commonly used in high-speed industrial automation systems requiring synchronized data exchange.
5. Technical Parameters
5.1 Communication Performance
| Parameter | Value |
|---|---|
| Communication Protocol | ControlNet |
| Network Speed | 5 Mbps |
| Max I/O Modules | 8 modules per adapter |
| Network Topology | Redundant or single media |
| Update Rate | Deterministic scheduled communication |
| Cable Type | RG-6 coaxial ControlNet cable |
5.2 Electrical Performance
| Parameter | Value |
|---|---|
| Input Voltage Range | 19.2–31.2V DC |
| Nominal Voltage | 24V DC |
| Backplane Output | 5V DC (FlexBus power) |
| FlexBus Output Current | 640 mA max @ 5V DC |
| Power Consumption | ~400 mA @ 24V DC |
| Power Dissipation | 4.6 W typical |
| Inrush Current | 23 A for 2 ms |
5.3 Isolation & Protection
| Parameter | Value |
|---|---|
| Isolation Voltage | 850 V DC (tested) |
| Isolation Type | Power to FlexBus / network isolation |
| Protection Class | Industrial reinforced design |
| Grounding Requirement | Protective earth required |
5.4 Physical Dimensions & Weight
| Parameter | Value |
|---|---|
| Height | 87.4 mm |
| Width | 94 mm |
| Depth | 92 mm |
| Mounting Type | DIN rail / panel mount |
| Weight | 0.20–0.29 kg (typical ~0.20 kg net, up to ~2 lb shipping variants) |
| Form Factor | Single FLEX I/O adapter module |
5.5 Environmental Conditions
| Parameter | Value |
|---|---|
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5%–95% non-condensing |
| Vibration Resistance | Industrial standard |
| Shock Resistance | Industrial standard |
6. Product Applications
The 1794-ACN is widely used in distributed control systems requiring ControlNet communication.
Typical application areas:
- Large-scale manufacturing lines
- Process automation systems
- Automotive production systems
- Conveyor and logistics systems
- Packaging machinery
- High-speed synchronized control systems
- Remote distributed I/O systems
- Machine cell automation
Functional role:
- ControlNet network interface
- Distributed I/O data aggregation
- Real-time deterministic communication
- Multi-module I/O expansion control
7. Product Advantages
7.1 Deterministic Communication
ControlNet ensures predictable and synchronized data transmission for real-time systems.
7.2 High Expansion Capability
Supports up to 8 FLEX I/O modules per adapter.
7.3 Stable Industrial Networking
Designed for noise-resistant and high-reliability industrial environments.
7.4 Flexible System Architecture
Supports both redundant and single-media network configurations.
7.5 Compact Distributed Design
Reduces cabinet wiring complexity by decentralizing I/O.
7.6 Easy Integration
Direct compatibility with FLEX I/O terminal bases simplifies system expansion.
8. Recommended Models (Same Series / Related Modules)
8.1 FLEX I/O ControlNet / Network Related Modules
| Model | Description | Key Parameters |
|---|---|---|
| 1794-ACNR | Redundant ControlNet adapter | Dual-channel redundancy support |
| 1794-AENTR | Ethernet/IP adapter module | Dual-port Ethernet communication |
| 1794-ADN | DeviceNet adapter module | 125–500 kbps fieldbus |
| 1794-ASB | Remote I/O adapter module | Legacy PLC remote I/O support |
| 1794-APB | PROFIBUS adapter module | Up to 12 Mbps communication |
9. Recommended Models (Same Brand – Popular Modules)
| Model | Type | Key Parameters |
|---|---|---|
| 1756-EN2T | Ethernet communication module | High-speed ControlLogix networking |
| 1756-IB16 | Digital input module | 16-channel 24V DC input |
| 1756-OB16E | Digital output module | Electronic sourcing outputs |
| 1769-L24ER | PLC controller | CompactLogix integrated CPU |
| 1769-PA4 | Power supply module | High-capacity AC power supply |
10. Summary
The 1794-ACN is a ControlNet-based FLEX I/O communication adapter designed for deterministic distributed control systems.
Its high-speed network capability, modular expansion support, and robust industrial design make it suitable for large-scale automation systems requiring synchronized real-time I/O communication.
