Product Overview

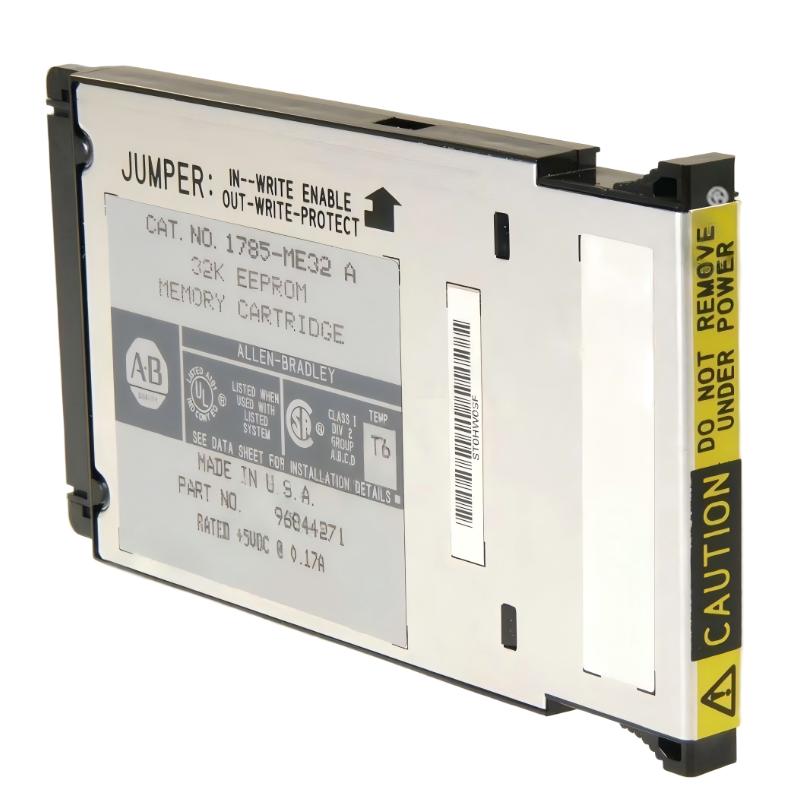

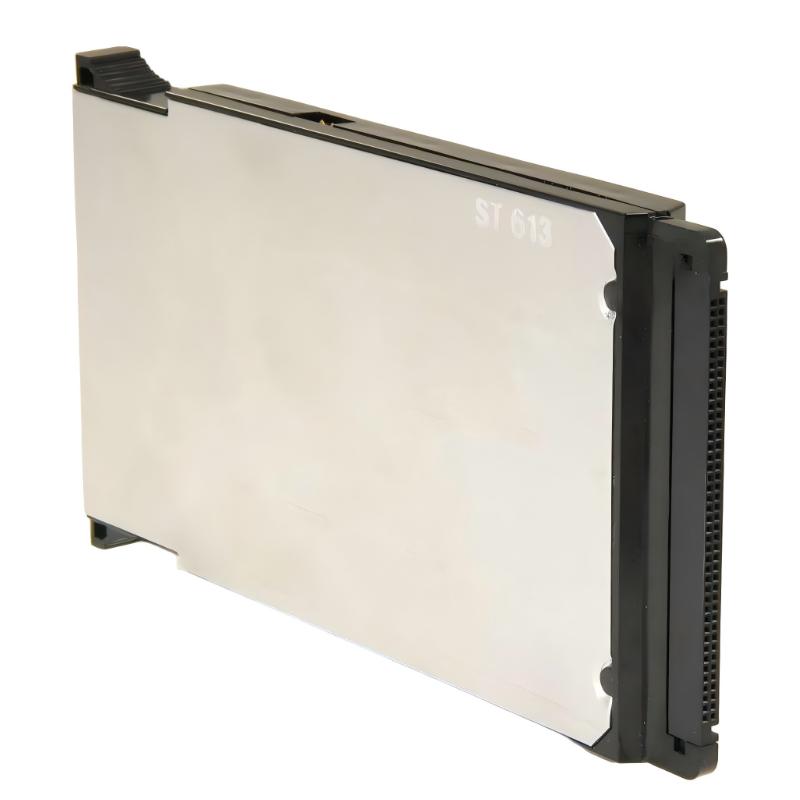

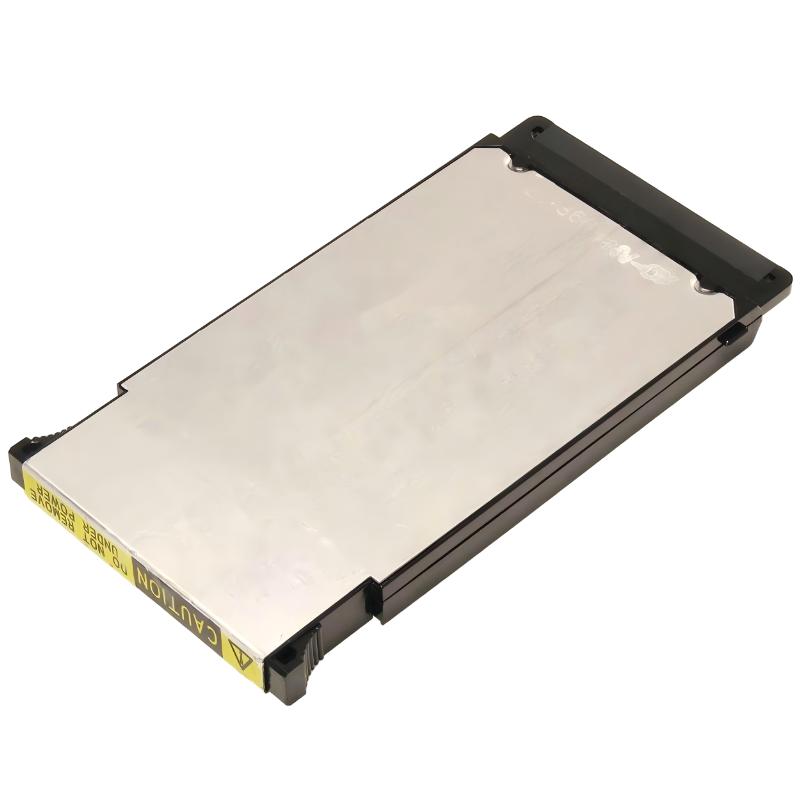

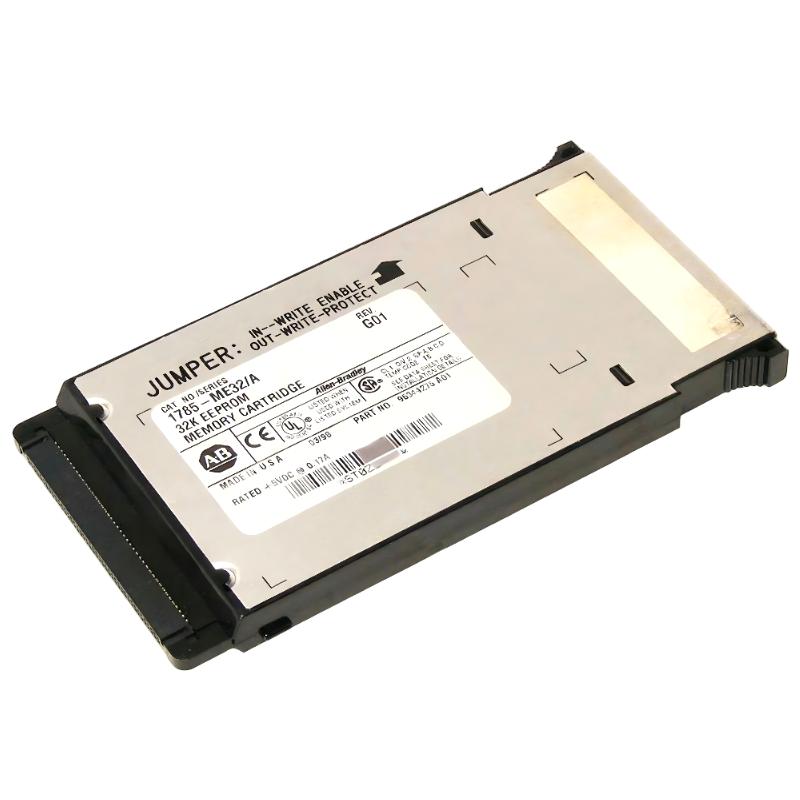

The Allen Bradley 1785-ME32/A is an EEPROM Memory Card designed for non-volatile storage of PLC-5 programs and configuration data. It is ideal for larger or more complex PLC-5 applications that require higher memory capacity than the ME16. The ME32/A card ensures data retention during power loss, supports program portability, and allows quick recovery of critical automation systems.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Allen Bradley |
| Model | 1785-ME32/A |
| Product Type | EEPROM Memory Card |
| Function | Non-volatile storage for PLC-5 programs and configuration |
| Dimensions | 110 × 20 × 80 mm |
| Weight | 0.09 kg |
| Memory Type | EEPROM (Electrically Erasable Programmable Read-Only Memory) |
| Operating Environment | Industrial automation systems |
| Compatibility | PLC-5 processors and racks supporting EEPROM cards |
Function and Working Principle
The 1785-ME32/A functions by:
- Storing larger PLC-5 programs and configuration data in non-volatile memory
- Protecting critical control programs during power interruptions
- Enabling rapid processor replacement without reloading programs
- Supporting program portability between compatible PLC-5 systems
It provides a reliable backup solution for industrial automation, ensuring data integrity and minimal downtime.
Role in Industrial Automation
The ME32/A card is crucial for:
- Maintaining critical PLC-5 programs and configurations
- Ensuring rapid system recovery after power outages or processor replacement
- Providing a portable method for program transfer between PLC-5 processors
- Supporting larger or more complex automation systems requiring higher memory capacity
Industrial Applications
Typical applications include:
- Medium to large industrial process control systems
- Production lines where uptime is critical
- Automated manufacturing, packaging, or chemical process systems
- Systems requiring frequent program updates or program portability
Installation and Usage
Installation steps:
- Insert the 1785-ME32/A card into the designated slot on a compatible PLC-5 processor or rack
- Verify the processor recognizes the card and backs up programs successfully
- Use the card for rapid system replacement or program transfer
- Periodically check the card for functionality to ensure data integrity
Its compact and lightweight design facilitates easy handling and installation.
Compatible System Components
- PLC-5 processors (supporting EEPROM memory cards)
- PLC-5 I/O racks
- Allen Bradley backup systems
- RSLogix 5 programming software
- HMIs and operator interfaces
Recommended Alternative Models
| Model | Type | Key Feature | Application |
|---|---|---|---|
| Allen Bradley 1785-ME32/A | EEPROM Memory Card | Higher capacity | Mid-to-large PLC-5 programs and configurations |
| Allen Bradley 1785-ME16 | EEPROM Memory Card | Standard capacity | Smaller PLC-5 programs and configurations |
| Allen Bradley 1785-ME8 | EEPROM Memory Card | Entry-level capacity | Minimal PLC-5 program storage |
Key Advantages
- Non-volatile storage ensures data retention during power loss
- Supports larger program sizes than ME16 and ME8
- Enables rapid system recovery and processor replacement
- Portable for program transfer between PLCs
- Compact, industrial-grade design for reliable operation
Technical FAQs
What is the main advantage over the ME16?
The ME32/A provides larger memory capacity, allowing storage of more complex or larger PLC-5 programs.
Can it be used for program transfer?
Yes, it allows safe program portability between compatible PLC-5 processors.
Is it compatible with all PLC-5 processors?
It is compatible with PLC-5 processors and racks that support EEPROM cards, especially those requiring larger memory.
What happens during a power outage?
All programs and configurations are retained, enabling the system to resume operation without data loss.
Conclusion
The Allen Bradley 1785-ME32/A EEPROM Memory Card is a high-capacity, reliable solution for PLC-5 program storage and backup. It ensures data integrity, rapid system recovery, and program portability, making it ideal for industrial applications with larger or more complex automation requirements.
