1. Product Overview

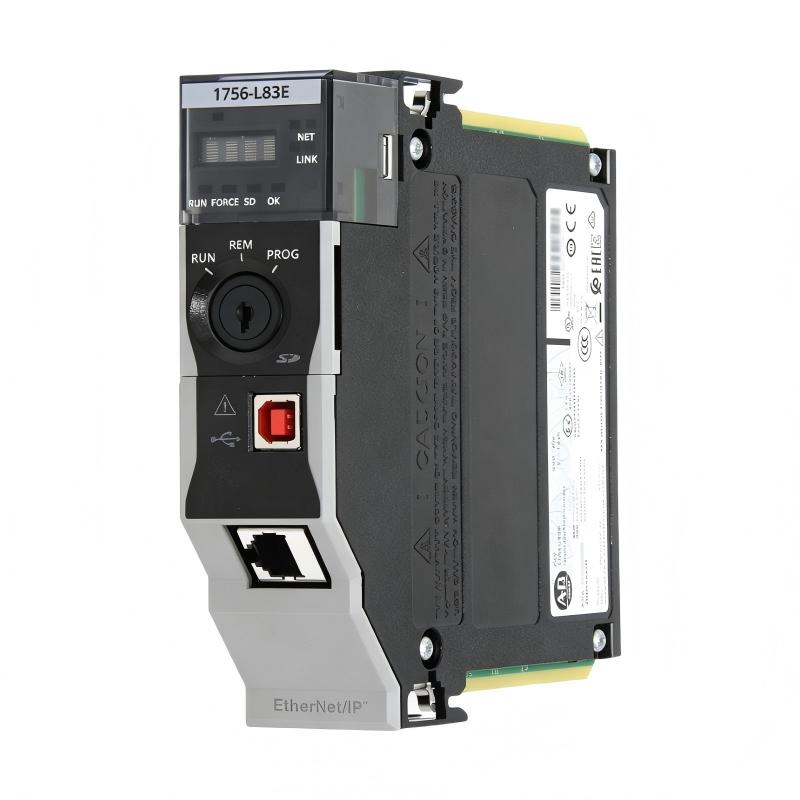

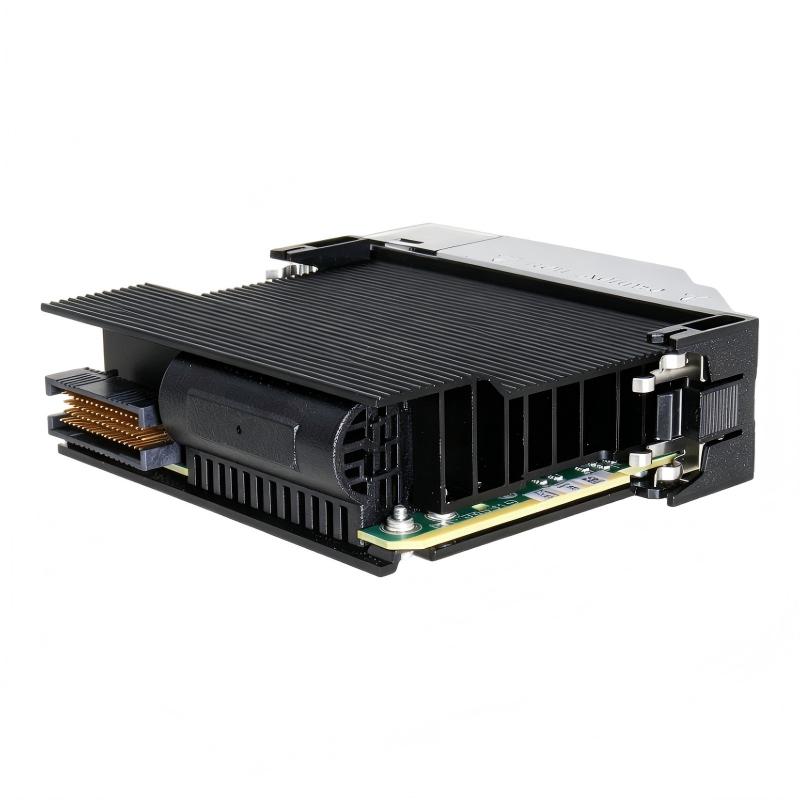

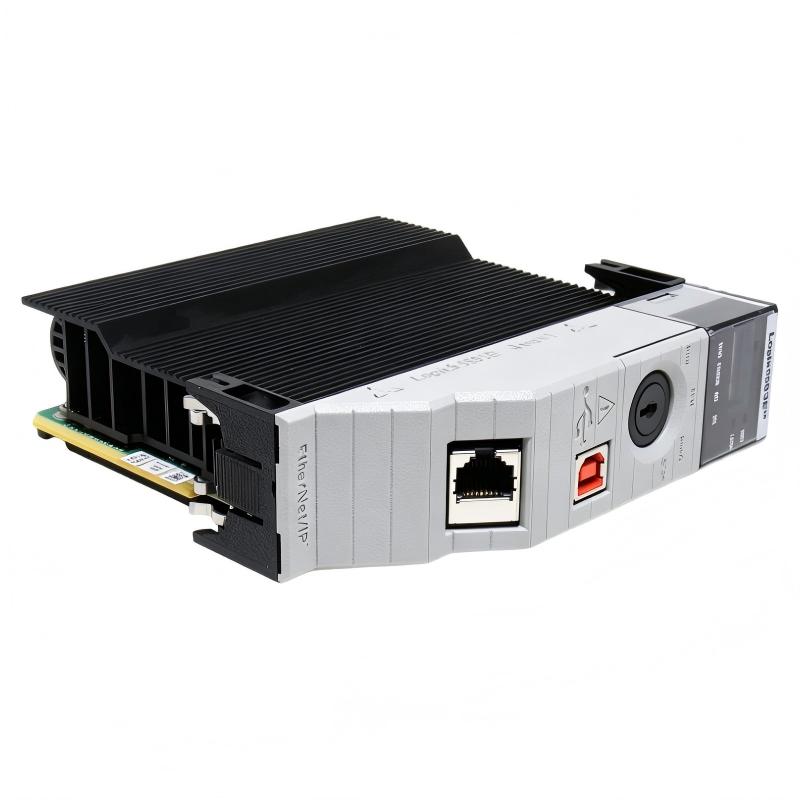

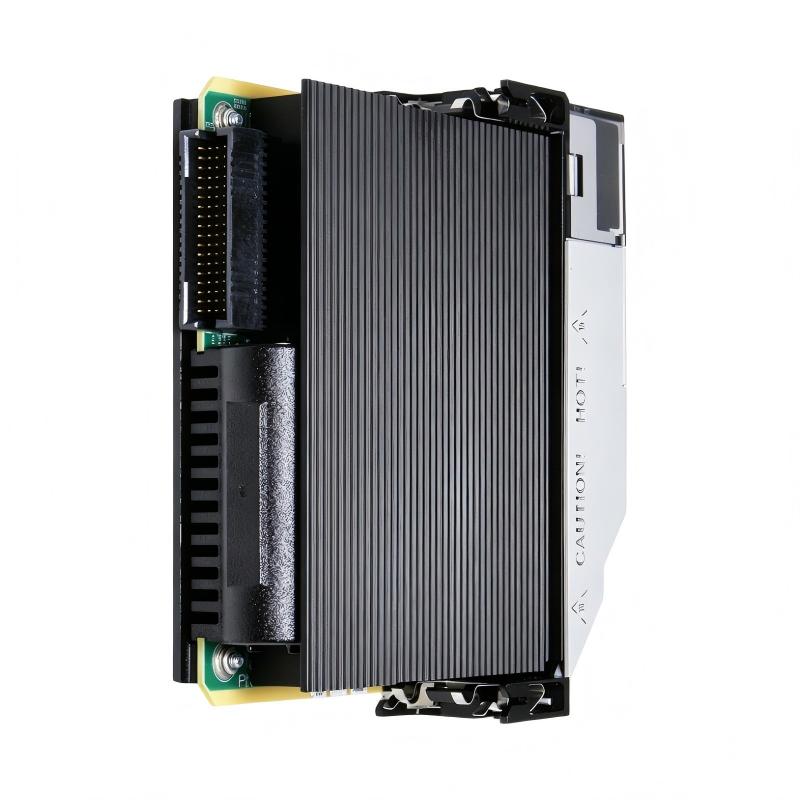

The Allen-Bradley 1756-L83E is a programmable automation controller from the ControlLogix 5580 family, designed for demanding industrial automation, machine control, process management, and distributed control applications. Manufactured by Rockwell Automation, this controller combines processing capability, integrated EtherNet/IP communication, and flexible ControlLogix chassis integration to support complex industrial control architectures.

With 10 MB of user memory, an embedded Gigabit Ethernet port, a USB programming port, and a four-character alphanumeric display, the 1756-L83E is suitable for applications that require coordinated control of multiple machines, remote I/O, industrial networks, and production processes. It can serve as the central controller in a ControlLogix automation system, executing application logic and coordinating data exchange with field devices, operator interfaces, drives, and other automation equipment.

The 1756-L83E is particularly relevant to manufacturers that need a scalable control platform for high-speed production lines, material handling systems, packaging equipment, process plants, and other integrated industrial operations. Its modular architecture allows users to select compatible chassis, power supplies, communication modules, and I/O modules according to the requirements of the application.

For maintenance teams and industrial automation equipment buyers, the 1756-L83E is also an important replacement and spare-parts model. Before purchasing a replacement controller, users should confirm the exact catalog number, hardware series, firmware revision, project compatibility, and system configuration.

2. Technical Specifications

Note: The dimensions and weight above follow the supplied product listing. Confirm the physical measurements, hardware series, and included accessories with the seller before ordering. Network capacity, motion capabilities, and I/O limits depend on the controller configuration and applicable technical specifications.

3. Main Functions and Working Principle

3.1 Programmable Logic and Sequence Control

The 1756-L83E executes control programs to coordinate equipment operations according to configured logic, operating conditions, and process requirements. Programs can manage machine sequences, interlocks, timers, counters, data calculations, alarms, and communication with other automation devices.

In a production line, for example, the controller can receive sensor signals indicating that a workpiece has arrived at a station, verify that the machine is ready, activate the appropriate output commands, and monitor feedback to determine whether the operation has completed successfully.

This centralized logic helps coordinate multiple production stages and supports consistent, repeatable machine operation.

3.2 High-Speed Industrial Ethernet Communication

The controller features an embedded Gigabit Ethernet port supporting EtherNet/IP communication. This allows it to exchange control and diagnostic data with compatible remote I/O adapters, drives, operator interfaces, industrial computers, and other networked devices.

Integrated Ethernet can reduce the need for a separate communication module for applications that use the controller’s built-in port. It also supports the development of connected automation systems in which equipment status, production information, and diagnostic data are available to authorized devices on the industrial network.

Network design remains important. Engineers should verify the required node count, traffic loading, topology, switch capabilities, and communication requirements before commissioning the system.

3.3 Application Memory and Program Execution

The 1756-L83E provides 10 MB of user memory for controller application data and programs. This capacity supports applications that involve multiple routines, equipment sequences, data handling, and communication with distributed devices.

Actual memory consumption depends on the complexity of the control program, tag structures, data logging requirements, and other application features. Engineers should review controller memory usage during development and commissioning, particularly when expanding an existing system or integrating additional machines.

3.4 Diagnostics and Local Status Information

The four-character alphanumeric display provides local information useful for equipment commissioning, maintenance, and troubleshooting. Combined with controller status indicators and programming software, it helps technicians identify operating conditions and investigate certain controller or system faults.

Local diagnostics are particularly valuable in industrial cabinets where immediate access to a programming workstation may not be available. However, the display should be used alongside the applicable controller documentation and software diagnostics rather than as the sole source of fault identification.

3.5 Motion and Coordinated Equipment Control

The ControlLogix 5580 platform supports integrated motion control over EtherNet/IP with compatible drives and system components. The 1756-L83E can be used in applications requiring coordinated motion, synchronized machine functions, and communication between motion devices and general-purpose control logic.

Actual motion functionality depends on the selected drives, network design, firmware, software version, and motion configuration. Users should validate the required axis count and motion features before selecting a controller for a new installation.

4. Role in a ControlLogix Automation System

The 1756-L83E acts as the central processing component of a compatible ControlLogix system. It executes the control application and coordinates communication among connected modules and devices.

A typical system may include the following components:

• ControlLogix chassis: Provides the physical mounting platform and backplane connections for the controller and compatible modules.
• ControlLogix power supply: Supplies the required power to the chassis and installed modules.
• Digital input modules: Receive signals from push buttons, limit switches, proximity sensors, and other discrete field devices.
• Digital output modules: Control compatible relays, solenoids, indicators, and other discrete output devices.
• Analog input modules: Acquire process measurements such as temperature, pressure, flow, or level through compatible instrumentation.
• Analog output modules: Provide control signals to compatible valves, actuators, and process equipment.
• EtherNet/IP communication devices: Connect remote I/O, drives, HMIs, and other supported network devices.
• Human-machine interfaces: Display machine status, process values, alarms, and operator commands.
• Engineering workstation: Supports project development, controller configuration, diagnostics, and maintenance.

The controller’s role is to process the application logic and coordinate these components according to the configured control strategy. The exact system architecture depends on the application, network requirements, and installed hardware.

5. Industrial Applications

5.1 Manufacturing and Assembly Lines

In manufacturing environments, the 1756-L83E can coordinate conveyor sections, assembly stations, sensors, actuators, and machine interlocks. It can manage production sequences and exchange operating data with HMI terminals and supervisory systems.

This architecture is useful where several machines must operate as part of a coordinated production process.

5.2 Packaging and Material Handling

Packaging lines often require coordinated control of conveyors, filling stations, inspection devices, labeling equipment, and product transfer mechanisms. A ControlLogix 5580 controller can execute the sequence logic and exchange data with compatible drives and distributed I/O devices.

Material handling applications may also use the controller to coordinate transfer stations, sorting equipment, automated machinery, and production status signals.

5.3 Process Automation

The 1756-L83E can support process control applications that combine analog measurements, discrete equipment control, alarms, and communication with supervisory systems.

Examples include water treatment equipment, chemical production support systems, utilities, and industrial process skids. The controller and associated I/O must be selected according to the process variables, environmental conditions, and required control performance.

5.4 Automotive and Machine Building

Automotive production and machine-building applications frequently require coordinated operation among multiple equipment stations. The 1756-L83E can provide centralized sequence control and communication with compatible drives, sensors, safety-related equipment, and operator interfaces.

Where safety functions are required, the system must use appropriately rated safety controllers and devices. A standard 1756-L83E should not be treated as a substitute for a certified safety controller.

5.5 Energy and Infrastructure Equipment

Industrial utilities and infrastructure systems may use ControlLogix controllers to coordinate pumps, fans, auxiliary machinery, monitoring devices, and related process equipment.

The controller’s suitability depends on the application’s required availability, environmental conditions, control functions, and integration requirements. Critical applications should include a documented maintenance and recovery strategy.

6. Installation and System Integration

6.1 Verify Chassis and Power Requirements

The 1756-L83E is designed for use in a compatible ControlLogix chassis. Before installation, confirm that the chassis, power supply, slot arrangement, and installed modules are compatible with the controller and the intended application.

The controller’s own power consumption should not be confused with the total power requirements of the chassis. The power supply must be selected according to the combined current requirements of all installed modules.

6.2 Check Firmware and Engineering Software

The controller project must be compatible with the installed firmware and the selected version of Studio 5000 Logix Designer. Before downloading a project, verify the controller catalog number, hardware series, firmware revision, and project configuration.

When replacing an existing controller, retain a verified backup of the original application and document any required firmware or software changes. Do not assume that a project developed for another ControlLogix model can be transferred without validation.

6.3 Configure EtherNet/IP Communication

Set up the controller’s Ethernet communication parameters according to the plant’s network design. Verify the IP address, subnet configuration, device addresses, and communication paths used by the application.

For systems with multiple controllers, remote I/O racks, drives, and operator interfaces, document the network topology and check for address conflicts before commissioning. Appropriate industrial Ethernet switches and network segmentation practices can help improve reliability and simplify troubleshooting.

6.4 Test I/O and Equipment Sequences

After installation, verify the operation of connected input and output modules. Confirm that field signals correspond to the expected controller tags and that output commands operate the correct equipment.

Test interlocks, alarms, operating modes, communications, and recovery procedures under controlled conditions before returning the equipment to normal production.

6.5 Maintain Application Backups

Keep current backups of the controller project, firmware information, network configuration, and relevant system documentation. A reliable backup helps reduce downtime when a controller needs to be replaced or a project must be restored.

Maintenance personnel should also record any program changes, hardware replacements, and commissioning adjustments.

7. Compatible System Components

The following table identifies typical component categories that may be used with the 1756-L83E. Compatibility must be confirmed against the actual system configuration.

This is a general integration guide rather than a guarantee that every listed device will work in every configuration. Verify catalog numbers, firmware revisions, network requirements, and software compatibility before purchasing or installing components.

8. Alternative Models and Replacement Considerations

The following ControlLogix 5580 models are useful starting points when evaluating controller capacity. They are not automatically interchangeable with the 1756-L83E.

When choosing an alternative, compare more than memory capacity. Important considerations include supported network nodes, motion requirements, I/O architecture, firmware, programming software, and the requirements of the existing controller project.

For a direct replacement, the safest approach is to confirm the complete catalog number and hardware series and then review the manufacturer’s compatibility information. A controller with a similar model number may have different features or configuration requirements.

9. Key Advantages of the 1756-L83E

Integrated Gigabit Ethernet

The embedded Gigabit Ethernet port supports communication with compatible EtherNet/IP devices and can simplify system design where an additional Ethernet module is not required.

10 MB User Memory

The controller provides memory for substantial application logic, equipment sequences, and control data. Actual capacity requirements should be checked against the application project.

Modular ControlLogix Architecture

The controller can be installed in a compatible chassis alongside selected I/O and communication modules. This modular approach allows the automation system to be tailored to its application.

Local Status Display

The four-character alphanumeric display provides useful local information during commissioning and troubleshooting.

Support for Complex Automation

The ControlLogix 5580 platform supports coordinated control, distributed I/O, networked devices, and compatible integrated motion applications.

Maintenance and Spare-Part Planning

A clearly identified catalog number helps maintenance teams source the correct controller and prepare for equipment repair. Firmware and project compatibility should always be checked before a replacement is commissioned.

10. Frequently Asked Questions

Q1: What is the Allen-Bradley 1756-L83E?

The 1756-L83E is a ControlLogix 5580 programmable automation controller manufactured by Rockwell Automation. It is designed for industrial control applications that require programmable logic, Ethernet communication, and integration with compatible ControlLogix hardware.

Q2: How much user memory does the 1756-L83E have?

The controller provides 10 MB of user memory. The amount of memory consumed depends on the application program, data structures, and configured functions.

Q3: Does the 1756-L83E have built-in Ethernet?

Yes. It includes an embedded Gigabit Ethernet port that supports EtherNet/IP communication with compatible industrial devices.

Q4: Which software is used to program the controller?

The controller is programmed and configured using Studio 5000 Logix Designer. The specific software version must support the controller’s hardware and firmware revision.

Q5: Can the 1756-L83E control remote I/O?

Yes. It can communicate with compatible remote I/O systems over a properly configured EtherNet/IP network. The required adapters, I/O modules, network topology, and firmware compatibility must be verified.

Q6: Is the 1756-L83E suitable for motion control?

The ControlLogix 5580 platform supports integrated motion control with compatible devices and configurations. Confirm the required motion functions, drive compatibility, software version, and axis requirements for the intended application.

Q7: Can the 1756-L83E be replaced by a 1756-L84E or 1756-L85E?

Not automatically. Although these models belong to the same controller family, their memory capacities and other specifications differ. Review the controller project, firmware, supported features, and system configuration before making a substitution.

Q8: What should be checked when buying a replacement 1756-L83E?

Confirm the complete catalog number, hardware series, product condition, firmware compatibility, and included accessories. If the controller will be used in an existing installation, check that the saved application project and connected hardware are compatible.

Q9: What are the dimensions and weight of this product?

The supplied product listing specifies 145.2 × 34.6 × 139.6 mm and 0.48 kg. Confirm the actual measurements and shipping weight with the supplier, particularly when packaging or mounting clearances are important.

Q10: Is the 1756-L83E still an active product?

The manufacturer’s product listing currently identifies the standard 1756-L83E as active. Product lifecycle status can change, so buyers should reconfirm availability when planning a new installation or long-term spare-parts strategy.

11. Purchasing and Maintenance Recommendations

When sourcing an Allen-Bradley 1756-L83E, buyers should provide the complete model number and describe whether the unit is intended for a new project, an expansion, or replacement of an existing controller.

For replacement applications, it is helpful to compare the product label with the existing equipment record and verify the controller’s firmware and hardware series. If the original controller is still accessible, create and validate an application backup before carrying out replacement work.

Industrial automation equipment suppliers should also clarify the condition of the unit, warranty terms, inspection status, packaging, and included accessories. Where a controller has been stored for a long period or comes from a decommissioned installation, appropriate inspection and compatibility checks should be completed before it is introduced into a production system.

Maintenance teams should maintain updated controller backups, firmware records, network diagrams, and spare-parts inventories. These practices can help reduce troubleshooting time and improve recovery after equipment failure.

12. Conclusion

The Allen-Bradley 1756-L83E ControlLogix 5580 Controller is a high-capability programmable automation controller designed for complex industrial control applications. Its 10 MB user memory, integrated Gigabit Ethernet, USB programming port, and compatibility with the modular ControlLogix architecture make it suitable for a wide range of manufacturing, machine control, process automation, and material handling systems.

For equipment buyers and maintenance engineers, selecting the correct 1756-L83E requires careful verification of the catalog number, hardware series, firmware, application project, and related ControlLogix components. By checking these details before installation or replacement, users can improve system compatibility and reduce avoidable commissioning problems.

The 1756-L83E remains a relevant model for industrial automation projects that require centralized logic execution and communication with compatible EtherNet/IP devices. Accurate product identification and a clear understanding of system requirements are essential for reliable procurement and long-term maintenance.
