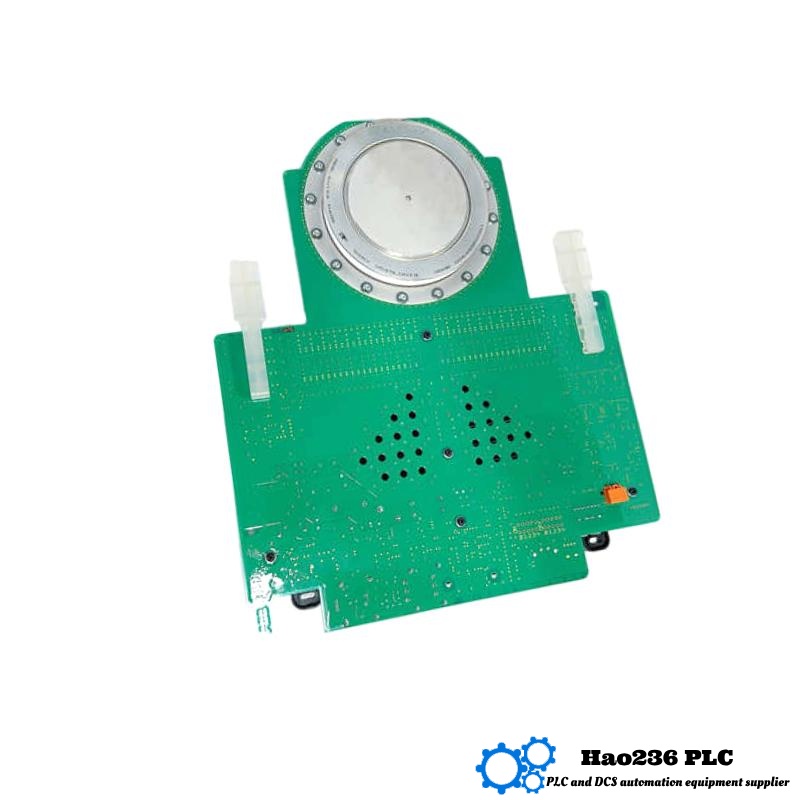

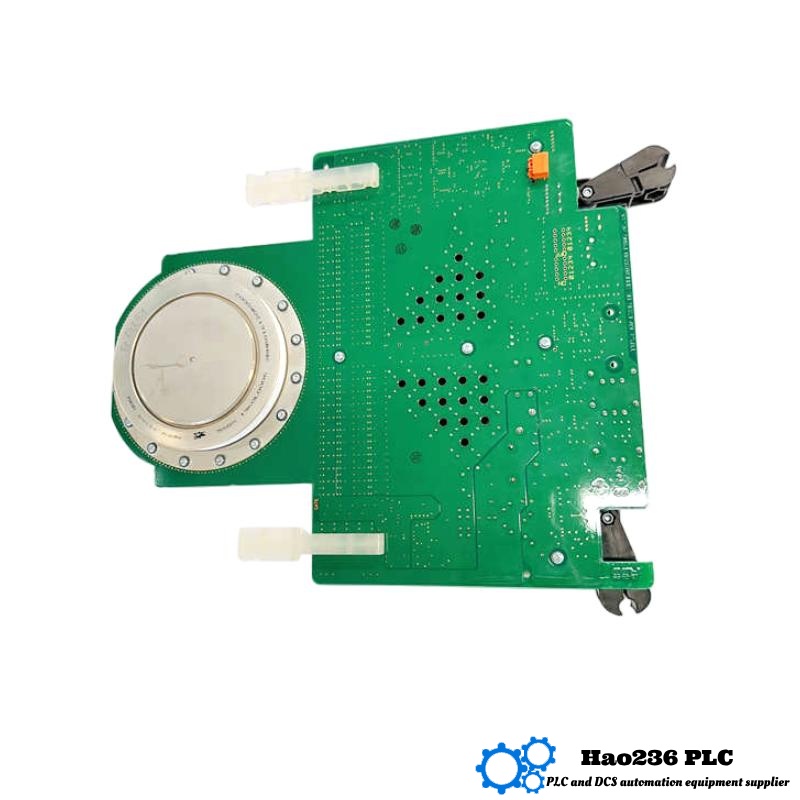

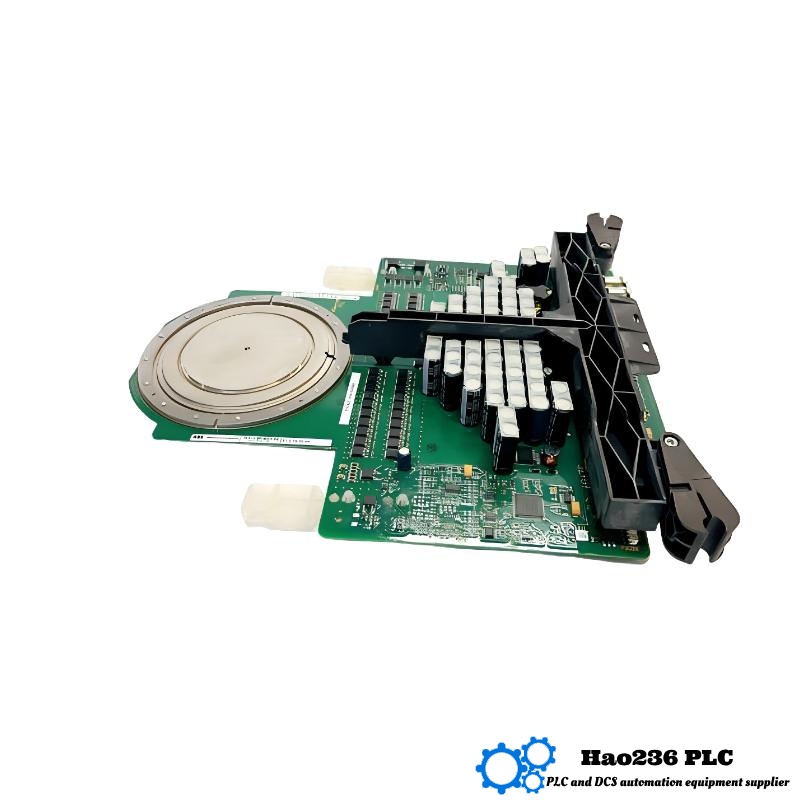

ABB GV C736 CE101 3BHE039203R0101 5SXE12-0184 IGCT (Integrated Gate Commutated Thyristor Module)
Product Overview
The ABB GV C736 CE101 3BHE039203R0101 5SXE12-0184 is a high-performance Integrated Gate Commutated Thyristor (IGCT) module designed for use in demanding power conversion applications. It is part of ABB’s Controlled Silicon Thyristor (CST) series, which is known for offering superior switching characteristics and reliability in high-voltage and high-current systems. This IGCT module is designed for a range of applications where energy efficiency, fast switching, and high power density are essential.
The module features an efficient gate control system that allows for precise power handling in various industrial and energy applications, including motor drives, renewable energy systems, and electrical grids. The GV C736 CE101 module is optimized for high-frequency switching, providing minimal energy loss and optimal performance in converting power.
Product Applications
The GV C736 CE101 IGCT module is primarily used in high-power systems where precise switching and high voltage handling are critical:
-
Industrial Motor Drives: Used for controlling the speed of motors in industrial automation systems, offering precise energy management.
-
Power Inverters: Ideal for high-frequency power inverters in industries like telecommunications and power generation.
-
Renewable Energy Systems: Used in wind and solar energy systems for efficient power conversion and optimal grid integration.
-
High Power Converters: Applied in large-scale electrical grids and transmission systems, where high-voltage power conversion is required.
-
Traction Systems: Suitable for use in electric vehicle systems and railways, managing the high-power flow efficiently.
Product Advantages
-
Superior Switching Speed: The GV C736 CE101 provides fast switching characteristics, which reduces power losses during operation and increases overall system efficiency.
-
High Voltage and Current Capacity: It can handle voltages up to 3.6 kV and currents of up to 1.5 kA, making it suitable for high-power applications.
-
Energy Efficiency: The IGCT module reduces switching losses significantly, enhancing the energy efficiency of systems using this technology.
-
Compact and Robust Design: Its compact size (150 x 140 x 40 mm) and robust design make it easy to integrate into existing systems while ensuring reliable performance under extreme conditions.
-
Wide Operating Temperature Range: Designed to operate efficiently in a wide temperature range from -40°C to +125°C, making it suitable for diverse industrial environments.
Brand
ABB is a global leader in electrification and automation, specializing in energy-efficient technologies and systems. With a strong reputation for high-performance products, ABB provides innovative solutions across various industries, including power generation, automation, and industrial control systems.
Product Specifications
| Parameter | Value |
|---|---|
| Model | 3BHE039203R0101 5SXE12-0184 GV C736 CE101 |
| Dimensions | 150 x 140 x 40 mm |
| Weight | 0.5 kg |
| Voltage Rating | 3.6 kV |
| Current Rating | 1.5 kA |
| Switching Frequency | 25 kHz |
| Material | Silicon, Metal oxide |
| Package Type | Module |
| Operating Temperature | -40°C to +125°C |
Related Models in the Controlled Silicon Thyristor Series
| Model | Dimensions | Weight | Voltage Rating | Current Rating | Switching Frequency |
|---|---|---|---|---|---|
| GVC737CE101 | 150 x 140 x 40 mm | 0.5 kg | 3.6 kV | 1.5 kA | 25 kHz |
| GVC736CE102 | 150 x 140 x 40 mm | 0.5 kg | 3.6 kV | 1.5 kA | 25 kHz |
| GVC739CE101 | 150 x 140 x 40 mm | 0.5 kg | 3.6 kV | 2.0 kA | 30 kHz |
| GVC736CE104 | 150 x 140 x 40 mm | 0.5 kg | 4.0 kV | 2.5 kA | 30 kHz |
| GVC738CE101 | 150 x 140 x 40 mm | 0.5 kg | 3.6 kV | 1.5 kA | 25 kHz |
Other Popular ABB Models
| Model | Dimensions | Weight | Voltage Rating | Current Rating | Switching Frequency |
|---|---|---|---|---|---|
| GVC734CE101 | 150 x 140 x 40 mm | 0.5 kg | 3.6 kV | 1.5 kA | 25 kHz |
| GVC736CE100 | 150 x 140 x 40 mm | 0.5 kg | 3.6 kV | 1.5 kA | 25 kHz |
| GVC737CE102 | 150 x 140 x 40 mm | 0.5 kg | 3.6 kV | 2.0 kA | 25 kHz |
| GVC735CE101 | 150 x 140 x 40 mm | 0.5 kg | 3.6 kV | 1.5 kA | 25 kHz |
| GVC739CE102 | 150 x 140 x 40 mm | 0.5 kg | 4.0 kV | 2.5 kA | 30 kHz |
FAQs
Q1: What is the primary application of the GV C736 CE101 IGCT?
A1: The GV C736 CE101 IGCT module is primarily used in high-power applications, including industrial motor drives, renewable energy systems, high-frequency inverters, and electric traction systems.
Q2: What is the voltage rating of the GV C736 CE101?
A2: The GV C736 CE101 has a voltage rating of 3.6 kV.
Q3: How does the GV C736 CE101 improve system efficiency?
A3: The GV C736 CE101 offers fast switching performance, which reduces energy losses and improves overall system efficiency in high-power conversion applications.
Q4: What is the current rating of the GV C736 CE101?
A4: The GV C736 CE101 has a current rating of 1.5 kA.
Q5: Can the GV C736 CE101 be used in high-voltage industrial applications?
A5: Yes, the GV C736 CE101 is designed for high-voltage environments and can handle up to 3.6 kV.
Q6: What is the switching frequency of the GV C736 CE101?
A6: The switching frequency of the GV C736 CE101 is 25 kHz.
Q7: What is the maximum operating temperature for the GV C736 CE101?
A7: The GV C736 CE101 can operate in temperatures ranging from -40°C to +125°C.
Q8: Is the GV C736 CE101 compatible with ABB’s other power modules?
A8: Yes, the GV C736 CE101 is designed to be compatible with other ABB power modules in the Controlled Silicon Thyristor (CST) series.
Q9: What is the weight of the GV C736 CE101?
A9: The GV C736 CE101 weighs 0.5 kg.
Q10: Is the GV C736 CE101 used in renewable energy systems?
A10: Yes, the GV C736 CE101 is commonly used in renewable energy systems such as solar and wind power for efficient energy conversion.
